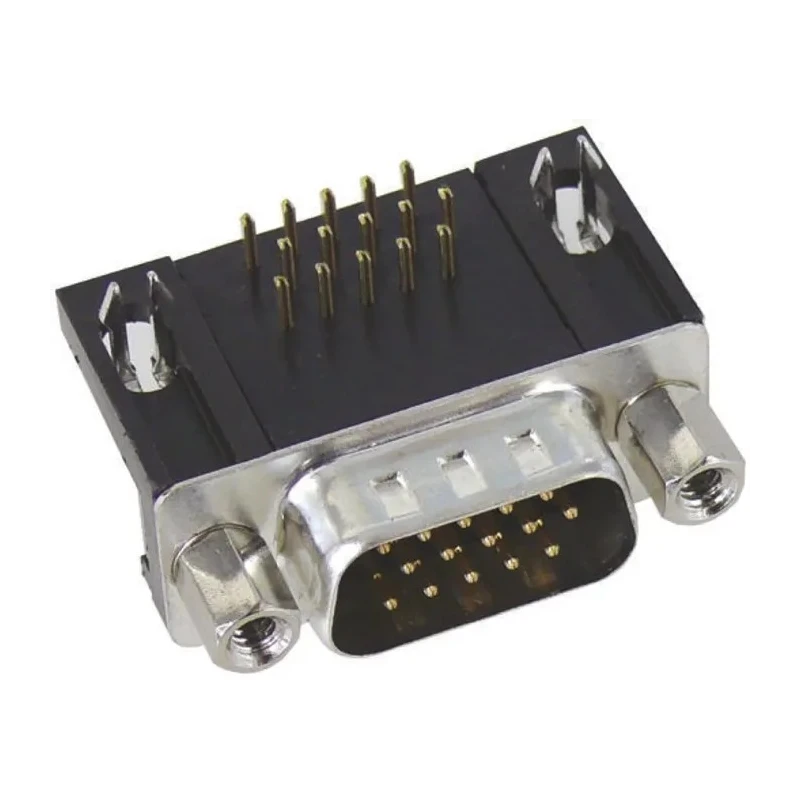

HARTING 15 Way Right Angle 2.29 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Male 09561627813
Specifications
| Country of Origin | China |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- Features 15 contacts supporting up to 2 amperes of current.
- Right angle orientation optimizes PCB layout and connection angles.
- Constructed with a robust steel housing ensuring durability.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Includes a 4 to 40 UNC screw lock for secure mechanical connection.
- Operates reliably across a temperature range from -55°C to 105°C.
- This male connector employs stamped solder pins for efficient PCB soldering.
- High-density design increases contact capacity by 70% compared to standard D connectors.
Product Description
HARTING 09561627813 is a 15 Way Right Angle D-Sub Connector designed for electronic devices requiring precise, high-density connections. It features a 2.29 mm pitch and a through hole mounting type for reliable PCB integration. The connector is built with a steel housing to ensure mechanical strength and durability in demanding environments.
The male connector includes gold-plated copper alloy contacts that enhance signal integrity and resist corrosion. Its stamped solder pins simplify soldering processes during assembly. The device is rated for a current of up to 2A and capable of stable operation from -55°C to 105°C, making it suitable for a wide range of industrial and electronic applications.
The integrated 4 to 40 UNC screw lock mechanism ensures secure fastening, preventing accidental disconnections in machinery or high-vibration setups. This right-angle connector's high-density configuration boosts contact capacity by around 70% over traditional subminiature D connectors.
Features 15 contacts supporting up to 2 amperes of current. Right angle orientation optimizes PCB layout and connection angles. Constructed with a robust steel housing ensuring durability. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Includes a 4 to 40 UNC screw lock for secure mechanical connection. Operates reliably across a temperature range from -55°C to 105°C. This male connector employs stamped solder pins for efficient PCB soldering. High-density design increases contact capacity by 70% compared to standard D connectors.
Ideal for use in industrial control systems, laboratory instrumentation, manufacturing equipment, and electronic assemblies.
HARTING connectors are known for precision engineering and reliable performance in harsh industrial or laboratory conditions. Browse more HARTING connectors and related electronic components at EnvMart to find solutions tailored for your project needs.
