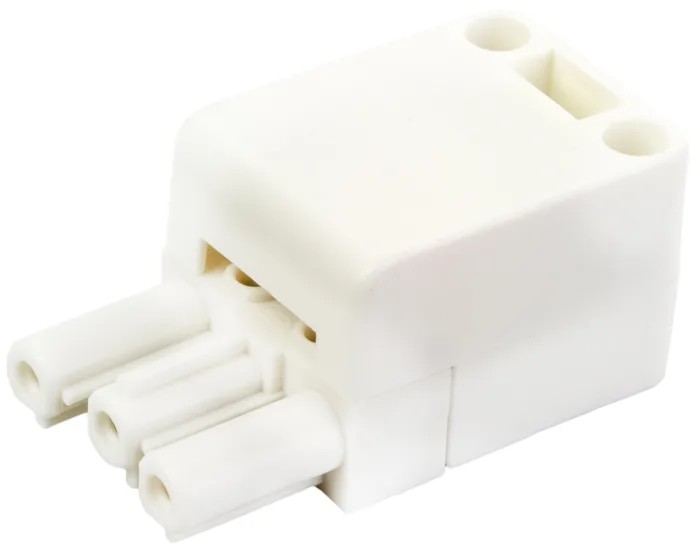

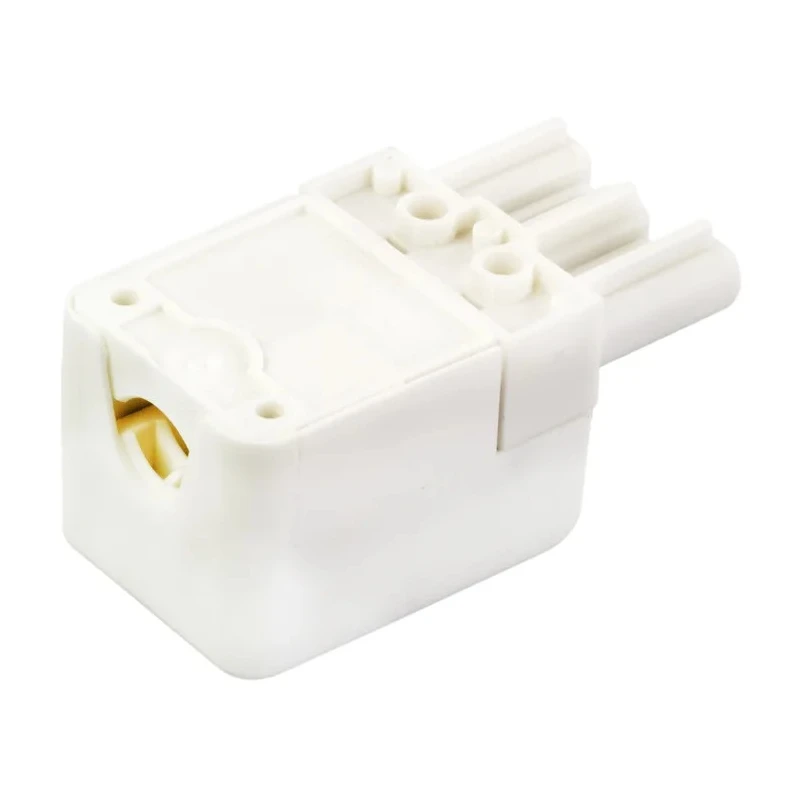

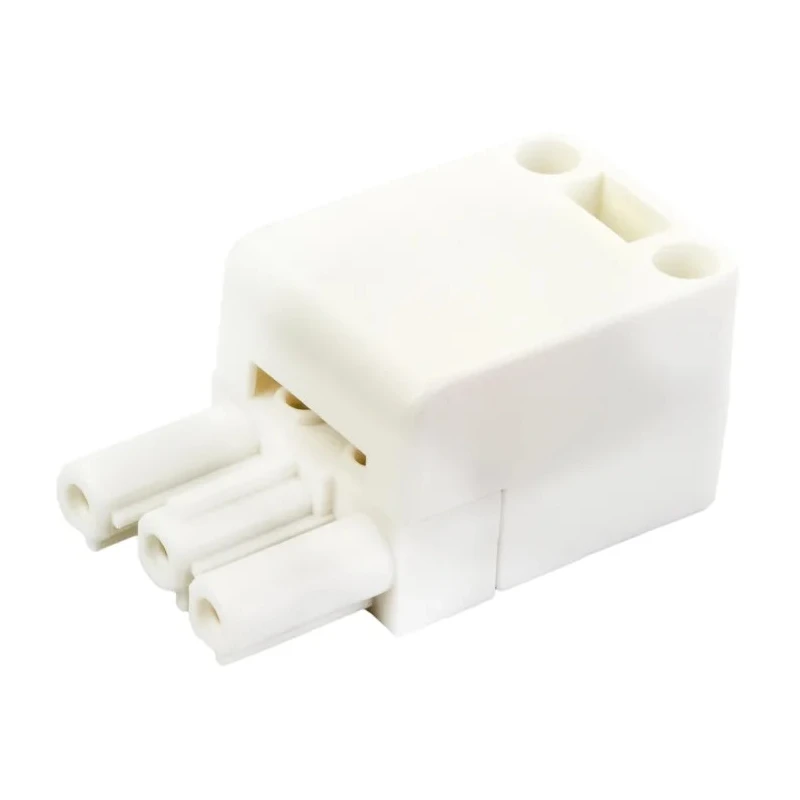

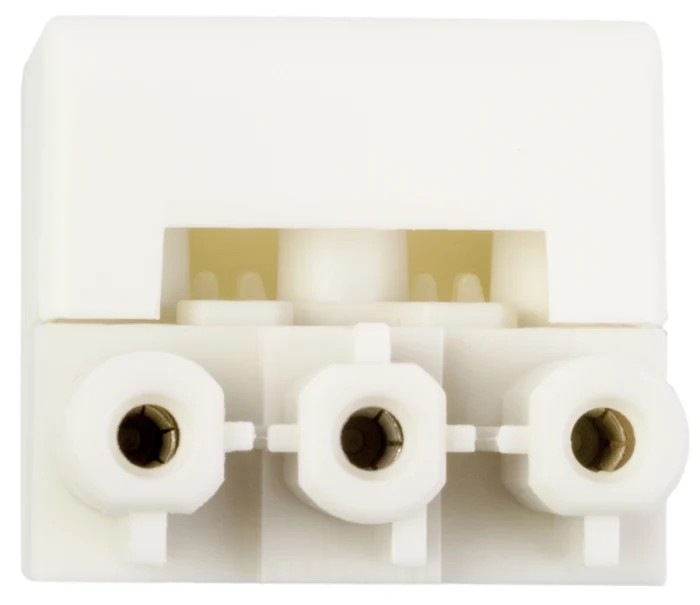

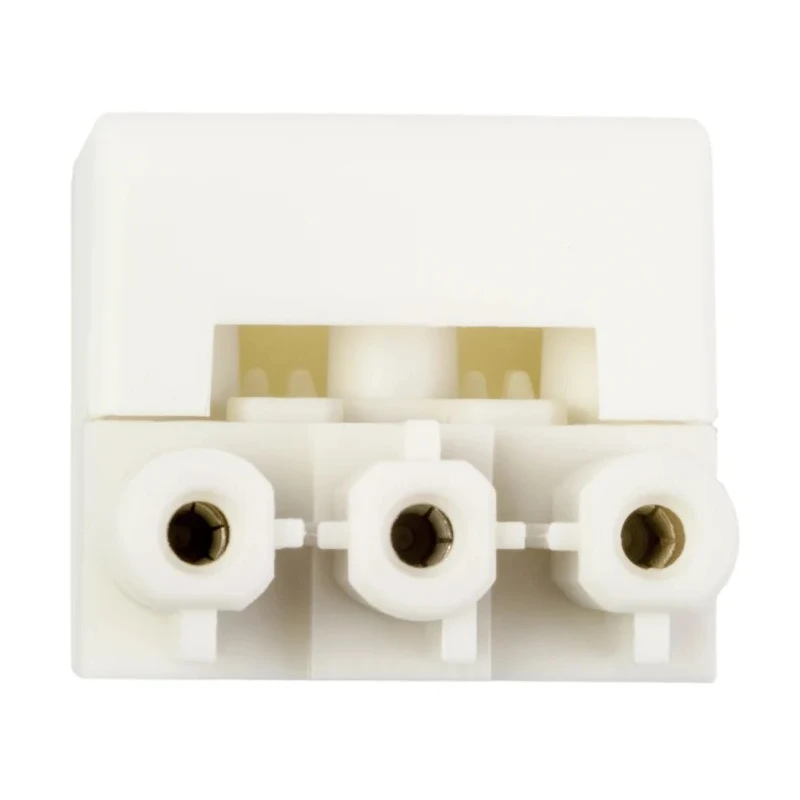

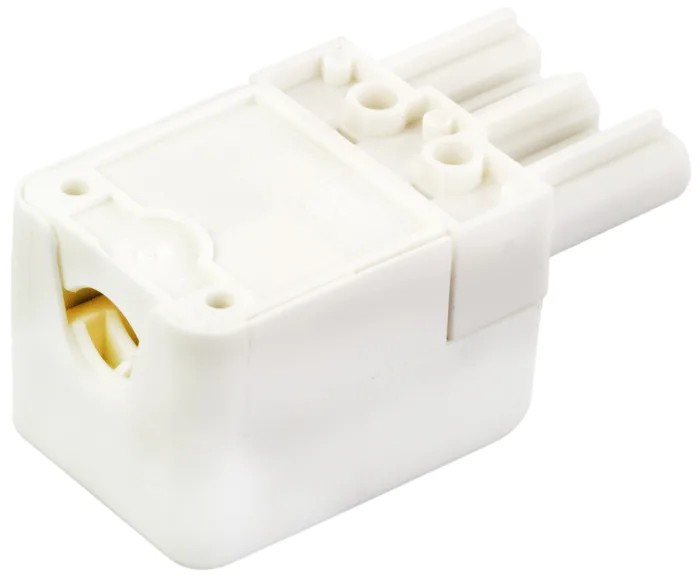

Wieland GST18 Series Connector Female Screw 3-Pole 16A 250V 3-Way IP20 IP40 GST18
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Wieland |
| Colour | White |
| Model | GST18 |
| IP Rating | IP20, IP40 |
| Number Of Ways | 3 |
| Contact Material | Brass |
| Termination Type | Screw |
| Sub Type | Connector |
| Wire size | 1.5, 2.5mm² |
| Standards/Approvals | RoHS |
| Pole Format | 3 |
| Contact Plating | Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Lighting Connector Current | 16A |
| Wieland GST18 Series Cable, Cable Connector Female Screw, 3-Pole, 16A, IP20Brand | Wieland |
Key Features
- Supports wire sizes from 0.5 to 2.5 mm² for flexible connectivity.
- Features brass tin-plated contacts with nickel plating for enhanced conductivity and corrosion resistance.
- Strain relief includes a top cover ensuring secure cable connection.
- Mechanical and colour coding prevents mismating for safe separation of applications.
- Designed with IP20 touch-safe and optional IP40 ratings for protection against solids and liquids.
- Operates safely up to 100°C maximum temperature.
- Offers connection cycle durability between 50 to 100 cycles at 16A resistive load.
- Complies with DIN VDE 0628, EN/IEC 61535 standards and UL 1977 approvals.
Product Description
Wieland GST18 Series Connector Female Screw 3-Pole 16A 250V 3-Way, IP20 and IP40 rated, is engineered for reliable and safe connections in lighting systems and factory-assembled equipment. The device supports a top cover strain relief mechanism that ensures cable stability. Its mechanical and colour coding features eliminate mismating errors effectively.
The connector uses brass contacts with tin plating and an additional nickel plating for durability and optimized electrical performance. Rated for a working temperature of up to 100°C, it delivers consistent performance across industrial lighting, construction sites, and control panel applications.
Designed to suit wire sizes from 0.5 to 2.5 mm², the GST18 connector supports connection cycles between 50 and 100 at a 16A resistive load. It has a touch-safe IP20 rating, with optional IP40 protection, ensuring safety from ingress of solids and liquids in challenging environments.
Certified to comply with stringent standards including DIN VDE 0628 and EN/IEC 61535, and UL 1977, this connector is ideal for use in data, signal, control, and power applications. It is well-suited for lighting installations, factory equipment wiring, exhibition stands, and construction site electrical setups.
Supports wire sizes from 0.5 to 2.5 mm² for flexible connectivity. Features brass tin-plated contacts with nickel plating for enhanced conductivity and corrosion resistance. Strain relief includes a top cover ensuring secure cable connection.
Mechanical and colour coding prevents mismating for safe separation of applications. Designed with IP20 touch-safe and optional IP40 ratings for protection against solids and liquids. Operates safely up to 100°C maximum temperature.
Offers connection cycle durability between 50 to 100 cycles at 16A resistive load. Complies with DIN VDE 0628, EN/IEC 61535 standards and UL 1977 approvals. Suitable for lighting, construction sites, data, signal, control, power applications, and exhibition stand wiring.
Explore more industrial Connectors and lighting system components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a maximum voltage rating of 250V.
It is rated for a current of 16A.
This model supports wire sizes from 0.5 to 2.5 mm².
The connector is designed with a touch-safe IP20 rating and has an optional IP40 rating for additional protection against solids and liquids.
The contacts are made of brass with tin plating and an additional nickel plating for enhanced conductivity and corrosion resistance.
This connector features a 3-pole configuration.
It operates safely at a maximum temperature of 100°C.
It complies with DIN VDE 0628, EN/IEC 61535 standards, and is UL 1977 approved.
The termination type for this connector is screw.
The connector is available in white.
It offers connection cycle durability between 50 to 100 cycles at a 16A resistive load.
This connector is suitable for lighting installations, factory equipment wiring, data, signal, control, and power applications.
