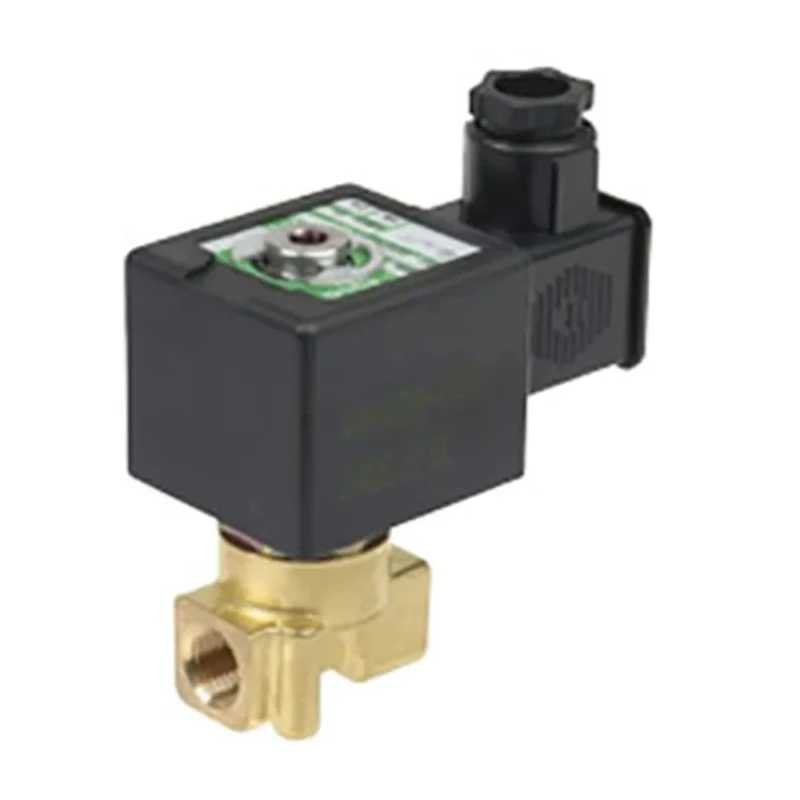

EMERSON ? ASCO Solenoid Valve 2 Port NC 24V DC Threaded 1/4 in Inlet/Outlet Orifice 2.4mm SCG202A052V.24/DC
Specifications
| Country of Origin | France |
|---|---|
| Brand | EMERSON ? ASCO |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Outlet Connection Type | Threaded |
| Model | SCG202A052V.24/DC |
| Series | 202 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 2.4mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 1/4 in |
| Default Valve Position | NC |
| Flow Factor Kv | 0.12m³/h |
| Allowable fluids | air, inert gas, water, oil |
| EMERSON ? ASCO Solenoid Valve SCG256B404VMS.AC/DC, 2 port(s) , G1/4Brand | EMERSON - ASCO |
Key Features
- Direct operated 2/2 solenoid valve with proportional flow control.
- Compact brass body suitable for gas and fluid handling.
- Operates at maximum pressure of 16 bar and temperature range from -10°C to 90°C.
- Orifice diameter of 2.4 mm allowing flow factor Kv 0.12 m³/h.
- Can be installed in any position with two mounting holes on body.
- Compatible with air, inert gas, water, and oil fluids.
- Standards ISO 4400 and EN 175301-803 form A compliant.
Product Description
EMERSON ASCO SCG202A052V.24/DC solenoid valve is a 2 port, normally closed (NC), direct operated valve designed for precise control of fluid and gas flow in industrial applications. It operates at 24 volts DC with 1/4 inch threaded inlet and outlet ports and features a brass body for durability and corrosion resistance. The valve is compact and can be mounted in any orientation, with two mounting holes on the body for secure installation.
This valve can handle a maximum operating pressure of 16 bar, withstanding temperatures from -10 degrees Celsius up to 90 degrees Celsius, making it suitable for a wide range of HVAC, manufacturing, pneumatic, and fluid power systems. The orifice diameter measures 2.4 millimeters, providing a flow factor Kv of 0.12 cubic meters per hour for efficient flow management.
It utilizes a proportional solenoid operation where the flow varies according to the control signal without requiring minimum pressure, enhancing control precision. The valve is compatible with allowable fluids such as air, inert gases, water, and oil, offering versatile applicability in various industrial and laboratory environments.
Compliance with international standards ISO 4400 and EN 175301-803 form A ensures quality and safety in demanding applications. The valve body and design support schematic circuit functions, allowing alternative circuit functions when referenced properly.
Direct operated 2/2 proportional solenoid valve ensuring precise control. Compact brass body with threaded inlet and outlet connections. Maximum pressure rating of 16 bar and temperature tolerance between -10°C and 90°C.
Orifice diameter of 2.4 mm with flow factor Kv 0.12 m³/h. Versatile installation options with two mounting holes and any position mounting capability. Compatible with air, inert gases, water, and oil for diverse fluid handling.
Standards ISO 4400 and EN 175301-803 form A compliance for safety and reliability.
This EMERSON ASCO solenoid valve 2-port NC model SCG202A052V.24/DC is ideal for use in industrial automation, pneumatic controls, HVAC systems, water treatment plants, and manufacturing equipment. For additional products within the Solenoid Valve category, please explore the EnvMart catalogue under Industrial Valves & Valve Fittings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
This solenoid valve operates within a temperature range of -10°C to 90°C.
The orifice diameter is 2.4 mm, with a flow factor Kv of 0.12 m³/h.
It is compatible with air, inert gases, water, and oil.
The supply voltage required for this model is 24V DC.
This valve can be installed in any position and features two mounting holes on the body for secure installation.
The body material of this solenoid valve is brass.
The default valve position is normally closed (NC).
The valve complies with ISO 4400 and EN 175301-803 form A standards.
The inlet and outlet connections are both threaded and sized at 1/4 inch.
This solenoid valve belongs to the 202 series.
The proportional solenoid operation allows the flow to vary according to the control signal without requiring minimum pressure, enhancing control precision.
