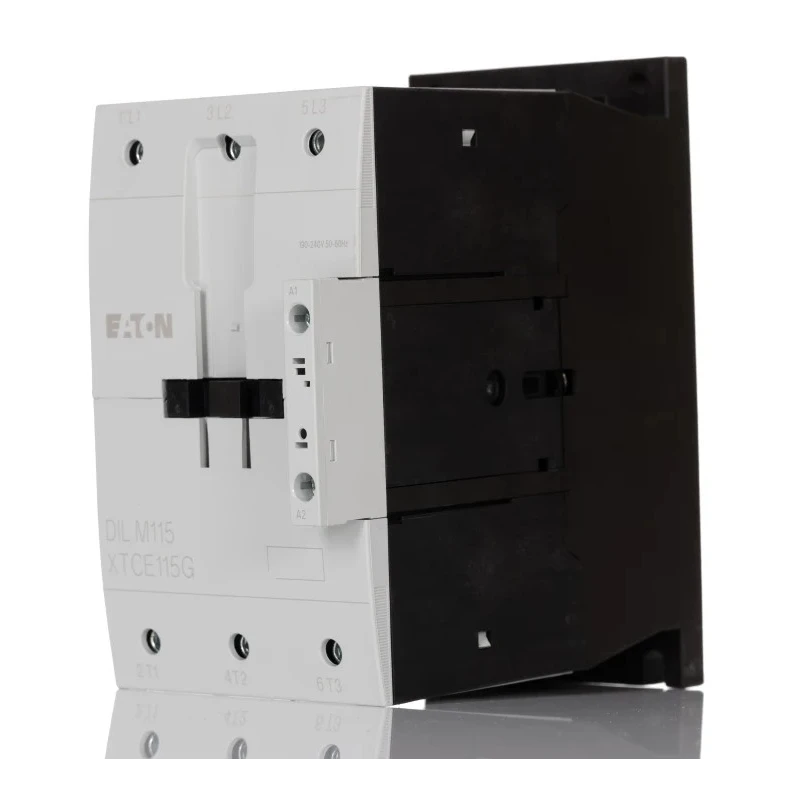

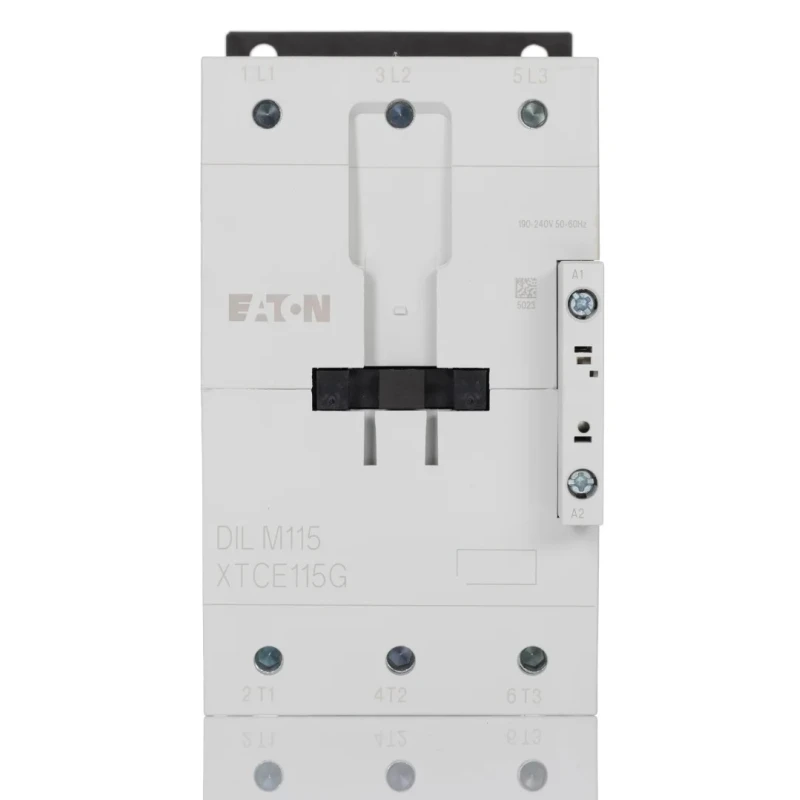

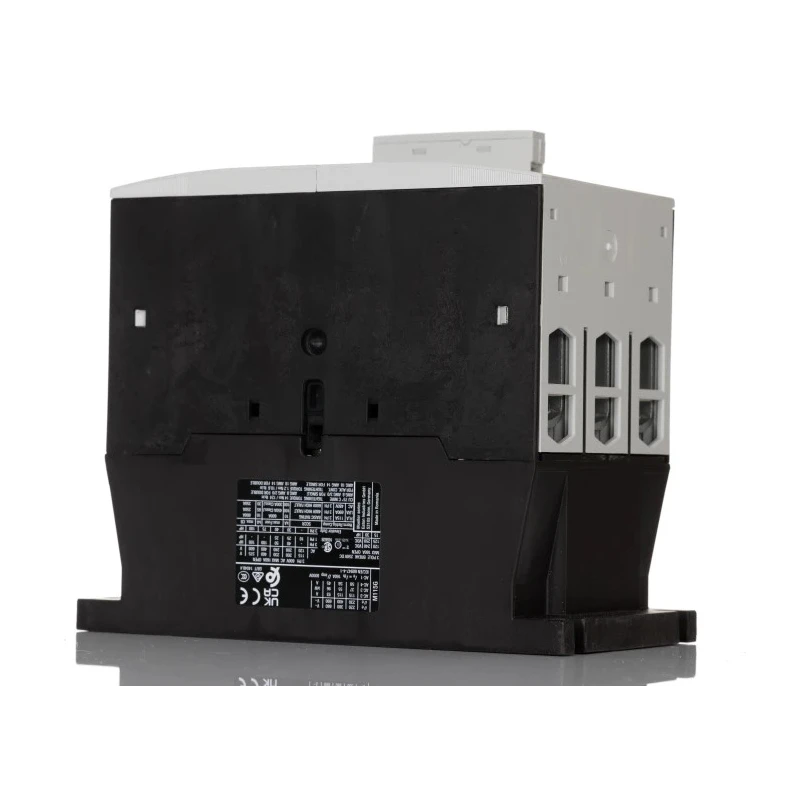

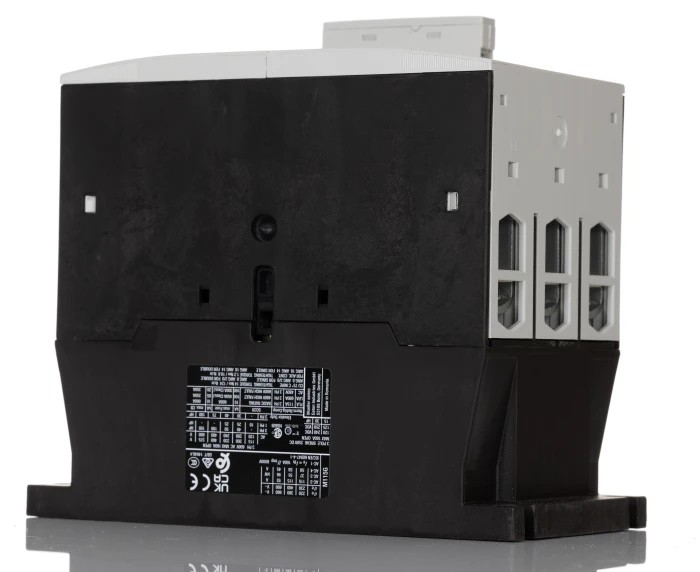

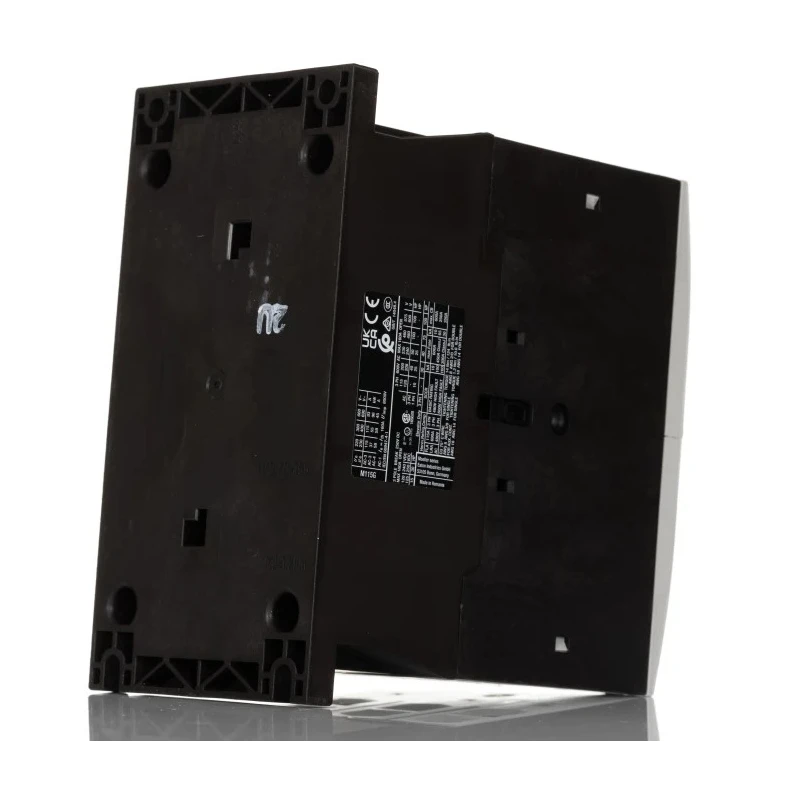

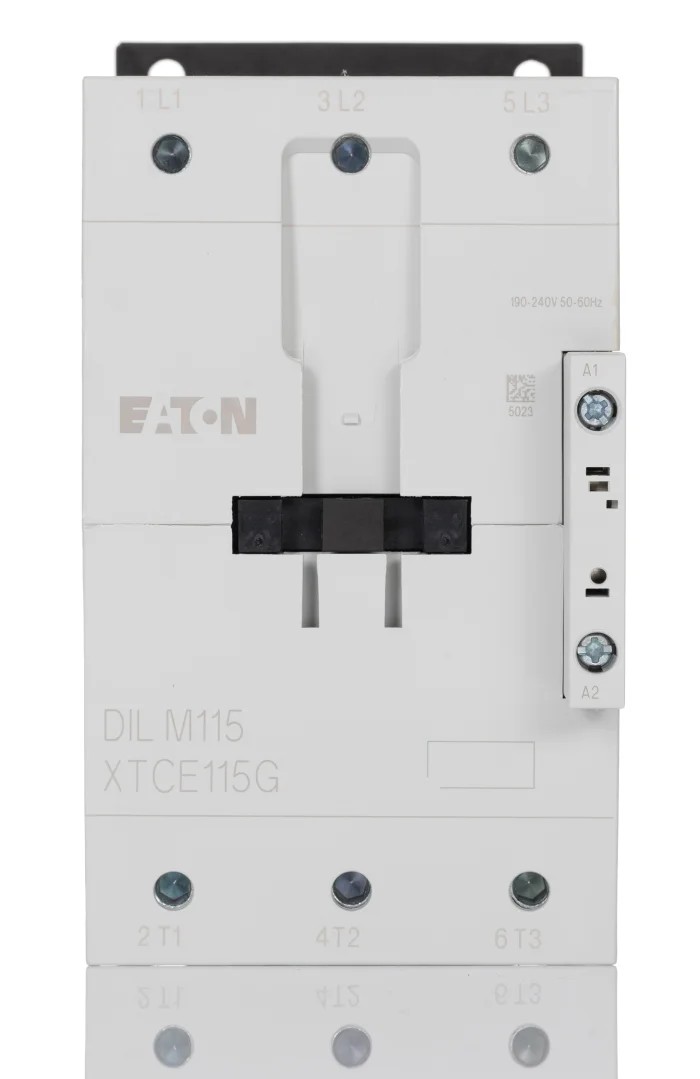

Eaton Contactor DILM Series, 3-Pole, 115 A, 55 kW, Coil Voltage 190-240 V AC, Contact Voltage 690 V 239548 DILM115(RAC240)

The Eaton 239548 DILM115(RAC240) contactor is a high-performance electrical component designed specifically for motor control and reversing functions in industrial automation systems. Featuring a 3-pole configuration with a contact current rating of 115A and a power rating of 55 kW, this contactor handles high-load motor applications with precision and safety.

Its coil voltage ranges between 190 to 240 V AC, making it compatible with various control circuits, while the contact voltage is rated at 690 V AC to accommodate heavy industrial electrical loads. The robust screw clamp terminal type ensures secure wiring and durability during installation without the need for specialized tools.

Designed with mechanical longevity in mind, the Eaton DILM series contactor offers a mechanical lifespan of up to 10 million switching cycles, providing reliable performance over extended operational periods. The contactor operates effectively within a minimum temperature of -25°C and a maximum of 40°C, suitable for both indoor industrial environments and harsher conditions.

Compact dimensions of 175 mm length, 111 mm width, and 170 mm depth enable it to fit into constrained electrical enclosures. The device is certified under multiple industry standards including CSA, VDE 0660, IEC/EN 60947, and UL, assuring compliance and safety in global industrial applications.

The 3 NO (Normally Open) contact configuration and absence of auxiliary contacts (0 NO/0 NC) tailor this contactor for straightforward motor control tasks. Its compatibility with resistive and inductive loads, classified under AC-1, NAC-3, and AC-4 utilisation categories, makes it versatile for a wide range of manufacturing, HVAC, water treatment, and agricultural systems.

Mounting is convenient via a table mount type and DIN rail snap-on design for quick assembly and maintenance. This Eaton contactor is ideal for heavy industrial setups requiring dependable switching capabilities, operational efficiency, and adherence to international safety standards.

Features screw clamp terminals for secure and easy installation. Supports operational currents of up to 115A for heavy-duty use. Power rating of 55 kW suitable for high-load industrial motors. Supports resistive and inductive loads including AC-1, NAC-3, and AC-4 categories.

Mechanical lifespan of 10 million switching cycles for durable operation. Compact design with dimensions 175 mm length, 111 mm width and 170 mm depth. Operates reliably in temperatures from -25°C up to 40°C for demanding environments.

Certified under CSA, VDE 0660, IEC/EN 60947, and UL standards. Easy mounting with DIN rail snap-on mechanism and table mount type. Auxiliary contact configuration: 0 NO/ 0 NC. Explore our comprehensive range of industrial contactors and automation components to ensure optimal system performance and safety standards.
