Hirst Magnetics GM07 Battery Operated Gaussmeter 15 Hz to 10000 Hz GM07

Free Delivery in India | Lowest Global Shipping Charges

Hirst Magnetics GM07 Battery Operated Gaussmeter 15 Hz to 10000 Hz GM07

Name: Hirst Magnetics GM07 Battery Operated Gaussmeter 15 Hz to 10000 Hz GM07
Brand: Hirst Magnetics
SKU: 342835
Price: 1831.08 USD
Availability: InStock



Category Gaussmeters Brand Hirst Magnetics Condition New

Specifications

Country of Origin	United Kingdom
Accuracy	±1 %
Brand	Hirst Magnetics
Battery Life	15h
Battery type	AA
Height	40mm
Length	175mm
Model	GM07
Width	89mm
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Interfaces	USB and RS232 connections allow control from PC and easy upload of data
Detector Weight	430g
Interface Type	RS232
Maximum Frequency	10000Hz
Minimum Frequency	15Hz
Minimum Magnetic Measurement	0mT
Operating Units	Amps M, Gauss, Oersteds, Tesla
GM04 handheld magnetic field gaussmeterBrand	Hirst Magnetics
Chauvin Arnoux P01167501 Gaussmeter 30 Hz, 300 HzBrand	Chauvin Arnoux
Hirst Magnetics GM08 Gaussmeter Battery 15 Hz, 10000 HzBrand	Hirst Magnetics

Key Features

Operates with AA batteries providing 15 hours of continuous use.
Measures magnetic flux density and field strength in Amps/meter, Gauss, Oersteds, and Tesla.
Features RS232 and USB interfaces for PC connectivity and data upload.
Robust design suitable for factory floors, onsite, and laboratory applications.
Accuracy is ±1% at 20°C with a measurement range starting from 0 mT.

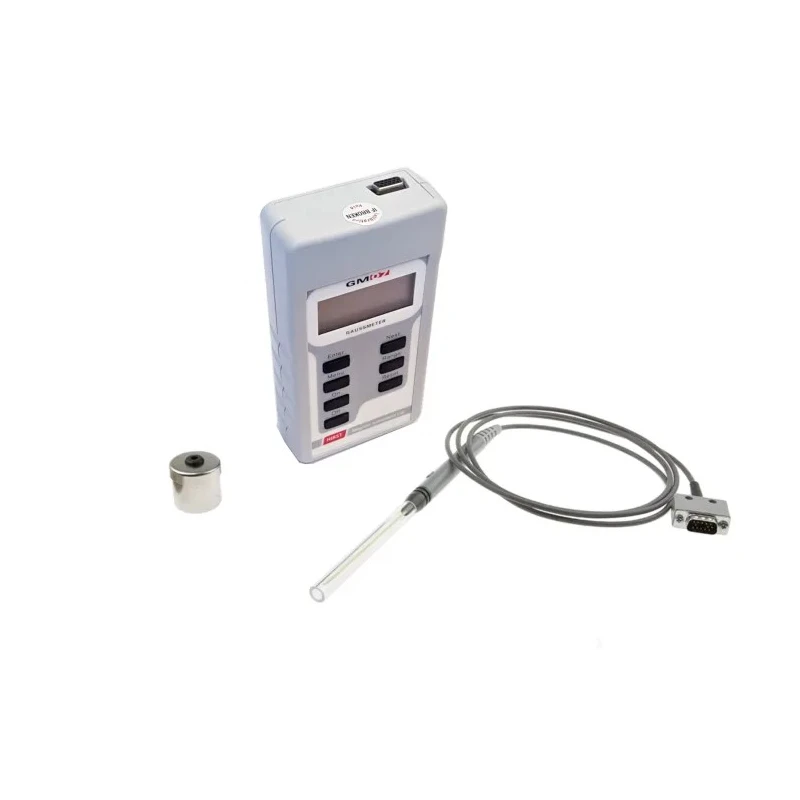

Includes transverse and axial probe compatibility for versatile measurements.
Operates within a temperature range of 0°C to 50°C.
Compact size with dimensions 175mm (L) x 89mm (W) x 40mm (H) and lightweight at 430g.

Product Description

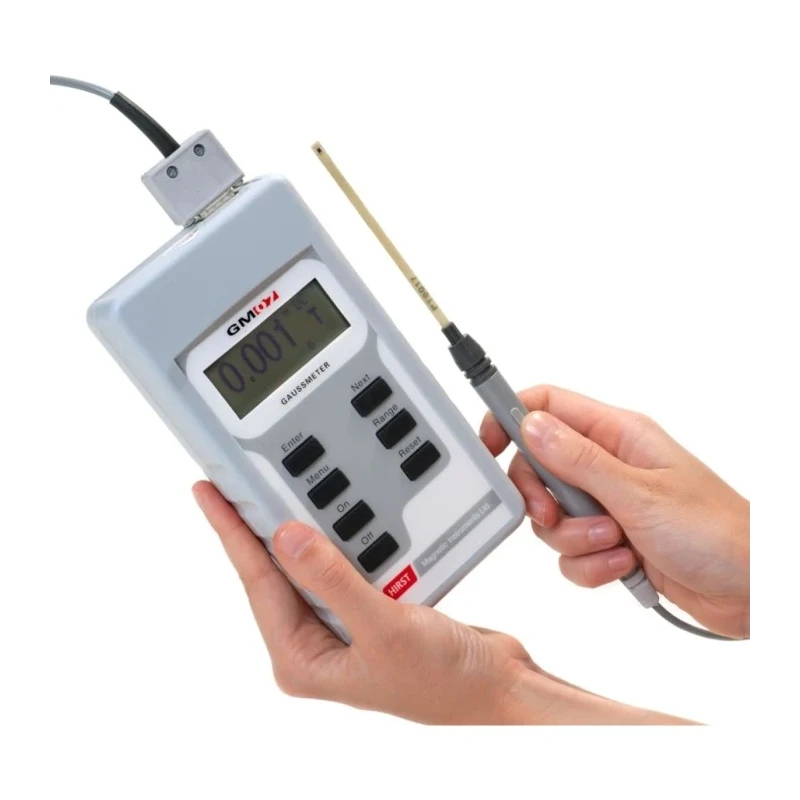

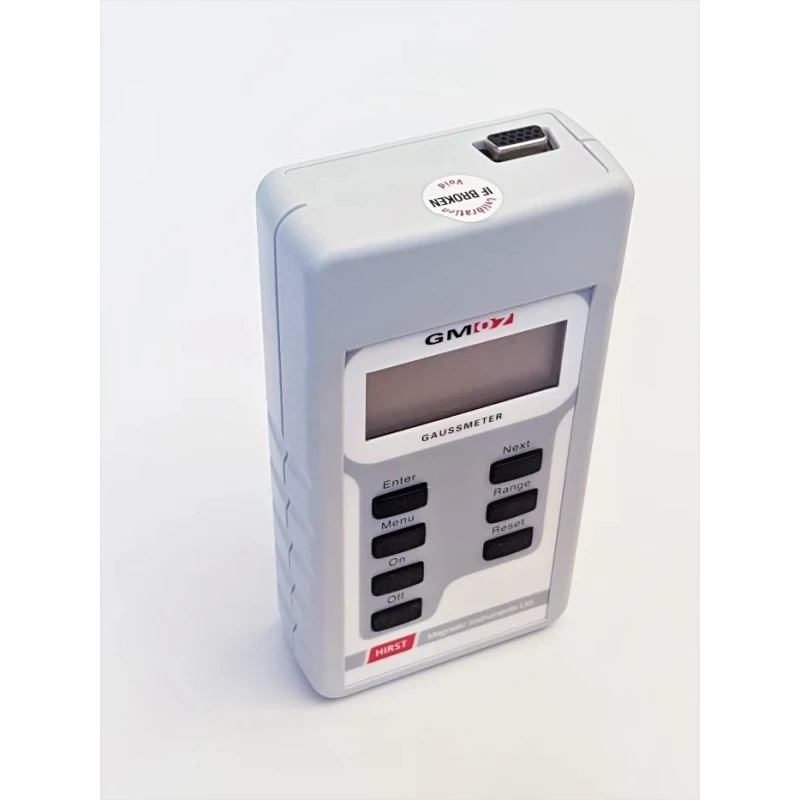

Hirst Magnetics GM07 battery operated gaussmeter provides precise measurement of DC, AC, and peak magnetic fields across a frequency range of 15 Hz to 10,000 Hz. Featuring a microprocessor-controlled, menu-driven interface and graphical monochrome LCD display, the instrument allows easy selection of operating units including Amps/meter, Gauss, Oersteds, and Tesla.

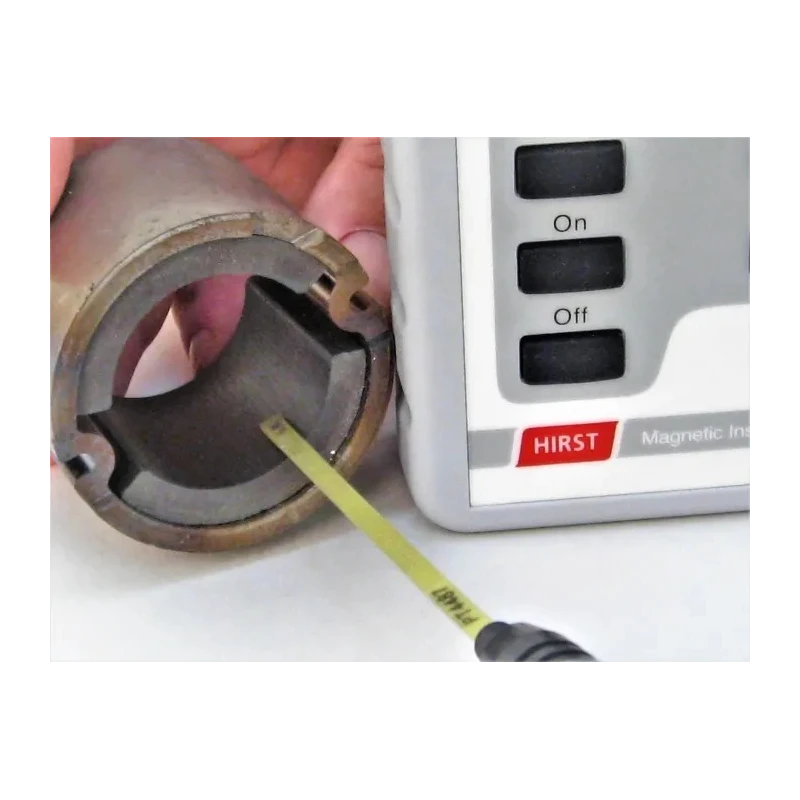

The device is compatible with both transverse and axial probes, enabling accurate measurement of magnetic flux density in diverse industrial and laboratory environments. The transverse probe is ideal for measuring air gaps between magnetic poles, with the sensor on the horizontal axis, while the axial probe measures fields at the probe's flat end.

Designed for durability and usability, the GM07 operates on AA batteries with 15 hours of life and supports RS232 and USB connections for data transfer and PC control. It has an operating temperature range of 0°C to 50°C and weighs only 430 grams, making it portable for on-site measurements.

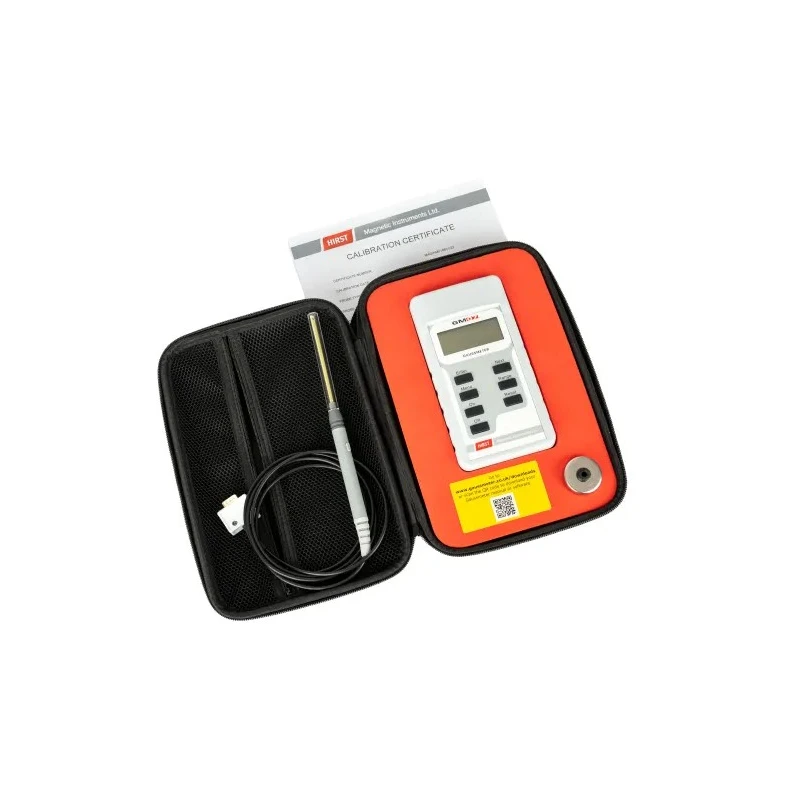

The gaussmeter's ±1% accuracy at 20°C and measurement capability starting from 0 mT enable reliable testing for quality control, research, and environmental measurements. The unit includes a calibration certificate to ensure compliance to standards.

Operates on AA batteries with 15h battery life. Measures DC, AC, and peak magnetic fields from 0 mT starting at 15 Hz frequency. Accuracy of ±1% at 20°C temperature. Compatible with USB and RS232 interfaces for data upload and device control.

Includes transverse and axial probes for versatile field measurements. Lightweight and compact with dimensions 175 x 89 x 40 mm and 430 g weight. Operates from 0°C to 50°C ambient temperature. Supplied with calibration certificate for assured precision.

This gaussmeter is ideal for industrial, laboratory, environmental, and quality control applications requiring precise magnetic field strength measurements. Explore more high-quality measuring instruments from Hirst Magnetics and related categories on EnvMart.
