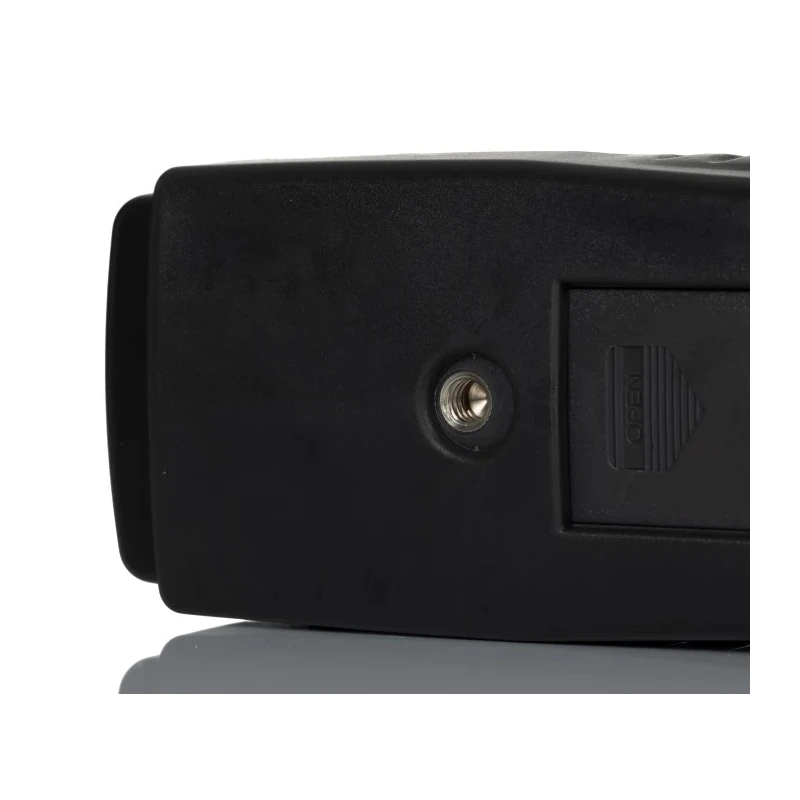

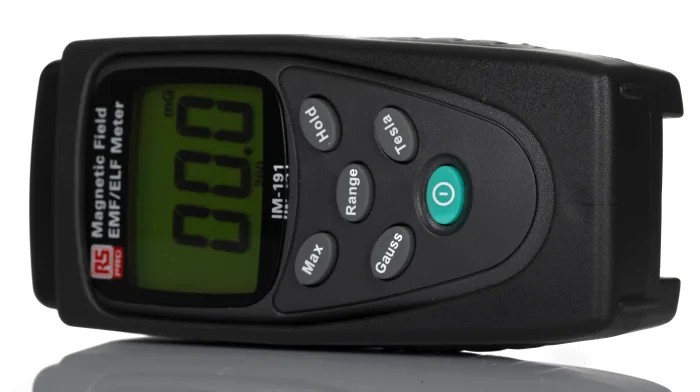

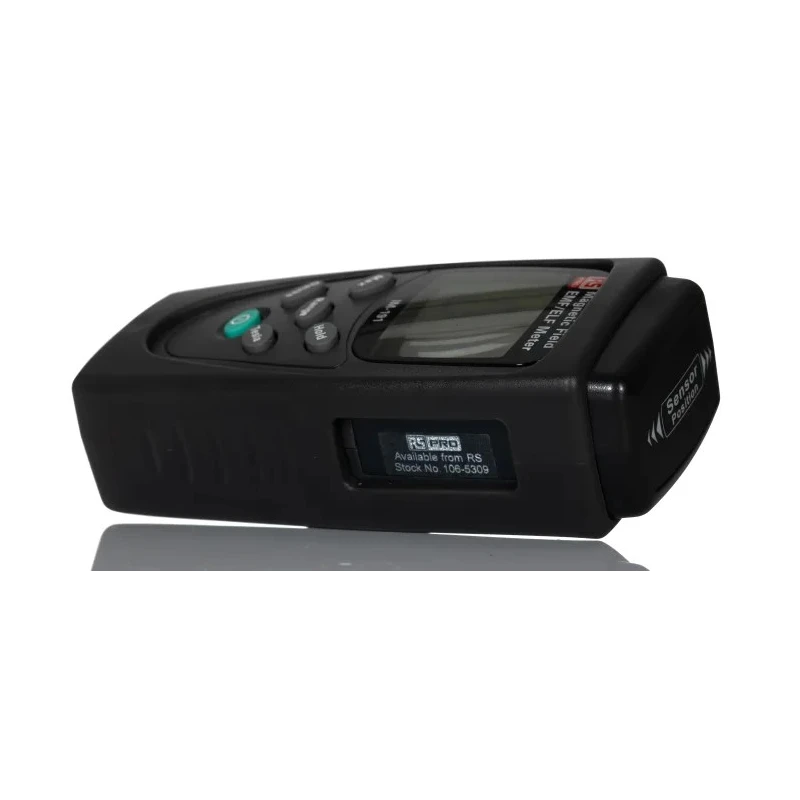

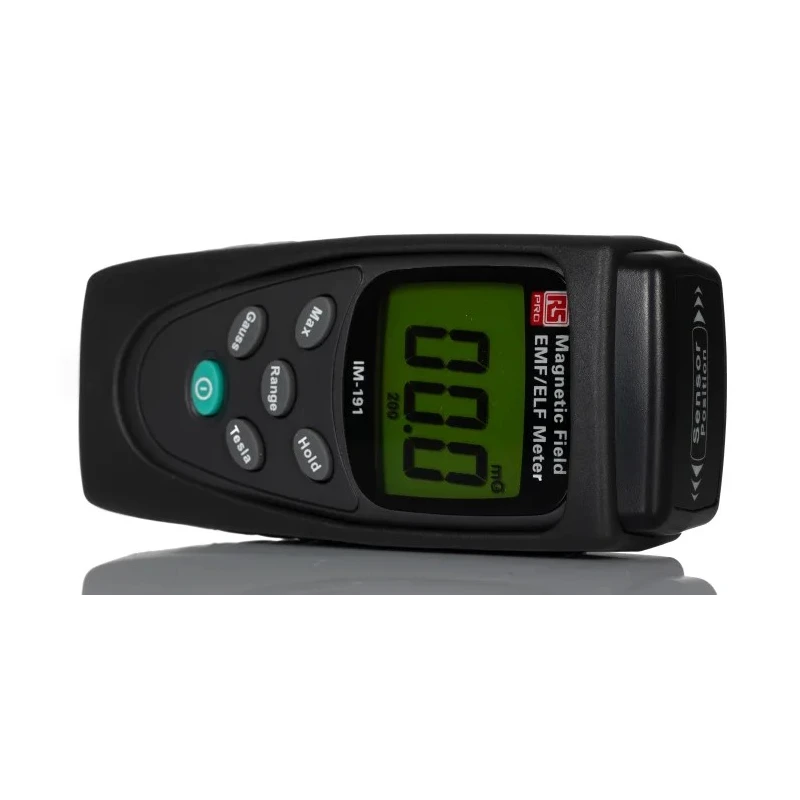

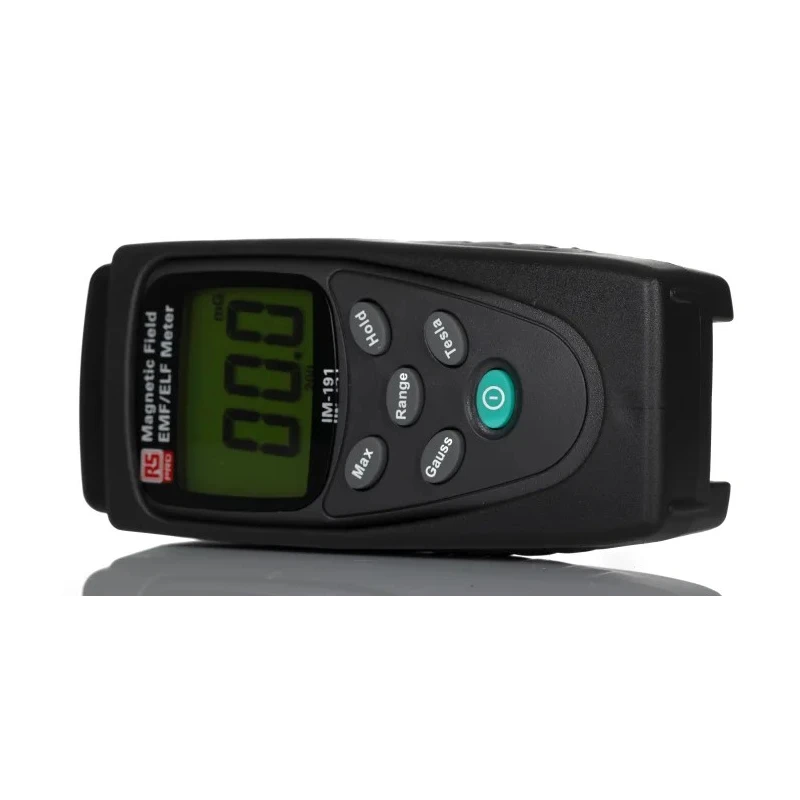

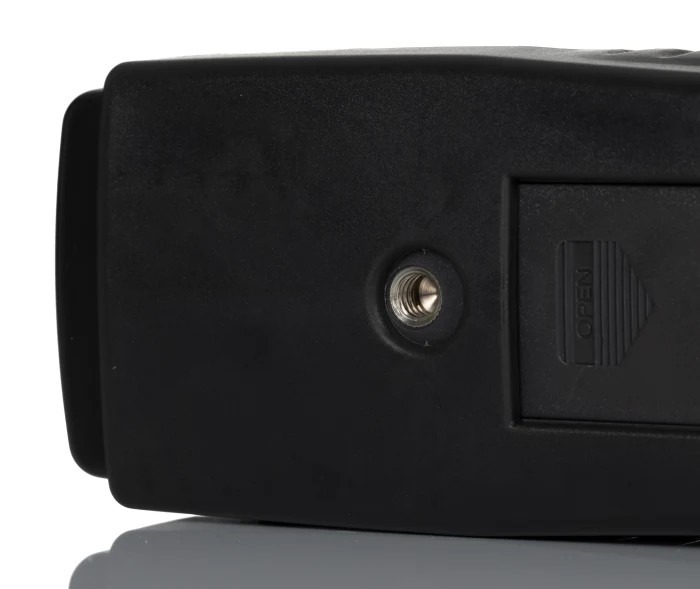

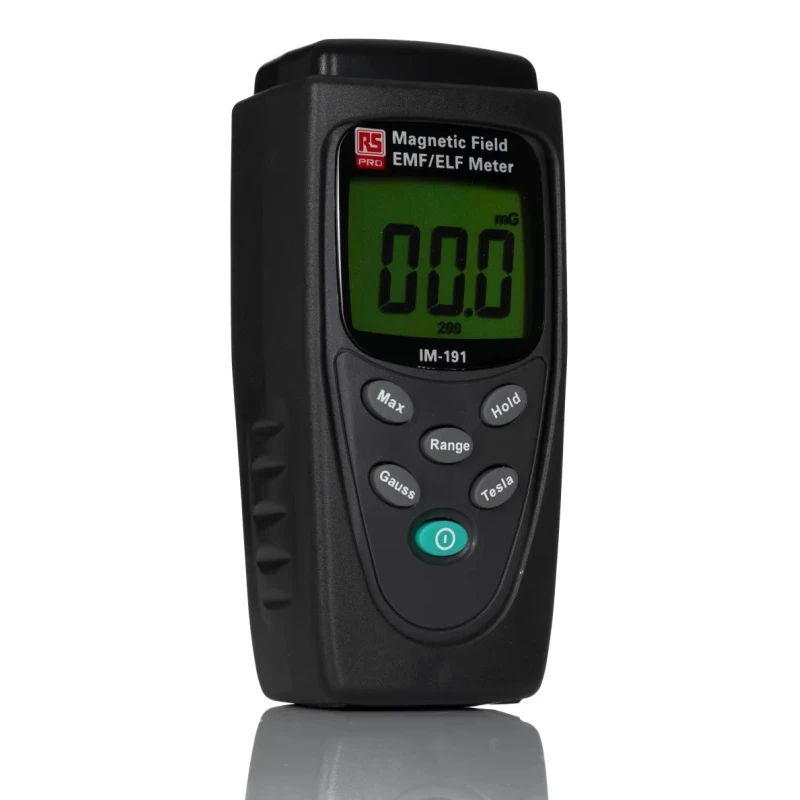

RS PRO Handheld Battery Gaussmeter Magnetic Field Meter 30 Hz to 300 Hz Model 106-5309
Specifications
| Country of Origin | Taiwan |
|---|---|
| Resolution | 0.01 μT, 0.1 mG |
| Accuracy | ±2.5 % |
| Brand | RS PRO |
| Battery Life | 100h |
| Height | 38mm |
| Length | 130mm |
| Model | 106-5309 |
| Width | 56mm |
| Sampling rate | 2 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 5°C |
| Detector Weight | 170g |
| Standards/Approvals | IEC |
| Maximum Frequency | 300Hz |
| Minimum Frequency | 30Hz |
| Maximum Magnetic Measurement | 2000mg |
| Minimum Magnetic Measurement | 20mg |
| Operating Units | Tesla, Gauss |
| Application includes | Electric transmission equipment, Power lines, Air conditioners, Refrigerators, Computer monitors and Video/audio devices |
Key Features
- Measures magnetic fields in the range of 20 mg to 2000 mg with 0.01 μT and 0.1 mG resolution.
- Features a large 3-1/2 digit LCD display with data hold and maximum hold functions.
- Operates on a battery power source delivering approximately 100 hours of usage.

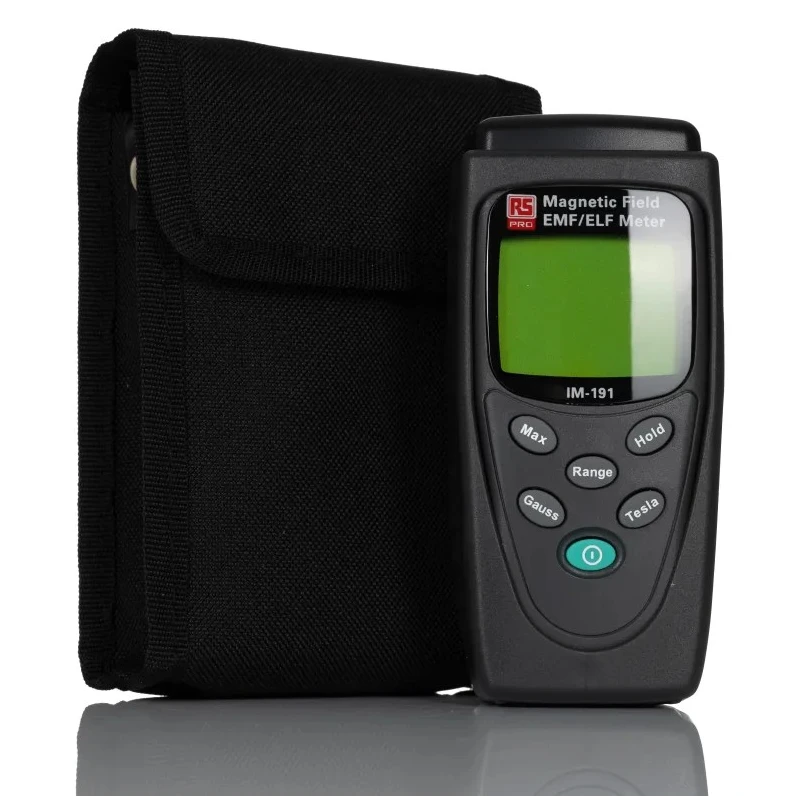

- Comes with a durable carrying case and user manual for convenient field use.
- Compact dimensions of 130 x 56 x 38 mm and lightweight design at approximately 170 g.
- Operating temperature range is 5°C to 40°C with humidity below 80% RH ensuring reliable performance.
- Provides ±2.5% accuracy with sample rate of 2.5 samples per second for precise measurements.
- Ideal for applications involving electric transmission equipment, power lines, HVAC systems, and electronic devices.
Product Description
RS PRO 106-5309 is a high-quality handheld Gaussmeter designed to measure magnetic fields of extremely low frequency (ELF) ranging from 30 Hz to 300 Hz with exceptional accuracy.
This lightweight device features a user-friendly backlit LCD display showing magnetic fields in micro-Tesla and mini-Gauss units. It offers a resolution of 0.01 μT and 0.1 mG and a magnetic measurement range from 20 mg up to 2000 mg, suitable for detailed environmental and industrial magnetic assessments.
Powered by a 9V battery that lasts about 100 hours, the meter is built for field use with a robust carrying case and user manual included. Its compact size of 130 x 56 x 38 mm and lightweight configuration of 170 grams enable easy portability for various industrial applications.
The instrument provides reliable data hold (HOLD) and maximum hold (MAX) functions, with measurement accuracy at ±2.5% plus 6 digits. It supports a sample rate of 2.5 times per second to capture accurate readings in electrical transmission, power line monitoring, HVAC equipment, refrigeration, computer displays, and AV device testing.
The Gaussmeter operates efficiently within temperatures of 5°C to 40°C and humidity less than 80%, adhering to IEC standards ensuring durability and compliance in industrial, laboratory, and field environments.
Measures magnetic fields accurately in the 20 to 2000 mg range. Wide frequency response from 30 Hz to 300 Hz for ELF measurements. Battery-powered with about 100 hours of continuous operation. Data hold and maximum hold features for ease of measurement.
Compact and lightweight for portable use in various settings. IEC certified for industrial quality standards. This RS PRO Gaussmeter is suitable for professionals requiring precise magnetic field measurement across electrical equipment, power lines, and consumer electronic devices.
Explore more measuring and testing instruments with RS PRO on EnvMart for reliable industrial and laboratory applications.
Explore more products in our Gaussmeters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures magnetic fields from 20 mg to 2000 mg.
The accuracy is ±2.5%.
The resolution is 0.01 μT and 0.1 mG.
It operates within a temperature range of 5°C to 40°C.
The battery life is approximately 100 hours.
It has a sampling rate of 2.5 samples per second.
The dimensions are 130 mm in length, 56 mm in width, and 38 mm in height.
It weighs approximately 170 grams.
It is suitable for applications involving electric transmission equipment, power lines, HVAC systems, and electronic devices.
It operates in Tesla and Gauss units.
It adheres to IEC standards.
Yes, it comes with a durable carrying case and a user manual for convenient field use.
