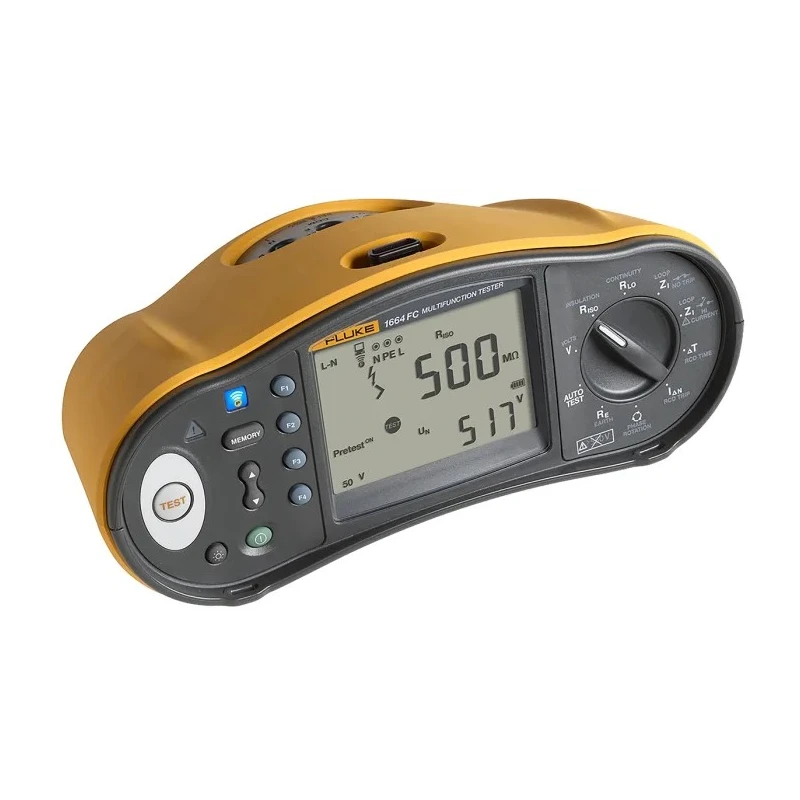

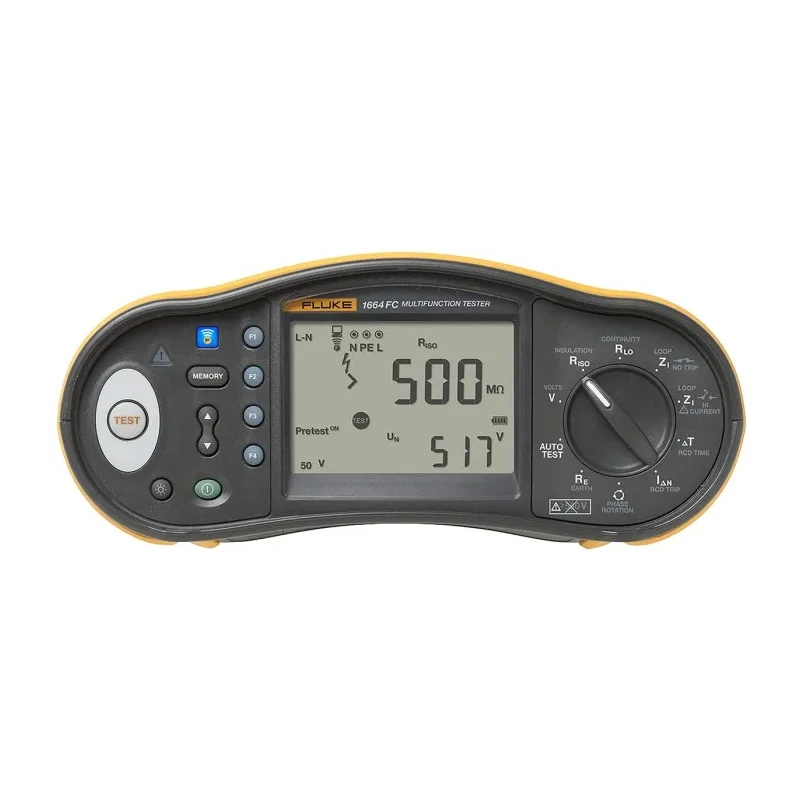

Fluke Multifunction Tester 1kV Insulation Test Voltage, 500V AC/DC Voltage Measurement, Earth Resistance FLK-1664FC UK
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Fluke |
| Battery Life | 200h |
| Battery type | AA |
| Height | 125mm |
| Length | 100mm |
| Model | FLK-1664FC UK |
| IP Rating | IP40 |
| Gross Weight | 1.3kg |
| Width | 250mm |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Plug Type | UK |
| Interfaces | USB downloadable and smartphone sync |
| Test type | Miniature GPS, Voltage, Wiring Polarity, Frequency, MOSFET, Resistance, RCD Test, Insulation Resistance, Phase Sequence Test, Continuity |
| Test Standards | IEC 60364 |
| Continuity Test Current | 1mA |
| Insulation Test Voltage | 1kV |
| Interface Type | USB |
| Standards/Approvals | UL61010, ANSI/ISA-s82.02.01, IEC/EN610101, CAN/CSA c22.2 No. 1010 |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 500, 300V |
| Loop Impedance Test Type | Phase to Earth, Phase to Neutral |
| Maximum Voltage Measurement | 500V ac/dc |
| RCD Test Type | AC, Type S, Type G |
Key Features
- Features phase to earth and phase to neutral loop impedance tests.
- Supports automatic and ramp RCD testing including AC, Type S, and Type G RCD types.
- Includes earth resistance measurement at 128Hz with 25V output.
- Has USB interface for downloadable data and smartphone synchronization.
- Battery powered with AA cells providing approx. 200 hours runtime.
- Complies with IEC 60364, UL61010, and other international safety standards.
- Designed for rugged field conditions with IP40 rating and operating range of -10°C to 40°C.
- Equipped with continuity test current of 1mA and remote switch mode.
Product Description
Fluke FLK-1664FC UK Multifunction Tester is a professional electrical test instrument intended for industrial, construction, HVAC, and commercial electrical installation verification. It offers a maximum voltage measurement of 500V AC/DC and an insulation test voltage of 1kV, ensuring comprehensive assessment of wiring integrity and safety compliance.
The tester integrates multiple testing functions including miniature GPS, wiring polarity, frequency, MOSFET, resistance, and RCD tests supporting AC, Type S, and Type G. The insulation pre-test prevents damage to connected appliances by halting measurement upon detection of connected equipment.
It supports earth resistance measurements at 128Hz with 25V output and features loop impedance testing from phase to earth and phase to neutral. The device includes automatic and ramp RCD testing for accurate trip characteristic evaluation, useful for commissioning and verification of protective devices.
Designed for field use, the tester is robust with an IP40 rating and supports operation in temperatures from -10°C to 40°C. The AA battery-powered unit provides approximately 200 hours of operation with replaceable cells. Data transfer is facilitated via a USB interface with smartphone wireless syncing, enabling efficient on-site reporting and cloud storage.
This product complies with multiple safety and testing standards including IEC 60364, UL61010, ANSI/ISA-s82.02.01, IEC/EN610101, and CAN/CSA c22.2 No. 1010, meeting CAT III and CAT IV safety categories for up to 500V and 300V testing environments.
Phase to earth and phase to neutral loop impedance tests for comprehensive circuit assessment. Automatic and ramp RCD tests with support for multiple RCD types including AC, S, and G variants. Earth resistance measurement using a 25V output at 128Hz frequency for precision.
Downloadable data via USB and wireless syncing with smartphones enhances workflow. Long battery life powered by standard AA cells with remote switch operation mode. Compliant with international safety and testing standards ensuring industrial reliability.
The Fluke FLK-1664FC UK Multifunction Tester is ideal for electricians, engineers, and technicians performing installation verification, maintenance, and commissioning tasks across industrial, construction, and HVAC sectors. It streamlines testing procedures, reduces risk, and enhances data management for professional applications.
Explore more industrial testing equipment and approved Fluke tools at EnvMart for trustworthy performance and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum insulation test voltage of this model is 1kV.
It supports automatic and ramp RCD testing for AC, Type S, and Type G RCD types.
This unit can measure up to 500V AC/DC.
The continuity test current is 1mA.
It operates within a temperature range of -10°C to 40°C.
The dimensions are 250mm in width, 100mm in length, and 125mm in height.
Yes, it features a USB interface for downloadable data and smartphone synchronization.
It complies with IEC 60364, UL61010, and other international safety standards.
It measures earth resistance at 128Hz with a 25V output.
The device has an IP40 rating, indicating protection against solid objects larger than 1mm.
It can perform various tests including miniature GPS, voltage, wiring polarity, frequency, MOSFET, resistance, and RCD tests.
