Hirst Magnetics GM08 Battery Operated Gaussmeter DC/AC Magnetic Field Meter USB RS232 Analogue Output GM08

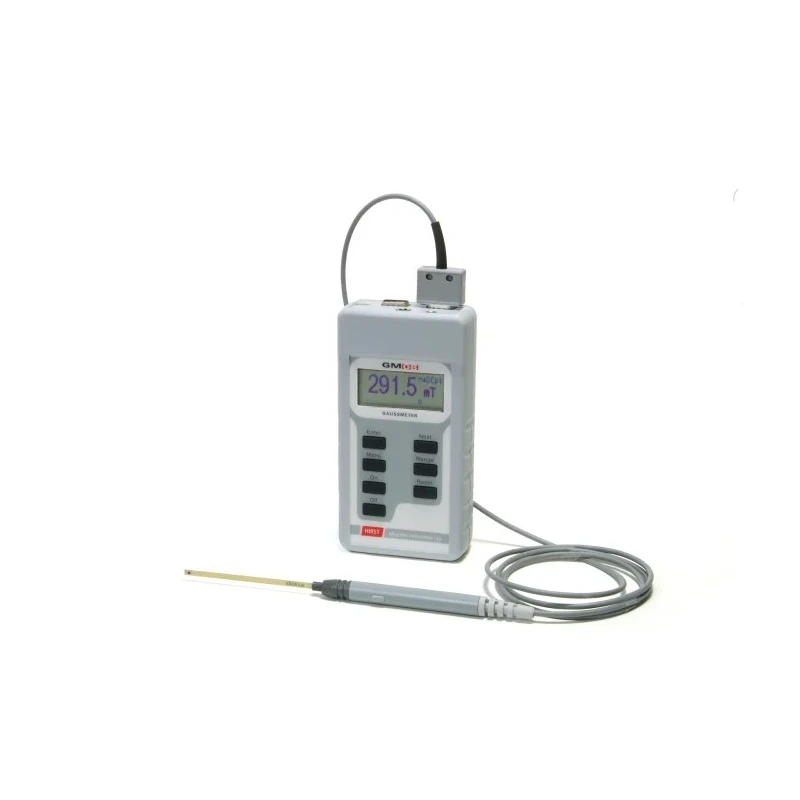

Hirst Magnetics GM08 battery operated gaussmeter (Model GM08) is a robust, microprocessor-controlled instrument designed for precise measurement of flux density and magnetic field strength in DC, AC, and peak magnetic fields. Operating in a frequency range from 15 Hz to 10000 Hz, it delivers an accuracy of ±1%, suitable for laboratory, industrial, manufacturing, and environmental test & measurement applications.

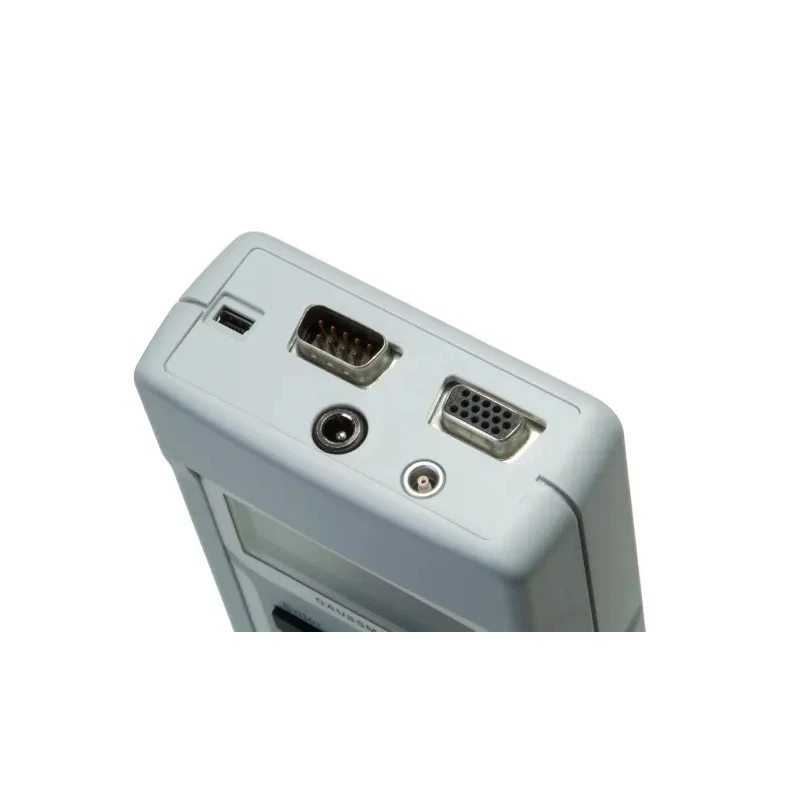

This lightweight and compact gaussmeter weighs 430g and measures 175mm in length, 89mm in width, and 40mm in height, powered by AA batteries ensuring up to 15 hours of continuous use. It supports multiple magnetic measurement units including Tesla, Oersteds, Gauss, and Amps M. The instrument features multiple interface options including USB, RS232, and analogue output (BNC compatible), enhancing connectivity and data logging capabilities.

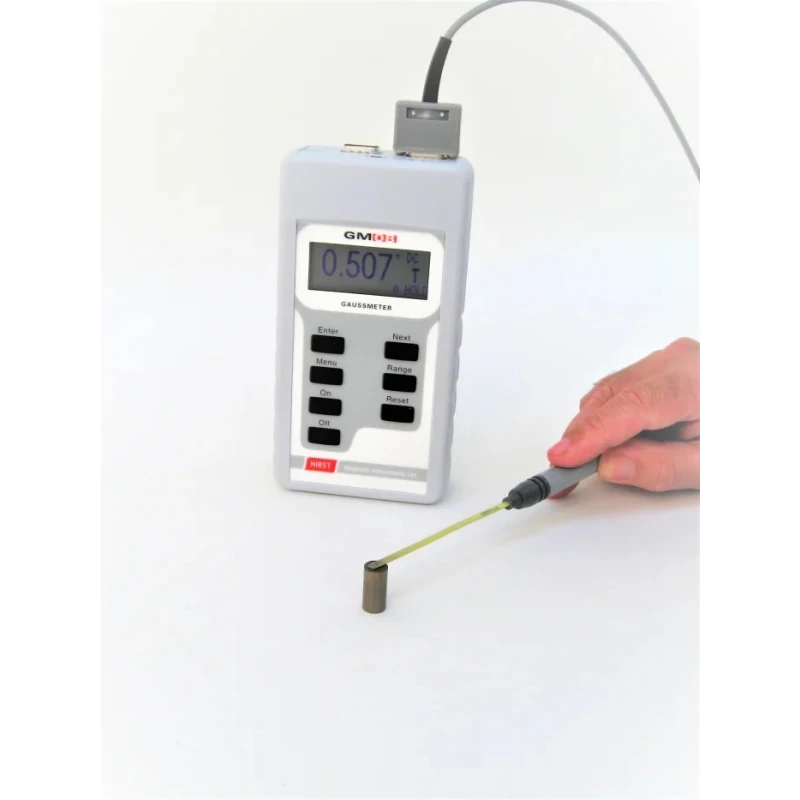

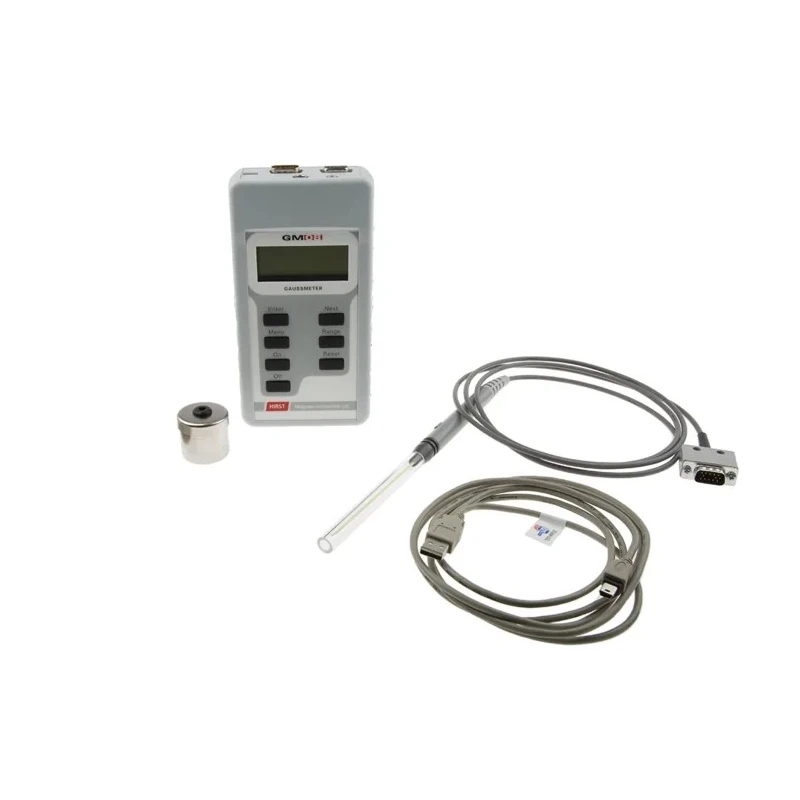

Compatible with transverse and axial Hall probes, the GM08 accommodates various measurement orientations, crucial for accurate air gap and magnetic pole measurements. It operates reliably between 0°C to 50°C and includes a calibration certificate for quality assurance.

Operates within temperature range 0°C to 50°C ensuring reliable field use. Supports measurement units including Tesla, Oersteds, Gauss, and Amps M for versatile applications. Equipped with USB, RS232, and analogue interfaces allowing easy PC connection and data upload.

Features battery life up to 15 hours with convenient AA battery power source. Compact design includes a 430g weight, 175mm length, 89mm width, and 40mm height for portability. Compatible with both transverse and axial Hall probes for adaptable magnetic field orientation measurement.

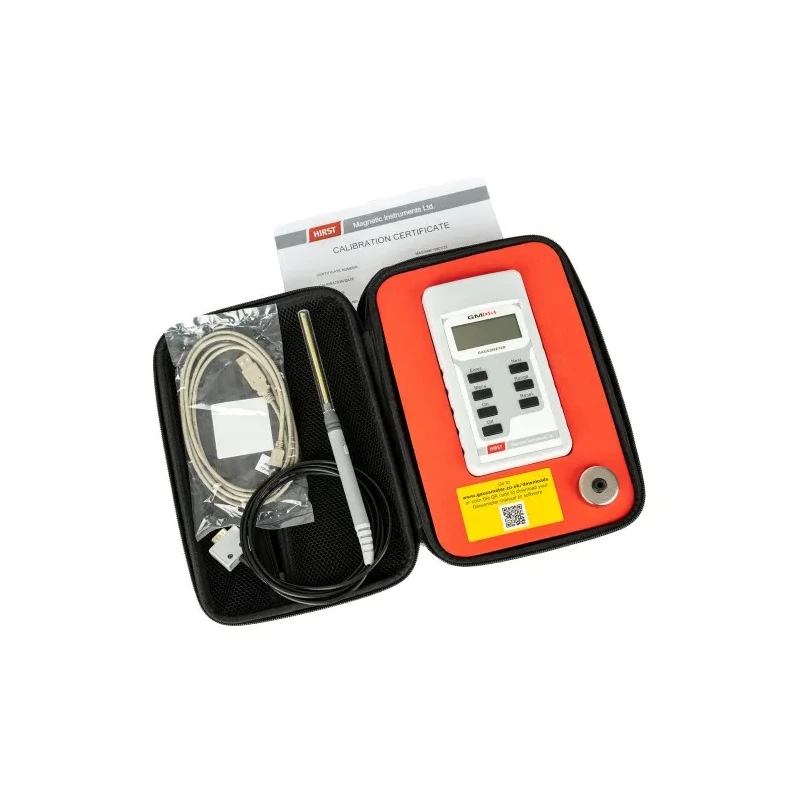

Includes calibration certificate to ensure measurement accuracy and quality assurance. Retains measurement data when powered down for convenience in fieldwork and industrial use.

The GM08 gaussmeter is ideal for use in industrial environments, laboratories, manufacturing quality control, HVAC magnetic field testing, and environmental monitoring. Its durability and multi-interface options facilitate integration into automated test systems.

Category-wise, this product falls under Industrial Machines & Instruments > Measuring & Testing Instruments > Gaussmeters, reflecting its specialized purpose in magnetic field measurement.
