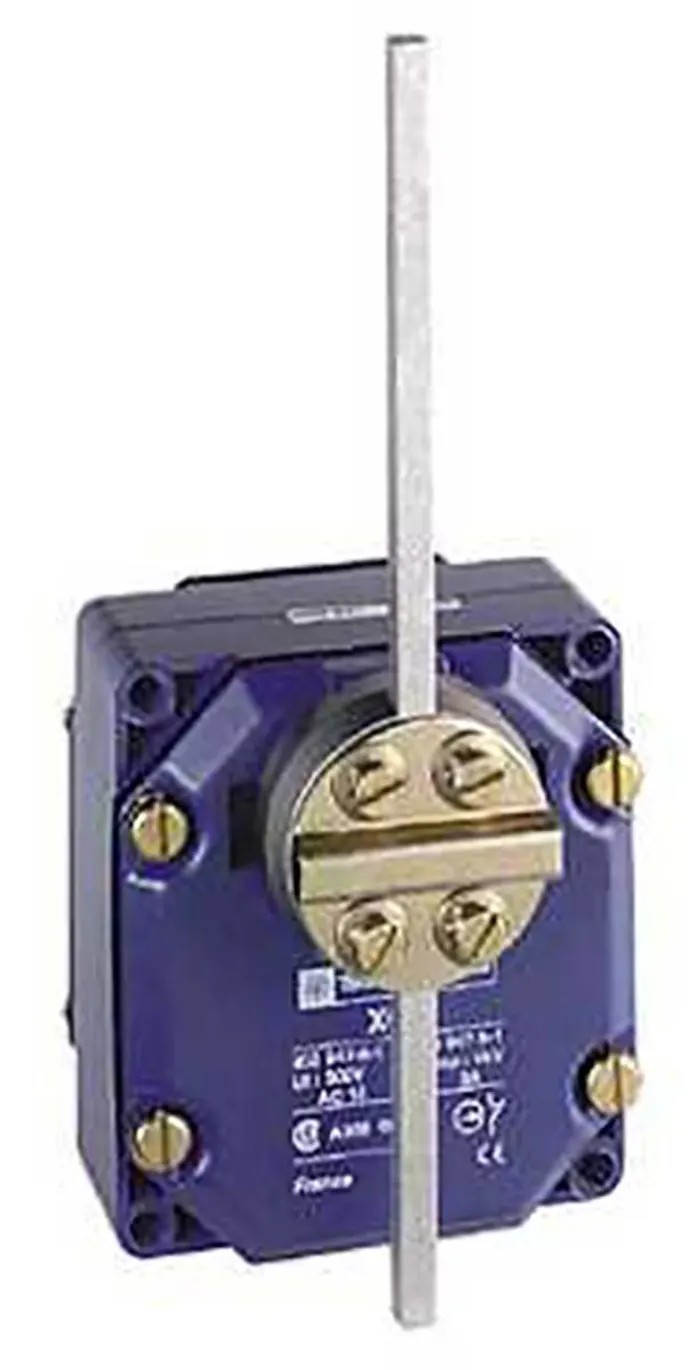

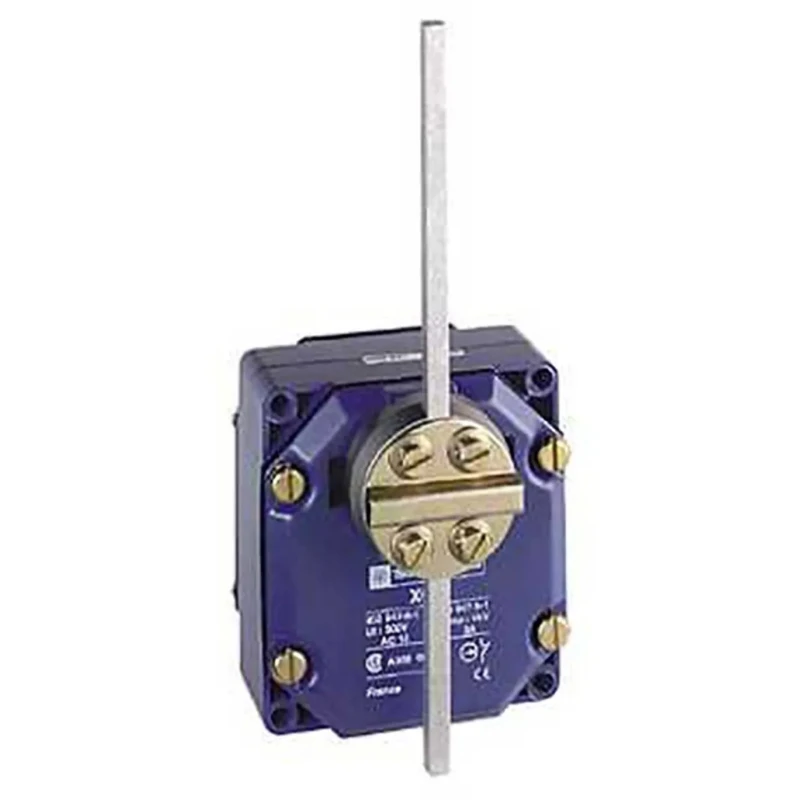

Telemecanique Sensors OsiSense XC Series Rod Limit Switch SPDT Zinc Alloy Housing 240V AC 3A XCRA11
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 95mm |
| Model | XCRA11 |
| Depth | 53mm |
| IP Rating | IP54 |
| Width | 85mm |
| Housing Material | Zinc Alloy |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Side |
| Contact Configuration | SPDT |
| Actuator Type | Rod |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 20 mm |
Key Features
- The switch features a rod actuator type suitable for mechanical handling applications.
- Contact configuration is Single Pole Double Throw (SPDT) with snap action contacts.
- Designed to operate at 240V AC and 3A switching current.
- It supports a minimum operating temperature of -25°C and maximum of 70°C.
- Housing material is robust zinc alloy for industrial environments.
- The switch has a mechanical life rated at 10 million cycles for long service.
- Conduit entry size is 20 mm, and mounting orientation is side mounting.
- Suitable for hoisting, mechanical handling, and conveyor belt monitoring applications.
Product Description
Telemecanique Sensors XCRA11 is a high-quality Rod Limit Switch from the OsiSense XC series, designed to deliver precise position detection and reliable operation in demanding industrial environments. It operates at 240V AC with a switching current of 3A, featuring Single Pole Double Throw (SPDT) snap action contacts which ensure accurate switching response.
This switch is housed in a durable zinc alloy casing with an IP54 rating, providing protection against dust ingress and water spray, suitable for various automation, mechanical handling, and conveyor belt monitoring applications. The actuator is a rod type, optimized for sensing linear mechanical movements.
The unit supports a wide temperature range from -25°C up to 70°C, making it adaptable for different work conditions. It includes a standard 20 mm conduit entry and is designed for side mounting, enhancing installation flexibility.
This model boasts a long mechanical life of 10 million cycles, ensuring extended durability and minimal maintenance. Compact dimensions of 95 mm length, 85 mm width, and 53 mm depth make it convenient for integrating into automated systems without bulky footprint.
The switch features a rod actuator type suitable for mechanical handling applications. Contact configuration is Single Pole Double Throw (SPDT) with snap action contacts. Designed to operate at 240V AC and 3A switching current.
It supports a minimum operating temperature of -25°C and maximum of 70°C. Housing material is robust zinc alloy for industrial environments. The switch has a mechanical life rated at 10 million cycles for long service. Conduit entry size is 20 mm, and mounting orientation is side mounting.
Dimensions are 95 mm length, 85 mm width, and 53 mm depth. Suitable for hoisting, mechanical handling, and conveyor belt monitoring applications. Manufactured in France with RoHS compliance.
This Telemecanique Sensors product is intended for industrial, manufacturing automation, and process control applications. It is ideal for reliable position feedback and equipment safety interlocking in automated systems.
Discover more high-quality Limit Switches and automation sensors at EnvMart to enhance your industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at 240V AC with a switching current of 3A.
The switch has a mechanical life rated at 10 million cycles, ensuring extended durability.
The dimensions are 95 mm in length, 85 mm in width, and 53 mm in depth.
It features a rod actuator type, suitable for mechanical handling applications.
The switch has an IP54 rating, providing protection against dust ingress and water spray.
It supports a minimum operating temperature of -25°C and a maximum of 70°C.
The contact configuration is Single Pole Double Throw (SPDT) with snap action contacts.
It is designed for side mounting, enhancing installation flexibility.
The housing is made of robust zinc alloy, suitable for industrial environments.
It includes a standard conduit entry size of 20 mm.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
It is suitable for hoisting, mechanical handling, and conveyor belt monitoring applications.
