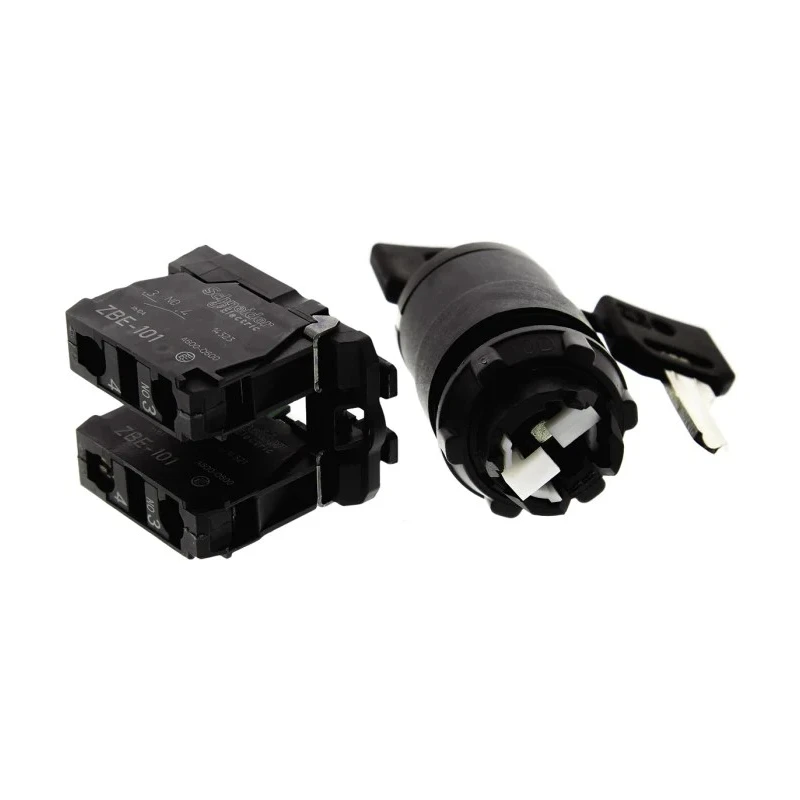

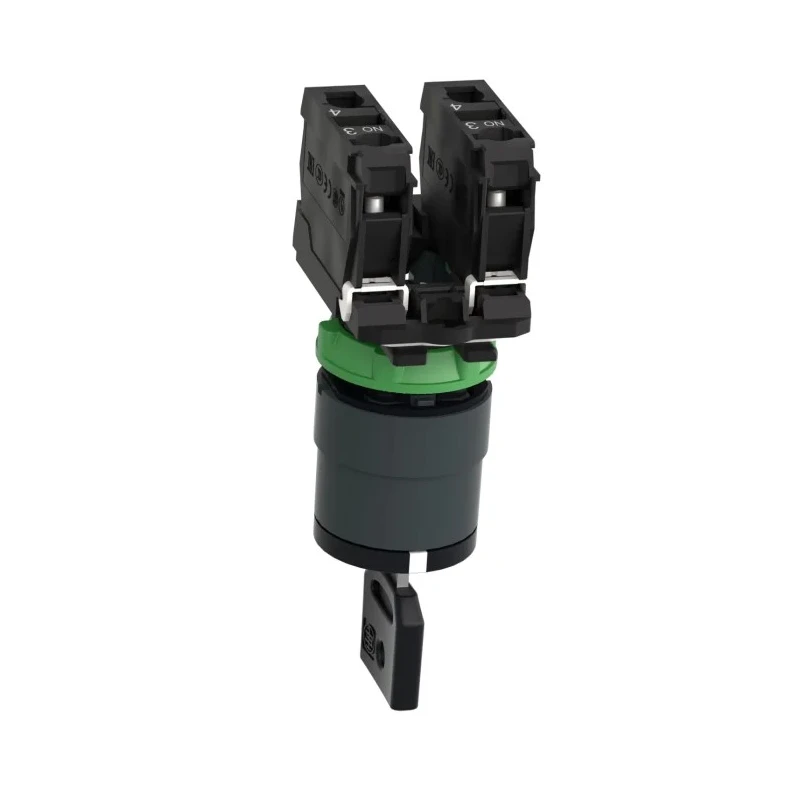

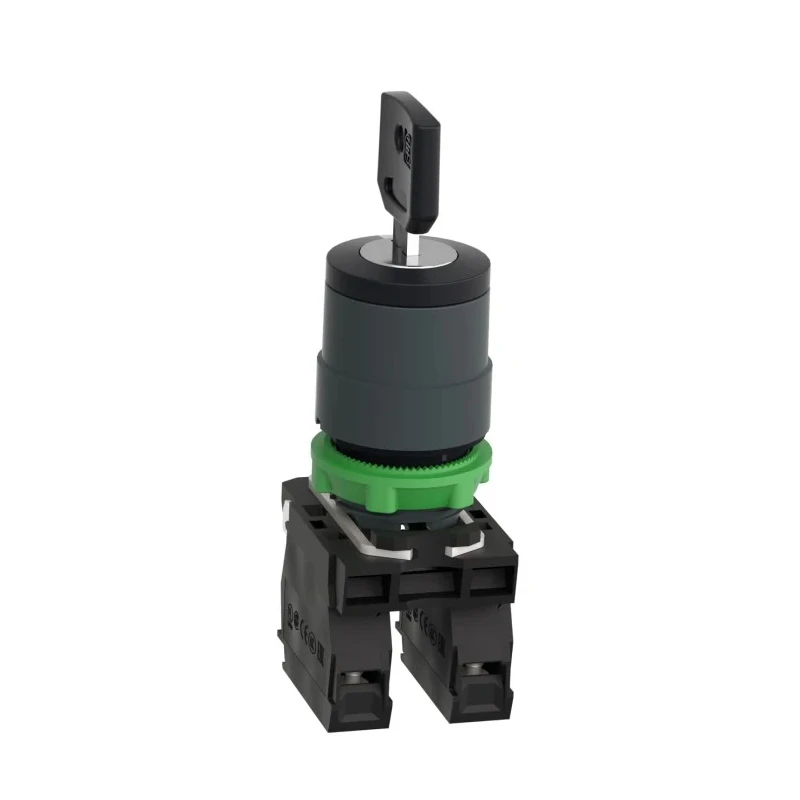

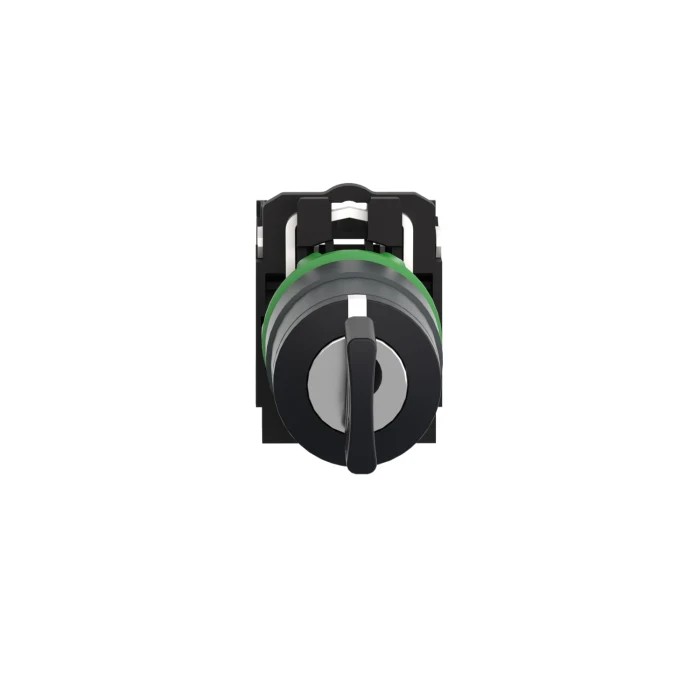

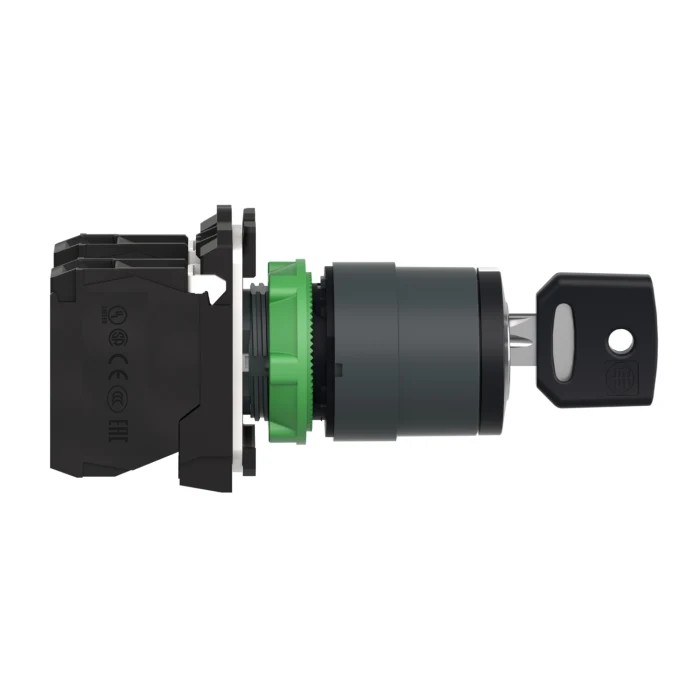

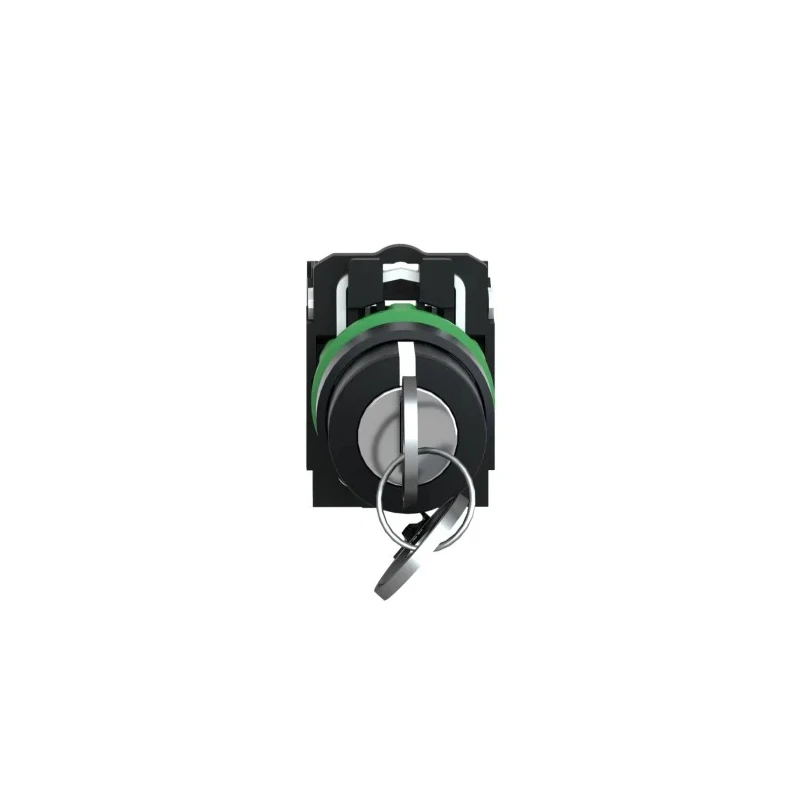

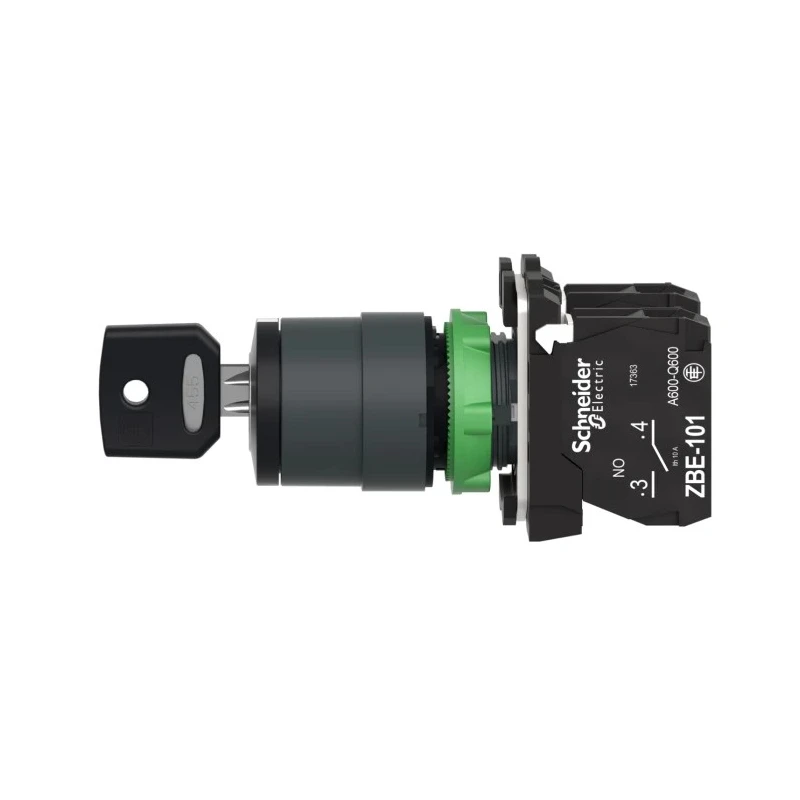

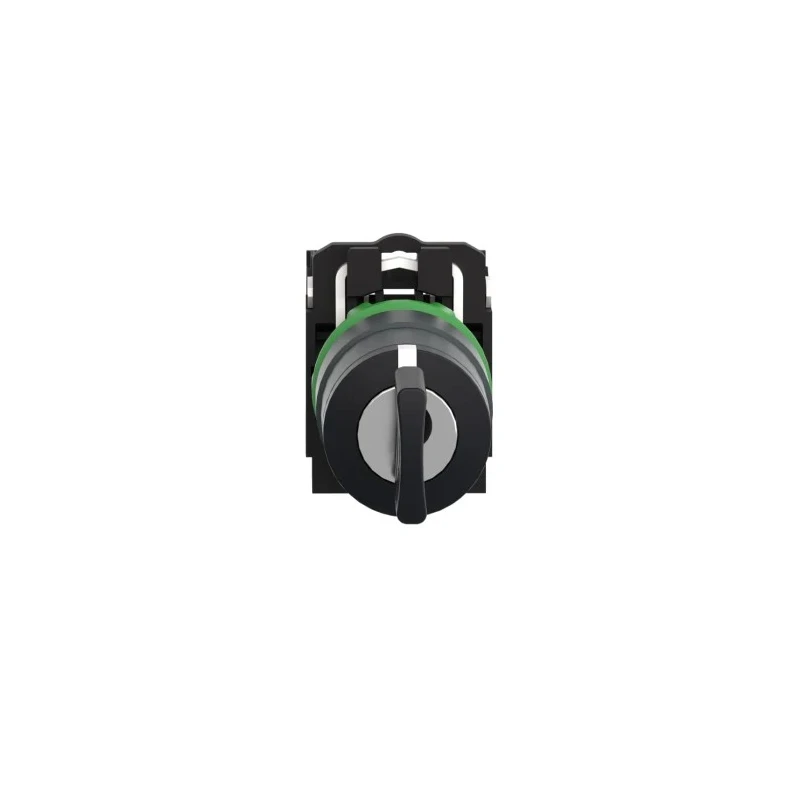

Schneider Electric Selector Switch 3 Positions 2 NO Contact Configuration 22 mm Cutout Diameter Harmony XB5 XB5AG03

Free Delivery in India | Lowest Global Shipping Charges

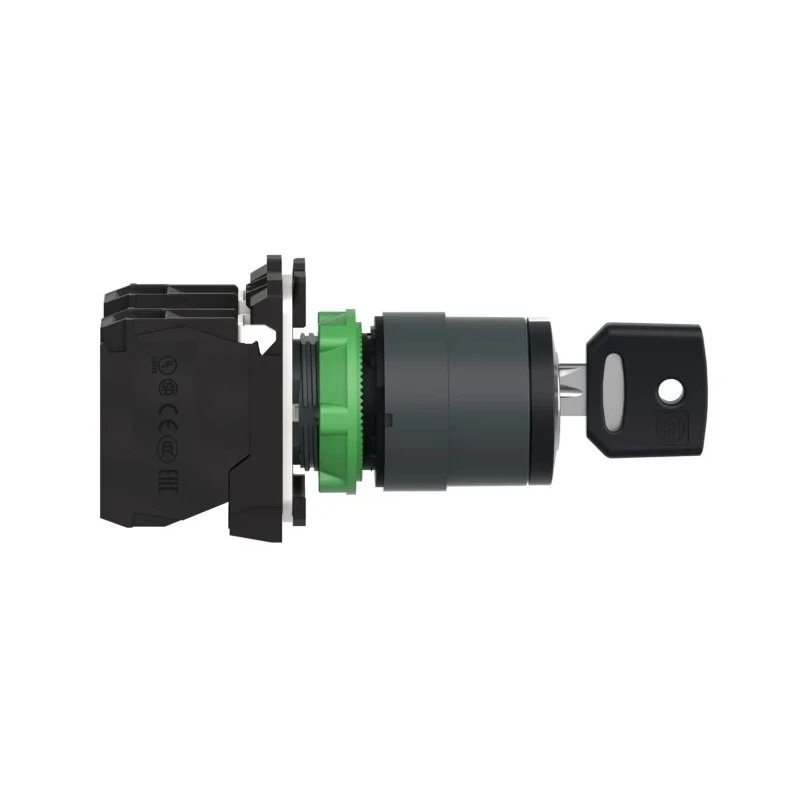

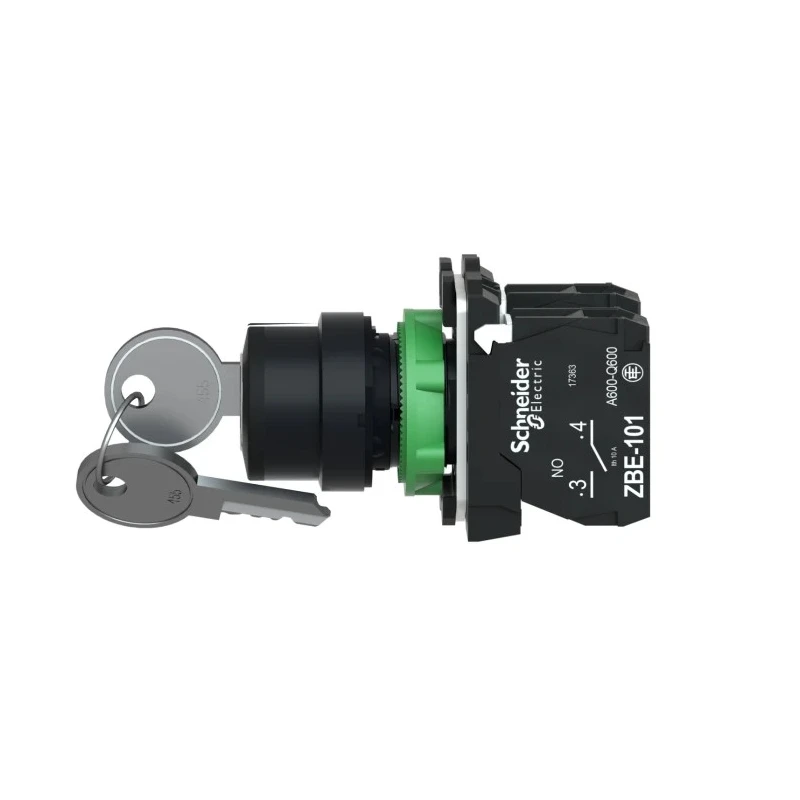

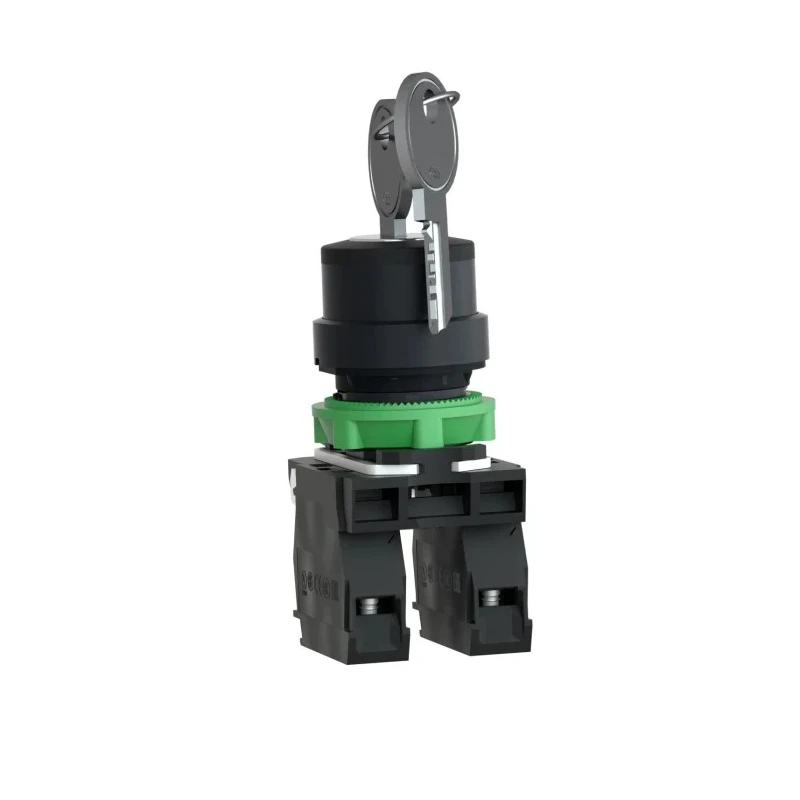

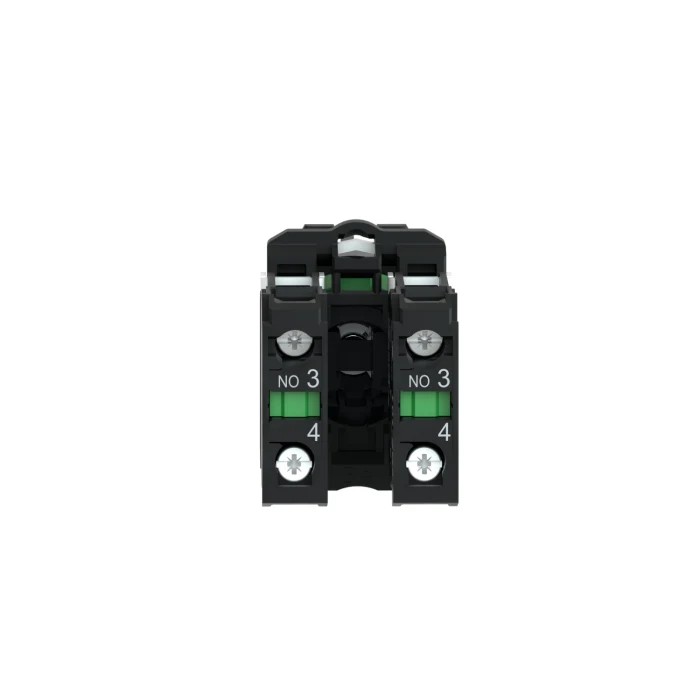

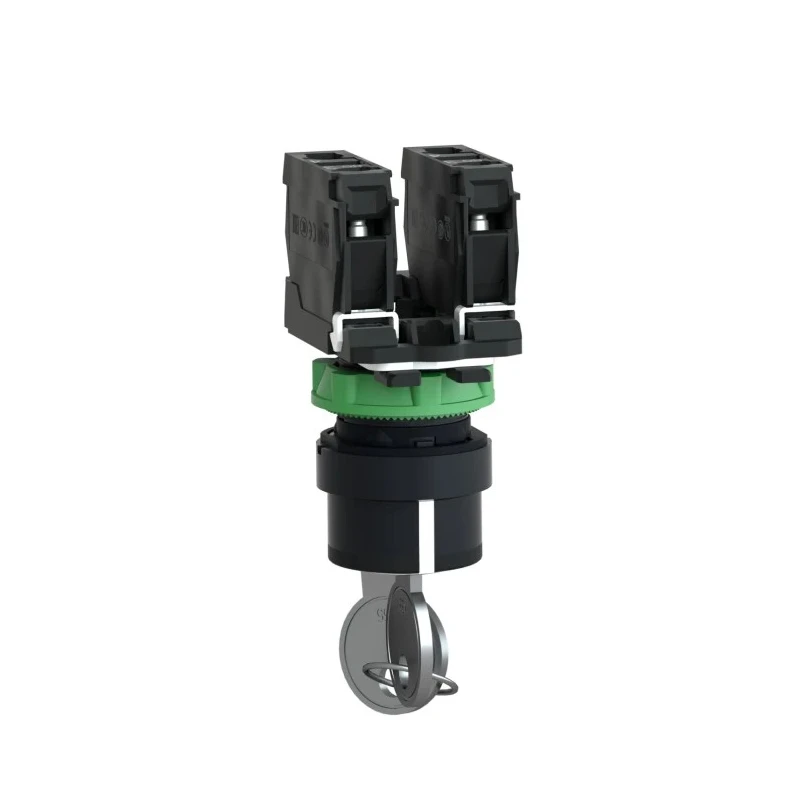

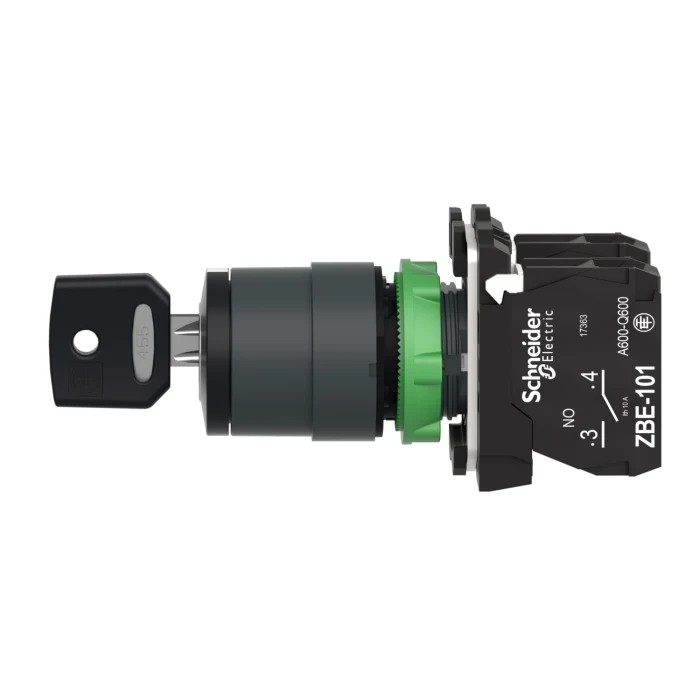

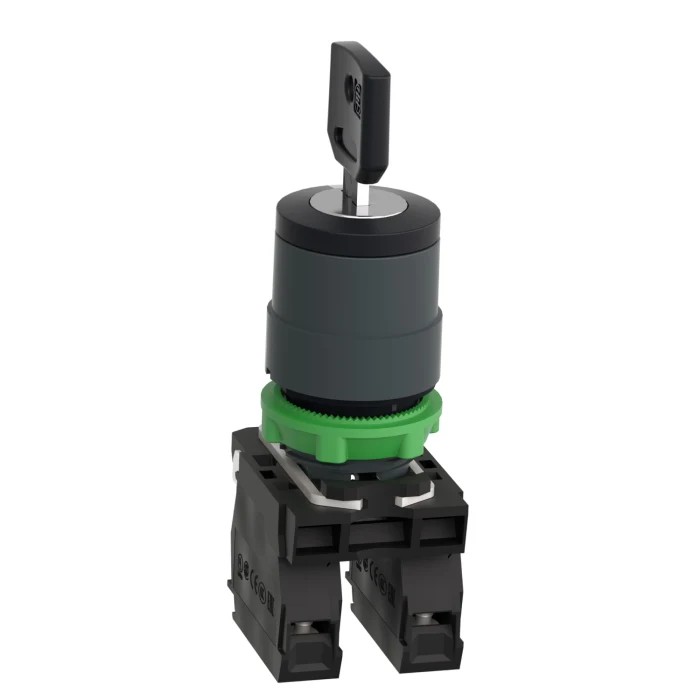

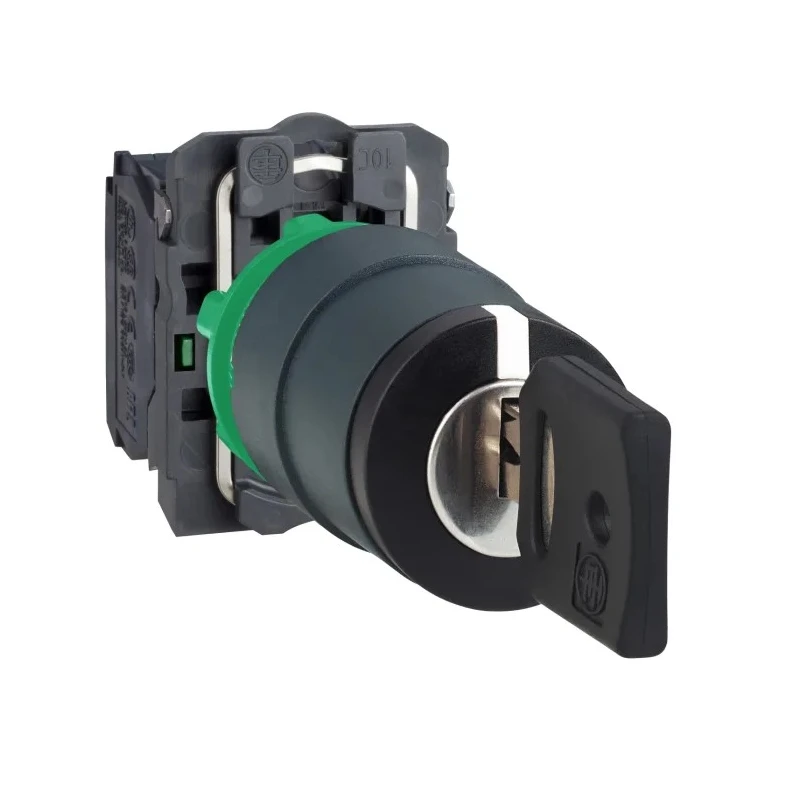

Schneider Electric Selector Switch 3 Positions 2 NO Contact Configuration 22 mm Cutout Diameter Harmony XB5 XB5AG03

Name: Schneider Electric Selector Switch 3 Positions 2 NO Contact Configuration 22 mm Cutout Diameter Harmony XB5 XB5AG03
Brand: Schneider Electric
SKU: 342067
Price: 6998.3 INR
Availability: InStock



Category Selector Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Model	XB5AG03
IP Rating	IP66, IP69K
Series	Harmony XB5
Contact Configuration	2 NO
Number of Positions	3
Terminal type	Screw
Better World Claim	Repairable by the End User
Angle of Throw	45 °
Cutout Diameter	22mm

Key Features

Durable with a mechanical and electrical lifespan of 1,000,000 cycles.
IP66 and IP69K rated, ensuring high resistance to dust and water ingress.

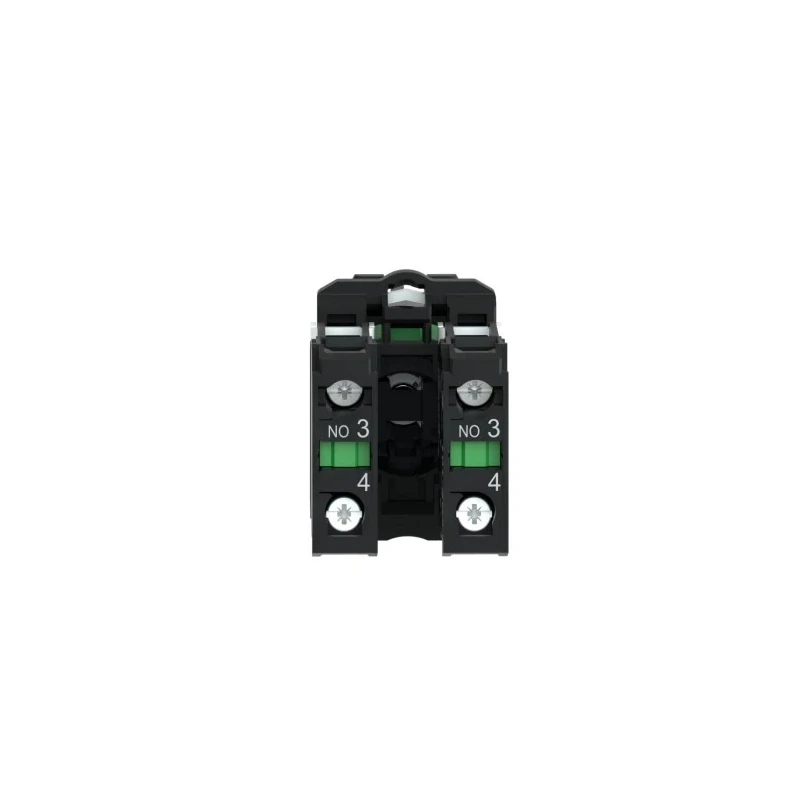

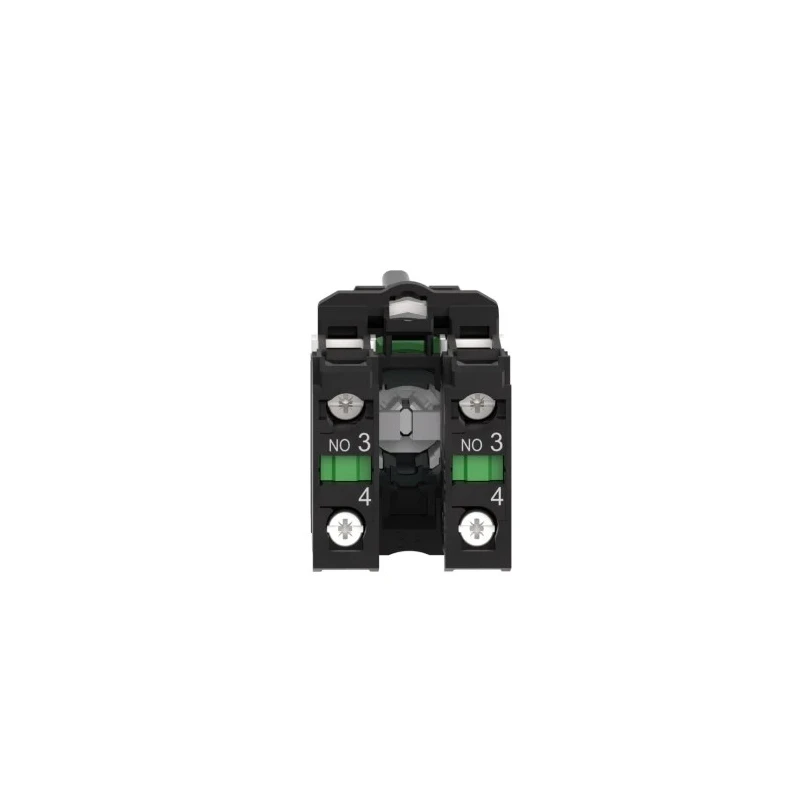

Equipped with screw terminals and silver alloy contacts for reliable connections.
Operates within a wide temperature range from -40°C to +70°C.
Includes a neutral central position with two switching positions at 45° angle of throw.
Part of the Harmony XB5 series for easy integration in control panels.

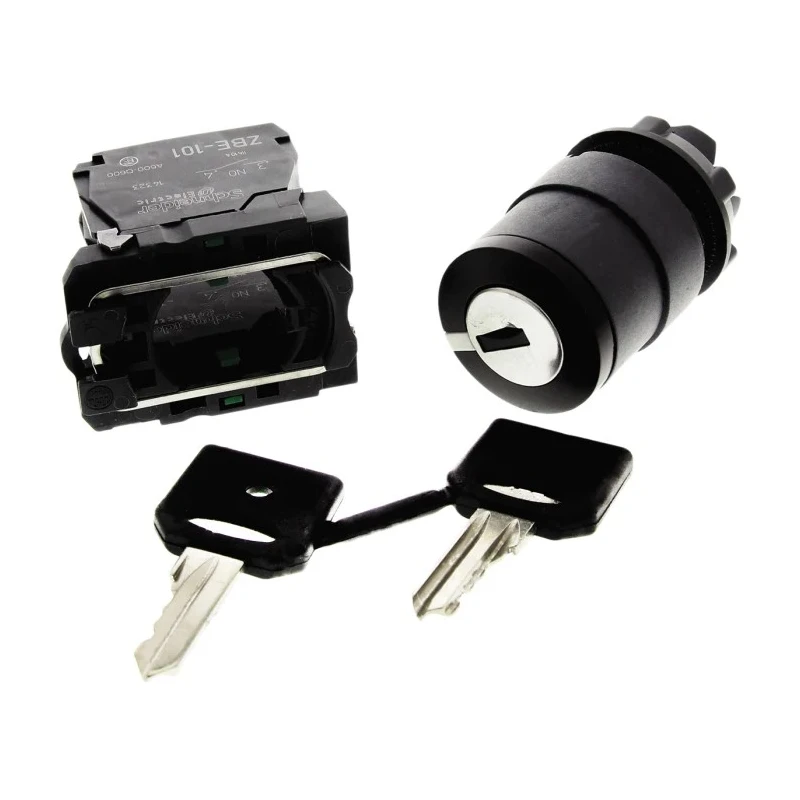

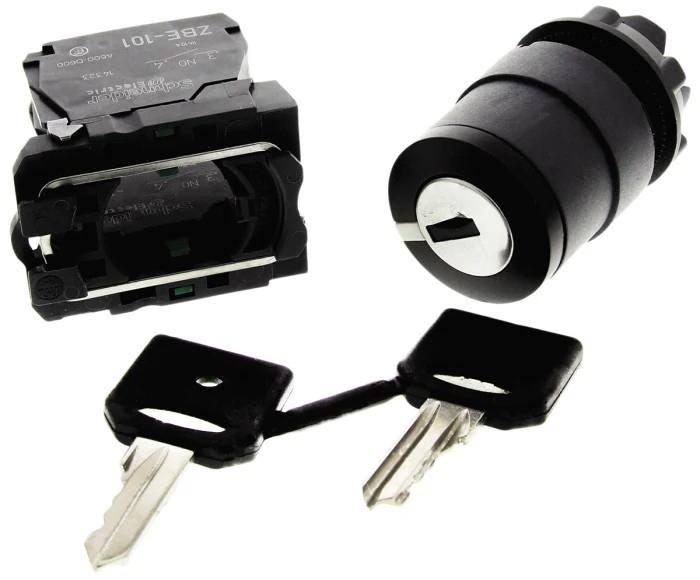

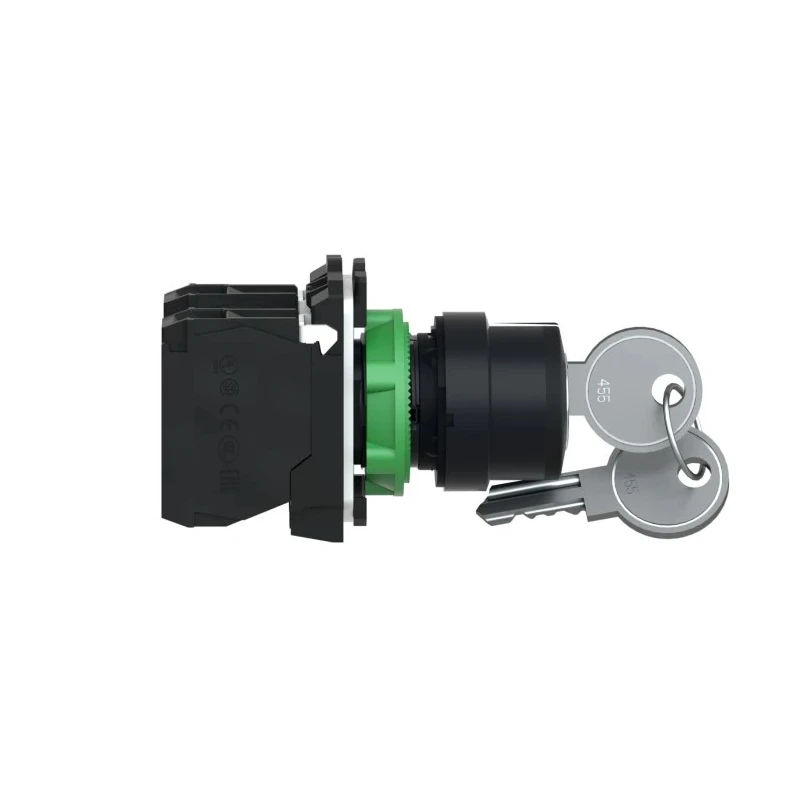

Constructed with chromium-plated metal key for corrosion resistance and smooth operation.
Key can be removed from any position adding operational safety and control.

Product Description

Schneider Electric XB5AG03 Selector Switch is a robust and versatile rotary selector switch designed for industrial control panels that require secure and reliable operation. With a 3-position design and 2 NO (normally open) contact configuration, it enables precise control of circuits with a neutral center and two switching options set at 45° angles for intuitive operation.

This selector switch features a compact 22 mm cutout diameter, making it compatible with standard control panels. It is part of the Harmony XB5 series, known for its high quality and durability, evident from its 1 million cycle mechanical and electrical lifespan.

The switch is rated IP66 and IP69K, ensuring excellent protection against dust ingress and high-pressure, high-temperature water jets, ideal for demanding industrial, automotive, and building management environments. It incorporates screw terminals and silver alloy contacts to guarantee durable and stable electrical connections.

Operating reliably in extreme temperatures from -40°C to +70°C, this switch also includes a key locking feature with chromium-plated metal keys that resist corrosion and provide a smooth, professional finish. The key can be removed in any switch position to secure equipment status, enhancing operational safety.

Certified to meet multiple international standards such as UL 508, EN/IEC 60947 series, JIS C 4520, and CSA C22.2 No.14, the XB5AG03 is well-suited for industrial machines, automated systems, building automation, and automotive industry controls requiring accountable operation.

Durable mechanical and electrical lifespan of 1,000,000 cycles. IP66 and IP69K ratings for dust-tight and water resistance. Screw terminal type with reliable silver alloy contacts. Compact size with 22mm cutout diameter fits standard control panels.

Key lock feature for safety and controlled access. Broad operating temperature range from -40°C to +70°C. Complies with UL 508, IEC, JIS, and CSA standards.

This Selector Switch is ideal for applications in industrial machinery, building management, automated systems, and automotive control panels where durability, safety, and precise control are required. Explore more Schneider Electric switch products at EnvMart for comprehensive control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cutout diameter for this model is 22 mm, making it compatible with standard control panels.

This selector switch has a mechanical and electrical lifespan of 1,000,000 cycles, ensuring long-term reliability in operation.

The XB5AG03 is rated IP66 and IP69K, providing excellent protection against dust ingress and high-pressure water jets.

It features a 2 NO (normally open) contact configuration, allowing for precise control of circuits.

This unit operates reliably within a wide temperature range from -40°C to +70°C, suitable for various industrial environments.

It is equipped with screw terminals, ensuring stable and durable electrical connections.

Yes, it includes a key locking feature with chromium-plated metal keys that can be removed in any switch position for enhanced operational safety.

This model is part of the Harmony XB5 series, known for its high quality and durability in industrial applications.

The angle of throw for this selector switch is set at 45°, allowing for intuitive operation between its positions.

It complies with several international standards including UL 508, EN/IEC 60947 series, JIS C 4520, and CSA C22.2 No.14.

This switch is suitable for applications in industrial machinery, building management, automated systems, and automotive controls where precise operation is required.

The country of origin for this selector switch is India.
