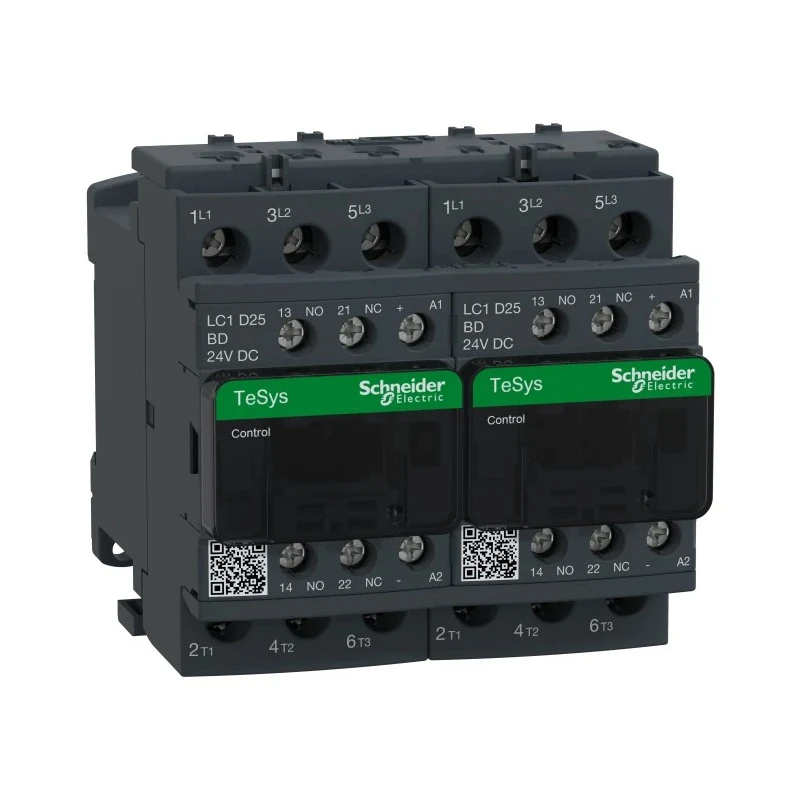

Schneider Electric LC2D Contactor, 24V DC Coil, 3-Pole, 25 A, 11 kW, 3 NO, 690V AC LC2D25BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D25BD |
| Depth | 101mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V DC coil for seamless control system integration.
- Rated for 25A AC-3 contact current and 11 kW power rating at 400V.
- Includes 3 normally open (NO) main poles and 2 NO/2 NC auxiliary contacts.
- Compact design with DIN rail mounting and screw terminals.
- Mechanical interlock and pre-wired reversing power connections enhance safety and reliability.
- Suitable for operating temperatures from -25°C to 50°C and up to 3600 cycles per hour switching rate.
- Compliant with multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
- Robust construction offers high durability with up to 2 million electrical cycles.
Product Description
Schneider Electric LC2D25BD is a high-performance reversing contactor, featuring a 24V DC coil and designed for motor control and resistive load applications. This 3-pole contactor supports up to 25 A and a power rating of 11 kW at 400V AC, suitable for demanding industrial motor switching needs.
The contactor incorporates 3 normally open (NO) main contacts with additional built-in auxiliary contacts delivering 2 NO and 2 NC contacts. The NC mirror contacts meet safety control requirements, making the device appropriate for various electrical automation setups.
Engineered for high reliability, it withstands operating temperatures between -25°C and 50°C, and offers an impressive electrical durability of 2 million cycles at 25A AC-3 440V. The compact structure spans 90mm width, with DIN rail or screw mounting options for versatile installation.
Featuring a mechanical interlock and pre-wired reversing power circuit, the LC2D25BD promotes safe and efficient operation without requiring electrical interlocking. Its screw clamp terminals provide secure, IP20 finger-safe connections, marked for both North American and international standards.
This contactor complies with international certifications such as IEC, UL, CSA, CCC, EAC, and RoHS, ensuring robust quality and environmental responsibility. Schneider Electric’s Better World initiative is supported through this designed-for-disassembly product, aligning with green manufacturing principles.
Equipped with a 24V DC coil for control system compatibility. Rated 25A AC-3, suitable for motor control and resistive loads. Includes 3 NO main poles and 2 NO/2 NC auxiliary contacts. Compact DIN rail mount with screw clamp terminals.
Mechanical interlock for safe reversing operations. Wide operating temperature range from -25°C to 50°C. Electrical durability rated for 2 million cycles. Certified under IEC, UL, CSA, CCC, EAC, and RoHS standards. Designed for easy maintenance and high reliability.
This contactor is ideal for industrial, manufacturing, HVAC, and automation systems requiring robust motor control. Browse more Schneider Electric automation products and contactors in the EnvMart catalog for extended solutions.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D25BD contactor has a power rating of 11 kW at 400V AC.
This model can handle a maximum contact current of 25A.
The coil voltage of this contactor is 24V DC.
The LC2D25BD contactor features 3 poles.
It supports DIN rail mounting.
The operating temperature range is from -25°C to 50°C.
It includes 3 normally open (NO) main contacts and 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
The dimensions are 85mm in length, 90mm in width, and 101mm in depth.
It complies with IEC, UL, CSA, CCC, EAC, and RoHS standards.
It uses screw clamp terminals that are IP20 finger-safe.
This contactor is suitable for motor control and resistive load applications, including squirrel cage motors, lifts, escalators, and HVAC systems.
The electrical durability is rated for up to 2 million cycles at 25A AC-3 440V.
