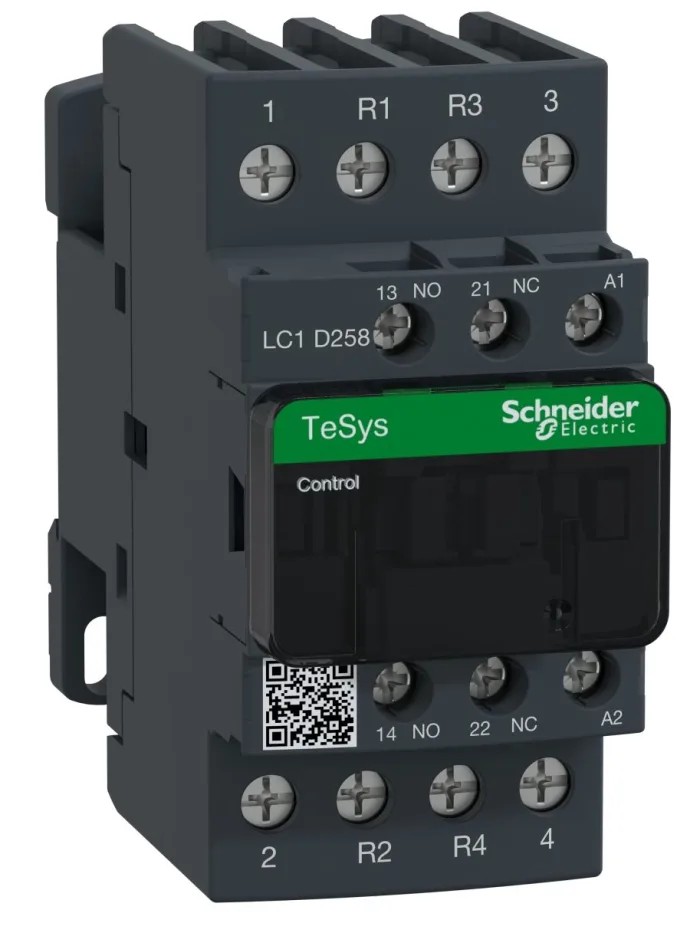

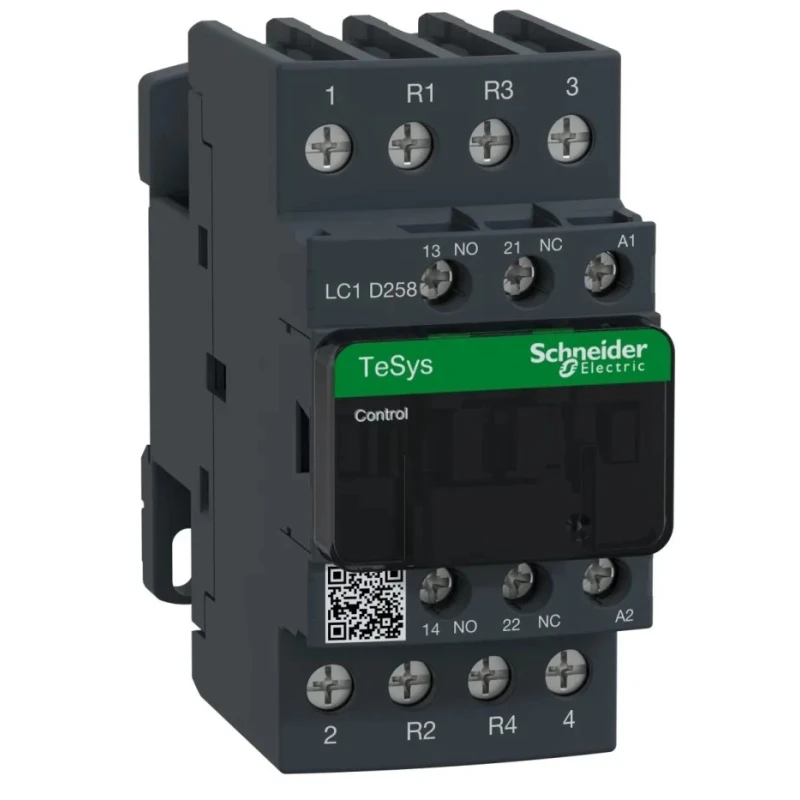

Schneider Electric TeSys LC1D258E7 Contactor, 48V AC Coil, 4-Pole, 40 A, 3.2 W, 2 NO/2 NC, 690V AC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 105mm |
| Model | LC1D258E7 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 3.2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- The contactor includes a 48V AC coil with a power rating of 3.2 W for efficient operation.
- Equipped with 2 normally open (NO) and 2 normally closed (NC) contacts for versatile switching functions.
- Designed for DIN rail mounting to facilitate organized and space-saving installations.
- Suitable for use with control circuit voltage up to 48V AC and contact voltage rating of 690V AC.
- Operates reliably across a broad temperature range from -40°C to 60°C ensuring performance in demanding environments.
- Features screw terminals for secure and vibration-proof connections.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for auxiliary switching needs.
- Compact dimensions of 105mm length, 45mm width, and 97mm depth allow easy integration into control panels.
Product Description
Schneider Electric LC1D258E7 is a high-performance contactor from the TeSys series, intended for industrial and commercial motor control and resistive load switching. It features a 48V AC coil and is capable of handling a contact current of 40 A at 690V AC contact voltage.
This contactor is engineered for robust and safe operation, with a self-extinguishing housing to prevent fire propagation in electrical panels. It integrates a bidirectional peak limiting diode suppressor that protects the coil, ensuring extended product life.
The device supports a wide operating temperature range of -40°C to +60°C, making it suitable for diverse environments demanding reliable operation. Mounting is designed for DIN rail, facilitating organized and efficient installation in control panels and electrical cabinets.
It is equipped with 2 normally open and 2 normally closed contacts, plus 2 auxiliary contacts configured as one normally open and one normally closed, providing flexible switching options to accommodate complex control schemes.
The contactor’s compact size (105mm by 45mm by 97mm) allows it to fit easily in crowded installations without sacrificing performance. Screw terminals ensure a vibration-safe, durable connection to wiring.
Applications for this device include lighting control, capacitor switching, electric motors, and heating systems within industrial, manufacturing, HVAC, and commercial automation systems.
The product meets stringent global approvals and certifications, such as UL, IEC, EAC, CSA, CCC, and RoHS, guaranteeing compliance with international safety and environmental standards.
The coil operates at 48V AC with 3.2 W power consumption. 4 poles provide robust circuit control for complex industrial systems. The contactor supports resistive load and motor control functions efficiently. DIN rail mounting enables simple and secure installation.
It includes integrated auxiliary contacts to extend control capabilities. Designed for long service life with protective coil suppressors. Wide temperature ratings cover harsh operating conditions. Compact dimensions facilitate integration into control panels.
Self-extinguishing housing enhances safety in industrial environments. Made in Indonesia with sustainability considerations such as designed for disassembly. Discover the comprehensive range of Schneider Electric automation and control gear products on EnvMart for your industrial and commercial electrical needs.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating for this contactor is 690V AC.
This model operates with a coil voltage of 48V AC and has a power consumption of 3.2 W.
The contactor features 4 poles, providing robust circuit control for various applications.
The dimensions of this unit are 105mm in length, 45mm in width, and 97mm in depth.
The operational current rating for this contactor is 25A.
It is designed for DIN rail mounting, facilitating organized installation in control panels.
This contactor operates reliably within a temperature range of -40°C to +60°C.
This model includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It is suitable for applications such as motor control, resistive load switching, lighting control, and heating systems.
The contactor meets several certifications including UL, RoHS, IEC, EAC, CSA, and CCC.
The normal state configuration consists of 2 normally open (NO) contacts and 2 normally closed (NC) contacts.
This contactor is manufactured in Indonesia.
