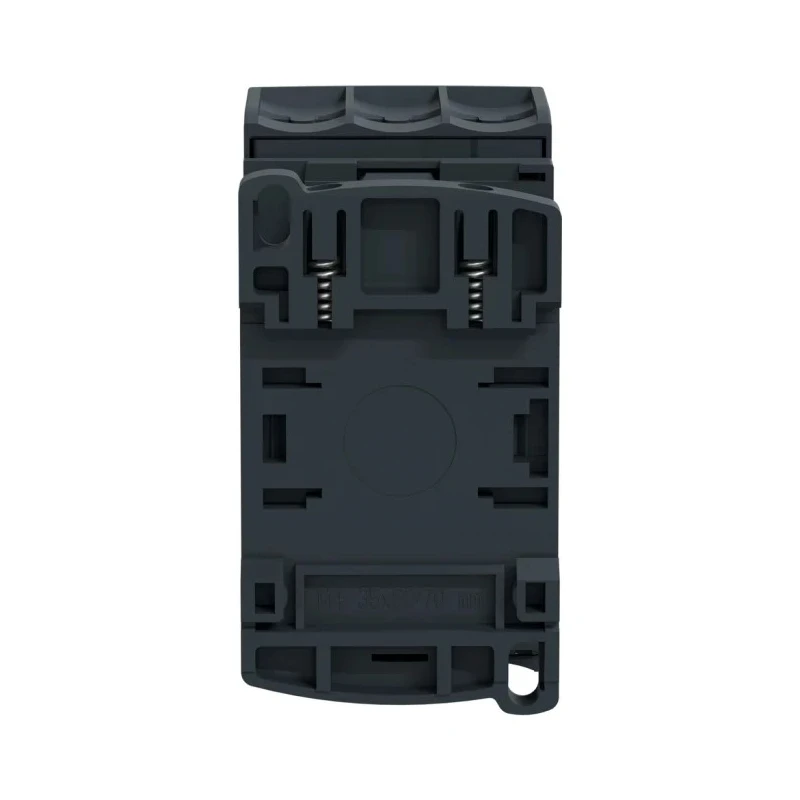

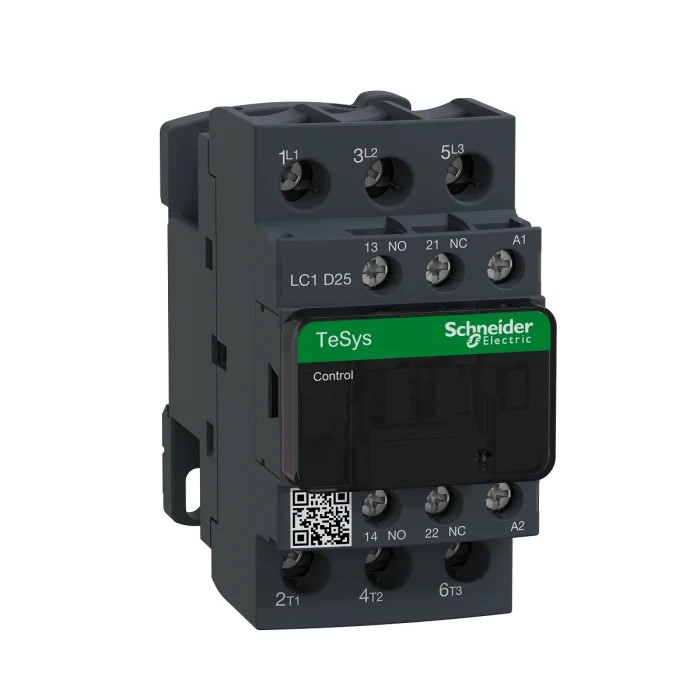

Schneider Electric Contactor, 3-Pole 25 A, 11 kW, 115V AC Coil LC1D25FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25FE7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated for 25 A contact current and 690V AC contact voltage.
- Features a compact 3-pole design suitable for industrial motor control.
- Includes 1 normally open and 1 normally closed auxiliary contact.
- Operates efficiently at temperatures from -5°C to 60°C.
- Durable DIN rail mounting design with screw clamp terminals for secure connections.
- Certified to international standards IEC, UL, CSA, CCC, EAC, and RoHS compliant.
- Designed for reliable motor control and resistive load applications.
Product Description
Schneider Electric LC1D25FE7 Contactor is a high-quality 3-pole contactor designed for motor control and resistive load applications with a 115V AC coil and rated for 25 A current and 690V AC contact voltage. It is engineered to deliver reliable performance in industrial, manufacturing, and automation environments.
This contactor features a power rating of 11 kW at 115V AC and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact with a mirror certified NC contact for added safety and control. The compact and robust design allows DIN rail mounting or screw fixing with screw clamp terminals for both load and auxiliary connections.
Operating reliably in ambient temperatures ranging from -5°C to 60°C, the LC1D25FE7 is suitable for various industries such as transportation, process control, and automated assembly lines. It supports operational rates up to 3600 cycles/hour, ensuring high reliability and durability during intensive use.
The contactor complies with multiple certifications including IEC, UL, CSA, CCC, EAC, and RoHS, meeting international quality and safety standards. It is engineered for easy integration with circuit breakers and fuses, providing high short-circuit current ratings (SCCR) for enhanced system protection.
Rated current of 25 A and contact voltage 690V AC. Three-pole design supporting multiple circuits simultaneously. 1 NO and 1 NC auxiliary contacts with mirror certification. Compact dimensions: width 45mm, length 85mm, depth 90mm.
Robust mounting options including DIN rail and screw fixing. Wide operating temperature range from -5°C to 60°C. Complies with IEC, UL, CSA, CCC, EAC and RoHS standards.
Schneider Electric LC1D25FE7 is an ideal solution for industrial automation, electrical motor control, HVAC systems, manufacturing equipment, and process control applications. Explore other Schneider Electric automation and control products on EnvMart for comprehensive industrial solutions.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 25 A.
It has a maximum contact voltage of 690V AC.
The coil voltage for this contactor is 115V AC.
This model has a power rating of 11 kW at 115V AC.
It features a 3-pole design.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
The dimensions are 85mm in length, 45mm in width, and 90mm in depth.
The operating temperature range is from -5°C to 60°C.
It can be mounted on a DIN rail or fixed with screws.
It complies with IEC, UL, CSA, CCC, EAC standards, and is RoHS compliant.
It is designed for motor control and resistive load applications.
It uses screw clamp terminals with IP20 finger-safe protection.
