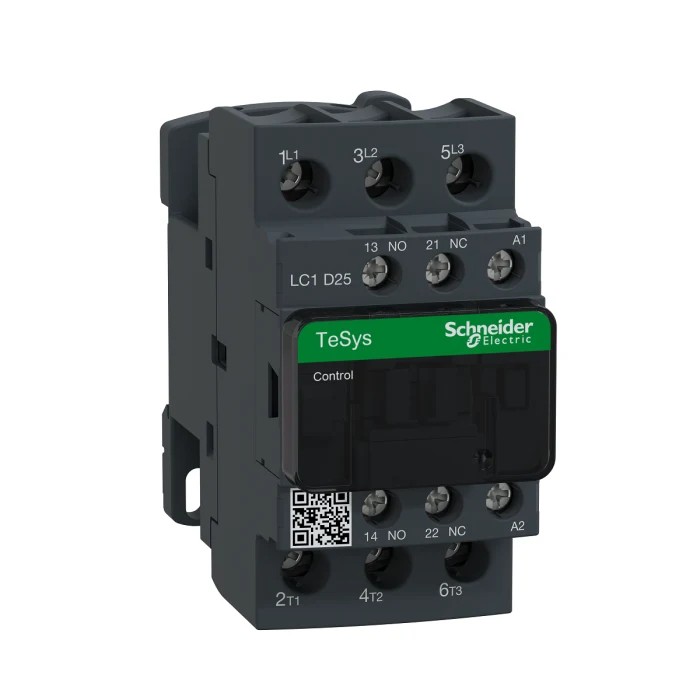

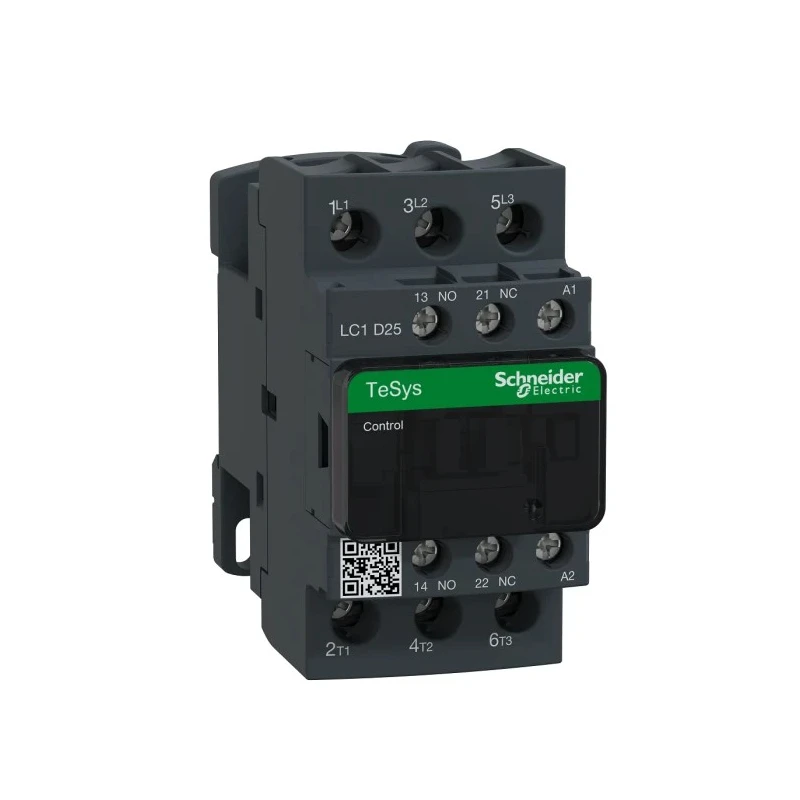

Schneider Electric LC1D Contactor 3-Pole 25A 11kW 690V AC Coil 48V AC LC1D25E7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25E7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, UL, CCC, CSA, EAC, EN 60947-5-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 48V AC coil voltage for efficient operation.
- Features a 3-pole configuration to switch up to three circuits simultaneously.
- Rated for a contact voltage of 690V AC and a contact current of 25A.
- Compact dimensions of 85 mm length, 45 mm width, and 90 mm depth for space-limited installations.
- Built with thermoplastic housing that is resistant to mechanical impact and corrosion.
- Includes 2 auxiliary contacts with 1 normally open and 1 normally closed configuration.
- Mountable on DIN rail with easy screw terminal connections.
- Operates reliably in a temperature range from -5°C to 60°C.
Product Description
Schneider Electric LC1D25E7 Contactor is a 3-pole device with a 48V AC coil voltage, rated for 25A contact current and 11kW power rating at 690V AC. It is engineered for motor control and resistive load applications, delivering robust performance in industrial settings.
The contactor’s thermoplastic housing resists mechanical impact and corrosion, ensuring long service life even under demanding conditions. Its compact size (85mm length, 45mm width, 90mm depth) allows installation in limited spaces, suitable for panel or DIN rail mounting.
This device features 2 auxiliary contacts (1 NO/1 NC), IP20 finger-safe screw terminals with markings for North American and international standards, and is capable of operating within a temperature range from -5°C up to 60°C. The front panel’s IP20 rating provides protection against accidental contact and ingress of objects greater than 12mm, enhancing user safety.
Applications for the LC1D25E7 include robotics systems, mining industry machinery, and textile manufacturing equipment. The contactor supports efficient switching of up to three circuits simultaneously with its 3-pole design, making it ideal for motor starters and control systems integration.
Designed for ease of installation and maintenance without specialized tools, this Schneider Electric TeSys D Series contactor complies with international standards including IEC, RoHS, UL, CCC, CSA, EAC, and EN 60947-5-1. It provides reliable protection against electrical surges and overload conditions.
Equipped with a 48V AC coil voltage for efficient operation. Features a 3-pole configuration to switch up to three circuits simultaneously. Rated for a contact voltage of 690V AC and a contact current of 25A. Compact dimensions of 85 mm length, 45 mm width, and 90 mm depth for space-limited installations.
Built with thermoplastic housing that is resistant to mechanical impact and corrosion. Includes 2 auxiliary contacts with 1 normally open and 1 normally closed configuration. Mountable on DIN rail with easy screw terminal connections.
Operates reliably in a temperature range from -5°C to 60°C. IP20 rated for touch protection against objects greater than 12mm. Designed for use in demanding industrial environments like robotics, mining, and textile manufacturing.
Explore more Automation & Control Gear products from Schneider Electric and enhance your industrial control systems with reliable, efficient components.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 25A, allowing it to handle significant electrical loads in various applications.
It operates with a coil voltage of 48V AC, which is designed for efficient operation in control systems.
The maximum contact voltage is rated at 690V AC, suitable for high voltage applications.
The dimensions are 85 mm in length, 45 mm in width, and 90 mm in depth, making it compact for installations in limited spaces.
This model features a 3-pole configuration, allowing it to switch up to three circuits simultaneously.
It is designed for DIN rail mounting, facilitating easy installation in various setups.
The operational temperature range is from -5°C to 60°C, making it suitable for diverse industrial environments.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This model complies with several standards including IEC, RoHS, UL, CCC, CSA, EAC, and EN 60947-5-1.
It is suitable for motor control and resistive load applications, including robotics, mining machinery, and textile manufacturing equipment.
It features IP20 finger-safe screw terminals with markings for both North American and international standards, enhancing user safety.
The power rating is 11kW, making it effective for controlling motors and resistive loads in industrial settings.
