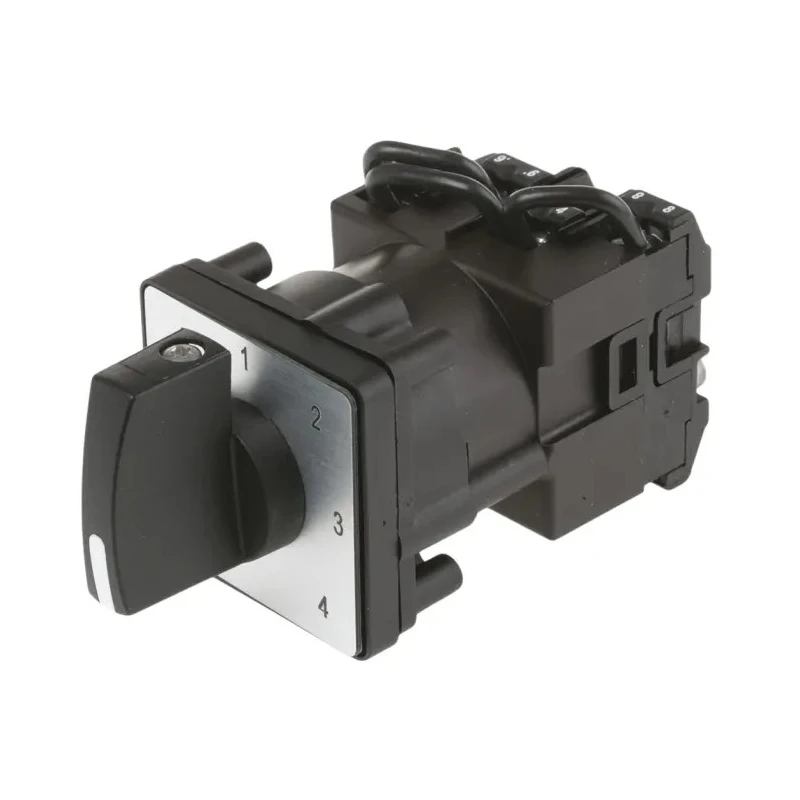

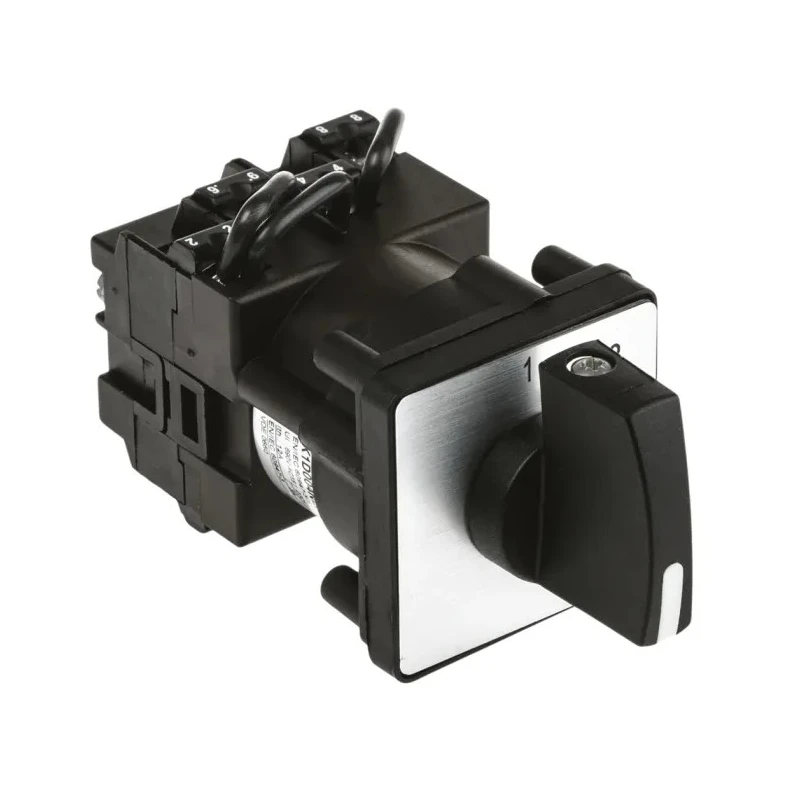

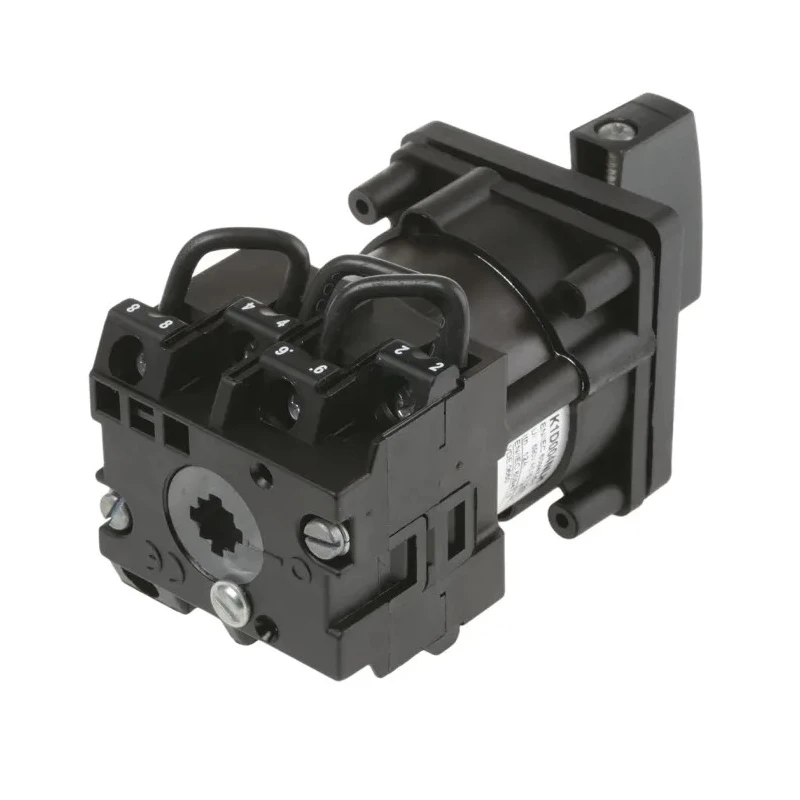

Schneider Electric Harmony 4 Position 45 ° Cam Switch with Black Handle Actuator 12 A K1D004NLH

Schneider Electric K1D004NLH is a high-quality industrial cam switch from the Harmony series, designed for reliable operation in control and power circuits. This 4-position rotary switch features a black handle actuator with a precise 45-degree angle of throw, enabling smooth and accurate switching.

Ideal for use in three-phase electrical systems requiring robust switching solutions, this cam switch offers front mounting with screw terminals to secure wiring connections. It is rated for a contact current of 12 A and can operate safely across a temperature range of -25°C to 55°C, making it suitable for a variety of industrial, manufacturing, and automation environments.

The device complies with rigorous standards such as IEC 60947-3 and IEC 60947-5-1, ensuring compliance with international safety and operational norms. Its IP40 rating provides protection against solid objects, suitable for indoor installations where dust ingress is controlled.

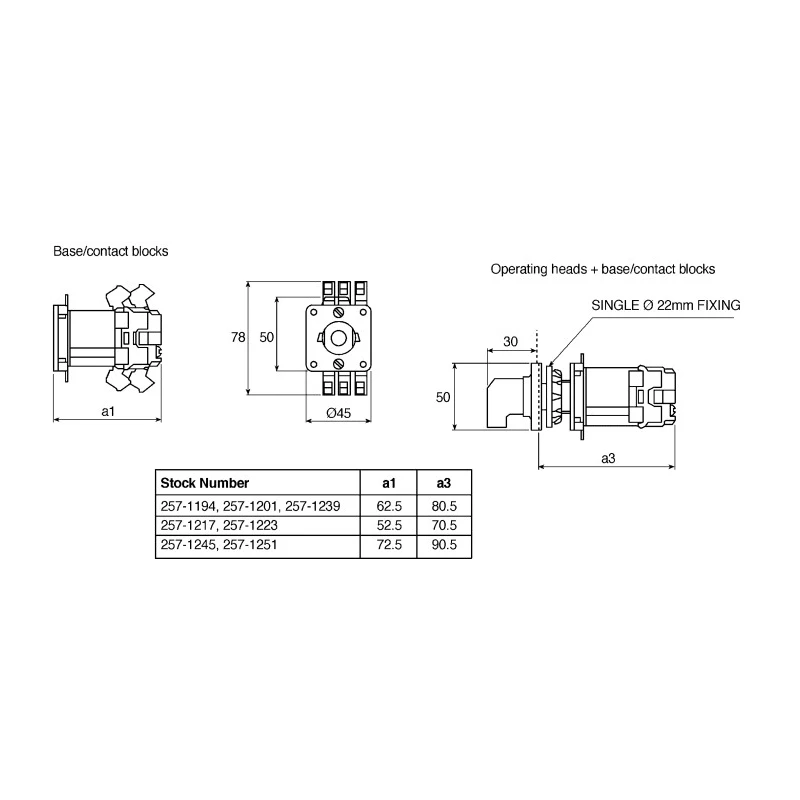

With mechanical endurance of one million cycles, the K1D004NLH cam switch promises long-lasting durability in demanding settings. Its compact dimensions (78mm length, 45mm width, and 87mm depth) allow flexible integration in control panels and electrical enclosures.

This product is manufactured in the Czech Republic, reflecting Schneider Electric’s commitment to international quality standards. Industrial sectors such as electrical automation, manufacturing plants, HVAC control, and power distribution systems benefit from its reliable switching performance.

Designed for heavy duty industrial control circuits requiring precise position switching. Four positions with a 45-degree angle of throw for accurate manual control. Black handle actuator for ergonomic manipulation and visibility.

Robust construction meeting IEC and EN international standards. IP40 rated for protection against solid objects in indoor environments. Front mounting with screw terminal connections for secure wiring. Temperature operating range from -25°C to 55°C suits varied industrial conditions.

Electrical rating of 12 A contact current and 690V AC contact voltage for versatile applications. Mechanical life up to 1,000,000 cycles ensuring extended service life. Compact size eases integration into existing control panels and switchgear.
