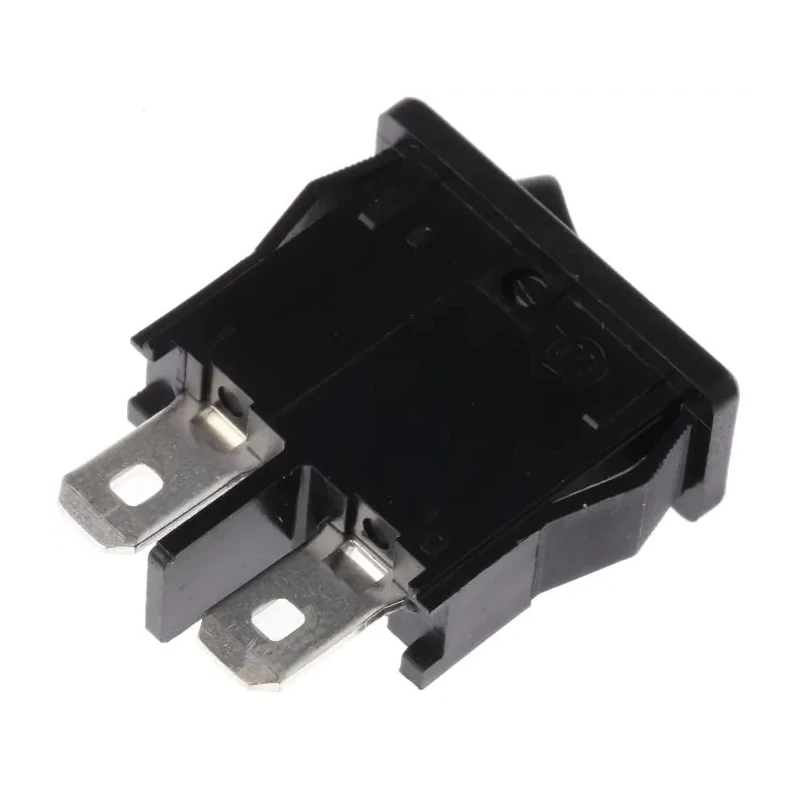

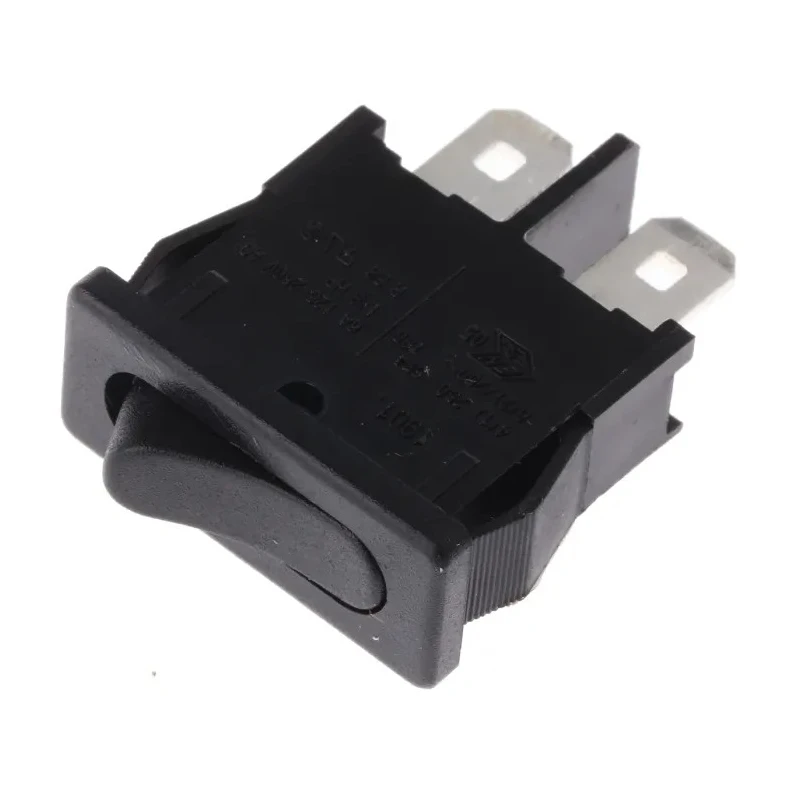

Marquardt SPST On-Off Rocker Switch Panel 6A 250V AC Polyamide Housing Model 1901.1102

Marquardt 1901.1102 SPST On-Off Rocker Switch Panel is a high-performance switch designed for use in electrical and automation applications. It supports a switching current of 6 amps and operates safely at 250 volts AC, making it suitable for Class II appliances and industrial control panels.

The switch housing is made from robust polyamide material, offering excellent insulation and mechanical strength. The slimline design features a panel cutout size of 19.4 by 6.8 millimeters, fitting panels with thickness between 0.75 and 3 millimeters securely using fixing ribs to ensure a tight fit.

This model utilizes silver contacts arranged in a single-pole single-throw (SPST) on-off configuration, delivering a reliable electrical connection with a contact resistance of 100 megaohms. The actuator is rectangular, black in color, and designed for intuitive user operation. Electrical connections are facilitated by 4.8mm Faston/Quick Connect tab terminals, allowing efficient installation and maintenance.

Engineered for durability, this rocker switch offers a mechanical life rating of 1,000,000 cycles and a high inrush current capacity of up to 50 amps capable of handling capacitive loads. It complies with UL 94 V-2 flammability requirements ensuring safe operation under thermal stress.

Operating temperature ranges from -20 to 85 degrees Celsius accommodate diverse industrial environments. Its IP40 rating protects internal parts from solid objects, enhancing reliability in typical operating conditions.

Certifications include approvals from UL, CSA, and EN, confirming compliance with international quality and safety standards. Manufactured in Mexico, this rocker switch is ideal for use in industrial automation, electrical control panels, laboratory equipment, HVAC controls, and other commercial applications requiring precise and reliable switching functions.

The rocker switch features a slim profile with a panel cutout size of 19.4 x 6.8 mm. Constructed with durable polyamide housing providing robustness and insulation. Equipped with quick connect 4.8mm Faston tab terminals ensuring fast and secure electrical connections.

Designed for panel mounting with an IP40 rating for protection against solid objects. Offers operating temperature range from -20°C to 85°C suitable for various industrial environments. Mechanical life expectancy is rated at 1,000,000 cycles ensuring long-term durability.

Actuator style is rectangular and colored black for easy identification and operation. Switch has a contact resistance of 100 MΩ, enabling efficient electrical performance. UL 94 V-2 flammability rating assures safety compliance for electrical appliance use.

Certified to meet UR, CSA, and EN standards for quality and safety assurance. Explore more Rocker Switches and Electrical components on EnvMart for your industrial and automation needs.
