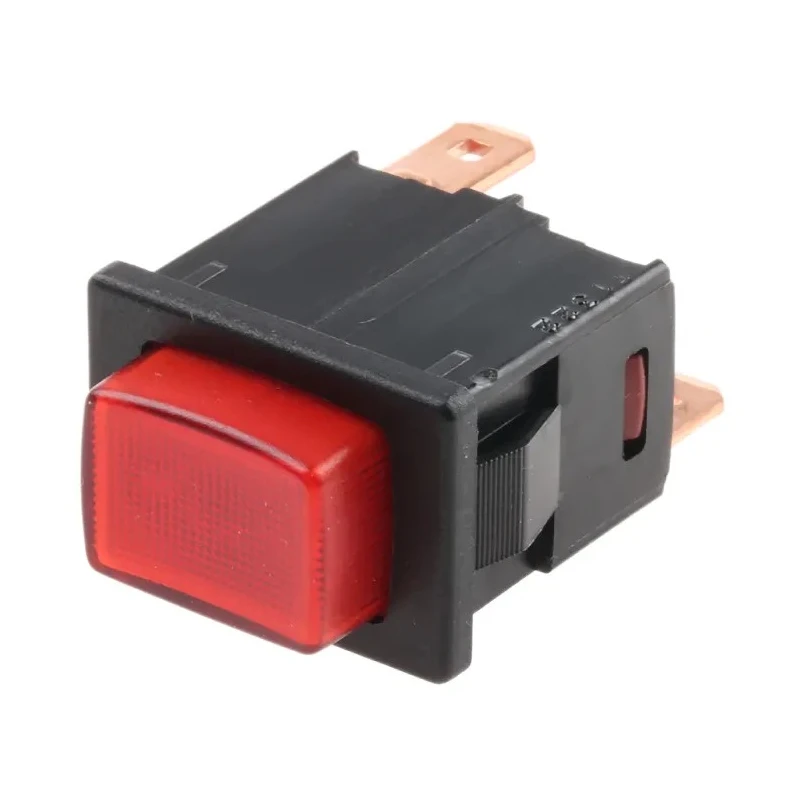

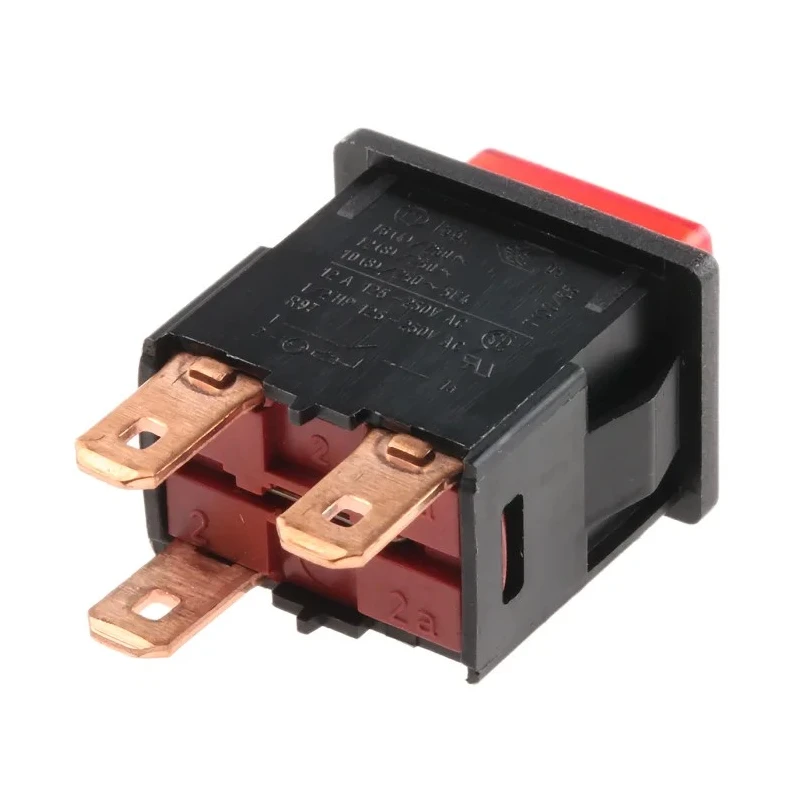

Marquardt Illuminated Red Rectangular Push Button Switch Panel Mount SPST IP40 IP67 1686.1101

Marquardt 1686.1101 Illuminated Push Button Switch is a robust panel mount switch featuring a red illuminated rectangular push button designed for easy visibility and reliable operation. This SPST switch is engineered to fit panel mounting requirements and provides secure tab terminal connections for quick and safe installation.

The switch is rated with IP40 and IP67 ingress protection, making it suitable for both indoor use and harsher environments where dust and water resistance are important. Its high maximum operating temperature of 120°C assures reliable performance even in elevated temperature conditions.

Marquardt push button switches in the 1683 series are popular for their silver contact technology and faston/quick connect style terminals, enabling high switching currents up to 16A. The mechanical life of 100,000 operations guarantees durability for extensive industrial use.

This switch complies with key safety standards including UL, CSA, and ENEC, and features UL 94 flammability ratings with V-0 for the actuator, V-1 for the socket, and V-2 for the housing components. It is well-suited for applications in electrical, automation, and control systems requiring reliable push button switching with illumination.

The Marquardt 1686.1101 is typically implemented in industrial control panels, automation equipment, and machinery requiring user-friendly, visually identifiable push button controls with proven high switching capabilities.

Equipped with an illuminated red rectangular push button for clear operation indication. Designed for panel mounting with tab terminal connections for secure installation. SPST contact configuration providing simple single-pole single-throw switching functionality.

Rated for protection class IP40 and IP67, suitable for demanding environments. Maximum operating temperature up to 120°C ensures reliability under heat exposure. Meets UL and CSA standards for safety and quality compliance.

Silver contacts with faston/quick connect terminals provide high switching capabilities up to 16A. Mechanical life expectancy of 100,000 operations delivers long-term durability. Certifications include UL, CSA, and ENEC ensuring industry-standard approvals.

Constructed to meet flammability classifications V-0 (actuator), V-1 (socket), and V-2 (housing).
