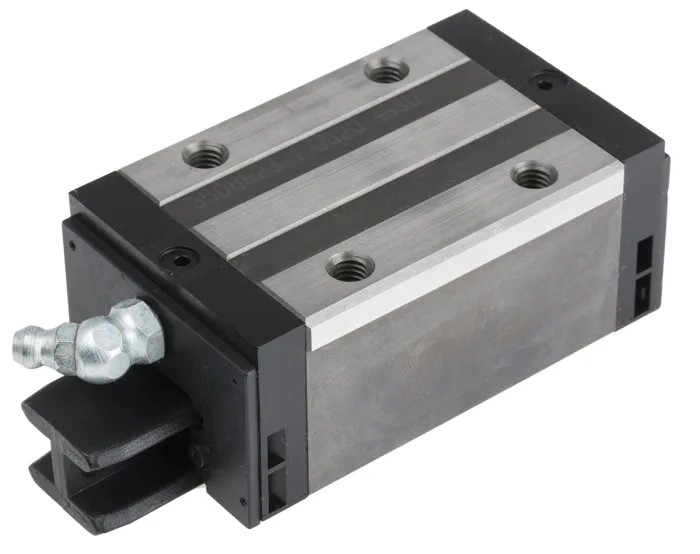

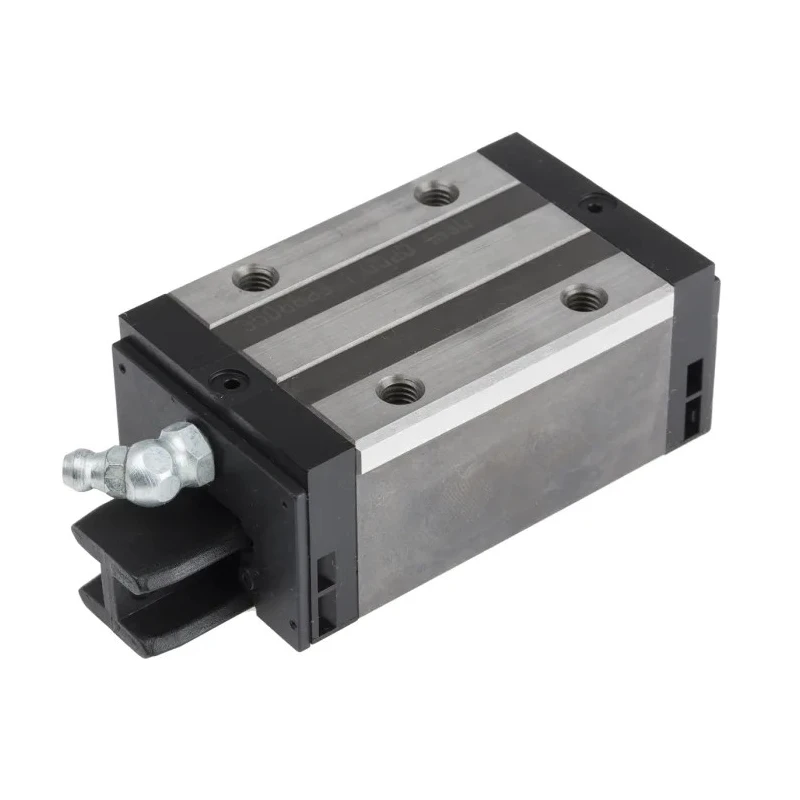

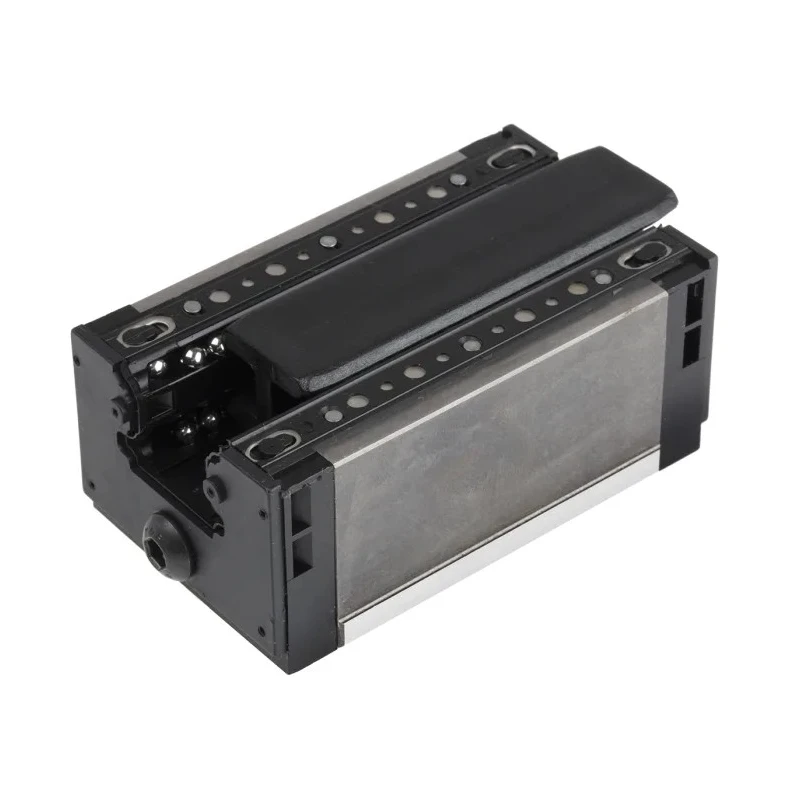

INA Linear Guide Carriage KWSE25-H-V1-G3 KWSE25 Series 81.8mm Length 70mm Width 28000 N Dynamic Load

Free Delivery in India | Lowest Global Shipping Charges

INA Linear Guide Carriage KWSE25-H-V1-G3 KWSE25 Series 81.8mm Length 70mm Width 28000 N Dynamic Load



Category Linear Guide Carriage Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Model	KWSE25-H-V1-G3
Series	KWSE25
Static Load Rating	67000N
Dynamic Load Rating	28000N
Carriage Length	81.8mm
Carriage Width	70mm

Key Features

This carriage measures 81.8mm in length and 70mm in width for precise fitment.
The dynamic load rating of 28000 N ensures high load carrying capacity and durability.
Constructed as a linear recirculating ball bearing system with preloading for rigidity.
Suitable for applications requiring long strokes, high loads, and high rigidity.
This carriage unit can be mounted on guideways or combined into a complete unit with guideway and plastic plugs.
Operating without specific approvals or certifications as per supplied specifications.
Corrosion resistance and sealing options depend on application requirements.
Ideal for use in industrial machinery, automation systems, and mechanical tool assemblies.

Product Description

INA KWSE25-H-V1-G3 linear guide carriage is part of the KWSE25 Series, engineered for high-performance linear motion with a dynamic load rating of 28000 N. The unit features dimensions of 81.8mm carriage length and 70mm carriage width, delivering precise mechanical guidance in demanding industrial environments.

This linear recirculating ball bearing carriage uses a full complement ball system with preload to achieve exceptional rigidity and load capacity, making it suitable for applications with long, unrestricted strokes and high load scenarios. The design enables smooth and precise motion critical in automated machinery, manufacturing lines, and tooling systems.

The KWSE25-H-V1-G3 carriage can be ordered individually or integrated with INA guideways (TKSD series) and plastic closing plugs to form a complete linear guide assembly. Multiple carriages can be installed on a single guideway for increased load distribution and guidance stability.

Compact carriage dimensions of 81.8mm length and 70mm width for versatile installation. High dynamic load rating of 28000 N for heavy-duty applications. Preloaded full complement ball bearing system ensures high rigidity and precision.

Versatile mounting options including above and below guideway placement. Plastic closing plugs provide protection and sealing for the carriage unit. Suitable for use across industrial, automation, construction, and mechanical tool applications.

Industrial professionals benefit from the reliability and quality associated with INA products, designed to improve system performance and longevity. This carriage is engineered for ease of maintenance and compatibility with a range of INA guideway components.
