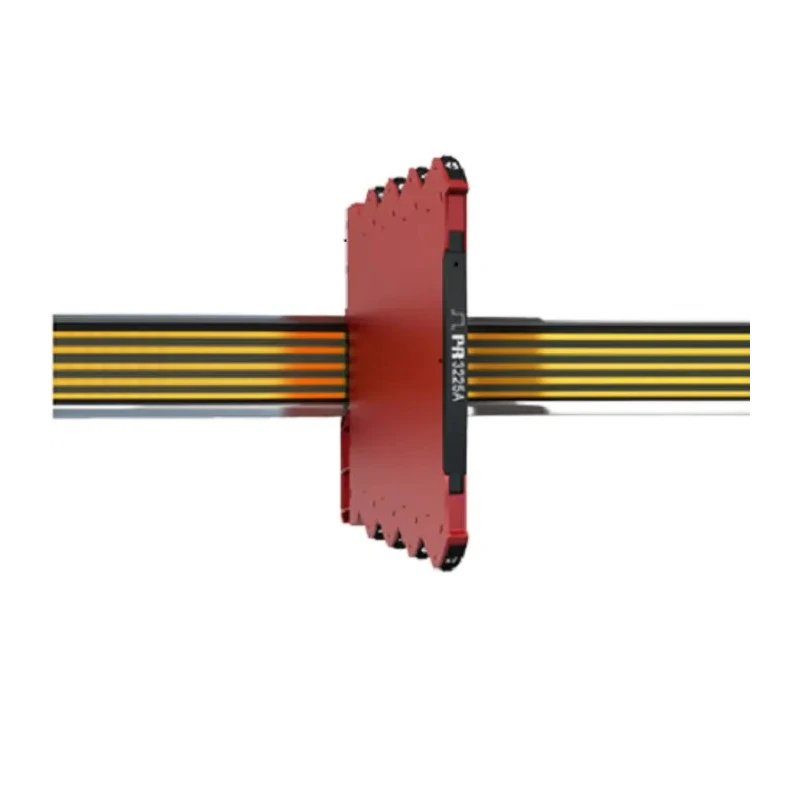

PR Electronics Frequency/Current Converter, Frequency Input, Current Output, 16.8V and 31.2V Supply, ATEX Certified 3225A
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | PR Electronics |
| Model | 3225A |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Isolation | 2.5kV ac |
| Series | 3225 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Output Range | 0 → 0.023 A |
| Input Range | 0.001 → 100000 Hz |
| Supply Voltage | 16.8, 31.2V |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Frequency |
| Standards/Approvals | RoHS, CE |
| Output Signal Type | Current |
| Signal Conditioner Type | Frequency to Current |
Key Features
- The converter supports frequency input range from 0.001 Hz to 100000 Hz.
- Output current range is 0 to 0.023 A to suit precision signal conditioning requirements.
- Dual supply voltage acceptance of 16.8 V and 31.2 V ensures versatile integration.
- Device is DIN rail mountable with screw terminal connection for secure installation.
- Excellent isolation of 2.5 kV AC enhances operational safety and signal integrity.
- Operating temperature range from -25°C to 70°C enables use in harsh environments.
- Certified to RoHS and CE standards for compliance and quality assurance.
- IP20 rated enclosure offers protection against solid objects while allowing ventilation.
Product Description
PR Electronics 3225A Frequency/Current Converter is a robust signal conditioning device designed to convert frequency input signals into precise current output. Manufactured in Denmark, this unit supports frequency inputs ranging from 0.001 Hz up to 100 kHz and converts them to current output between 0 and 0.023 amperes. It accepts dual supply voltages of 16.8 V and 31.2 V, making it adaptable to varied system requirements.
This signal conditioner features enhanced safety with 2.5 kV AC galvanic isolation and is certified for use in hazardous environments with ATEX certification. Its rugged IP20 rated enclosure allows for protection against solid objects, while operating reliably in temperatures from -25°C to 70°C.
The unit is designed for simple integration using DIN rail mounting and secure screw terminals. The over-voltage, polarity, and short-circuit protection on all terminals ensure long operational life and reliability in industrial automation, electrical, and control system applications. Its programmability includes password protection to prevent unauthorized configuration changes.
Ideal for industrial automation, process control, laboratory measurement, and hazardous area applications, this frequency to current converter supports precision signal conversion and improved system safety. The product complies with RoHS and CE standards, reflecting quality and environmental considerations.
The converter accepts frequency signals from 0.001 Hz to 100000 Hz for broad application compatibility. Outputs current in the range of 0 to 0.023 A to suit process control instrumentation. Galvanic isolation of 2.5 kV AC ensures protection between input and output circuits.
DIN rail mounting and screw terminal connections facilitate practical installation. Wide operating temperatures from -25°C to 70°C allow use in diverse environments. ATEX certification makes the device suitable for hazardous atmospheres requiring explosion protection.
All terminals are safeguarded against over-voltage, polarity reversals, and short circuits, enhancing durability. The compact design enables side-by-side mounting without air gaps, optimizing space on control panels. Power supply voltages of 16.8 V and 31.2 V offer flexible system integration options.
Explore PR Electronics products and other high-quality Signal Conditioners at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a frequency input range from 0.001 Hz to 100,000 Hz.
The output current range is from 0 to 0.023 A.
It accepts dual supply voltages of 16.8 V and 31.2 V.
This unit is designed for DIN rail mounting.
It features galvanic isolation of 2.5 kV AC, enhancing operational safety.
The operating temperature range is from -25°C to 70°C.
It uses screw terminals for secure connections.
Yes, it is ATEX certified for use in hazardous areas.
It complies with RoHS and CE standards for quality assurance.
This model converts frequency input signals into current output signals.
Yes, it is suitable for industrial automation, process control, and laboratory measurement applications.
The enclosure has an IP20 rating, providing protection against solid objects while allowing ventilation.
