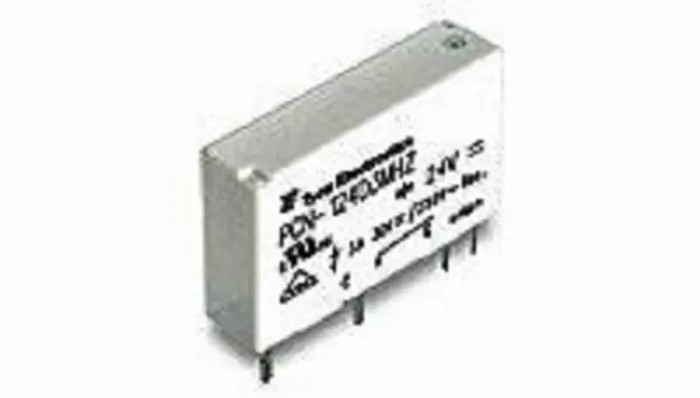

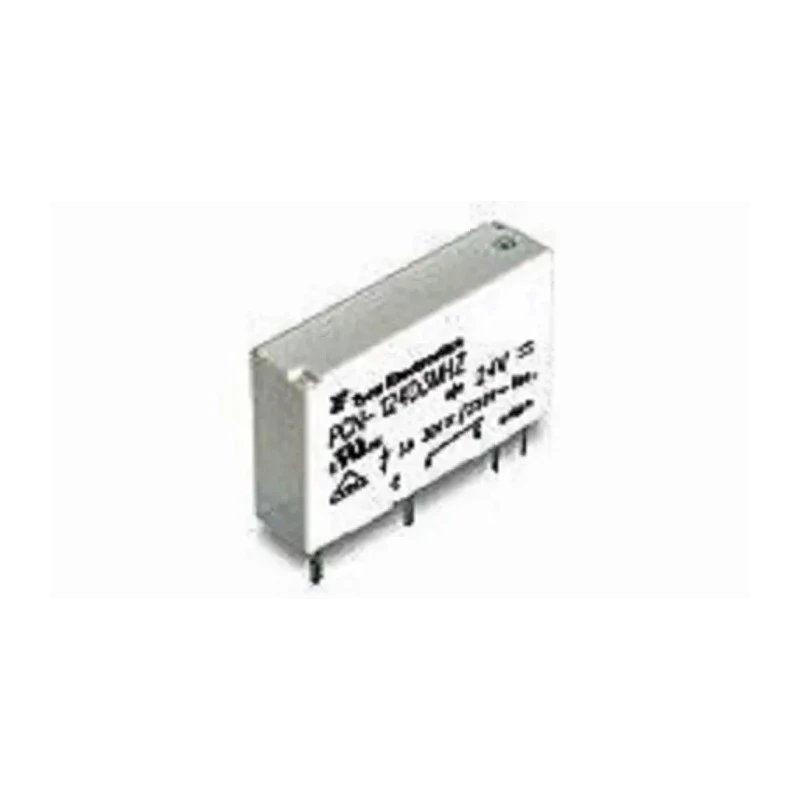

TE Connectivity Panel Monostable Relay 24V ac/dc Coil 3A Switching Current SPST 7-1461491-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
| Coil Magnetic System | Monostable, DC |
Key Features
- Coil voltage supports both 24V AC and DC for versatile use.
- Single Pole Single Throw (SPST) contact configuration ensures simple on/off switching.
- Capable of switching currents up to 3 Amperes.
- Compact panel mount design with solder terminal type enhances installation ease.
- Operates efficiently across temperature range from -40°C to 85°C.
- Switching AC voltage up to 250V and DC voltage up to 30V supported.
- Coil resistance of 100 ohms and coil power of 400mW ensure low power consumption.
- Silver alloy contact material minimizes contact resistance of 50 milliohms for reliable conductivity.
Product Description
TE Connectivity 7-1461491-6 Panel Monostable Relay is engineered for industrial and electrical automation applications requiring reliable signal switching under moderate current loads. This relay features a monostable coil magnetic system operating at 24V AC/DC with a power rating of 400mW, providing efficient operation with minimal power consumption.
Designed for panel mounting, the relay includes solder-type terminals facilitating secure and straightforward assembly. The robust silver alloy contacts ensure low contact resistance and longevity, suitable for switching currents of up to 3A at voltages of 250V AC or 30V DC. It operates reliably within an ambient temperature range of -40°C to 85°C, making it suitable for various industrial and manufacturing environments.
The relay’s compact dimensions (20mm length, 15mm height, 10mm width) allow integration into dense control panels without compromising performance. Certified under RoHS and UL standards, it meets prevailing regulatory requirements, ensuring environmental compliance and electrical safety.
This product is ideal for use in industrial automation, electrical panel controls, HVAC systems, manufacturing machinery controls, and other situations where precise switching with moderate currents is required. Its monostable coil type offers fail-safe operation, restoring to a default state when power is removed.
Coil voltage supports 24V AC/DC operation with minimal coil power consumption. SPST contact configuration for straightforward switching control. Panel mount style with solder terminals for ease of installation. Robust silver alloy contacts ensure longevity and low resistance.
Operational temperature range from -40°C up to 85°C for diverse application environments.
Set yourself up for reliable industrial electrical switching with this TE Connectivity monostable relay. Explore more Power Relays and automation components to suit your needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V AC or DC, providing versatility for various applications.
It is capable of switching currents up to 3 Amperes, making it suitable for moderate current loads.
The relay has compact dimensions of 20mm in length, 15mm in height, and 10mm in width, allowing for easy integration into control panels.
This model features a Single Pole Single Throw (SPST) contact configuration for straightforward on/off switching.
It operates efficiently within a temperature range of -40°C to 85°C, suitable for various industrial environments.
The relay includes solder-type terminals, which facilitate secure and straightforward assembly during installation.
The contacts are made from silver alloy, which minimizes contact resistance and enhances conductivity.
It supports switching AC voltages up to 250V and DC voltages up to 30V, making it versatile for different applications.
The coil resistance is 100 ohms, ensuring efficient operation with low power consumption.
This relay is certified under RoHS and UL standards, ensuring compliance with regulatory requirements for safety and environmental standards.
The coil power rating is 400mW, which indicates low power consumption during operation.
It is ideal for use in industrial automation, electrical panel controls, HVAC systems, and manufacturing machinery controls.
