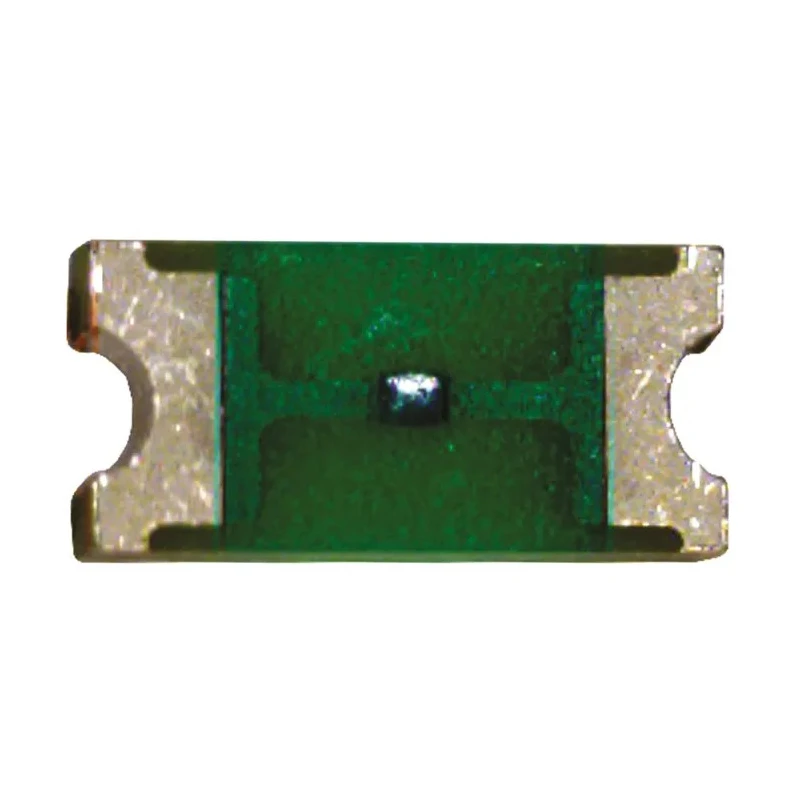

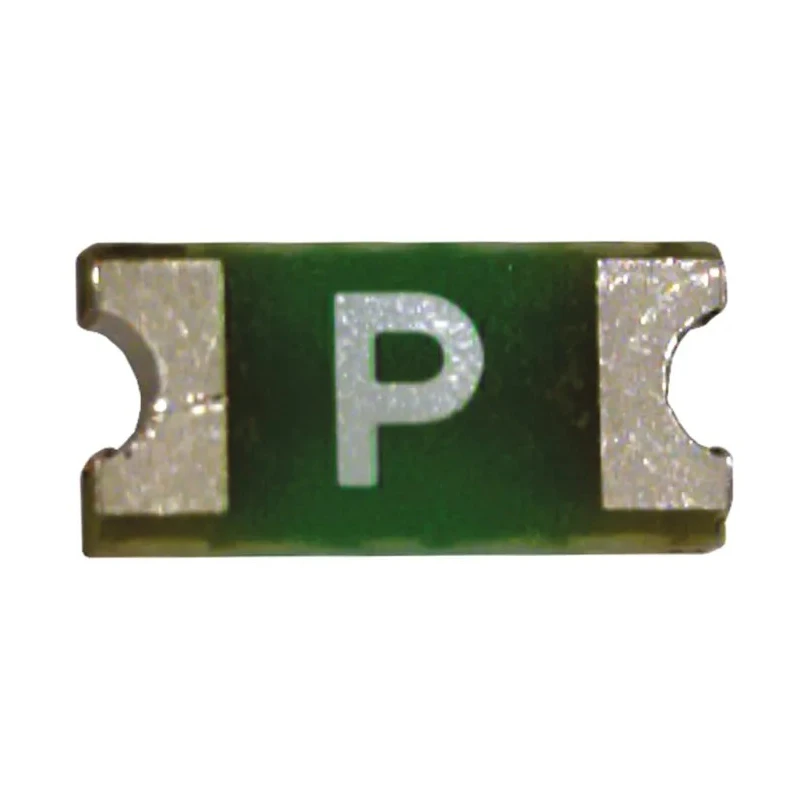

Littelfuse Non-Resettable Fuse 3A, 32 V ac / 32 V dc, Super Fast Acting, 1206 Case 0466003.NR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 32, 32V ac |
| Brand | Littelfuse |
| Body Material | Advanced High Temperature Substrate |
| Height | 0.59mm |
| Model | 0466003.NR |
| Depth | 3.18mm |
| Series | 466 |
| Maximum Operating Temperature | 90°C |
| Resistance | 19mΩ |
| Package Type | Reel |
| Minimum Operating Temperature | -55°C |
| Package Size | 1206 |
| Breaking Capacity | 50A |
| Terminal Material | Tin Over Nickel Over Copper |
| Standards/Approvals | RoHS, CSA |
| Fuse Characteristics | Super Fast Acting |
| 1206 SMD FF subminiature fuse,3ABrand | Littelfuse |
Key Features
- Features a 1206 case style with an advanced high temperature substrate body.
- Offers a breaking capacity of 50A for enhanced circuit protection.
- Has a resistance of 19 milliohms ensuring minimal voltage drop.
- Operates effectively within a temperature range of -55°C to a maximum of 90°C.
- Terminal material comprises tin over nickel over copper for reliable conductivity.
- Body dimensions include 0.59mm height and 3.18mm depth.
- RoHS and CSA certified ensuring compliance with safety and environmental standards.
- Ideal for protecting sensitive electronic components in systems such as audio/visual equipment, power supplies, and medical devices.
Product Description
Littelfuse 0466003.NR Non-Resettable Fuse, rated for 3A current, and 32 V ac / 32 V dc voltage, is engineered with a super fast acting fuse characteristic and designed specifically for surface mount technology (SMT) applications.
This fuse utilizes an advanced high temperature epoxy substrate body coupled with copper, nickel, and tin-lead caps that form a compact 1206 case style. With a height of 0.59mm and depth of 3.18mm, it fits efficiently into high-density circuit boards requiring minimal space.
The fuse provides a breaking capacity of 50A and features a low resistance of 19mΩ to reduce energy losses. It operates reliably within a broad temperature range from -55°C minimum up to 90°C maximum, making it suitable for demanding environmental conditions.
Terminals composed of tin over nickel over copper material ensure excellent electrical conductivity and solderability, critical for robust connections in industrial and electronic equipment.
This non-resettable fuse is RoHS and CSA approved, ensuring compliance with safety and environmental standards. It finds applications in the protection of valuable silicon integrated circuits used in alarm systems, audio/visual devices, computer boards, portable telephones, power supplies, and medical apparatus.
Supplied on reels, it supports efficient automated assembly processes and improved production throughput. 1206 case style with epoxy substrate and metal caps. Super fast acting fuse type for sensitive electronics protection.
Breaking capacity of 50A for high fault current conditions. RoHS and CSA certified compliance. Reel packaging for SMT automation. Explore more products in the Non-Resettable Fuse category on EnvMart for a wide selection of fuses suitable for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This non-resettable fuse is rated for 3A current and operates at 32 V ac / 32 V dc.
It has a breaking capacity of 50A, providing enhanced circuit protection for high fault current conditions.
The fuse has a height of 0.59mm and a depth of 3.18mm, making it suitable for high-density circuit board applications.
It operates effectively within a temperature range of -55°C to a maximum of 90°C.
The terminals are composed of tin over nickel over copper, ensuring reliable conductivity and solderability.
The fuse features a low resistance of 19 milliohms, which helps minimize voltage drop.
It is RoHS and CSA certified, ensuring compliance with safety and environmental standards.
This model is supplied on reels, supporting efficient automated assembly processes.
The body is made from an advanced high temperature substrate, designed for durability in demanding conditions.
It is ideal for protecting sensitive electronic components in systems such as audio/visual equipment, power supplies, and medical devices.
This fuse is characterized as super fast acting, making it suitable for sensitive electronic applications.
This model is part of the Littelfuse 466 series.
