RS PRO Toroidal Transformer 2 x 115 V AC Primary 2 x 12 V AC Secondary 50 VA Dual Output 540-5220

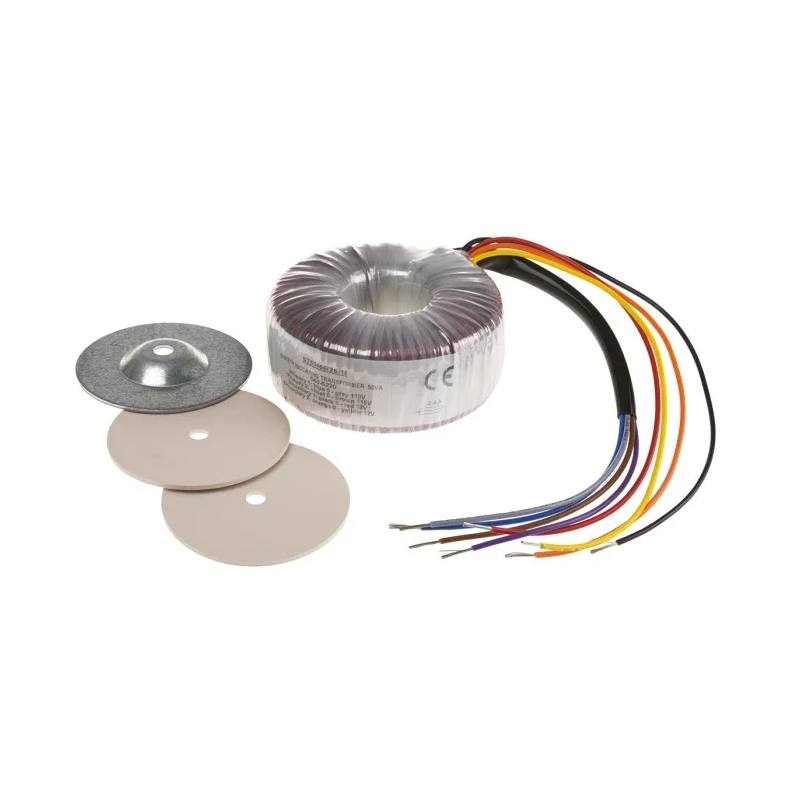

Name: RS PRO Toroidal Transformer 2 x 115 V AC Primary 2 x 12 V AC Secondary 50 VA Dual Output 540-5220
Brand: RS PRO
SKU: 340531
Price: 97.14 USD
Availability: InStock



Category Toroidal Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Diameter	80mm
Brand	RS PRO
Height	34mm
Model	540-5220
Gross Weight	760g
Maximum Operating Temperature	105°C
Secondary current	2.08A
Number of outputs	2
Winding Type	Dual Primary, Dual Secondary
Standards/Approvals	IEC 61558-2-6
Primary Voltage	2 x 115 V ac
Secondary Voltage	2 x 12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
RS PRO 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 50 VABrand	RS PRO

Key Features

This transformer features low induced noise and a low level of radiated magnetic field for reduced interference.
It allows series or parallel connections of both primary and secondary windings for flexible installation.
The product includes flexible leadouts to ease mounting and installation.
It operates safely up to a maximum temperature of 105°C.
Standards compliance includes IEC 61558-2-6 ensuring quality and safety.
The toroidal design offers a compact size with an 80mm diameter and 34mm height.
The transformer undergoes 100% electrical and flash testing to guarantee reliability.
Suitable for various industrial and electronic applications requiring dual output transformers.

Product Description

The RS PRO 540-5220 Toroidal Transformer is a professional-grade power supply component featuring dual primary voltages of 2 x 115 V AC and dual secondary voltages of 2 x 12 V AC. Rated at 50 VA, it is designed for industrial and electronic applications requiring dual output AC power in a compact, efficient package.

Its toroidal construction allows for significantly reduced size and weight compared to conventional stacked laminated transformers, with dimensions of 80mm diameter and 34mm height. The transformer supports flexible wiring options with dual primary and secondary windings that can be connected in series or parallel, providing installation versatility.

The unit boasts low induced acoustic noise and minimal radiated magnetic field, which reduce interference in sensitive circuits. Its flexible leadouts aid in simplifying the installation process, and it is rated to operate safely at temperatures up to 105°C.

Certified to IEC 61558-2-6 standards, the transformer ensures compliance with international safety and performance criteria. It undergoes thorough electrical and flash testing to confirm its dependability in demanding environments. The robust construction and components are suitable for use in industrial manufacturing, laboratory, HVAC, and electronic equipment sectors.

The product is supplied with a complete mounting kit, ready for straightforward assembly. Manufactured in Poland, this transformer combines quality craftsmanship with reliable performance for professional users.

This transformer features low induced noise and a low level of radiated magnetic field for reduced interference. Allows series or parallel connection of both primary and secondary windings for flexible installation. Flexible leadouts for ease of installation.

Rated for maximum operating temperature of 105°C. Meets IEC 61558-2-6 safety and performance standards. Compact size with 80mm diameter and 34mm height. Includes full mounting kit for convenience. Undergoes 100% electrical and flash testing for reliability.

Suitable for industrial, laboratory, HVAC, and electronic applications. Manufactured in Poland ensuring quality standards. Explore more quality transformers and power components at EnvMart for your industrial and electronic power needs.
