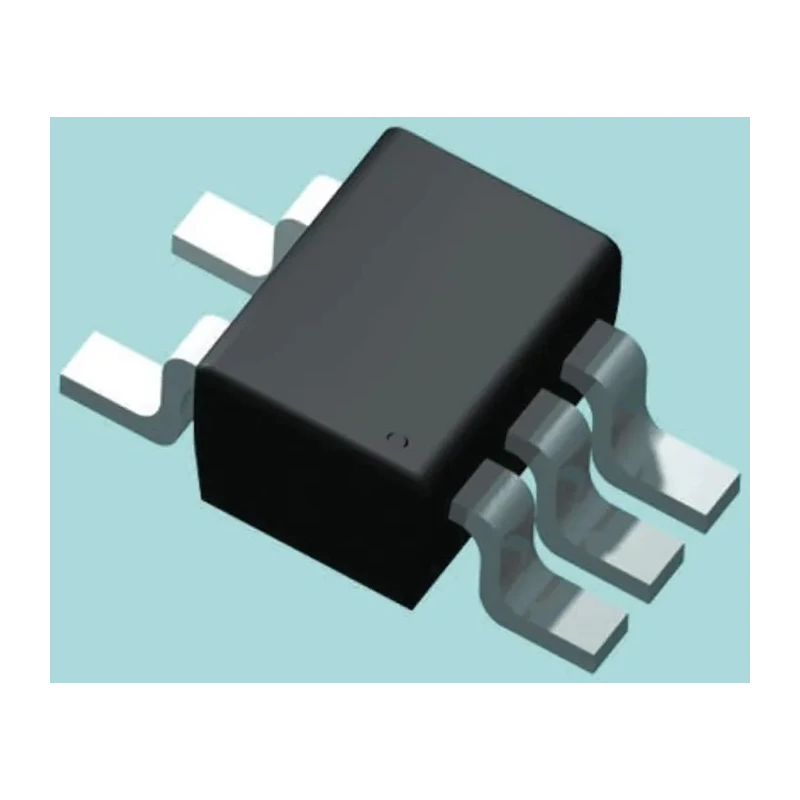

Analog Devices Fixed Series Voltage Reference 10V ±0.1% 5-Pin TSOT ADR01AUJZ-REEL7

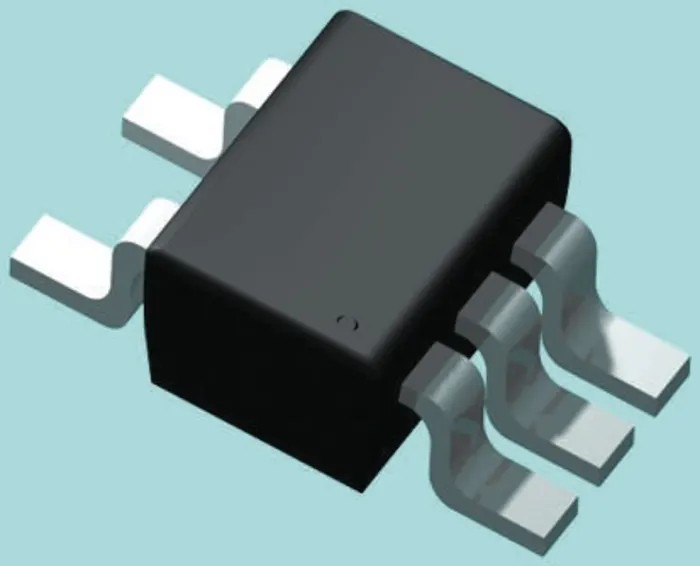

Analog Devices ADR01AUJZ-REEL7 Fixed Series Voltage Reference is a high-precision semiconductor device designed to provide a stable 10V voltage reference with an initial accuracy of ±0.1%. This voltage reference IC comes in a compact 5-Pin TSOT surface mount package, making it suitable for modern PCB mounting applications in various electronic circuits.

Capable of operating reliably within a temperature range of -40°C to 125°C, it ensures consistent performance across challenging environmental conditions. The device features a low temperature coefficient of 25 ppm/°C, reducing voltage drift over temperature, and offering excellent stability for sensitive analog and power management applications.

The maximum input voltage is 36V with an output current of up to 10mA, delivering a fixed output voltage ideal for reference circuits, precision measurement, and industrial instrumentation. With line regulation of 30 ppm/V and load regulation of 70 ppm/mA, the ADR01AUJZ-REEL7 sustains voltage stability with varying supply and load conditions.

This fixed voltage reference IC is part of the ADR01 series by Analog Devices, renowned for precision voltage references that are used in industrial, laboratory, and commercial electronics environments. It is not certified for automotive standards but is optimized for power management IC applications.

Provides a fixed 10V reference voltage with high precision. Features initial accuracy of ±0.1% for stable voltage output. Compact 5-Pin TSOT surface mount package suitable for PCB integration. Operates within temperature range of -40°C to 125°C for reliability.

Maximum input voltage of 36V with 10mA output current capability. Temperature coefficient of 25 ppm/°C ensures stability across temperatures. Line regulation of 30 ppm/V and load regulation of 70 ppm/mA enhance performance.

Height of 900 μm and length of 2.9 mm form factor. Ideal for power management and voltage regulation applications. Produced by Analog Devices, a leader in precision semiconductor components.

This product is suitable for various industrial electronics projects, laboratory instruments, and commercial systems requiring precise voltage references. It provides a reliable solution for power management IC circuits demanding stable and accurate Voltage References.
