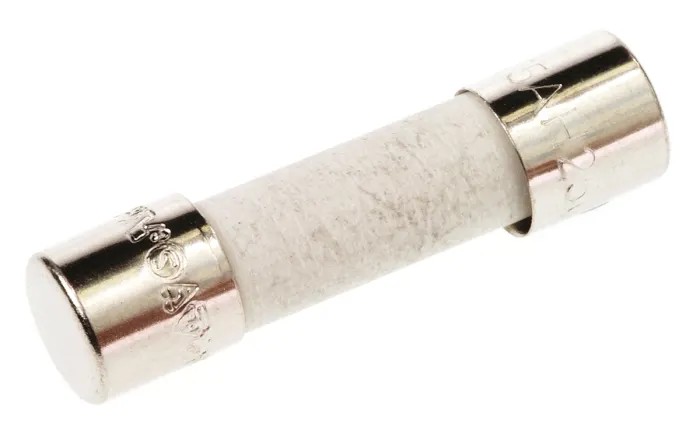

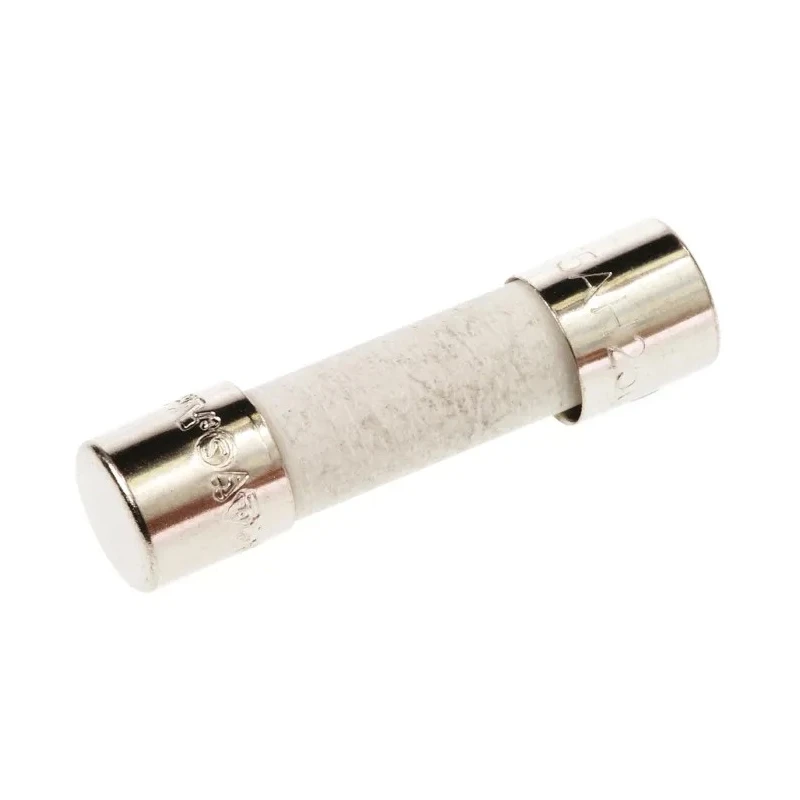

Eaton 5A Time Delay Ceramic Cartridge Fuse 5 x 20 mm 250V AC S505-5-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505-5-R |
| Overall Length | 20mm |
| Current Rating | 5A |
| Series | S505 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | VDE, BSI, SEMKO, CSA, PSE, IMQ, KC, CCC |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Cooper Bussmann Cartridge FuseBrand | Cooper Bussmann |
| RS PRO 5A T Ceramic Cartridge Fuse, 5 x 20 mmRS Stock No. | 563-693Brand: RS PRO |
| RS PRO 5A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
Key Features
- This ceramic fuse features time-delay characteristics preventing nuisance blowing during temporary current surges.
- Its compact 5 x 20 mm size fits limited space applications securely.
- Rated at 5A with a voltage of 250V AC ensuring robust performance.
- Ceramic body construction withstands high temperature up to 125°C for durable safety.
- Halogen-free and RoHS compliant design suitable for environmentally conscious installations.
- Equipped with nickel-plated brass end caps for enhanced electrical connectivity and corrosion resistance.
- Complies with international safety standards including VDE, BSI, SEMKO, CSA, PSE, IMQ, KC, and CCC.
- Ideal for protecting LED lighting circuits, printers, peripherals, appliances, and power supplies.
Product Description
Eaton S505-5-R is a 5A time-delay ceramic cartridge fuse measuring 5 x 20 mm designed for reliable electrical circuit protection at 250V AC. Engineered with a ceramic body and nickel-plated brass end caps, this fuse withstands high temperatures and provides stable performance over a broad operating temperature range from -55°C to 125°C.
This fuse's time-delay feature prevents nuisance tripping caused by short-term current surges, making it ideal for sensitive electronics. Its compact dimensions suit limited space installations in industrial, commercial, and residential electrical systems.
The high breaking capacity of Eaton's ceramic fuse enhances circuit safety, protecting LED lighting setups, office equipment like printers and peripherals, household appliances, and power supply devices. This component is halogen-free and RoHS compliant, aligning with environmental safety requirements.
Fully compliant with multiple international standards such as VDE, BSI, SEMKO, CSA, PSE, IMQ, KC, and CCC, it assures dependable and certified circuit protection. This ceramic fuse features time-delay characteristics preventing nuisance blowing during temporary current surges.
Its compact 5 x 20 mm size fits limited space applications securely. Rated at 5A with a voltage of 250V AC ensuring robust performance. Ceramic body construction withstands high temperature up to 125°C for durable safety.
Halogen-free and RoHS compliant design suitable for environmentally conscious installations. Equipped with nickel-plated brass end caps for enhanced electrical connectivity and corrosion resistance. Complies with international safety standards including VDE, BSI, SEMKO, CSA, PSE, IMQ, KC, and CCC.
Ideal for protecting LED lighting circuits, printers, peripherals, appliances, and power supplies. Operates reliably across a temperature range of -55°C to 125°C ensuring versatility in diverse environments. Discover more electrical protection components in our electronics and electricals category for quality and safety assurance.
Explore more products in our Electrical Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S505-5-R fuse has a voltage rating of 250V AC.
This model is rated for a current of 5A.
The fuse measures 5 x 20 mm in size.
The maximum operating temperature for the Eaton S505-5-R is 125°C.
The fuse features a ceramic body construction.
This fuse complies with several international standards including VDE, BSI, SEMKO, CSA, PSE, IMQ, KC, and CCC.
The time-delay feature prevents nuisance blowing during temporary current surges, making it suitable for sensitive electronics.
The minimum operating temperature for the Eaton S505-5-R is -55°C.
It is equipped with nickel-plated brass end caps for enhanced electrical connectivity and corrosion resistance.
This fuse is ideal for protecting LED lighting circuits, printers, peripherals, appliances, and power supplies.
The halogen-free and RoHS compliant design indicates that the fuse is suitable for environmentally conscious installations.
The fuse has a high breaking capacity, enhancing circuit safety.
