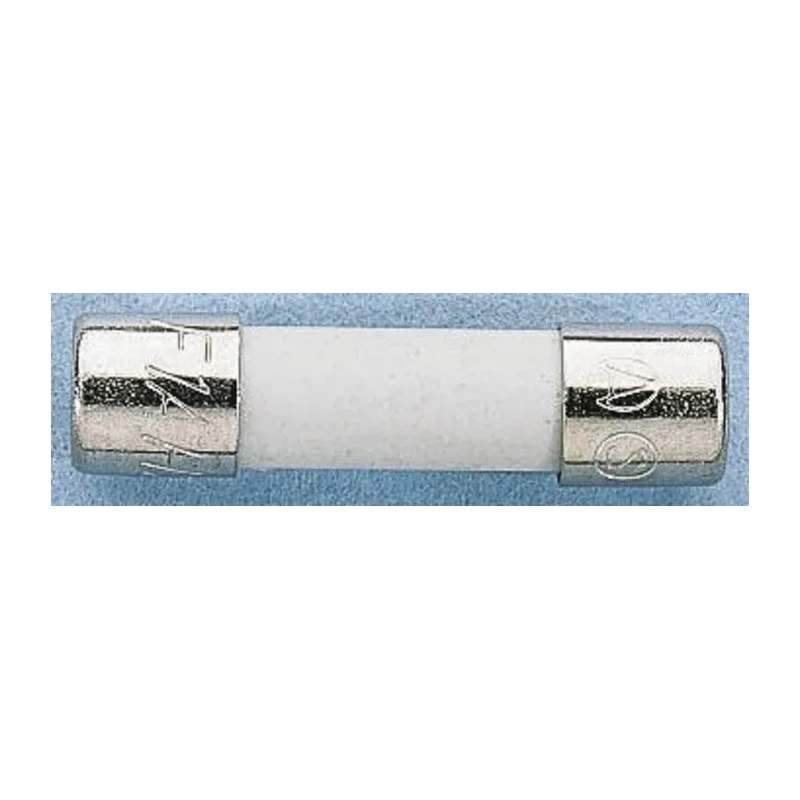

Eaton Ceramic Cartridge Fuse 3.15A Fast Acting 250V AC 5 x 20 mm S501-3.15-R

Eaton S501-3.15-R Ceramic Cartridge Fuse, rated 3.15A and 250V AC, is a fast acting fuse designed for short circuit protection of semiconductors such as thyristors, diodes, and triacs. The compact 5 x 20 mm fuse size makes it ideal for board and panel protection using compatible fuse holders.

Constructed with a durable ceramic body, this cartridge fuse delivers higher capacity than glass fuses and withstands overheating effectively. Its fast acting ('F') rating targets overloads and safeguards cabling and components from damage by quickly interrupting fault currents.

The fuse features a high breaking capacity (HBC), ensuring safe breaking of high fault currents without rupture or explosion, conforming to standards like VDE, SEMKO, IMQ, CSA, CCC, and BSI.

Typical applications for this Eaton S501 series fuse include circuit protection in industrial automation, electrical control panels, and semiconductor devices protection in manufacturing and laboratory environments.

With a precise 20 mm length and 5 mm diameter, it seamlessly fits standard 5 x 20 mm fuse holders. Eaton's manufacturing quality guarantees reliable and consistent performance for electrical safety needs.

The fuse has a current rating of 3.15 amperes suitable for semiconductor protection. Ceramic body material provides superior capacity and heat resistance. Fast acting fuse characteristics protect less sensitive components and wiring from overload.

Standard 5 x 20 mm size fits compatible fuse holders and panel mounts. Rated voltage is 250 volts AC for a broad range of electrical applications. High breaking capacity (HBC) ensures safe interruption of fault currents.

Overall length measures 20 mm and diameter is 5 mm for compact installation. Complies with international standards including VDE, SEMKO, IMQ, CSA, CCC, and BSI. Manufactured in China with Eaton Bussmann quality and reliability.

This Eaton ceramic Cartridge Fuse is suitable for use in industrial, electrical, automation, manufacturing, and HVAC applications requiring reliable over-current protection for semiconductor devices and circuits.
