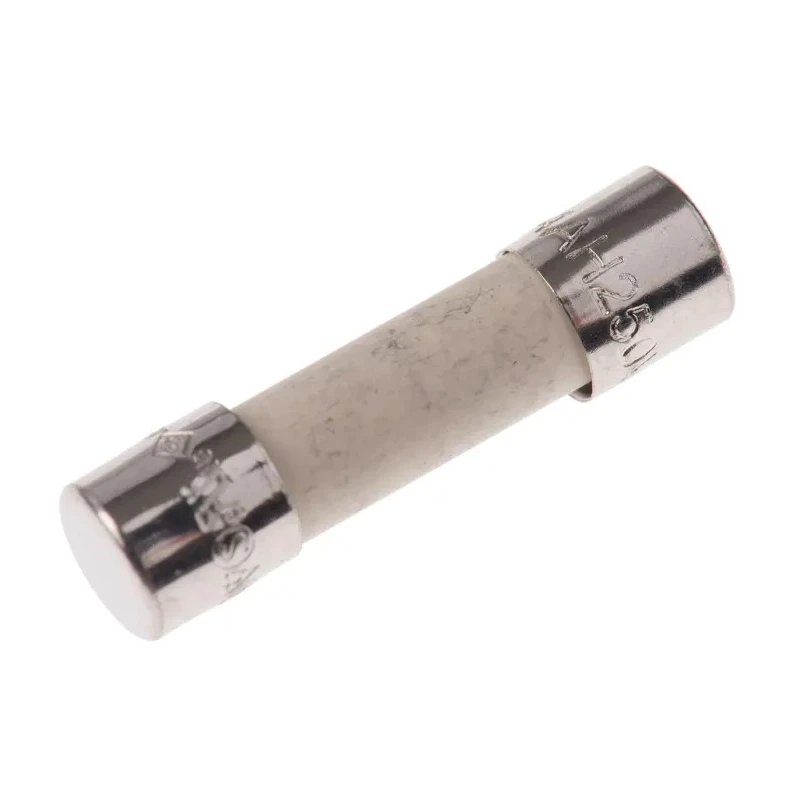

Eaton 4A T Ceramic Cartridge Fuse 5 x 20 mm 250V AC Time Delay S505-4-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505-4-R |
| Overall Length | 20mm |
| Current Rating | 4A |
| Series | S505 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | BSI, CCC, CSA, IMQ, KC, PSE, SEMKO, VDE |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
| Littelfuse 4A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | Littelfuse |
| RS PRO 4A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
| Anti surge T HBC min fuse,4A 5x20mmBrand | Cooper Bussmann |
Key Features
- Designed for 4A continuous current with 250V AC voltage rating.
- Ceramic body provides enhanced thermal resistance and durability.
- Time-delay fuse characteristic tolerates short surge currents effectively.
- Compact 5 x 20 mm size fits standard fuse clips and inline holders.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Suitable for protecting control and automation circuitry in industrial environments.
- Complies with multiple international standards including BSI, CCC, CSA, VDE and more.
- Ideal for safeguarding power supplies, control panels, and electronic measurement equipment.
Product Description
Eaton S505-4-R is a 4A T ceramic cartridge fuse designed to provide time-delay protection in electrical and industrial equipment. It operates at a voltage of 250V AC and measures 5 x 20 mm, making it compatible with standard fuse holders and clips. Its robust ceramic construction enhances thermal resistance and allows operation across broad temperature extremes from -55°C to 125°C.
This fuse features a slow-blow characteristic that permits short surge currents during equipment startup or transient events without nuisance tripping, while offering reliable protection against prolonged overloads. It is widely used in automation panels, mechanical drive control systems, electronic test equipment, and power distribution modules.
Manufactured under Eaton's S505 series, the fuse meets several international approvals including BSI, CCC, CSA, IMQ, KC, PSE, SEMKO, and VDE. This facilitates its application in global industrial systems requiring certified components.
The compact 5 x 20 mm cartridge form factor ensures easy integration into existing fuse clips and inline fuse holders. Its ceramic body improves lifespan and safety by improving thermal handling.
Typical use cases include protecting sensitive control circuitry in automation panels, ensuring safe operation of electronic and laboratory measurement systems, and guarding power supply lines in industrial plants.
Designed for 4A continuous current at 250V AC. Ceramic body for enhanced thermal resistance. Time-delay characteristic for transient surge tolerance. Operates from -55°C to 125°C. Compact 5 x 20 mm cartridge size. Meets multiple international safety standards.
Suitable for industrial and electronic protective applications. Explore more Eaton Cartridge Fuses and related electrical components in EnvMart’s comprehensive catalog for industrial automation and electrical protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this fuse is 250V AC.
This model has a current rating of 4A.
The fuse measures 5 x 20 mm in size.
It operates reliably in temperature ranges from -55°C to 125°C.
It features a time-delay characteristic that tolerates short surge currents effectively.
The body of the fuse is made from ceramic, which provides enhanced thermal resistance.
This fuse complies with several international standards including BSI, CCC, CSA, IMQ, KC, PSE, SEMKO, and VDE.
It is suitable for protecting control and automation circuitry in industrial environments, as well as electronic measurement equipment.
The time-delay feature allows it to handle short surge currents during equipment startup without nuisance tripping, while providing protection against prolonged overloads.
The Eaton 4A T Ceramic Cartridge Fuse is manufactured in China.
The compact 5 x 20 mm size ensures easy integration into standard fuse clips and inline holders, facilitating straightforward installation.
This fuse is part of the Eaton S505 series.
