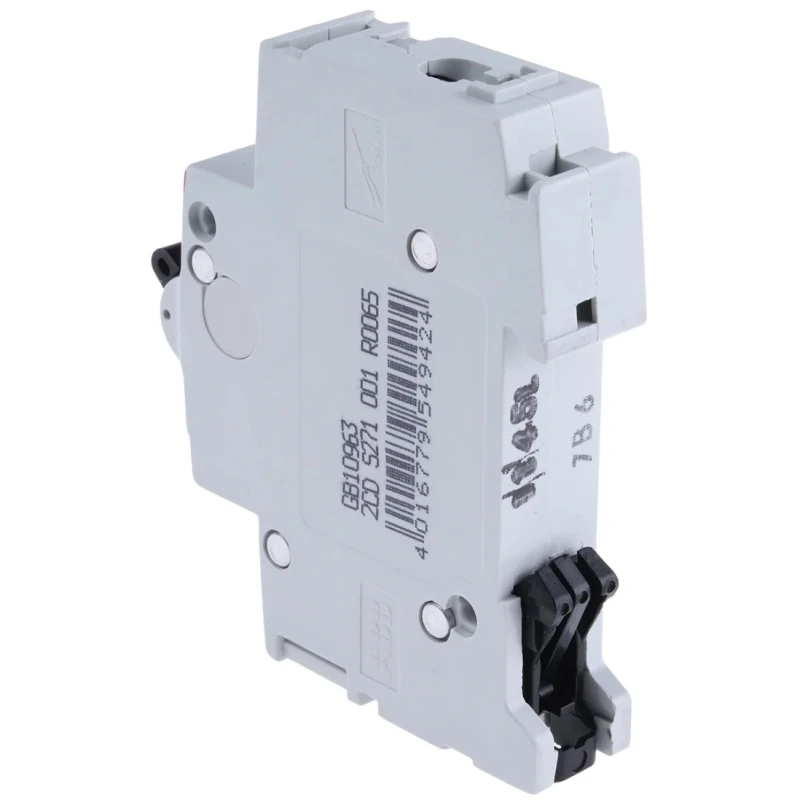

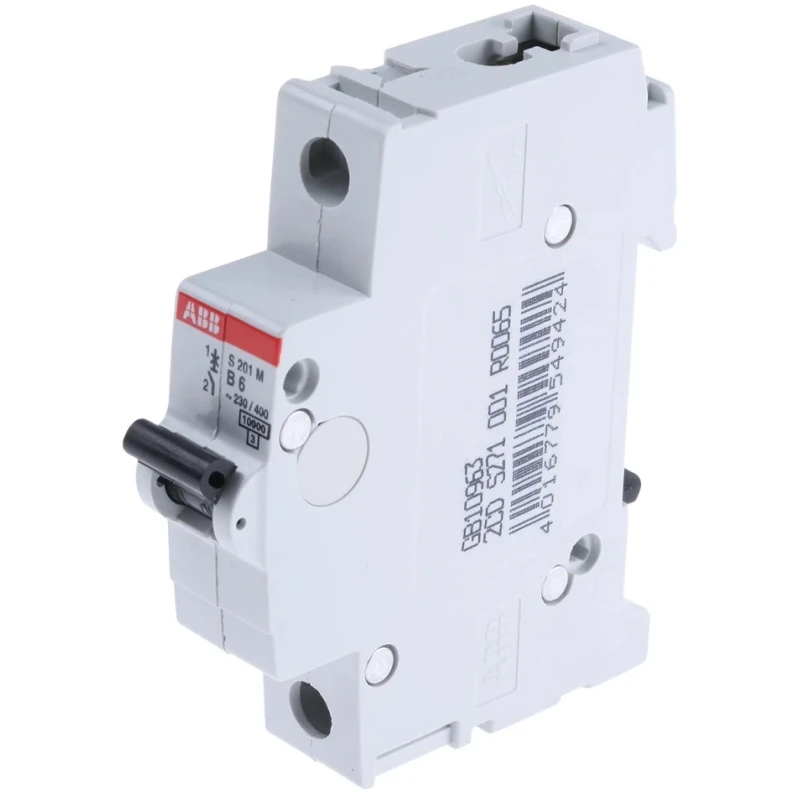

ABB System Pro M Compact Miniature Circuit Breaker 1-Pole 6A Type B 253V AC 72V DC 10kA Breaking 2CDS271001R0065 S201M-B6
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS271001R0065 S201M-B6 |
| Depth | 76mm |
| IP Rating | IP40, IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal |
| Type B 1 pole MCB,6A 10kA break capacityBrand | ABB |
Key Features
- Compact DIN rail mountable design for easy installation.
- Tripping characteristic Type B suitable for residential and commercial use.
- Rated for 253V AC and 72V DC applications.
- Thermal trip mechanism ensuring quick response to faults.
- Wide operating temperature range from -25°C to +55°C.
- Low power loss of 2 watts enhances energy efficiency.
- Contact position indicator for operational status monitoring.
- Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Product Description
ABB 2CDS271001R0065 S201M-B6 System Pro M Compact Miniature Circuit Breaker is a robust single-pole device designed for protection against short circuits and overloads in residential and commercial electrical installations. Operating at 6 amperes, it features Type B tripping characteristics, suitable for circuits with moderate inrush currents such as filament lamps and heating loads.
The breaker is compatible with both AC and DC voltages, rated for 253 volts AC and 72 volts DC, with a breaking capacity of 10 kiloamperes, ensuring high fault tolerance and safety. Its thermal trip mechanism reacts quickly to faults, significantly reducing the risk of damage to downstream equipment.
Constructed for DIN rail mounting, this compact MCB measures 88 mm in height, 17.5 mm in width, and 76 mm in depth, saving space in panel arrangements and supporting efficient circuit board packing. It is designed for demanding environments with an operating temperature range from -25°C to +55°C.
This MCB possesses low power loss of just 2 watts, contributing to energy-efficient operation. The contact position indicator facilitates easy status checks without disassembly. The device meets rigorous IEC/EN 60947-2 and IEC/EN 60898-1 standards and offers IP40 and IP20 ingress protection levels, enhancing durability and reliability.
Typical applications include electrical protection in retail centers, hotels, restaurants, office buildings, and residential homes. Compact DIN rail mountable design for easy installation. Tripping characteristic Type B suitable for residential and commercial use.
Rated for 253V AC and 72V DC applications. Thermal trip mechanism ensuring quick response to faults. Wide operating temperature range from -25°C to +55°C. Low power loss of 2 watts enhances energy efficiency. Contact position indicator for operational status monitoring.
Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards. IP40 and IP20 rated for dust and protection levels. Compact dimensions of 88mm height, 17.5mm width, and 76mm depth. Explore EnvMart's extensive category of Miniature Circuit Breakers and trusted ABB products for reliable electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 6A.
It features a breaking capacity of 10kA, ensuring high fault tolerance.
This model is rated for 253V AC and 72V DC applications.
It uses a thermal tripping mechanism, which ensures a quick response to faults.
The dimensions are 88 mm in height, 17.5 mm in width, and 76 mm in depth.
It has an IP40 and IP20 ingress protection rating, providing dust and moisture protection.
Yes, it features Type B tripping characteristics, making it suitable for residential and commercial applications.
This model is designed for DIN rail mounting, facilitating easy installation.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
The operating temperature range is from -25°C to +55°C.
Yes, it includes a contact position indicator for monitoring operational status.
It has a low power loss of just 2 watts, which enhances energy efficiency.
