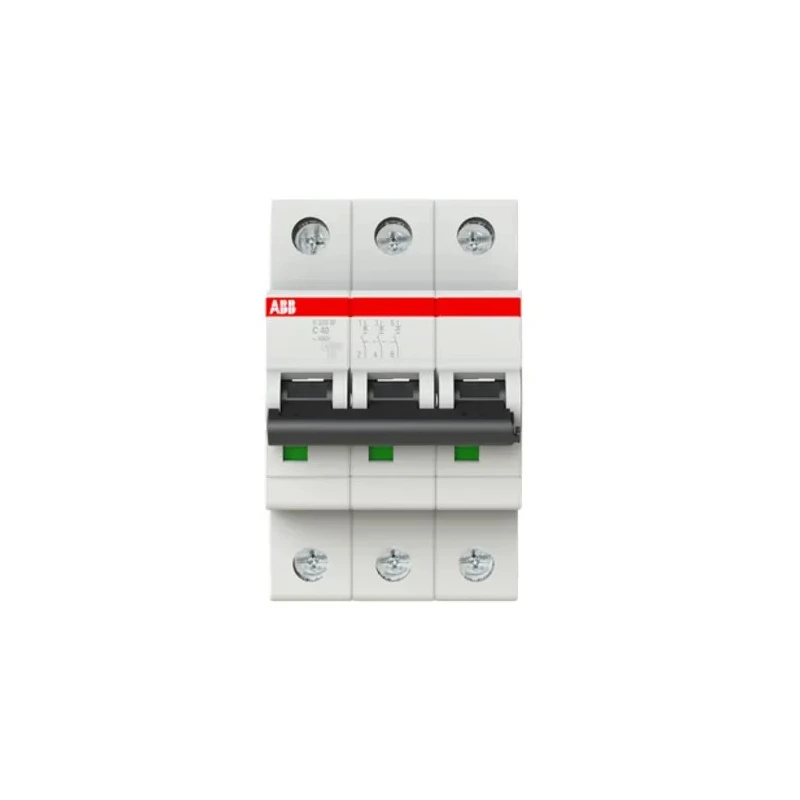

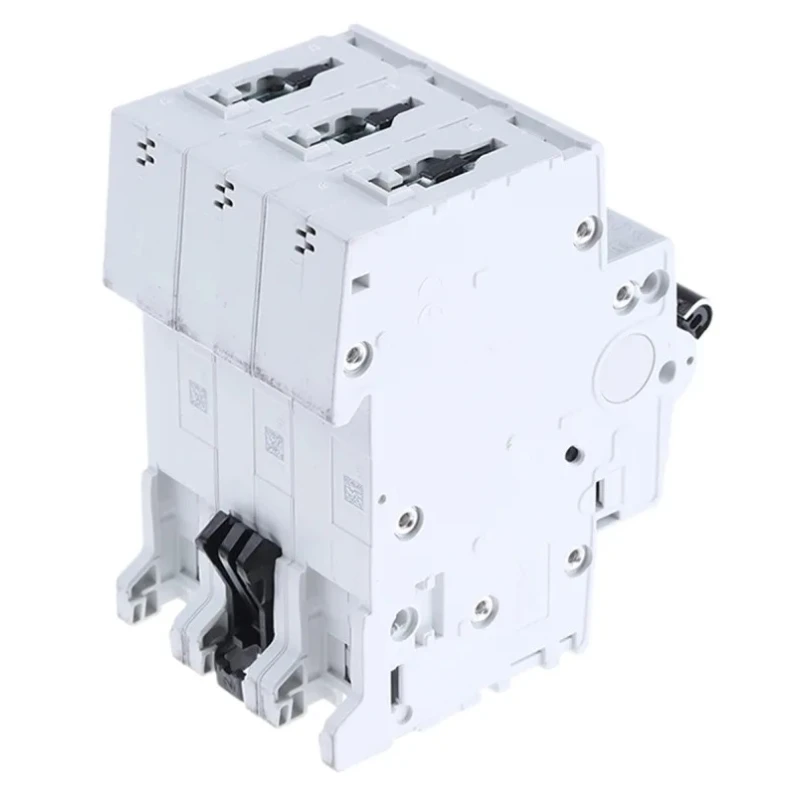

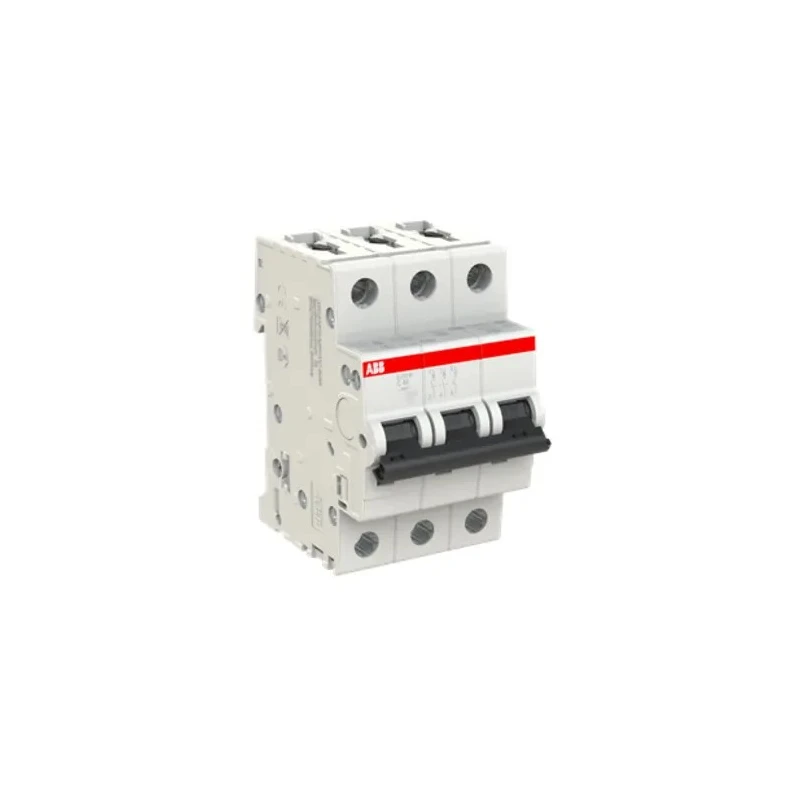

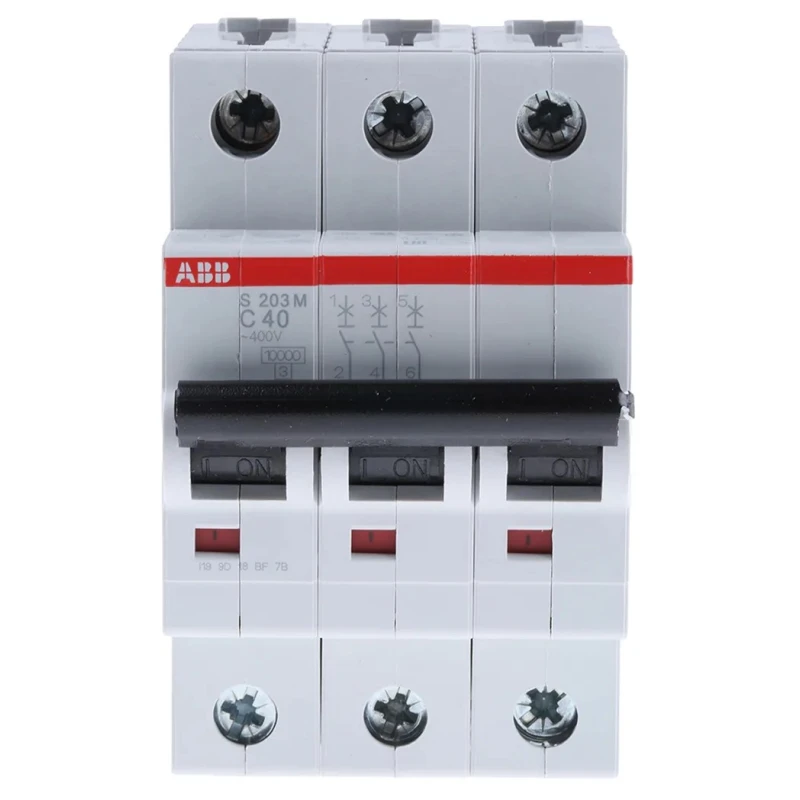

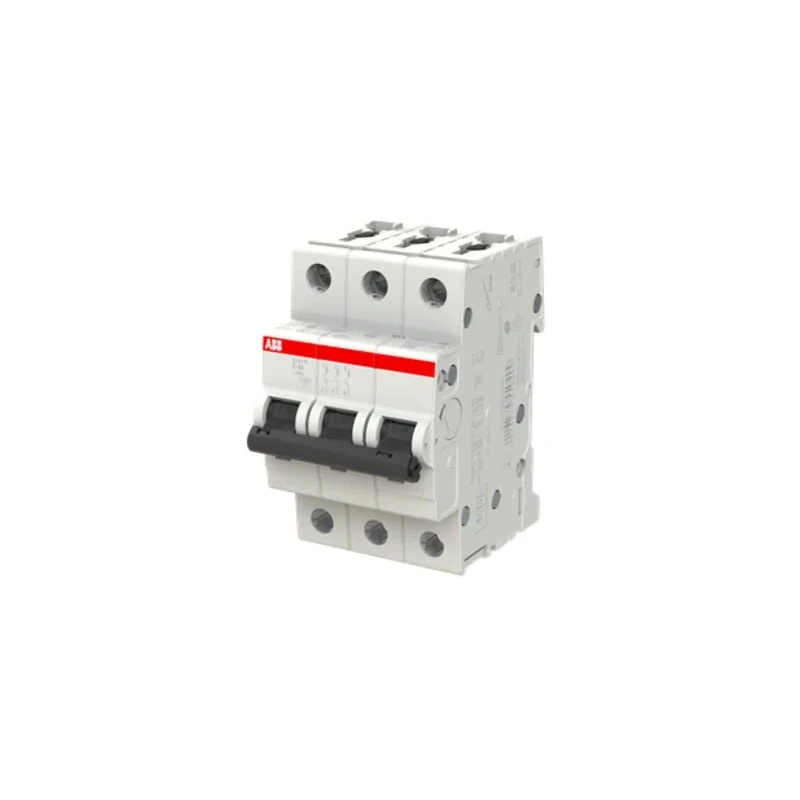

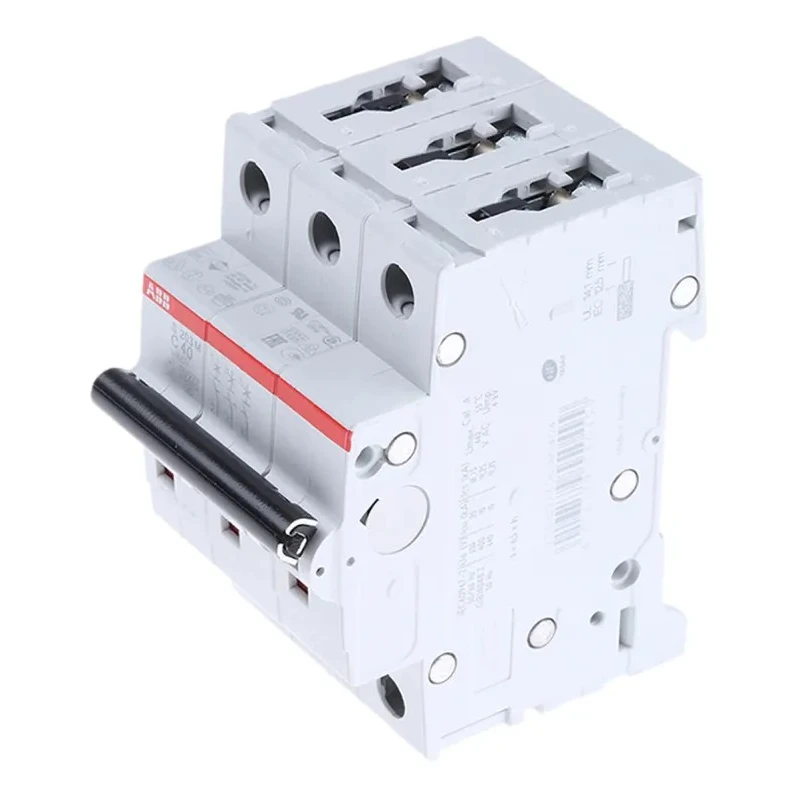

ABB System Pro M Compact S200M Miniature Circuit Breaker, 3-Pole, 40A, Type C, 440V AC, 125V DC 2CDS273001R0404 S203M-C40

ABB 2CDS273001R0404 S203M-C40 System Pro M Compact Miniature Circuit Breaker is a high-quality 3-pole MCB designed for industrial and commercial electrical protection applications. Rated for 40 amps, it provides efficient circuit interruption to prevent damage caused by short circuits and overcurrent situations.

The breaker features a Type C trip curve suitable for general purpose use in circuits with moderate inrush currents. It operates reliably at voltages up to 440 volts AC and 125 volts DC, making it versatile for various power systems.

Its thermal tripping mechanism provides precise overload protection, ensuring circuit safety without nuisance tripping. The compact size with a width of 52.5mm allows for space-saving panel installations, while the DIN rail mount facilitates easy and tool-free fitting.

This MCB offers a breaking capacity of 10kA, enabling it to safely interrupt high fault currents, thus reducing the risk of electrical fires or equipment damage. The IP20 rating provides finger-safe protection against solid objects larger than 12mm, enhancing operational safety.

Manufactured under strict standards IEC/EN 60898-1 and IEC/EN 60947-2, this ABB breaker assures quality and reliability. The robust thermoplastic housing guarantees resistance to mechanical impacts making it suitable for harsh industrial environments.

Current rated at 40 amperes for safe circuit protection. Type C tripping characteristic for precise fault detection. Supports an operational voltage of 440 volts AC and 125 volts DC. Breaking capacity of 10 kiloamperes to handle surge currents.

Mounts easily on DIN rail with screw terminal connections. Thermal tripping mechanism for effective overload protection. IP20 rating ensures finger-safe operation against objects larger than 12 mm. Compact design with dimensions 52.5mm width, 88mm height, and 69mm depth.

Mechanical service life of 20,000 operating cycles for dependable performance. Manufactured in Germany with compliance to IEC/EN standards.

Ideal for use in industrial heating systems, process and packaging plants, and mechanical workshops, this Miniature Circuit Breaker ensures dependable protection and operational excellence. Build your electrical panel solutions with confidence using ABB’s System Pro M Compact S200M MCB range.

Browse the Electronics & Electricals category on EnvMart for more high-quality circuit breakers and electrical protection devices.
