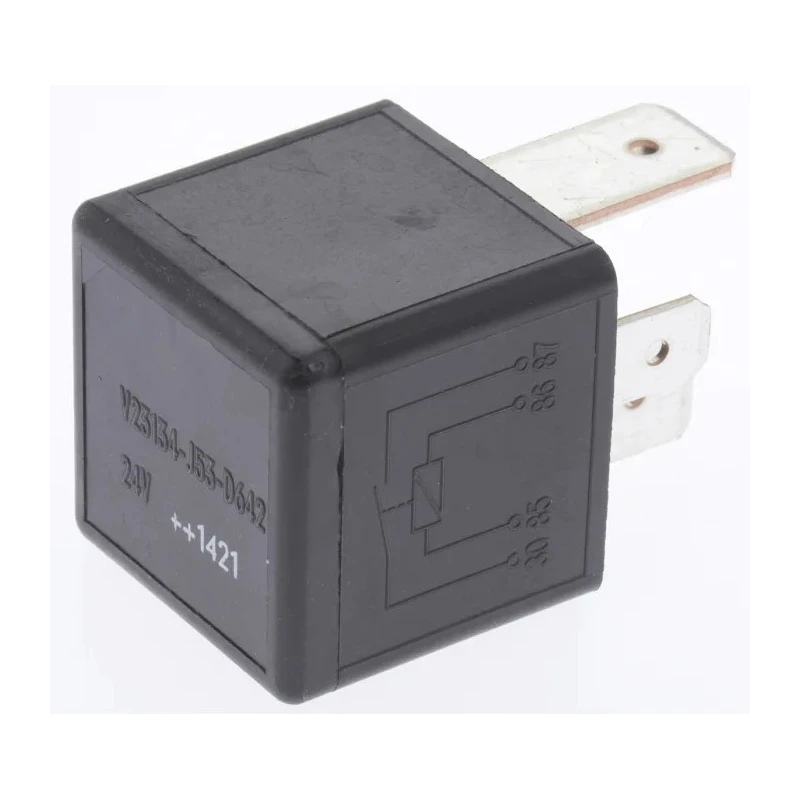

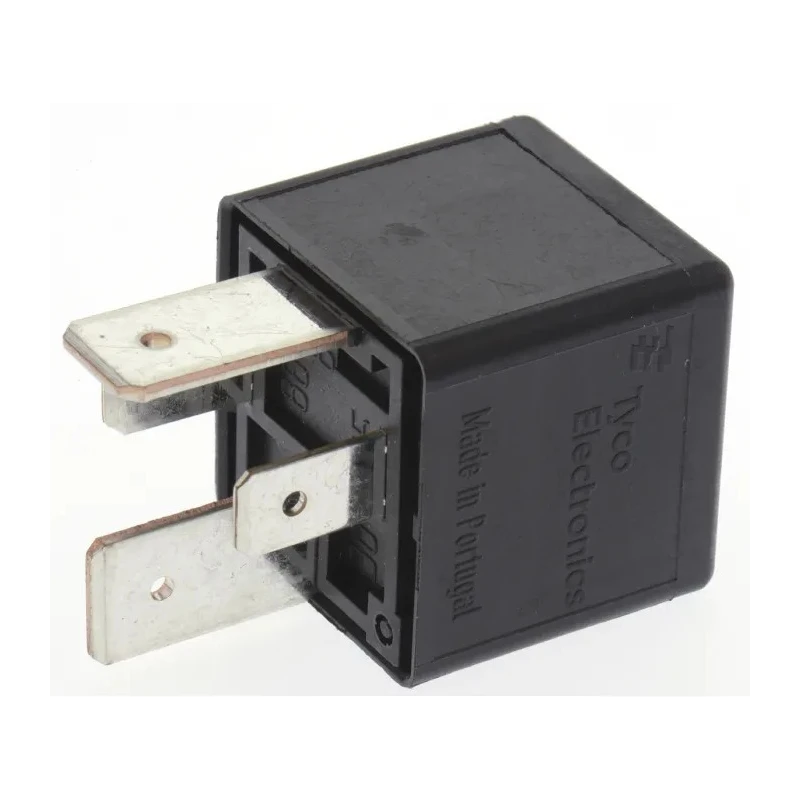

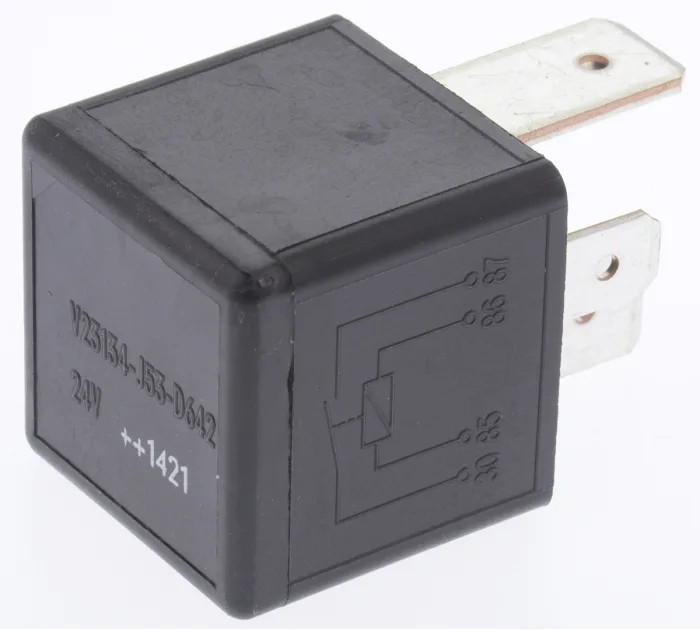

TE Connectivity Automotive Relay, 24V DC Coil Voltage, 25A Switching Current, SPST V23134J0053D642 9-1393303-7
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Dimensions | W25.9 x D25.9 x H24.9mm |
| Height | 57.9mm |
| Length | 25.9mm |
| Model | V23134J0053D642 9-1393303-7 |
| Depth | 25.9mm |
| IP Rating | IP54 |
| Contact Material | Silver Alloy |
| Ambient temperature range | -40 to +125°C |
| Series | F7 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 332Ω |
| Coil Power | 1.6W |
Key Features
- Mini ISO automotive relay from the F7 series with quick connect plug-in terminals.
- Plug-in or bracket mount types suitable for varied installations.
- Protected against dust with IP54 ingress protection rating.
- Coil power consumption of 1.6 watts for efficient performance.
- Silver alloy contact material ensuring reliable electrical conductivity.
- Single pole single throw (SPST) contact configuration for standard switching.
- Operating temperature range from -40°C to +125°C for robust environmental tolerance.
- Compact dimensions of approximately 25.9mm width, 25.9mm depth, and 24.9mm height.
Product Description
TE Connectivity V23134J0053D642 9-1393303-7 Automotive Relay is a high-quality SPST relay designed for automotive applications requiring a 24V DC coil voltage and 25A switching current. This relay belongs to the F7 series of Mini ISO automotive relays featuring robust construction and high environmental protection with an IP54 rating, suitable for automotive and industrial environments.
The relay supports plug-in or bracket mounting options, providing versatile installation methods. Its contacts are made from a silver alloy ensuring superior conductivity and durability over long operational life. The coil power consumption is low at 1.6W, which optimizes energy efficiency in vehicle electrical systems.
Engineered to operate across a wide ambient temperature range from -40°C to +125°C, this relay withstands harsh operating conditions and offers stable performance. Its compact design with dimensions of 25.9mm by 25.9mm by 24.9mm makes it suitable for space-constrained automotive control panels.
The relay features a single pole single throw (SPST) contact configuration and quick connect terminals, enabling straightforward wiring and reduced installation time. It delivers reliable switching for automotive loads up to 25 amperes and is ideal for use in automotive electrical circuits, which demand consistent and safe relay switching.
Industrial, automotive manufacturing, and automotive repair applications benefit from the reliable performance of this TE Connectivity Automotive Relay. It complies with relevant standards for automotive relay components and is manufactured in Portugal, ensuring quality craftsmanship and durability.
Mini ISO automotive relay with versatile mounting options. IP54 dust protection rating for environmental resistance. Silver alloy contacts for reliable electrical conduction. Low coil power of 1.6 watts ensures energy efficiency.
Operates reliably between -40°C to +125°C ambient temperature range. Compact dimensions fit tight automotive spaces. Quick connect terminals facilitate easy installation. Single pole single throw contact configuration. Supports 25A switching current suitable for automotive circuits.
For professionals in automotive and industrial electrical applications, this TE Connectivity relay ensures dependable switching performance. Browse the Automotive Relays category at EnvMart for similar high-quality relays suited to your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC and has a switching current of 25A.
This model has dimensions of approximately 25.9mm in width, 25.9mm in depth, and 24.9mm in height.
The relay has an IP54 ingress protection rating, making it protected against dust and suitable for various environments.
It operates reliably within an ambient temperature range of -40°C to +125°C.
This model features a single pole single throw (SPST) contact configuration.
The coil power consumption is 1.6 watts, which helps optimize energy efficiency.
The contacts are made from silver alloy, ensuring reliable electrical conductivity.
It supports both plug-in and bracket mounting options, providing versatile installation methods.
This model is equipped with quick connect terminals for easy installation.
The relay is manufactured in Portugal, ensuring quality craftsmanship.
This automotive relay belongs to the F7 series of Mini ISO automotive relays.
It is ideal for automotive electrical circuits, particularly in automotive manufacturing and repair applications.
