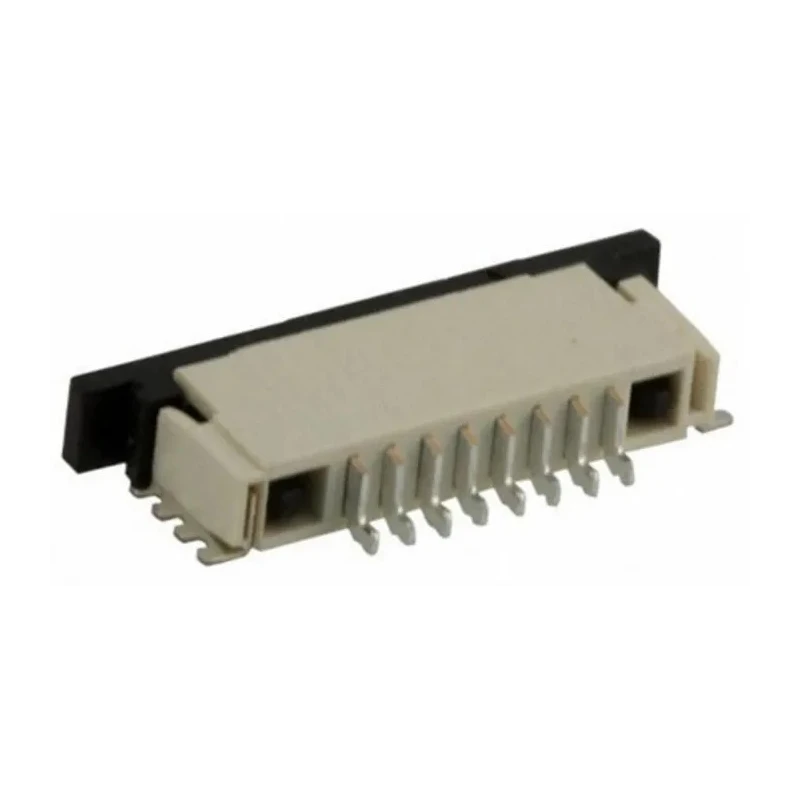

TE Connectivity FPC 1 mm Pitch 8 Way Right Angle Female FPC Connector, Solder 84953-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84953-8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Compact 1 mm pitch design ideal for tight PCB layouts.
- Right angle orientation for space-saving on circuit boards.
- ZIF (Zero Insertion Force) slide lock actuator for secure cable connection.
- Contact material phosphor bronze with tin plating ensures reliable conductivity.
- Surface mount technology with solder termination for robust connection.
- Operates reliably from -40°C to 85°C temperature range.
- Rated for 200V AC voltage and 1A current capacity.
- Top contact position with single row and 8 contacts for signal routing.
Product Description
TE Connectivity 84953-8 FPC Connector features a 1 mm pitch with an 8 way female contact configuration and right angle orientation, designed for solder termination on printed circuit boards.
This connector utilizes high-quality phosphor bronze contacts with tin plating, offering excellent electrical performance and corrosion resistance. The slide lock ZIF actuator allows easy insertion and secure retention of flexible printed circuit cables, reducing contact wear and increasing durability.
Constructed with a liquid crystal polymer housing, the connector exhibits mechanical robustness suitable for demanding electronic applications. With a rated voltage of 200V AC and current capacity of 1A, it operates efficiently within a temperature range of -40°C to 85°C.
The surface mount design facilitates compact PCB assembly, with top contact positioning in a single row layout to optimize signal routing in confined spaces. Its right angle configuration provides space-saving benefits in device designs.
Widely used in industrial, business, medical, and consumer electronics such as handheld scanners and set-top boxes, this FPC Connector supports reliable, long-lasting electrical connections in a variety of complex assemblies. No additional tooling is required for the solder termination process, ensuring ease of integration.
Compact 1 mm pitch for high-density PCB layouts. Right angle mounting reduces PCB footprint. ZIF slide lock actuator secures FPC cable safely. High quality phosphor bronze contacts with tin plating. Durable liquid crystal polymer housing material.
Rated 1A current and 200V AC voltage for versatile applications. Temperature range from -40°C to 85°C for robust performance. Surface mount termination with solder tabs for increased retention. Ideal for industrial, medical, business, and consumer electronics.
Compatible with top contact position and single row contact design. Explore EnvMart’s extensive selection of high-quality electronic connectors including the TE Connectivity FPC series for demanding industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 200V AC voltage.
It has a current capacity of 1A.
This unit operates reliably within a temperature range of -40°C to 85°C.
The connector features a solder termination type for secure connections.
It has 8 contacts arranged in a single row configuration.
The contact material is phosphor bronze with tin plating, and the housing is made of liquid crystal polymer.
The pitch size is 1 mm, making it suitable for high-density PCB layouts.
It features a right angle orientation, which helps save space on circuit boards.
Yes, it utilizes a ZIF (Zero Insertion Force) slide lock actuator for secure cable connection.
This connector is designed for surface mount applications.
It is widely used in industrial, medical, business, and consumer electronics, such as handheld scanners and set-top boxes.
The country of origin for this connector is India.
