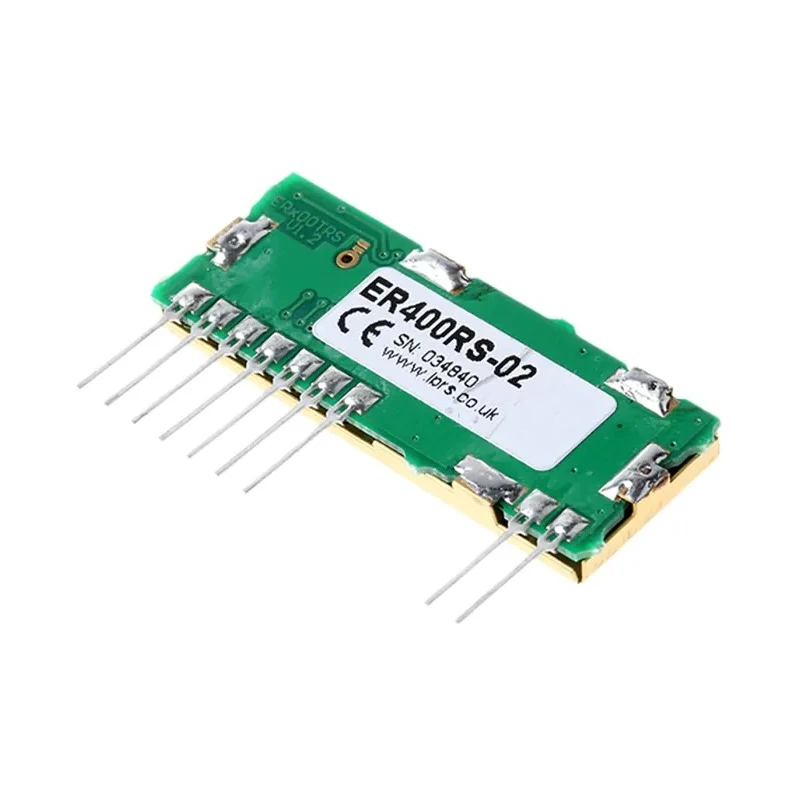

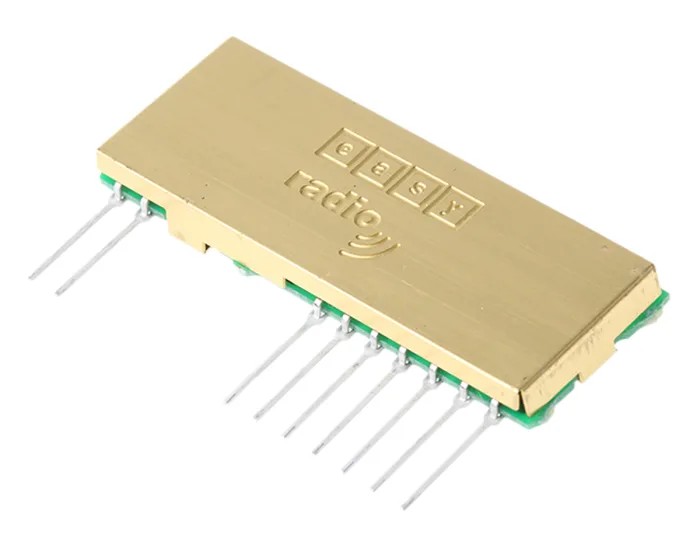

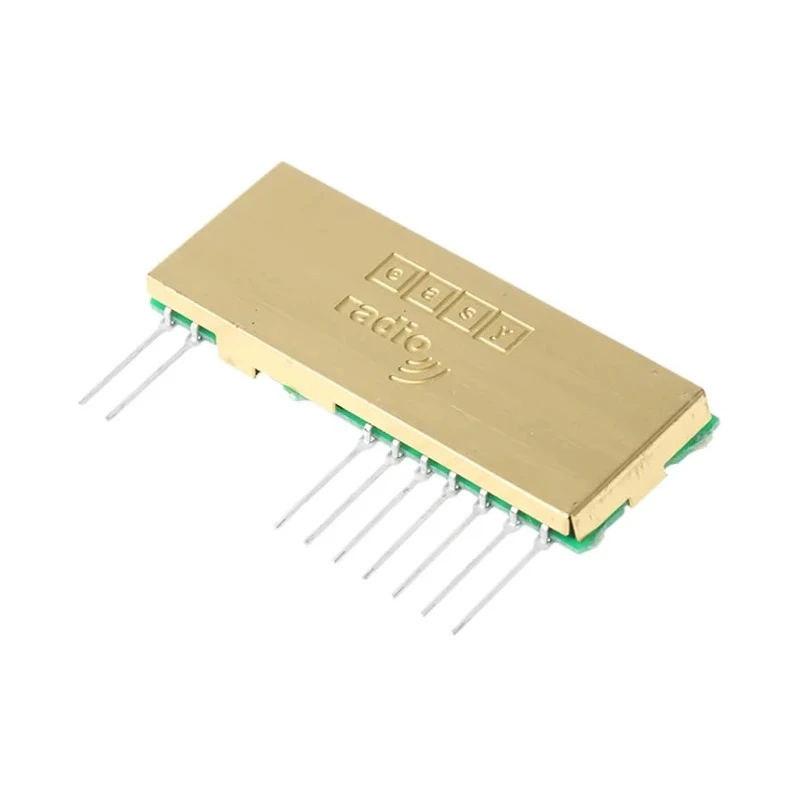

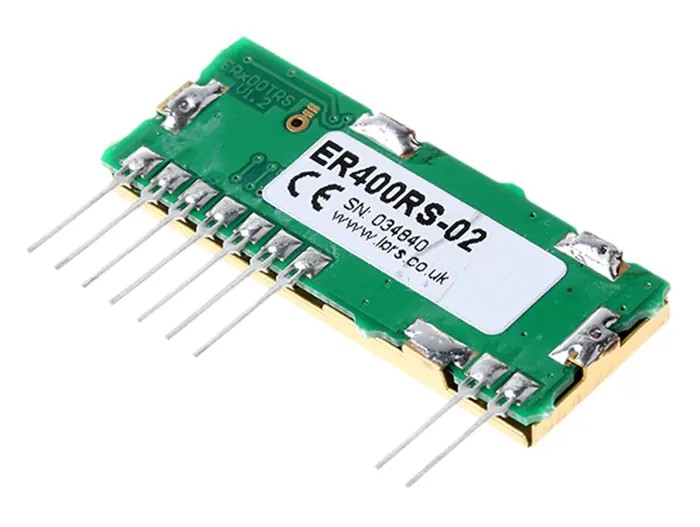

Easy Radio RF Module Receiver FSK 928 MHz 5.5V ER400RS-02

Easy Radio ER400RS-02 is a high performance RF Module receiver designed for low power applications. This system-on-module integrates a very low power RF receiver, a microcontroller, and a voltage regulator to deliver efficient and reliable wireless communication.

The module operates with Frequency Shift Keying (FSK) modulation at a carrier frequency of 928 MHz, falling within the 433 MHz ISM band spectrum, suitable for industrial and commercial wireless use. It supports a maximum RF data rate of 38.4 kbps with Manchester encoding, ensuring versatile data communication capabilities.

The receiver sensitivity is rated at -105 dBm, offering excellent signal detection in challenging RF environments. It interfaces via RS232 using serial UART with RTS/CTS flow control, enabling robust host communication. An onboard EEPROM stores configuration data while the microcontroller features low-voltage brown-out detection to maintain stable operation.

Operating on a power supply range of 3.3 V to 5.5 V DC, this compact module measures 38 mm length, 14 mm height, and 4 mm width with a through-hole mounting profile. Its operating temperature range of -40 to +85 degrees Celsius makes it suitable for diverse industrial environments.

Typical use cases include remote sensing and control, local device communications, and integration into Internet of Things (IoT) solutions. The module is manufactured in the United Kingdom adhering to European Telecommunications Standards Institute (ETSI) approvals.

Complete low power RF receiver module with integrated microcontroller and voltage regulator. Operates with FSK modulation at 928 MHz carrier frequency. Receiver sensitivity of -105 dBm ensures reliable reception. RS232 interface with UART communications and flow control.

Power supply range: 3.3 V to 5.5 V DC. Dimension: 38 x 14 x 4 mm with through-hole mounting. Operating temperature from -40 to +85°C for industrial use. Ideal for IoT, remote sensing, and wireless control applications.

This Easy Radio ER400RS-02 RF Module is an efficient and compact solution for a range of wireless communication requirements in industrial, laboratory, manufacturing, and commercial settings. Explore more RF Modules and wireless solutions in the Electronics Components category on EnvMart.
