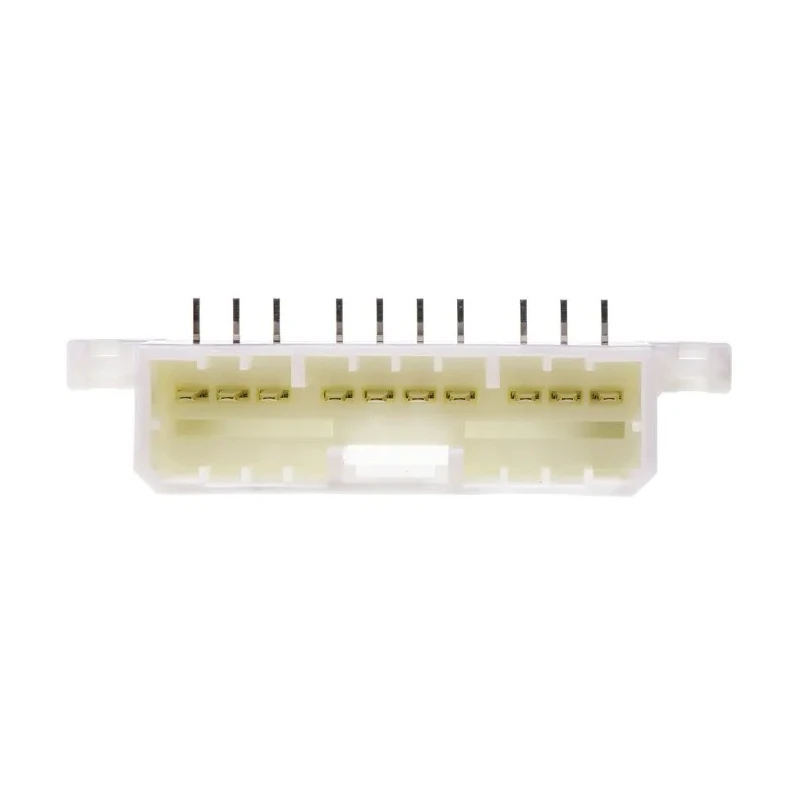

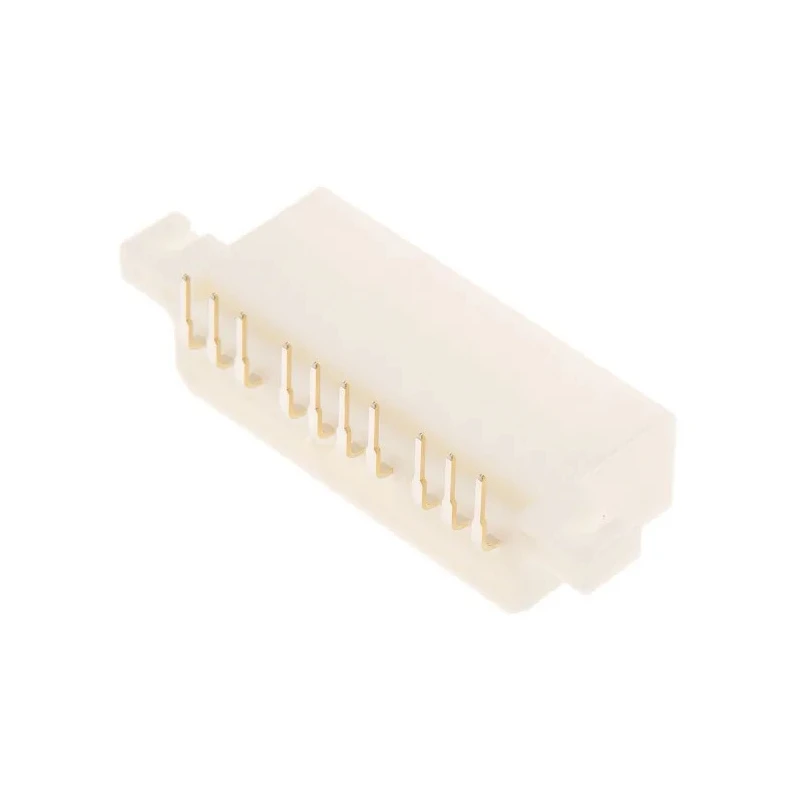

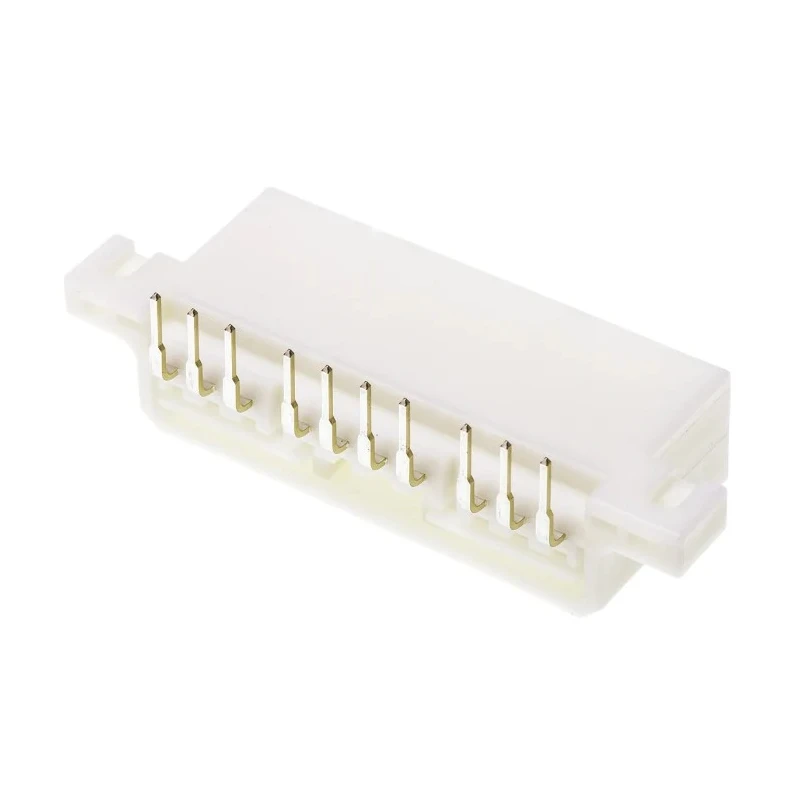

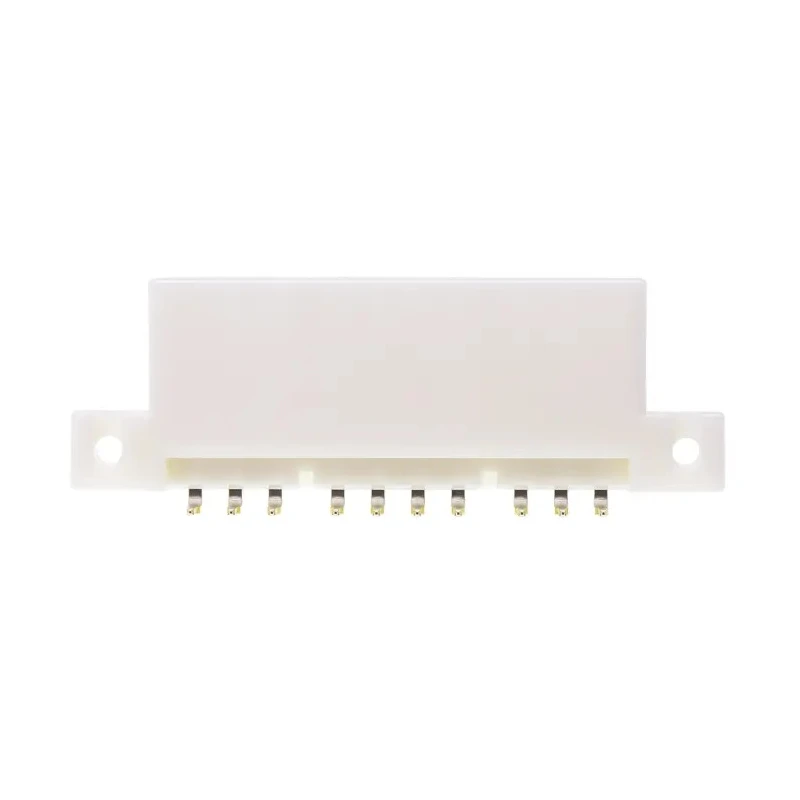

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 10 Way 1 Row Right Angle 174467-1

TE Connectivity 174467-1 MULTILOCK 070 Female Connector Housing is a compact, high-density 3.5 mm pitch connector housing designed for automotive and industrial electronic applications. This female Connector Housing features 10 contacts arranged in a single row with right angle orientation, making it ideal for space-constrained installations requiring reliable wire-to-board connections.

The housing is made from polybutylene terephthalate, which provides excellent durability and resistance to mechanical stress, chemical exposure, and temperature variations common in automotive environments. The MULTILOCK 070 series includes specially designed housings that protect contacts from KOJIRI action, preventing damage during mating and unmating operations.

This connector incorporates an integral double locking mechanism on the wire side, ensuring secure retention of contacts and preventing partial insertions or disconnections. The lance design allows the use of lanceless contacts that reduce deformation and tangling during assembly.

Mounting is through-hole type with a right angle pin orientation suitable for PCB assembly. Connector dimensions are 56.8 mm in length and 12.5 mm in width, supporting 10 female contacts in one row. This design supports use in a variety of automotive subsystems including powertrain, safety, security, body, and driver convenience modules.

The MULTILOCK 070 range includes compatible plug and receptacle housings as well as PCB headers for wire-to-wire and wire-to-board interfacing. Crimp contacts must be ordered separately to complete the wiring assembly, tailored to specific application requirements.

Compact, durable design suitable for automotive applications. High-density 3.5 mm pitch enabling miniaturized connection. Integral double locking system ensures secure contact retention. Housing protects contacts against damage from KOJIRI action during mating.

Designed for use with Multilock wire-to-board connectors. Through-hole mount type with a right angle orientation. Polybutylene terephthalate housing material for high durability. Includes latch design for enhanced contact protection.

Connector has 10 female contacts in a single row. Length of 56.8 mm and width of 12.5 mm. Browse more TE Connectivity automotive connectors and housings on EnvMart for additional interconnect solutions.
