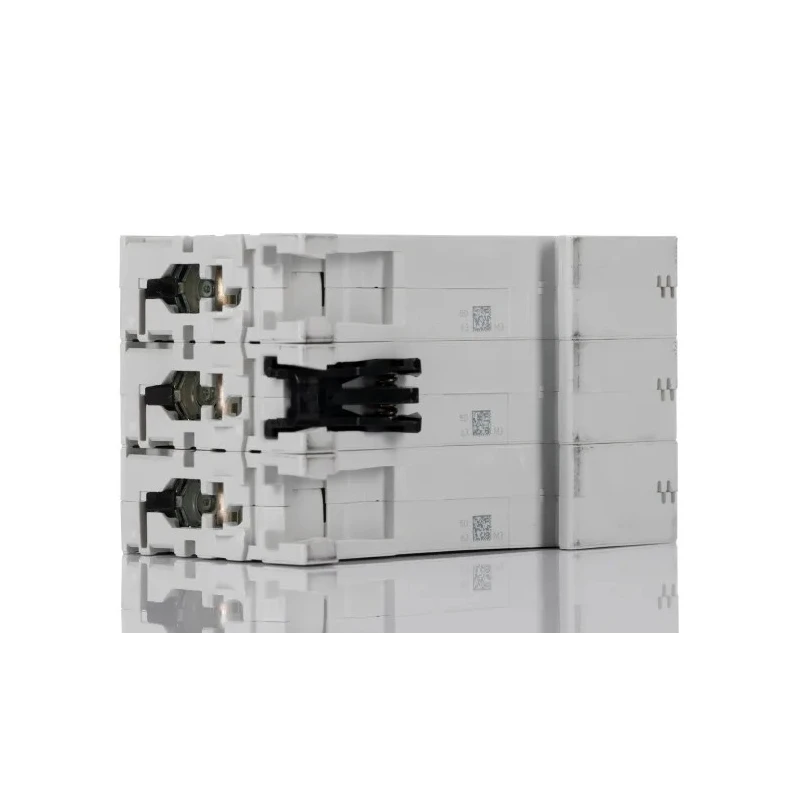

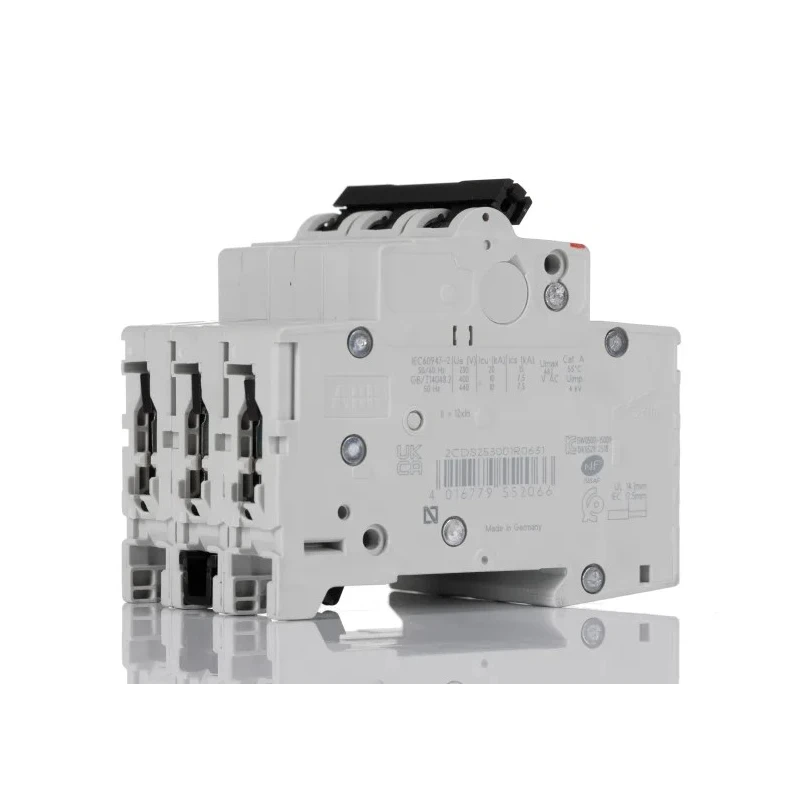

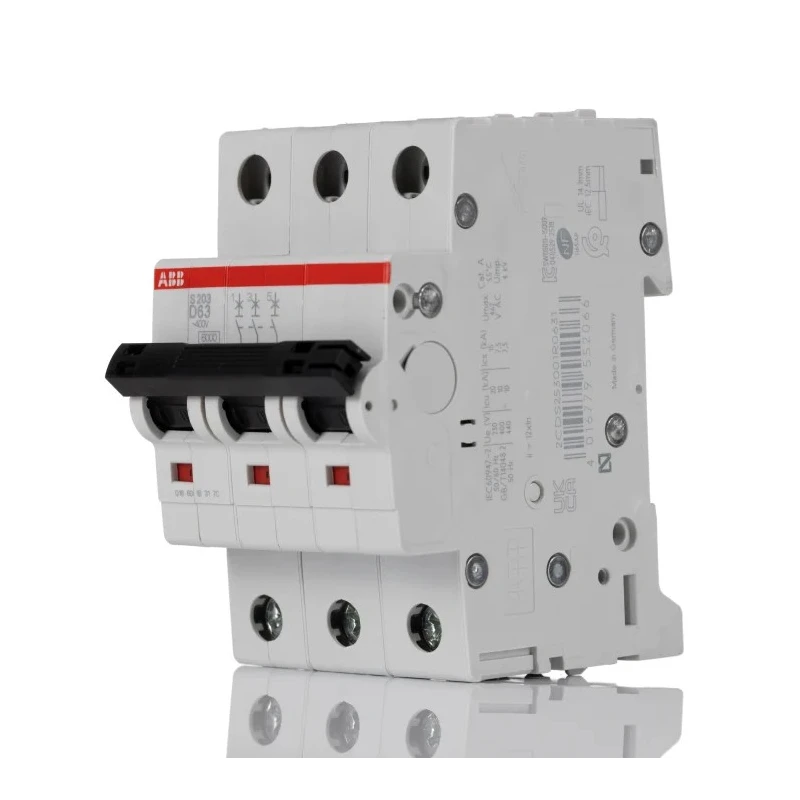

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 63A Type D 440V AC 12V DC 6kA 2CDS253001R0631 S203-D63

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 63A Type D 440V AC 12V DC 6kA 2CDS253001R0631 S203-D63



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS253001R0631 S203-D63
Depth	76mm
IP Rating	IP40, IP20
Width	52.5mm
Mount Type	DIN Rail
Current Rating	63A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	3
Rated AC Voltage	440V ac
Rated DC Voltage	12V dc
Tripping Characteristics	Type D
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Type D 3 pole MCB,63A 6kA break capacityBrand	ABB

Key Features

Designed for three-phase circuits with 3 poles and a 63A current rating.
Features type D tripping for protection against high inrush currents.
Operates at a rated AC voltage of 440V and rated DC voltage of 12V.
Offers a breaking capacity of 6 kA ensuring reliable circuit interruption.
Equipped with toggle switch for quick reset after tripping.
DIN rail mounting for easy installation without tools.
Thermal tripping mechanism for effective overload protection.
IP40 and IP20 rated housing for impact and corrosion resistance.

Product Description

ABB 2CDS253001R0631 S203-D63 System Pro M Compact S200 Miniature Circuit Breaker is engineered for effective electrical protection in industrial and commercial applications. It is a 3-pole breaker rated at 63A with a type D tripping characteristic, ideal for systems with high inrush currents typical in motor and equipment startups.

This breaker supports a rated AC voltage of 440V and a rated DC voltage of 12V. With a breaking capacity of 6 kA, it ensures safe interruption of fault currents to prevent equipment damage and fire hazards.

The product features a robust thermoplastic housing that provides impact and corrosion resistance, suitable for harsh industrial environments. Installation is streamlined with a DIN rail mounting system that is tool-free, saving time and effort during setup. The toggle actuator switch allows quick and easy resetting after a trip event, minimizing downtime.

Thermal tripping mechanism enhances protection against overloads by responding to heat generated from excess current. This Miniature Circuit Breaker also boasts mechanical endurance up to 20,000 operating cycles, promising long-term reliability.

It conforms to international safety and performance standards including CSA 22.2 No. 235, UL 1077, IEC/EN 60898-1, and IEC/EN 60947-2. These certifications assure compliance with industrial and electrical safety regulations.

Common applications for this MCB include machine building, medical equipment safety systems, and electrical workshop installations, where dependable circuit protection is critical.

Designed for three-phase circuits with 3 poles and a 63A current rating. Features type D tripping for protection against high inrush currents. Operates at a rated AC voltage of 440V and rated DC voltage of 12V. Offers a breaking capacity of 6 kA ensuring reliable circuit interruption.

Equipped with toggle switch for quick reset after tripping. DIN rail mounting for easy installation without tools. Thermal tripping mechanism for effective overload protection. IP40 and IP20 rated housing for impact and corrosion resistance.

Mechanical endurance rated for 20,000 operating cycles. Compliant with CSA 22.2 No. 235, UL 1077, IEC/EN 60898-1, and IEC/EN 60947-2 standards.

This product is part of the ABB System Pro M Compact S200 series - a reliable choice for efficient electrical safety solutions. Explore more circuit protection devices and accessories in the Electronics & Electricals category on EnvMart.
