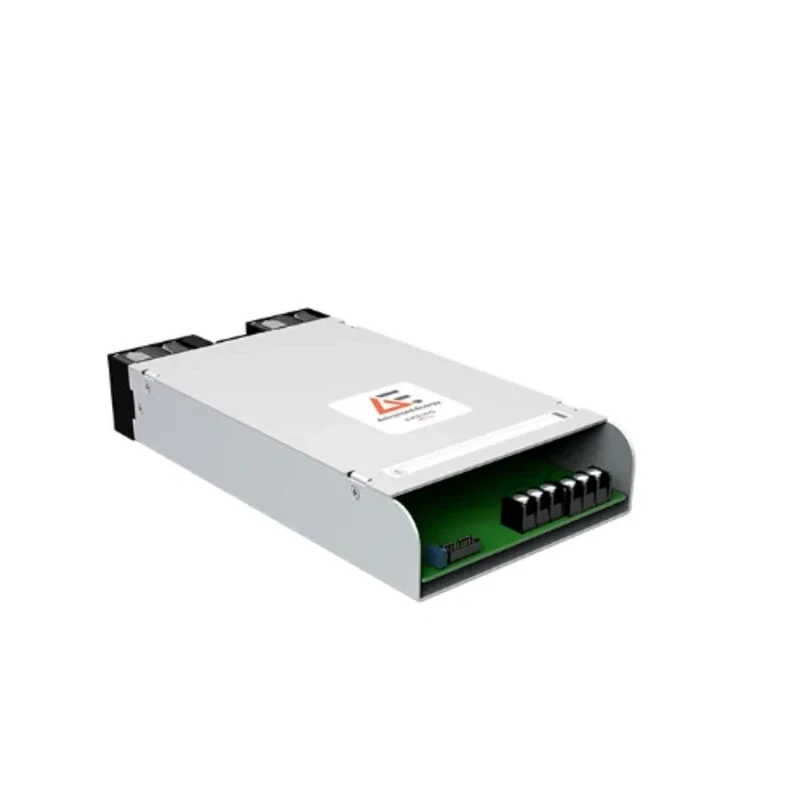

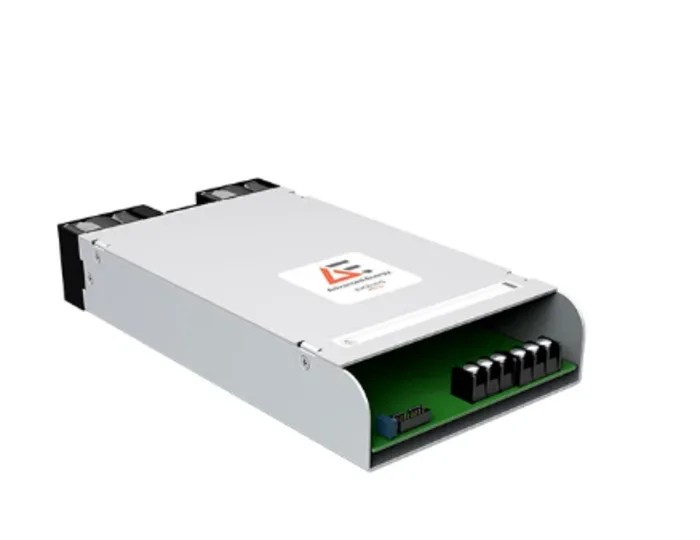

Excelsys / Advanced Energy XS500-24N-000 Switching Power Supply 24V dc 504W 21A Through Hole Mount China XS500-24N-000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Excelsys / Advanced Energy |
| Power | 504W |
| Efficiency | 92% |
| Length | 237mm |
| Model | XS500-24N-000 |
| Gross Weight | 1.1kg |
| Width | 126mm |
| Mount Type | Through Hole |
| Series | XSOLO |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 300, 264V dc |
| Standards/Approvals | IEC, CE, EN, RoHS |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 21A |
| Minimum Input Voltage | 85V ac |
Key Features
- Convection-cooled open-frame U-channel design ensures reliable operation.
- Maximum input voltage is 300 V DC and 264 V AC with a minimum input voltage of 85 V AC.
- Operating temperature range from -40°C to 70°C for industrial applications.
- High efficiency of 92% meets stringent energy standards.
- Includes remote ON/OFF and power good signals for system integration.
- Suitable for type B-rated applications with optional PMBus communication support.
- Compact form factor with dimensions 237 mm length by 126 mm width.
- Mounting style is through hole for versatile installation.
Product Description
Excelsys / Advanced Energy XS500-24N-000 Switching Power Supply delivers a convection-cooled 504 W power output with a single 24V DC output and an output current rating of 21A. Designed for industrial and commercial electronics demanding reliable and efficient power conversion, this power supply operates within a wide temperature range of -40°C to 70°C. It features a through-hole mount type and compact dimensions of 237 mm length and 126 mm width, fitting well in diverse system designs.
The power supply accepts input voltages from 85 V AC up to 300 V DC (including 264 V AC) and achieves a high energy efficiency of 92%, complying with IEC, CE, EN, and RoHS standards. It supports remote ON/OFF control and provides a power good signal, facilitating seamless integration into automated and monitored electronic systems. Optional features include PMBus communications and OR-ing functionality, making it an adaptable solution for type B-rated applications.
This model is part of the XSOLO series, which offers robust performance in both open-frame U-channel and enclosed fan-cooled chassis formats. Its construction from high-quality components manufactured in China ensures long-term reliability for demanding industrial, laboratory, and commercial electronics power supply needs.
Convection-cooled open-frame U-channel form factor for efficient heat dissipation. Single output delivering 24V DC at up to 21A. Wide operational temperature range suitable for harsh environments. High efficiency at 92% reduces energy costs and heat generation.
Remote ON/OFF and power good signals facilitate system control. Optional PMBus communication offers enhanced monitoring capability. Compact dimensions provide easy integration into existing systems. Compliance with IEC, CE, EN, and RoHS standards ensures safety and environmental compliance.
This switching power supply is ideal for industrial, laboratory, HVAC, manufacturing, and commercial electronic power applications requiring a reliable 24V DC source. Explore the full range of Excelsys / Advanced Energy power supplies on EnvMart for complementary modules and accessories.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 504W.
It accepts input voltages from 85V AC to 300V DC, including 264V AC.
This power supply provides a single output of 24V DC at a maximum current of 21A.
It has a high efficiency rating of 92%.
The compact dimensions are 237 mm in length and 126 mm in width.
It operates within a temperature range from -40°C to 70°C.
This power supply features a through-hole mounting style.
Yes, it includes remote ON/OFF control and a power good signal for system integration.
It complies with IEC, CE, EN, and RoHS standards.
The gross weight of this model is 1.1 kg.
This power supply is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electronic applications.
Optional features include PMBus communication support and OR-ing functionality.
