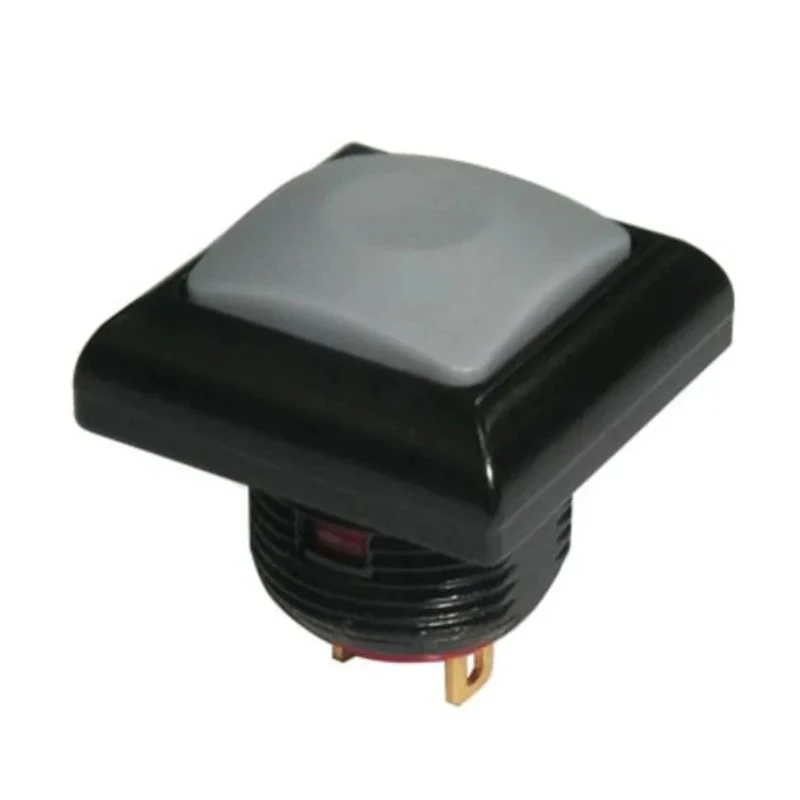

RS PRO Push Button Switch, Momentary, Panel Mount, SPST, Red LED, IP67 Rated, 36 V dc 250 V ac, 13.6 mm Cutout 209-9087

RS PRO 209-9087 push button switch is a momentary, panel mount switch with a Single Pole Single Throw (SPST) configuration and red LED indicator. Designed to fit panels with a 13.6 mm cutout, this sub-miniature switch offers excellent mechanical and electrical performance with an IP67 protection rating. It operates safely under 36 V direct current and 250 V alternating current voltage ratings, handling contact currents up to 125 mA.

The actuator features a flat, square cap made of durable Polyamide 6/6, ensuring long-lasting use and resistance to harsh industrial environments. The switch utilizes gold over silver-plated contacts to improve conductivity and reliability while offering a mechanical lifespan of up to 1 million cycles. Terminal connections are made via solder lugs, supporting easy and secure wiring.

Rated for a broad temperature range from -35°C to 85°C, this push button switch is built to withstand demanding applications in industrial automation, test and measurement tools, telecommunications hardware, and handheld appliances. The IP67 rating guarantees protection against dust ingress and temporary immersion in water, making it suitable for harsh and outdoor environments.

The RS PRO brand is recognized worldwide for its quality and reliability, and this model complies with RoHS directives, UL approvals, and Lead-Free standards. This push button switch series is ideal for machine controls and process activation where precision and reliability are paramount.

Designed for panel mounting with a 13.6 mm cutout size. Sub-miniature switch with momentary switch operation for precise control. Red LED actuator made of high-quality Polyamide 6/6 material. IP67 rated for dust tight and water immersion protection.

Operates at 36 V dc and 250 V ac voltages with a 125 mA contact current rating. Flat-style actuator providing a sleek and low-profile design. Terminal type is solder lug for secure electrical connections. Operating temperature range from -35°C to 85°C ensuring reliable performance.

Mechanical life expectancy of 1,000,000 cycles for durability. Suitable for industrial automation, test equipment, telecommunications, and handheld appliances. Explore a wide range of high-quality RS PRO Push Button Switches and related electronic components at EnvMart for your industrial and laboratory needs.
