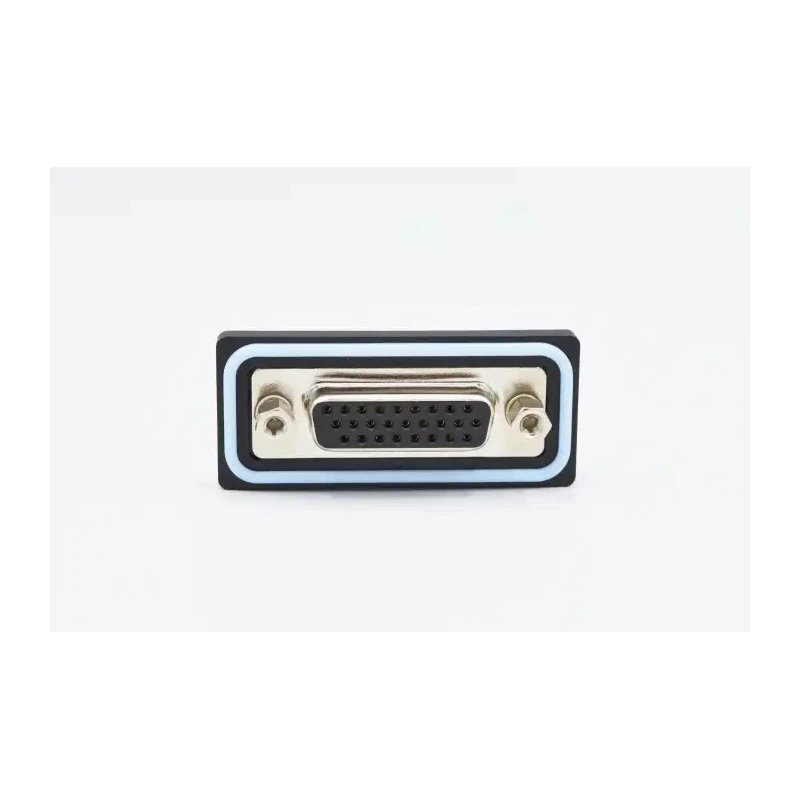

Norcomp High Density 26 Way Vertical 2.29 mm Pitch Surface Mount Female D-Sub Connector HDF-V26-213L011

Norcomp HDF-V26-213L011 is a 26 way high density vertical female D-Sub connector designed for surface mount applications. It features a compact 2.29 mm pitch spacing, allowing high density wiring in limited spaces.

The connector's housing is constructed from robust Polybutylene Terephthalate (PBT), which is UL 94V-0 rated, offering excellent flame retardance and mechanical strength. The contacts are made of brass with a gold plating, ensuring high conductivity and corrosion resistance. The connector shell is nickel plated steel with a silicon O-ring seal, providing IP67 rated protection against dust ingress and water immersion.

It supports a current rating of 3A and voltage rating of 1000V AC. The operating temperature range from -25°C to 85°C makes it suitable for harsh industrial and electronic environments. The mounting hardware uses 4-40 screws to secure the connector reliably onto PCBs or panel surfaces.

This D-Sub Connector is ideal for use in industrial control systems, data communication equipment, electronic instruments, and other applications requiring rugged, high-density interconnections.

The connector offers 26 contacts rated at 3A current. Vertical orientation and surface mount design. Brass contacts with gold plating ensure signal integrity. Durable Polybutylene Terephthalate housing with flame rating UL 94V-0.

Nickel plated steel shell with silicon O-ring for IP67 protection. Voltage rating of 1000V and operating temperature from -25°C to 85°C. Mounting hardware is 4-40 screw type for secure fixing. Female connector gender for compatibility with male plugs.

Suitable for industrial, laboratory, and electronic applications. Explore more connectors and electronic components in the EnvMart catalog for precise and reliable connectivity solutions.
