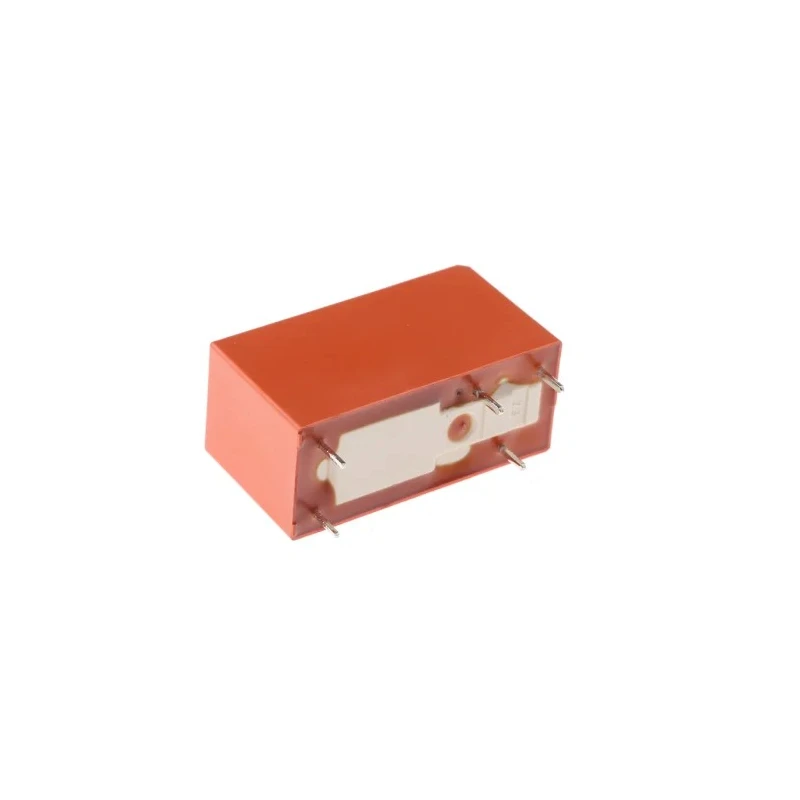

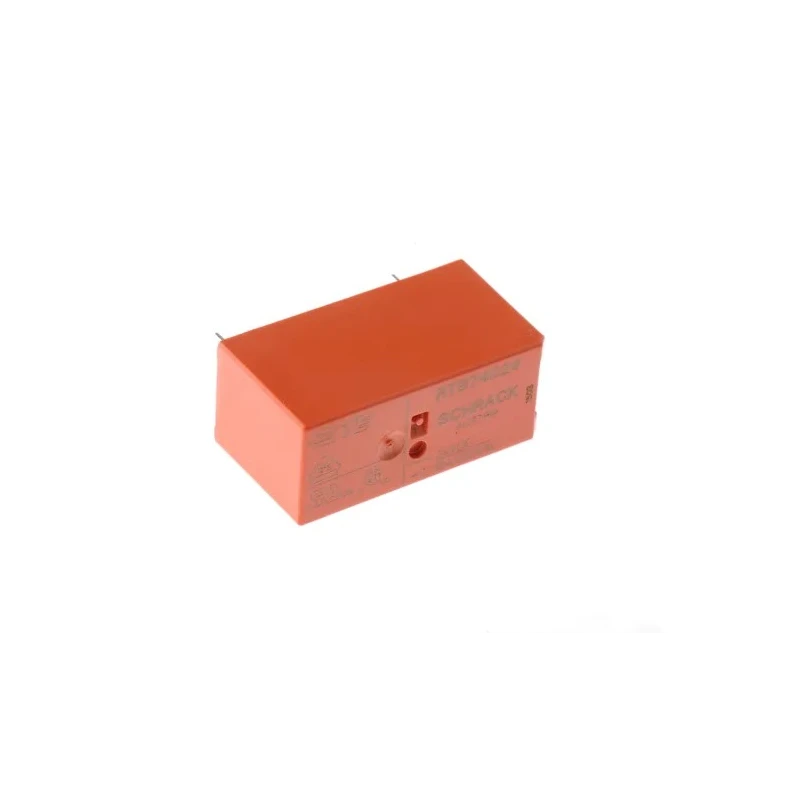

TE Connectivity PCB Power Relay 24V dc Coil 12A Switching Current SPDT RT1 Series 4-1393238-6 RTB74024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | 4-1393238-6 RTB74024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Equipped with a sensitive coil consuming only 400mW power.
- Designed for PCB mount with solder terminal type for reliable installation.
- Complies with IEC 61810 standard and RoHS directive for safety and environmental compliance.
- Operates within a temperature range of -40°C to 85°C ensuring durability under varying conditions.
- Switching AC voltage rating of 400V ac and switching power of 2.5kVA suitable for diverse load control.
- Contact material is silver nickel alloy offering excellent conductivity and wear resistance.
- Applicable in temperature control and domestic appliance applications.
Product Description
TE Connectivity 4-1393238-6 RTB74024 PCB Power Relay is a high-performance power relay designed for reliable switching in electrical and automation applications. This relay features a 24V dc coil voltage and is capable of switching currents up to 12A with a SPDT (Single Pole Double Throw) contact configuration. Its RT1 series design incorporates ultra-high coil sensitivity with a power consumption of just 400mW, enabling efficient operation and energy savings.
Mounting on printed circuit boards (PCBs) is facilitated via solder terminals, ensuring solid electrical connections and easy integration into various electronic assemblies. The relay meets industry standards IEC 61810 and RoHS, ensuring compliance with safety, quality, and environmental regulations.
The device operates across a broad temperature range from -40°C to 85°C, making it suitable for applications exposed to harsh environmental conditions. Measuring just 29mm in length, 12.7mm in width, and 15.7mm in height, this compact relay is ideal for space-constrained designs.
Capable of switching AC voltages up to 400V and handling a switching power of 2.5kVA, it is well-suited for use in temperature control systems, domestic appliances, and a variety of industrial and commercial electrical equipment. The silver nickel alloy used in the contacts ensures longevity and stable electrical performance under repeated switching cycles.
Equipped with a sensitive coil consuming only 400mW power. Designed for PCB mount with solder terminal type for reliable installation. Complies with IEC 61810 standard and RoHS directive for safety and environmental compliance.
Operates within a temperature range of -40°C to 85°C ensuring durability under varying conditions. Compact dimensions: Length 29mm, Width 12.7mm, Height 15.7mm for space-efficient applications. Switching AC voltage rating of 400V ac and switching power of 2.5kVA suitable for diverse load control.
Contact material is silver nickel alloy offering excellent conductivity and wear resistance. Applicable in temperature control and domestic appliance applications.
This TE Connectivity power relay is a dependable component for industrial, laboratory, automation, and HVAC electrical control systems. Its attributes make it a premium choice for engineers and designers requiring precise and efficient power switching solutions. Browse the Power Relay category at EnvMart for additional TE Connectivity relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum switching current of 12A.
The coil voltage for this relay is 24V dc.
It measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates within a temperature range of -40°C to 85°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has a switching AC voltage rating of 400V ac.
It uses solder terminals for mounting on printed circuit boards (PCBs).
The coil consumes 400mW of power.
The contacts are made of silver nickel alloy, which offers excellent conductivity and wear resistance.
It complies with the IEC 61810 standard and RoHS directive for safety and environmental compliance.
This relay is applicable in temperature control systems and domestic appliances, among other electrical applications.
The country of origin for this relay is Austria.
