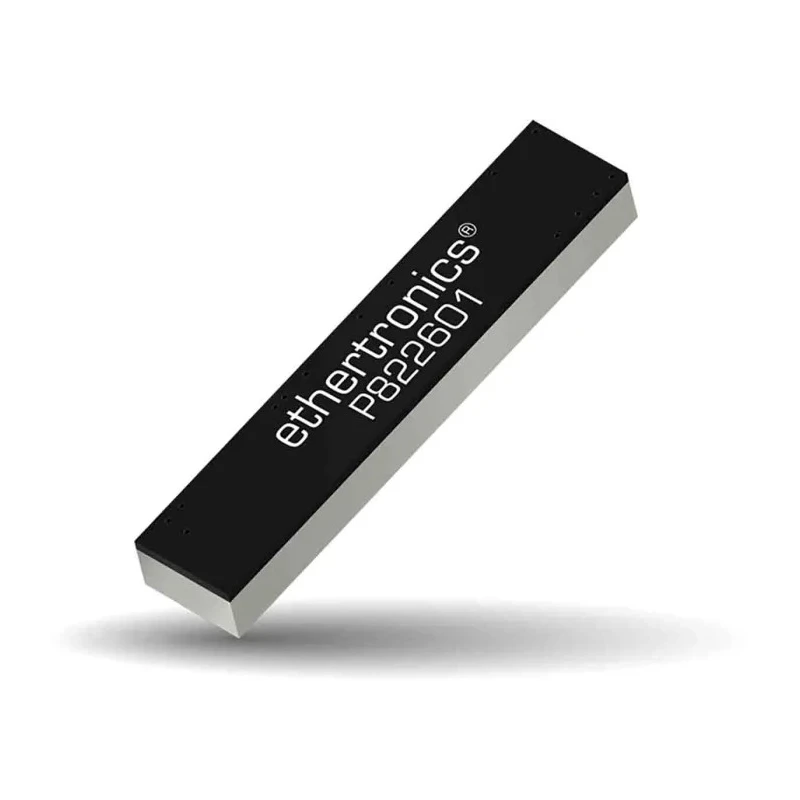

KYOCERA AVX SMT Embedded FR4 Antenna 1.7-2.7GHz 4.4dBi Gain Isolated Magnetic Dipole Technology P822601
Specifications
| Country of Origin | China |
|---|---|
| Brand | KYOCERA AVX |
| Model | P822601 |
| Connection Type | Feed Point Impedance 50 Ohms Unbalanced |
| Series | P822601/P822602 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Gain | 4.4dBi |
| Standards/Approvals | RoHS |
| Maximum Frequency | 2.7GHz |
| Minimum Frequency | 1.7GHz |
| Antenna Physical Form | Embedded FR4 |
| Antenna Mount Type | Surface |
| Antenna Internal Construction | Isolated Magnetic Dipole TM (IMD) Technology |
| Number of Bands | 2 |
| KYOCERA AVX P822601 SMT AntennaBrand | KYOCERA AVX |
Key Features
- The antenna operates within the frequency range of 1.7 GHz to 2.7 GHz.
- Gain of 4.4 dBi ensures improved signal strength and connectivity.
- Complies with RoHS environmental standards for safe electronic use.
- Supports surface mounting with embedded FR4 physical form.
- Designed to withstand operating temperatures from -40°C to 85°C.
- Utilizes isolated magnetic dipole (IMD) technology for superior RF field containment and minimal interference.
- Features feed point impedance of 50 Ohms unbalanced for compatibility with various devices.
- Dual-band operation enhances versatility for wireless communication applications.
Product Description
KYOCERA AVX P822601 SMT Embedded FR4 Antenna is designed for broadband LTE and LPWA applications, incorporating isolated magnetic dipole (IMD) technology to enhance performance and reduce interference.
Its embedded FR4 physical form factor allows for easy integration into surface-mounted device assemblies. The antenna operates efficiently across a broad frequency range of 1.7 GHz to 2.7 GHz, providing a gain of 4.4 dBi to improve wireless link quality.
Constructed for durability, it supports operating temperatures ranging from -40°C to 85°C, making it suitable for diverse industrial and commercial environments.
The IMD construction offers superior RF field containment, reducing noise and ensuring reliable connectivity. Its feed point impedance of 50 Ohms unbalanced is standard for many RF systems, further easing integration.
This antenna complies fully with the latest RoHS requirements, ensuring it meets stringent environmental safety standards. The antenna operates within the frequency range of 1.7 GHz to 2.7 GHz. Gain of 4.4 dBi ensures improved signal performance.
Feature surface mounting capability with embedded FR4 form factor. Designed to withstand a broad operating temperature spectrum (-40°C to 85°C). Utilizes isolated magnetic dipole (IMD) technology for superior signal isolation and minimal interference.
Complies with RoHS environmental standards. Dual-band support enhances connectivity options for wireless applications. Feed point impedance of 50 Ohms unbalanced. This antenna is ideal for industrial, telecommunications, and IoT device applications requiring compact, reliable RF solutions.
Browse EnvMart's extensive range of professional-grade Antennas and electronic components for trusted quality and performance in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This antenna operates within a frequency range of 1.7 GHz to 2.7 GHz.
The antenna provides a gain of 4.4 dBi, which enhances signal strength and connectivity.
It has a feed point impedance of 50 Ohms unbalanced, making it compatible with various RF systems.
This model is designed to withstand operating temperatures ranging from -40°C to 85°C.
It incorporates isolated magnetic dipole (IMD) technology, which enhances RF field containment and reduces interference.
Yes, it complies with RoHS environmental standards, ensuring safe electronic use.
The antenna supports surface mounting with an embedded FR4 physical form.
The antenna features an embedded FR4 physical form, which allows for easy integration into surface-mounted device assemblies.
It is ideal for industrial, telecommunications, and IoT device applications that require compact and reliable RF solutions.
This antenna is part of the P822601/P822602 series.
The country of origin for this antenna is China.
