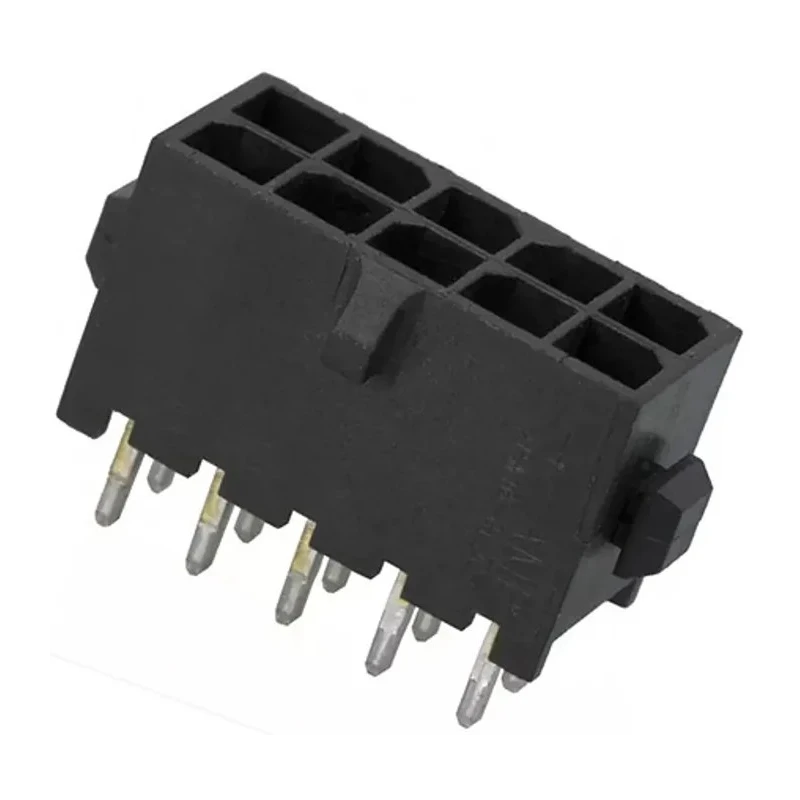

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header 10 Contact 3 mm Pitch 2 Row Shrouded 4-794630-0

TE Connectivity 4-794630-0 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a 10-contact, 3 mm pitch, 2-row shrouded connector designed for reliable wire-to-board connections in demanding electrical and industrial applications. The shrouded housing is made from durable nylon material with a 94V-0 flammability rating, offering high resistance to electrical and mechanical stress. The brass contacts plated with tin provide excellent conductivity and corrosion resistance.

This PCB header supports a current rating of 5A and voltage up to 250V, operating efficiently in a temperature range from -55°C to a maximum of 105°C. Its straight orientation and through hole mounting ensure secure board retention enhanced by boardlocks or solder tail retention features. The 3.03 mm tail pin length facilitates stable soldering during PCB assembly.

Polarization and positive locking tabs prevent mis-mating and ensure firm attachment to mating cable connectors, making this connector ideal for household appliances, lighting solutions, factory automation, data storage, and security systems. It is also IR reflow process compatible, supporting modern automated manufacturing techniques.

The Micro MATE-N-LOK 3 mm connector system includes both wire-to-wire and wire-to-board configurations, and this specific header is designed for wire-to-board interface. The shrouded design enhances the protection of electrical contacts and prolongs connector reliability during industrial use.

High reliability with polarized housing to prevent mis-mating. Positive locking tabs for secure cable connector connection. Nylon housing with brass contacts plated in tin. Operational temperature range from -55°C to 105°C.

Rated for 5A current and 250V voltage. Through hole mounting with solder termination. Tail pin length of 3.03 mm for robust soldering. Wide industrial applications including lighting and factory automation. Compatible with IR reflow soldering processes.

Shrouded design enhances protection and connector lifespan.

This TE Connectivity Micro MATE-N-LOK Series PCB header exemplifies precision in electrical component design, ensuring dependable performance in commercial and industrial electronics assemblies. Explore more Connectors and related components in the Electronics & Electricals category at EnvMart for comprehensive solutions.
