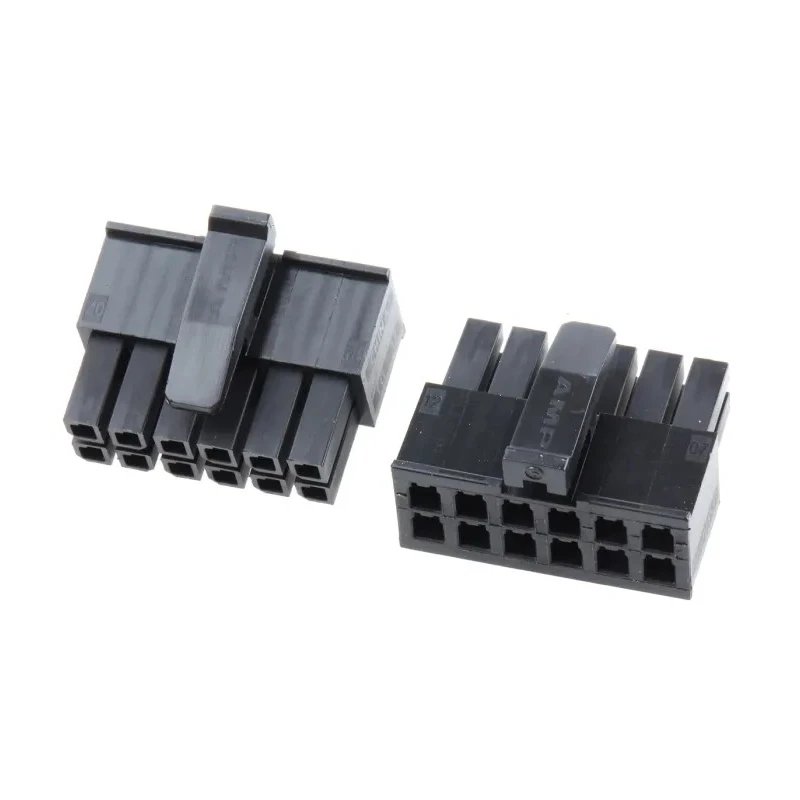

TE Connectivity Micro MATE-N-LOK 3 mm Pitch 12 Way 2 Row Straight Female Connector Housing 1-794617-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 19mm |
| Width | 11.7mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon housing material ensuring longevity.
- Features a positive locking latch for secure connection to mating connectors.
- Designed with polarization to prevent mismating for reliable performance.
- 12-way configuration with 2 rows accommodates multi-contact requirements.
- Compact dimensions with 19 mm length and 11.7 mm width for space-efficient integration.
- Compatible with centerline soft shell pin and socket connectors.
- No specific standards or approvals but designed for industrial and consumer applications.
- Suitable for household appliances, factory automation, lighting, and data storage systems.
Product Description
TE Connectivity 1-794617-2 Micro MATE-N-LOK Female Connector Housing is a precision engineered wire-to-wire connector housing. It features a 3 mm pitch and a 12-contact 2-row straight configuration, making it ideal for secure cable mounting applications.
Constructed from 94V-0 rated black nylon material, it ensures electrical safety and mechanical durability. The connector housing includes a positive locking latch and polarization mechanism to prevent mis-mating and ensure reliable fastening with corresponding male connectors.
This connector housing is designed to mate with Micro MATE-N-LOK plug housings and PCB headers, accepting crimp socket contacts (sold separately). The compact length of 19 mm and width of 11.7 mm allows for efficient use in tight spaces.
Applications for this connector include household appliances, lighting controls, factory automation, data storage equipment, and security systems. Its robust design suits both industrial and consumer electronic environments. Low profile variants with under 4.7 mm mating height are especially suitable for LED lighting industries.
Durable nylon housing for enhanced electrical insulation. Positive locking latch secures the connection during operation. Polarized design prevents connector mismating errors. 12 contacts arranged in 2 rows support multi-circuit configurations.
3 mm pitch ensures compatibility with Micro MATE-N-LOK system. Compact size optimizes space in assembly and wiring harnesses. Versatile in household and industrial electronic applications. Compatible with other Micro MATE-N-LOK components for system integration.
New condition, packaged in bags for individual use or assembly.
This TE Connectivity Connector Housing is a reliable choice for professionals requiring secure and durable female connectors in electronic assemblies. Browse additional products in the Connectors category at EnvMart for complete wiring and connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a 3 mm pitch, which ensures compatibility with the Micro MATE-N-LOK system.
It supports a 12-contact configuration arranged in 2 rows, accommodating multi-circuit requirements.
The housing has a compact length of 19 mm and a width of 11.7 mm, making it suitable for space-efficient integration.
It is constructed from durable nylon material, rated 94V-0 for electrical safety and mechanical durability.
Yes, it includes a polarization mechanism that prevents mismating with corresponding male connectors.
This model is designed for cable mounting, allowing for secure cable connections in various applications.
It is compatible with centerline soft shell pin and socket connectors, and is designed to mate with Micro MATE-N-LOK plug housings and PCB headers.
It is suitable for applications in household appliances, factory automation, lighting controls, data storage equipment, and security systems.
Yes, it features a positive locking latch that secures the connection during operation.
The connector housing has a straight orientation, allowing for straightforward cable connections.
The connector housing is manufactured in India.
This model belongs to the Micro MATE-N-LOK series, which is known for its reliable wire-to-wire connections.
