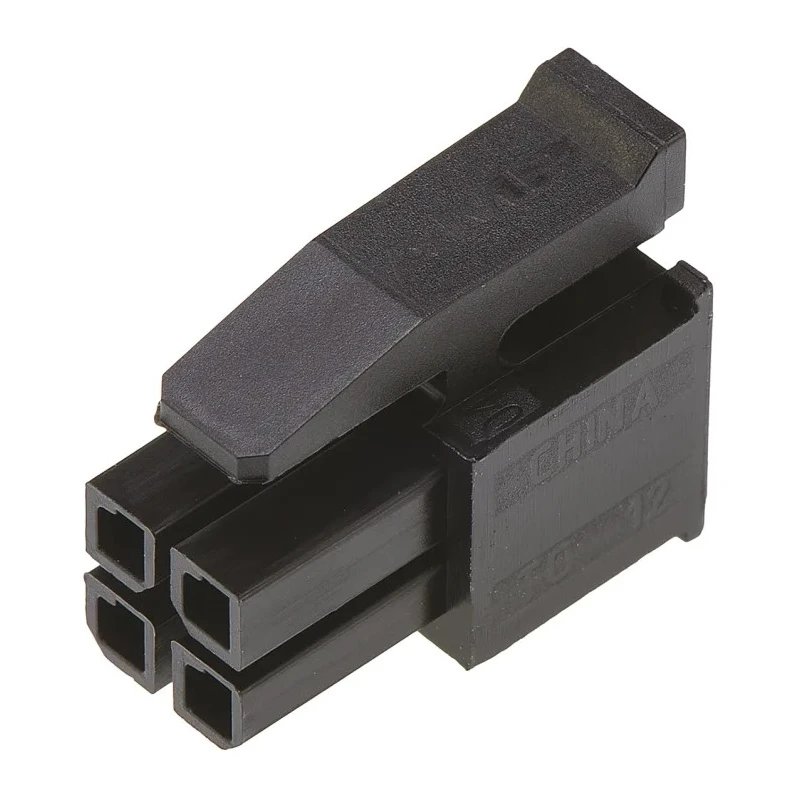

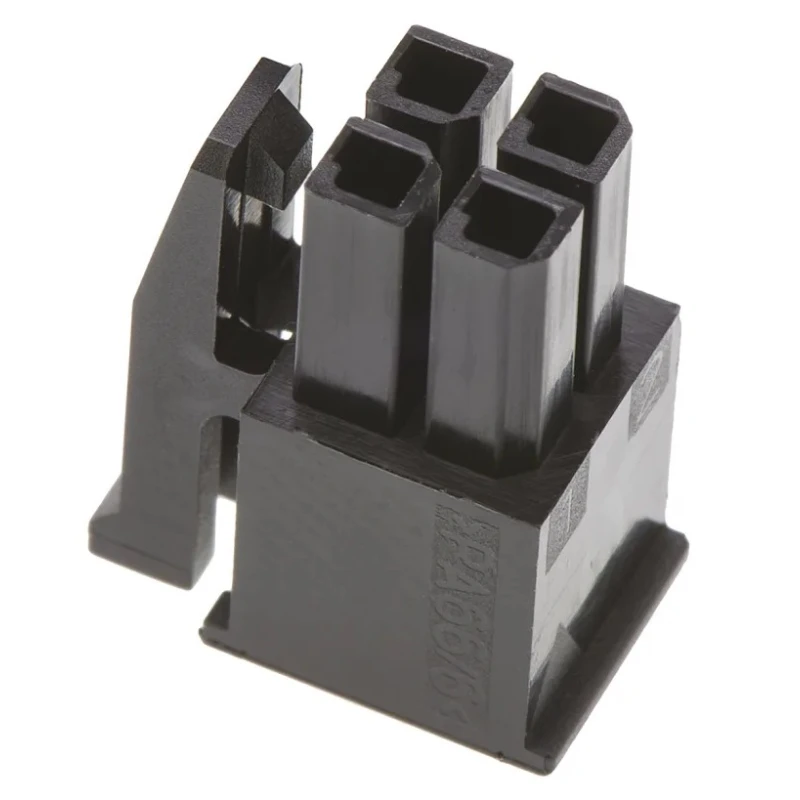

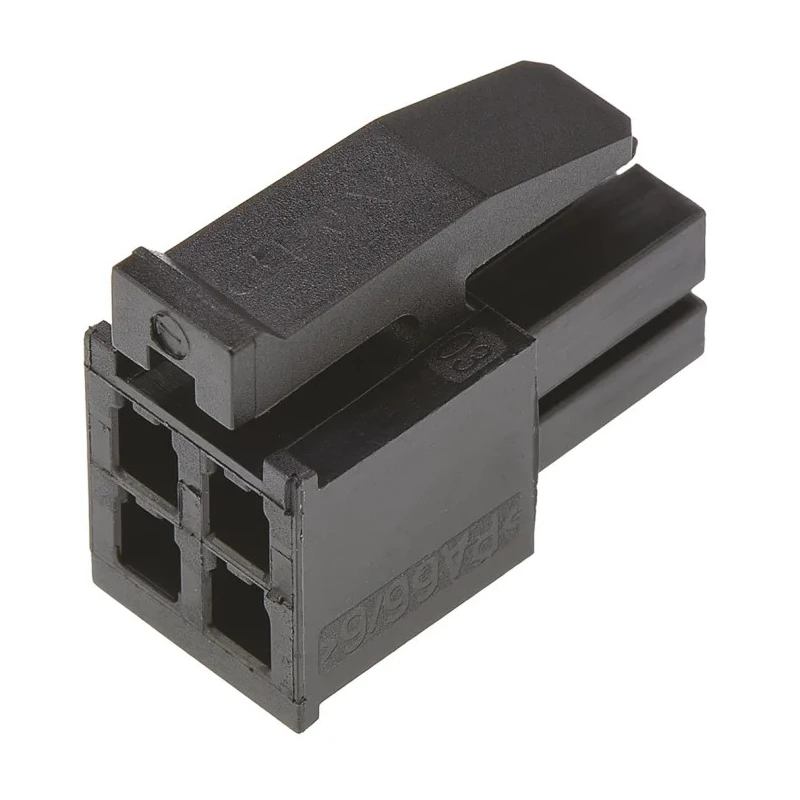

TE Connectivity Micro MATE-N-LOK Female Connector Housing 3 mm Pitch 4 Way 2 Row Straight 794617-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 7mm |
| Model | 794617-4 |
| Width | 11.7mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Micro MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon housing material for reliability.
- Features a positive locking latch to ensure secure connection with mating connectors.
- Polarized design prevents mismating in system assemblies.
- Compatible with Centerline soft shell pin and socket connectors.
- Compact dimensions with 7 mm length and 11.7 mm width support space-efficient installations.
- Suitable for a broad range of applications including household appliances and factory automation.
- Meets Micro MATE-N-LOK series standards with no additional approvals specified.
Product Description
TE Connectivity 794617-4 Micro MATE-N-LOK female connector housing is engineered for high reliability and performance in electronic connector applications. This connector housing employs a 3 mm pitch with 4 contact positions arranged in 2 rows for efficient wiring configurations.
The black nylon housing material is rated 94V-0 for flammability, ensuring durability in demanding environments. A polarization feature prevents incorrect mating between connectors, while a positive locking latch secures the housing tightly to the mating connector, enhancing connection stability during operation.
Designed for panel mount configurations, this connector housing is compatible with Centerline soft shell pin and socket connectors, facilitating seamless integration into existing systems. Its compact size with a length of 7 mm and width of 11.7 mm allows use in confined spaces.
Industries benefiting from the Micro MATE-N-LOK connector system include household appliance manufacturing, lighting systems, factory automation, data storage, and security systems. The connector system supports wire-to-wire and wire-to-board applications, broadening its versatility in industrial and consumer electronics.
This particular housing is a receptacle type and mates with Micro MATE-N-LOK plug housings and PCB headers. Its design enables reliable electrical connections with a maximum current rating typically up to 5A.
Durable nylon construction ensures long-lasting use. Polarized to prevent mismating and protect system integrity. Positive locking latch secures connection under vibration or movement. Compact dimensions promote flexible installation options.
Widely used in industrial and consumer electronics sectors. Panel mount style for easy integration with electrical panels. Compatible with Micro MATE-N-LOK plug and PCB connectors. Explore more Connector Housing products and TE Connectivity solutions on EnvMart to meet your assembly and connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm, allowing for efficient wiring configurations.
This housing supports 4 contact positions arranged in 2 rows.
The connector housing has a length of 7 mm and a width of 11.7 mm, making it suitable for space-efficient installations.
It is constructed from nylon material, which is rated 94V-0 for flammability.
This model is designed for panel mount configurations, facilitating easy integration with electrical panels.
It is compatible with Centerline soft shell pin and socket connectors, as well as Micro MATE-N-LOK plug housings and PCB headers.
It features a positive locking latch that secures the housing tightly to the mating connector and a polarized design to prevent mismating.
The maximum current rating for this housing is typically up to 5A, allowing for reliable electrical connections.
This housing is suitable for a broad range of applications, including household appliances, factory automation, lighting systems, and security systems.
The orientation of this connector housing is straight, facilitating straightforward connections in various configurations.
The connector housing is manufactured in India.
The polarized design prevents mismating, while the positive locking latch ensures a secure connection, enhancing overall system integrity during operation.
