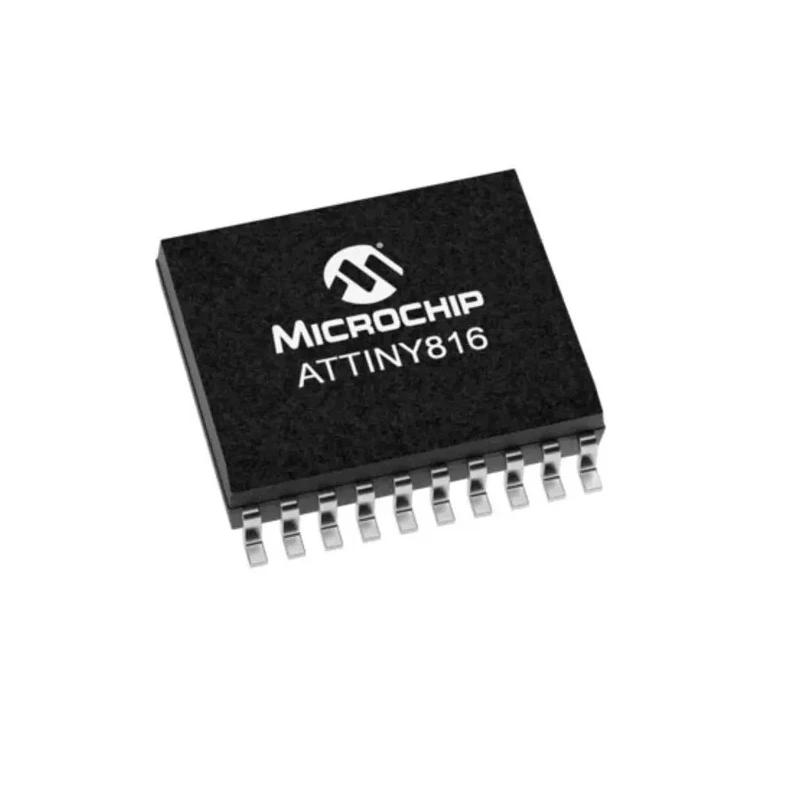

Microchip 8-bit AVR ATTINY816 Microcontroller SOIC 20-Pin, 20 MHz, 8kB FLASH, 512B SRAM, 1.8-5.5V ATTINY816-SN

Microchip ATTINY816-SN is an advanced 8-bit AVR microcontroller designed for efficient embedded applications. It runs at a maximum clock frequency of 20 MHz and includes 8kB of FLASH program memory and 512 bytes of SRAM. Packaged in a 20-pin SOIC surface mount package, it offers compactness combined with versatility.

This microcontroller incorporates latest Core Independent Peripherals featuring low power operation modes such as idle, standby, and power down, making it suitable for battery-powered devices and energy-conscious embedded systems. It supports a voltage supply range from 1.8V up to 5.5V, enabling use in a variety of electronic products.

Its integrated peripherals include 12 channels of 10-bit Analog-to-Digital Converters (ADCs), an 8-bit Digital-to-Analog Converter (DAC), and analog comparators for sensor interfacing and signal conditioning. The sophisticated QTouch peripheral touch controller supports capacitive touch with proximity sensing and driven shield capabilities, ideal for modern user interface implementations.

The device offers several timers for application-specific timing needs, including one 12-bit timer (TCD) and two 16-bit timers (TCA/TCB). Also included are powerful system features like Watchdog Timer (WDT), Power-On Reset (POR), Brown-Out Detection (BOD), a single pin programming/debugging interface (UPDI), and a configurable custom logic (CCL) block.

Designed for broad industrial and commercial use, the ATTINY816-SN microcontroller suits applications in consumer electronics, automotive controls, industrial automation, and laboratory equipment requiring reliable 8-bit processing.

Integrates an 8-bit AVR core with hardware multiplier for efficient processing. Operates over a voltage range of 1.8V to 5.5V for flexible power supply options. Includes 512 bytes SRAM and 128 bytes EEPROM for data storage and retention.

Equipped with 12 analog-to-digital converters (10-bit) and 1 digital-to-analog converter (8-bit DAC). Supports capacitive touch interfaces with QTouch peripheral for advanced applications. Features multiple timers including 1x 12-bit and 2x 16-bit timers for precise timing control.

Low power consumption with three sleep modes to optimize energy efficiency. Offers robust peripherals: Event System, Watchdog Timer, Brown-Out Detection, and configurable custom logic. Packaged in a compact 20-pin SOIC suitable for surface mounting on PCBs.
