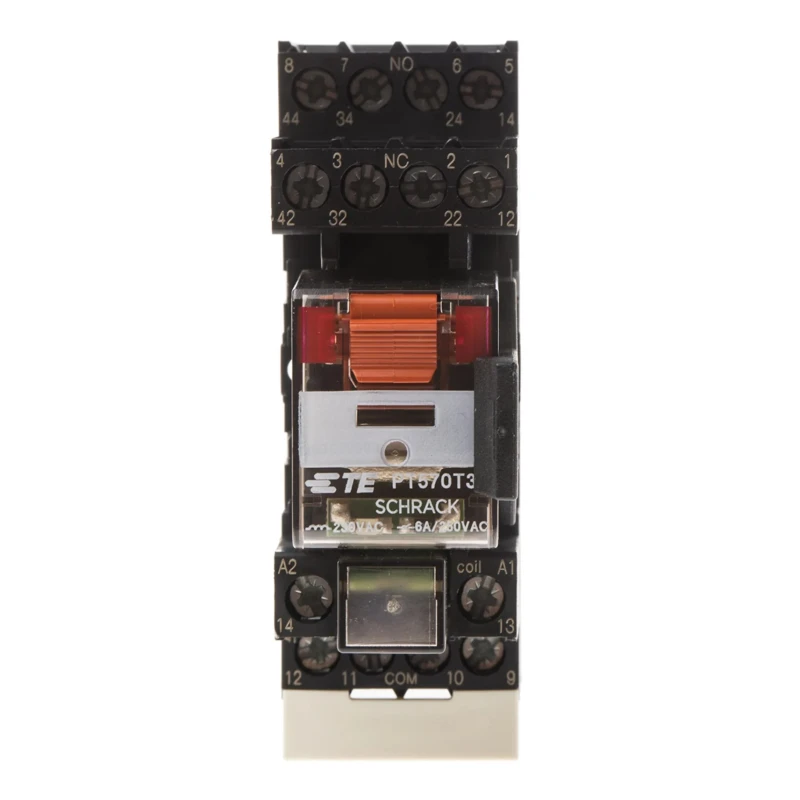

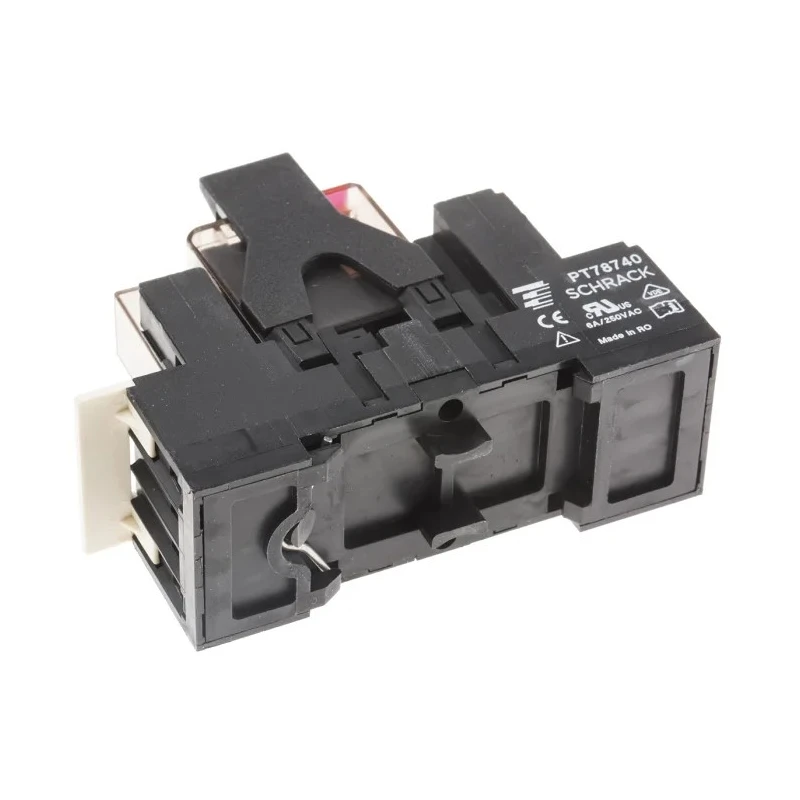

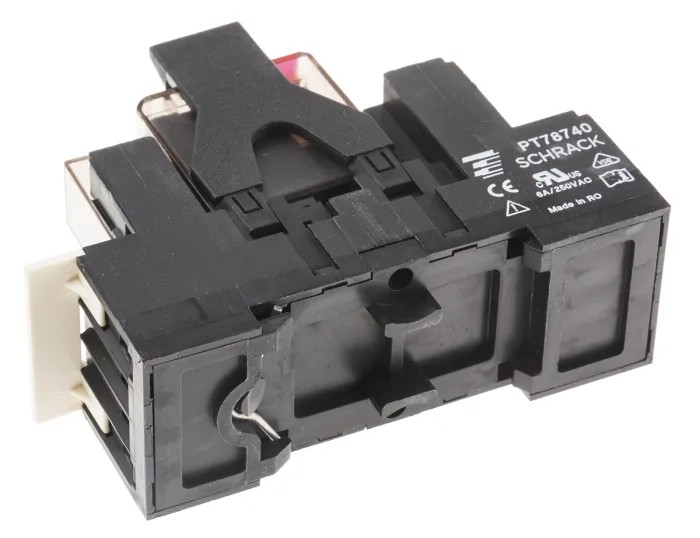

TE Connectivity DIN Rail Power Relay with 230V ac Coil, 6A Switching Current, 4PDT Contact Configuration PT5S7TD0 8-1415075-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT5S7TD0 8-1415075-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | IEC, VDE, UL, RoHS |
| Coil Resistance | 19.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 240V ac |
| Coil Power | 1W |
Key Features
- This power relay supports a coil voltage of 230V ac.
- The contact configuration is 4PDT, allowing complex switching operations.
- It mounts on DIN rail for easy installation in electrical panels.
- The relay has a switching AC voltage rating of 240V ac and switching power up to 1.5kVA.
- It operates reliably between -40°C and 70°C ambient temperatures.
- The coil resistance is 19.5kΩ with a coil power consumption of 1W.
- Contact material is silver nickel alloy, ensuring durable electrical performance.
- The relay package includes relay, DIN rail socket, module, retainer, and marking tab.
Product Description
TE Connectivity PT5S7TD0 8-1415075-1 DIN Rail Power Relay is engineered for industrial electrical control systems, featuring a coil voltage of 230V AC and a 6A switching current. Its 4PDT (four-pole double-throw) contact configuration enables versatile switching capabilities for complex control circuits. The relay is designed for mounting on standard DIN rails, simplifying installation and maintenance within control panels.
With a switching AC voltage rating of 240V AC and switching power capacity up to 1.5 kVA, this relay suits a broad range of applications in automation, manufacturing, and electrical distribution. It operates effectively within an ambient temperature range of -40°C to 70°C, ensuring reliability in varied industrial environments.
The relay coil has a resistance of 19.5kΩ and consumes 1W power, contributing to energy-efficient operation. The contacts are made from silver nickel alloy, promoting excellent conductivity and durability. This product package includes the relay itself, a DIN rail socket, module, retainer, and a marking tab for clear identification.
This power relay supports a coil voltage of 230V ac. The contact configuration is 4PDT, allowing complex switching operations. It mounts on DIN rail for easy installation in electrical panels. The relay has a switching AC voltage rating of 240V ac and switching power up to 1.5kVA.
It operates reliably between -40°C and 70°C ambient temperatures. The coil resistance is 19.5kΩ with a coil power consumption of 1W. Contact material is silver nickel alloy, ensuring durable electrical performance. The relay package includes relay, DIN rail socket, module, retainer, and marking tab.
Complies with IEC 61810-1 and has approvals including IEC, VDE, UL, and RoHS. The physical dimensions are 73.5mm length, 27mm width, and 58mm height.
This DIN Rail Power Relay is ideal for industrial, electrical automation, manufacturing, control panels, HVAC systems, and signal conditioning applications requiring precise switching with high reliability and safety standards. Its compliance with IEC, VDE, UL, and RoHS assures quality and environmental compatibility. Choose TE Connectivity Power Relays for trusted performance in demanding electrical systems.
Explore more high-quality relays and power control components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
It has a switching current rating of 6A.
The contact configuration is 4PDT (four-pole double-throw), allowing for complex switching operations.
The maximum switching AC voltage is 240V AC.
The relay can handle switching power up to 1.5 kVA.
It operates reliably within an ambient temperature range of -40°C to 70°C.
The contacts are made from silver nickel alloy, promoting excellent conductivity.
The relay has dimensions of 73.5mm in length, 27mm in width, and 58mm in height.
This model is designed for mounting on standard DIN rails, simplifying installation in electrical panels.
The coil resistance is 19.5kΩ and it consumes 1W of power.
It complies with IEC 61810-1 and has approvals including IEC, VDE, UL, and RoHS.
The package includes the relay, a DIN rail socket, module, retainer, and a marking tab for identification.
