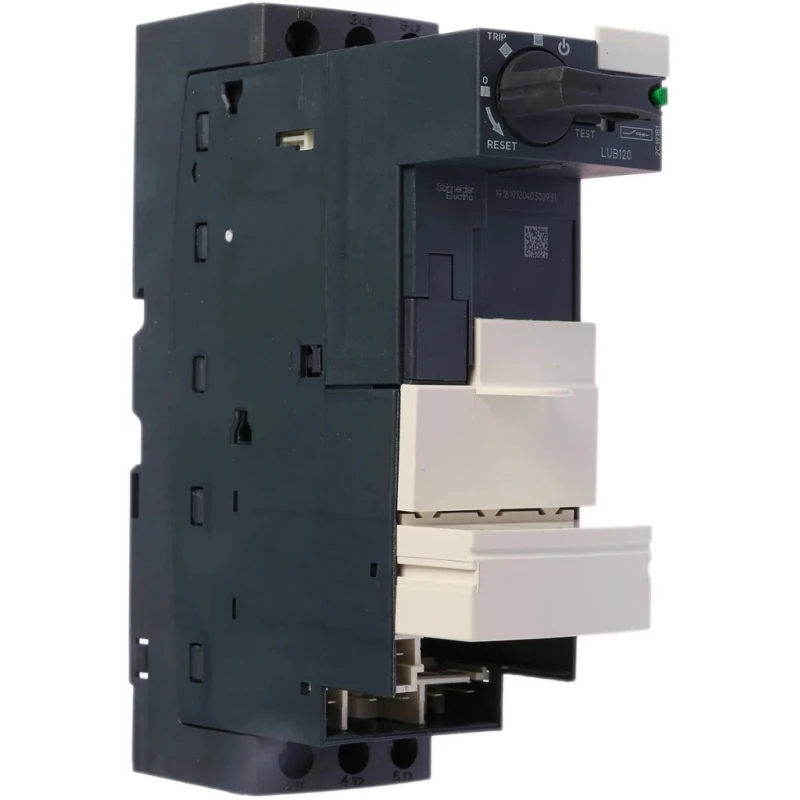

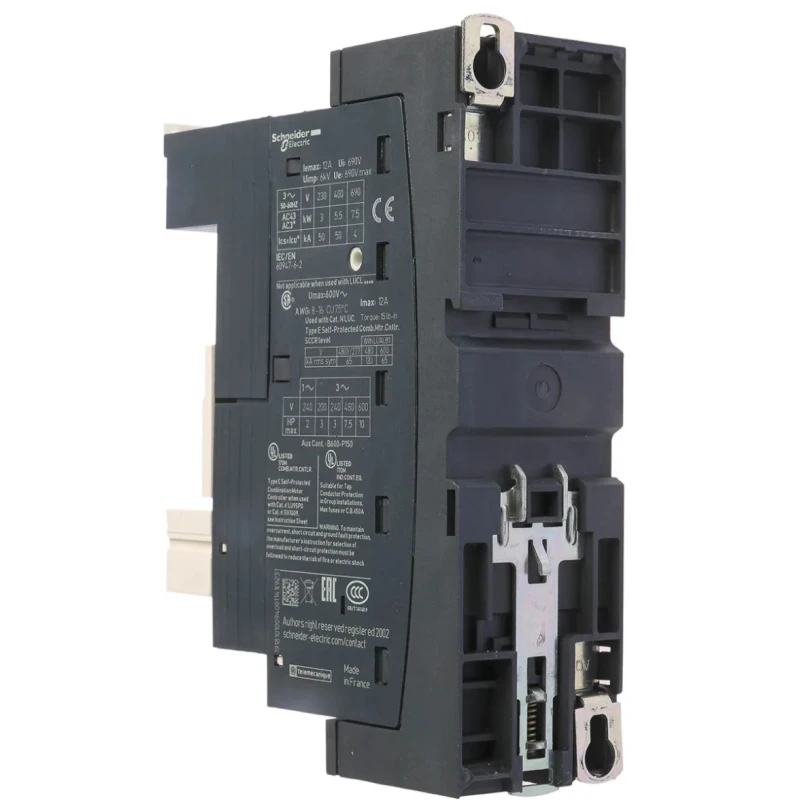

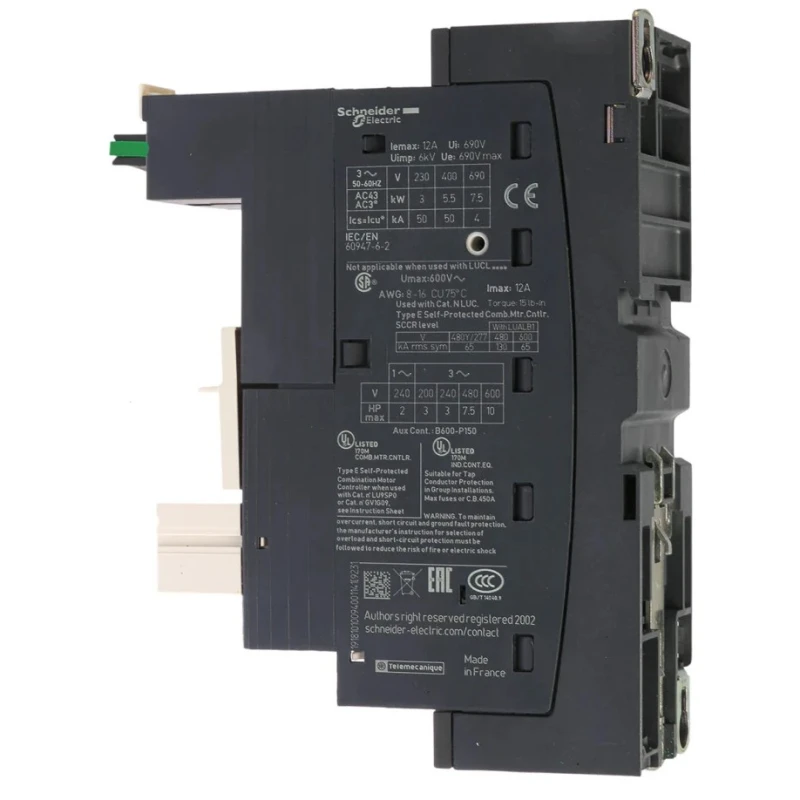

Schneider Electric U-Line Advanced Motor Starter, 690V AC, 5.5 kW, 3 Phase, IP20 LUB120
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | LUB120 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Overall Length | 45mm |
| Current Rating | 12A |
| Series | U-Line |
| Overall Width | 126mm |
| Power Rating | 5.5kW |
| Number of Phases | 3 |
| Maximum Voltage | 690V ac |
| Hazardous Area Certification | ATEX |
| Number of Poles | 3 |
| Standards/Approvals | CCC Certified, CE Certified, CSA Certified, EAC Certified, UL Listed |
| Overall Depth | 154mm |
| Schneider Electric Advanced Motor Starter, 1.5 kW, 1.25 → 5 ABrand | Schneider Electric |
Key Features
- Suitable for non-reversing motor control with a current rating of 12A.
- Designed for DIN rail mounting with 3 poles and compact dimensions of 45mm length, 126mm width, and 154mm depth.
- Features screw clamp power terminals for reliable and durable electrical connections.
- Enhanced electrical safety by separating control and auxiliary circuits.
- Smart technology enables fast return to service after short-circuit faults.
- Capable of 60 cycles per minute operation, ideal for demanding motor-management systems.
- Complies with international standards and certifications including CCC, CE, CSA, EAC, and UL Listings.
- Provides improved overload protection with fewer components and extended service life.
Product Description
Schneider Electric LUB120 advanced motor starter is a compact, high-performance device engineered for efficient motor control in industrial and commercial settings. Rated for 690V AC and delivering 5.5 kW power, this three-phase motor starter with IP20 protection is built for reliability and durability. Ideal for applications requiring non-reversing motor operation, it accommodates a current of 12A and features a modular, plug-and-work design for easy installation and maintenance.
The device mounts conveniently on DIN rails and has compact dimensions measuring 45mm length, 126mm width, and 154mm depth, allowing optimal use of panel space. Screw clamp power terminals ensure robust electrical connections that withstand mechanical stress over time.
The starter improves electrical safety by separating control and auxiliary circuits, providing protection and ease of troubleshooting. Its smart technology supports rapid recovery after short-circuit faults, and the operating rate of 60 cycles per minute suits demanding motor-management environments. These features assure extended service life and consistent performance.
Certified to meet multiple international standards such as CCC, CE, CSA, EAC, and UL, the LUB120 motor starter complies with strict safety and quality norms. It provides enhanced overload protection using fewer components, simplifying maintenance and increasing reliability.
Common industrial applications include power generation facilities, conveyor and assembly lines, as well as medical and healthcare equipment management. This product is manufactured in France, reflecting Schneider Electric's commitment to quality and precision engineering.
Suitable for non-reversing motor control with a current rating of 12A. Designed for DIN rail mounting with 3 poles and compact dimensions of 45mm length, 126mm width, and 154mm depth. Features screw clamp power terminals for reliable and durable electrical connections.
Enhanced electrical safety by separating control and auxiliary circuits. Smart technology enables fast return to service after short-circuit faults. Capable of 60 cycles per minute operation, ideal for demanding motor-management systems.
Complies with international standards and certifications including CCC, CE, CSA, EAC, and UL Listings. Provides improved overload protection with fewer components and extended service life. Designed for use in power generation, conveyor systems, assembly lines, and medical industries.
Explore Schneider Electric products and advanced Motor Starters on EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this motor starter is 5.5 kW.
It can handle a maximum voltage of 690V AC.
The current rating is 12A.
This model supports three phases.
The dimensions are 45mm in length, 126mm in width, and 154mm in depth.
It is designed for DIN rail mounting.
The IP rating is IP20.
It is capable of operating at 60 cycles per minute.
It complies with several certifications including CCC, CE, CSA, EAC, and UL.
It enhances electrical safety by separating control and auxiliary circuits.
Common applications include power generation, conveyor systems, assembly lines, and medical equipment management.
It is manufactured in France.
