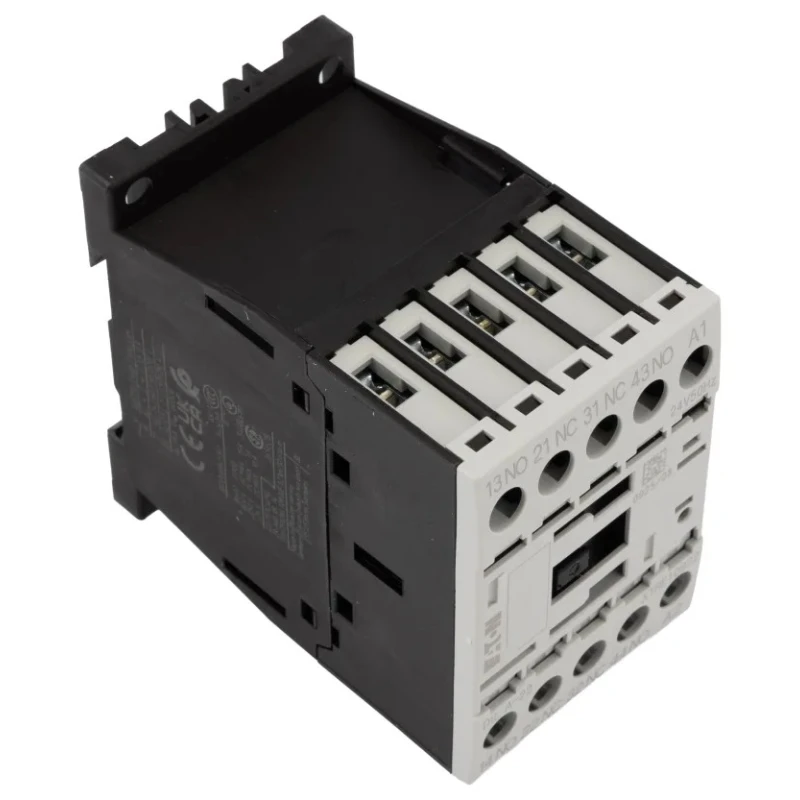

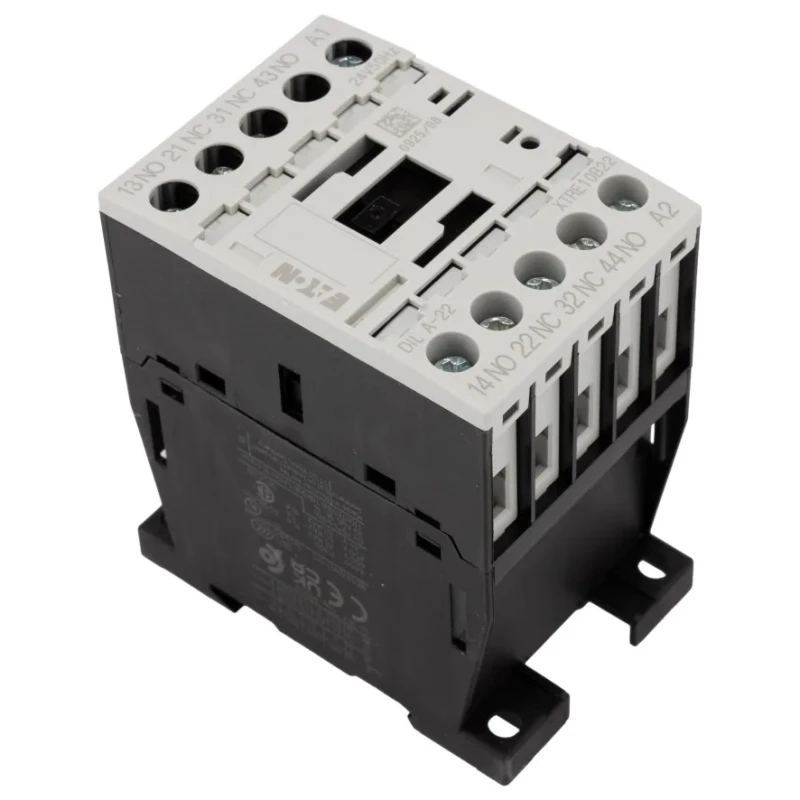

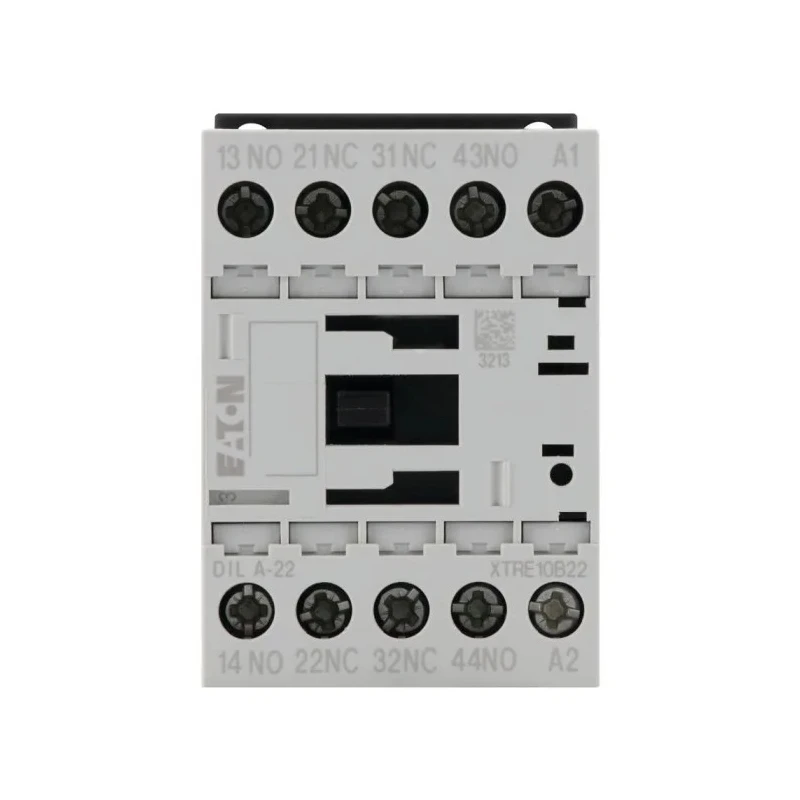

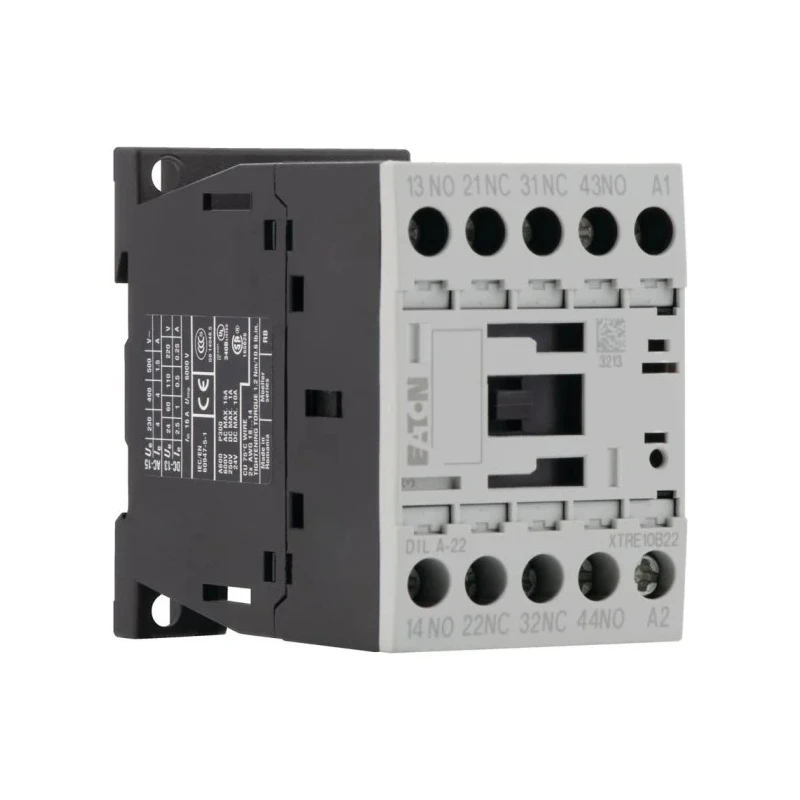

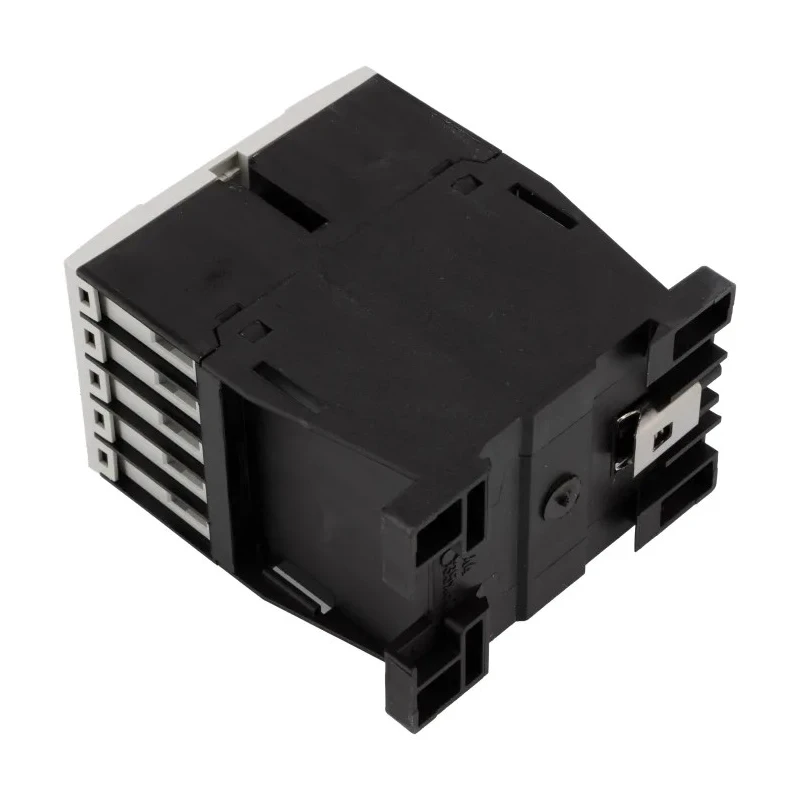

Eaton Contactor Relay 24V AC Coil, 4-Pole, 4 A Contact Current, 2 NO/2 NC Auxiliary Contacts, 415V AC 276386 DILA-22(24V50HZ)

Eaton 276386 DILA-22(24V50HZ) contactor relay is engineered for robust and reliable industrial and commercial electrical control applications. Designed with a 24V AC coil voltage, it features a 4-pole configuration capable of switching contact currents up to 4 amperes at 415V AC. The device includes 2 normally open (NO) and 2 normally closed (NC) contacts, which offer flexible switching capabilities for diverse industrial requirements.

This contactor relay supports DIN rail mounting, enabling fast and secure installation in control panels and automation systems. Its screw-type terminals provide a stable and safe connection for wiring. The unit functions efficiently across a wide temperature range from -25°C to 60°C, making it suitable for various environmental conditions.

Safety and compliance are ensured through multiple approvals, including CE, UL, CSA, and IEC standards, supporting its use in industrial relay systems, commercial HVAC, machinery automation, and electrical circuit switching. The compact form factor with dimensions of 45mm (length), 68mm (width), and 125.2mm (depth) allows integration in space-constrained panels.

The relay also incorporates four auxiliary contacts (2 NO and 2 NC) to enhance control versatility for equipment monitoring and auxiliary device activation. The IP20 protection rating offers finger and back-of-hand protection, reducing the risk of accidental contact with live parts.

Operates with a 24V AC coil voltage for reliable switching. Four-pole design supporting 2 normally open and 2 normally closed contacts. Contact current rated at 4 amperes and contact voltage of 415V AC. Mounts easily on DIN rails for efficient installation.

Equipped with screw-type terminals for secure wiring connections. Operates within a temperature range of -25°C to 60°C. Complies with multiple international standards including CE, UL, CSA, and IEC. Includes four auxiliary contacts configured as 2 NO and 2 NC for extended control options.

Compact dimensions: 45mm length, 68mm width, and 125.2mm depth. IP20 rated, offering protection against dust ingress and finger contact.

This Eaton Contactor Relay is ideal for automation control in industrial machinery, commercial HVAC systems, electrical circuit switching, and integration into control panels. Its durable design and comprehensive safety certifications make it reliable for demanding applications. Explore the Eaton product range on EnvMart for quality automation and control solutions.
