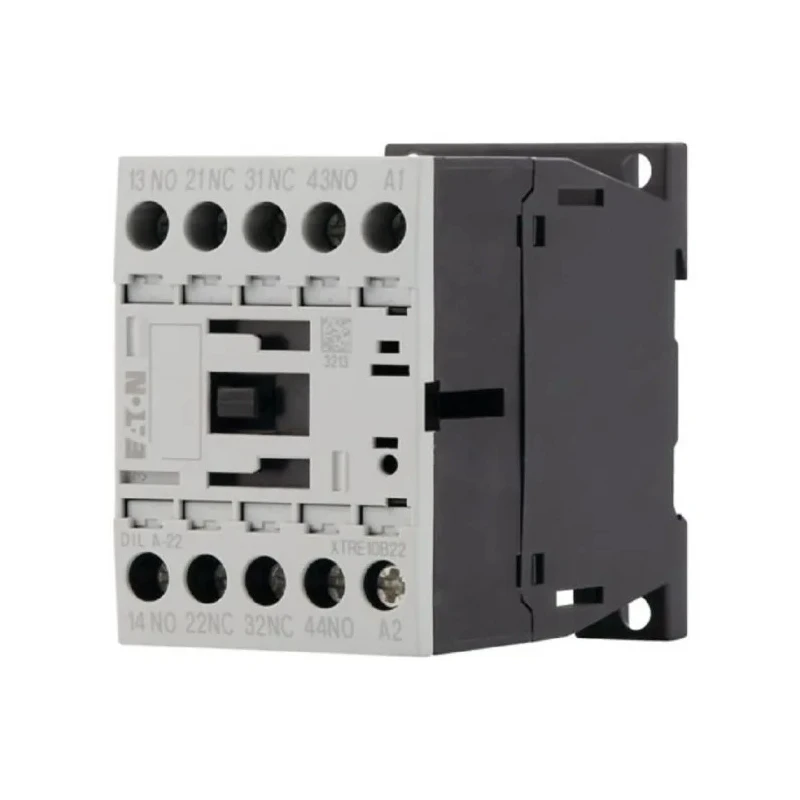

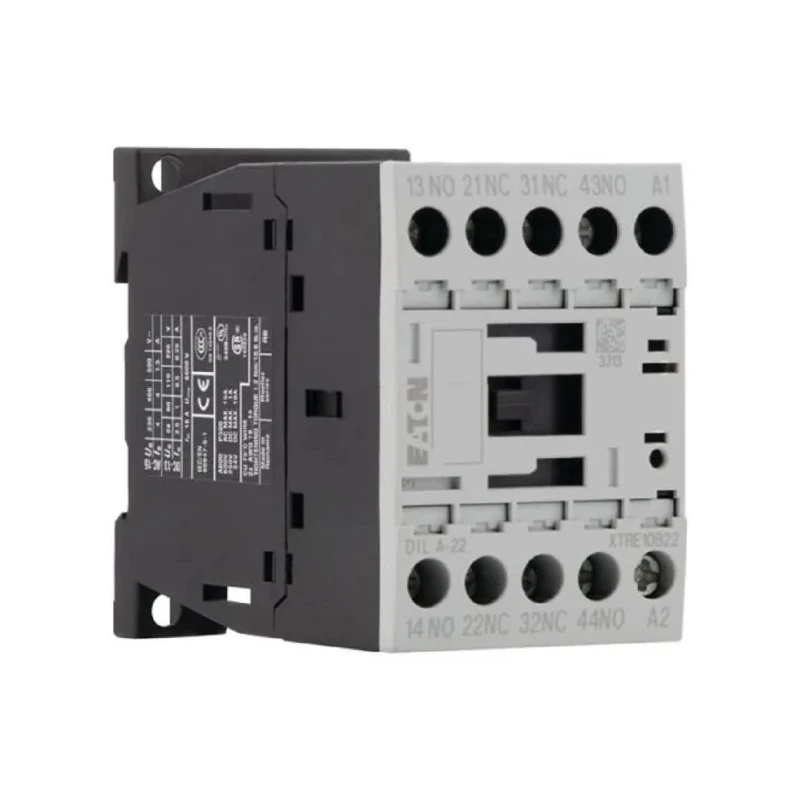

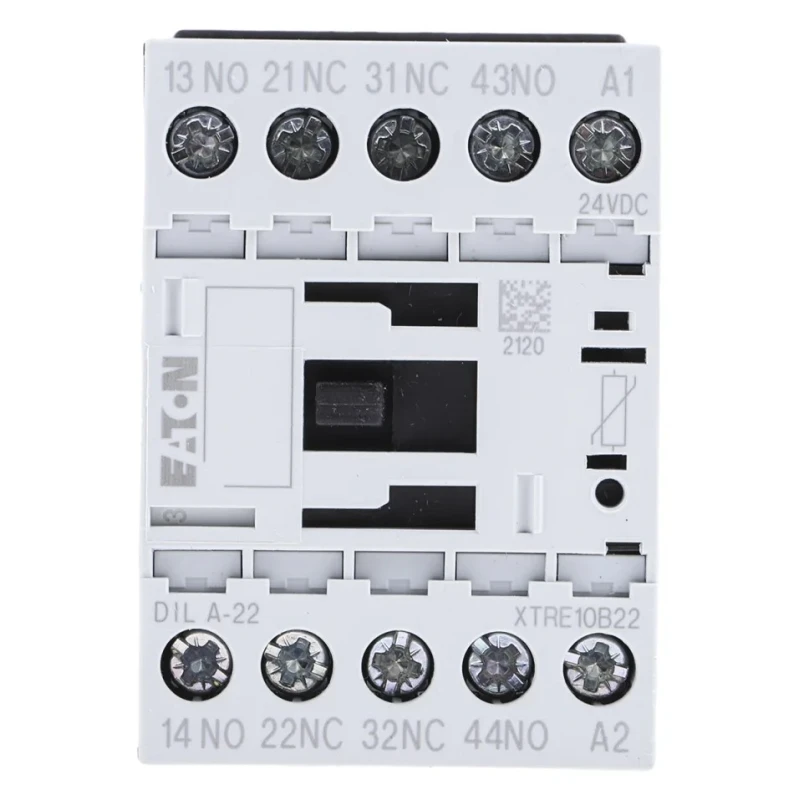

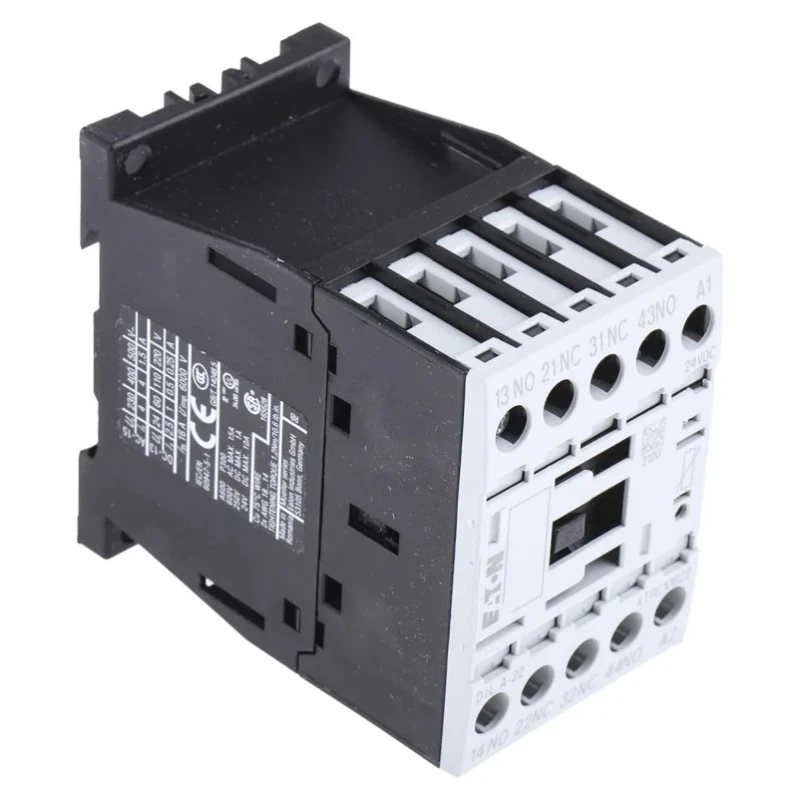

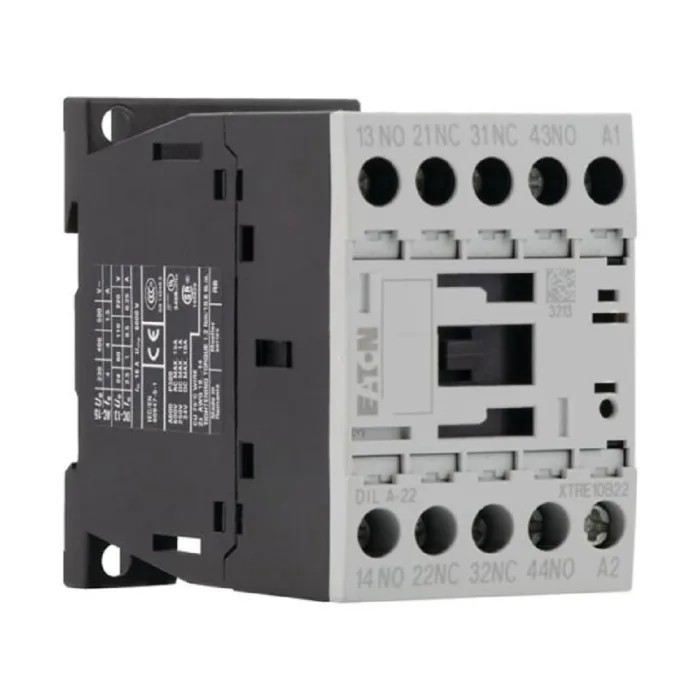

Eaton Contactor 24V DC Coil 4-Pole, 4 A Contact Current, 415V AC Contact Voltage 276414 DILA-22(24VDC)

Eaton 276414 DILA-22(24VDC) Contactor is a high-performance automation and control gear device designed with a 24V DC coil and 4-pole configuration. It supports a contact current of 4A at 415V AC, suitable for advanced electrical circuit switching and control applications.

This contactor is part of the DILA series, recognized for robust performance in industrial environments. Featuring a rated impulse withstand voltage of 6000V AC, it provides enhanced protection against electrical surges. Its compact dimensions (125.2mm depth, 45mm length, 68mm width) and lightweight design (approximately 294g) facilitate easy mounting on DIN rails even in tight setups.

The unit operates effectively across a wide temperature range from -25°C to 60°C, ensuring reliability in harsh conditions. Its normal state configuration includes 2 normally open (NO) and 2 normally closed (NC) contacts with auxiliary contact configuration also set to 2 NO/2 NC, enhancing control versatility. Terminal connections use M3.5 threaded screws for secure fastening.

With an operational lifespan capable of 20 million cycles, this contactor meets the demands of heavy industrial usage, including applications in lighting networks, HVAC systems, and thermal evaporators. It carries multiple approvals including CE, VDE, UL, IEC, EN, and CSA standards, attesting to its compliance and safety in global markets.

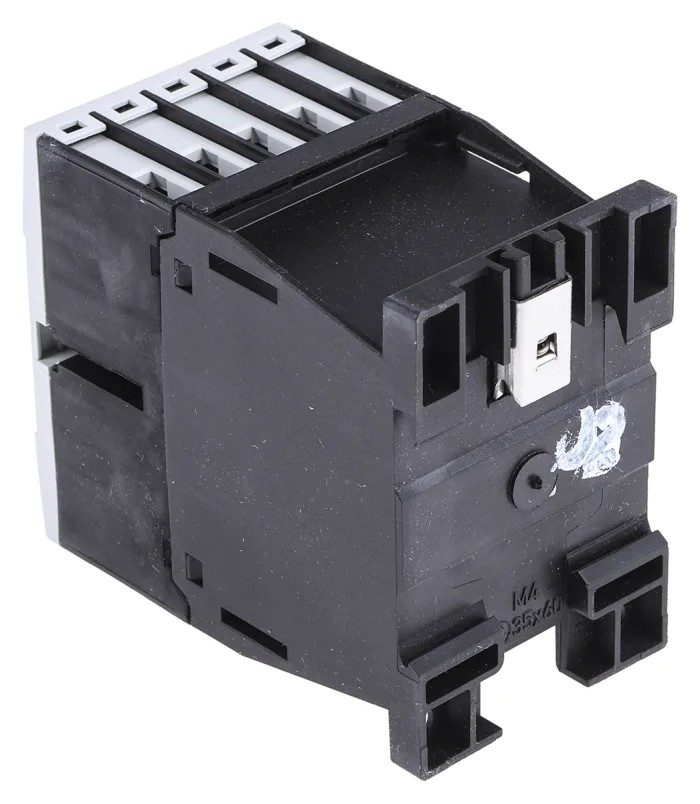

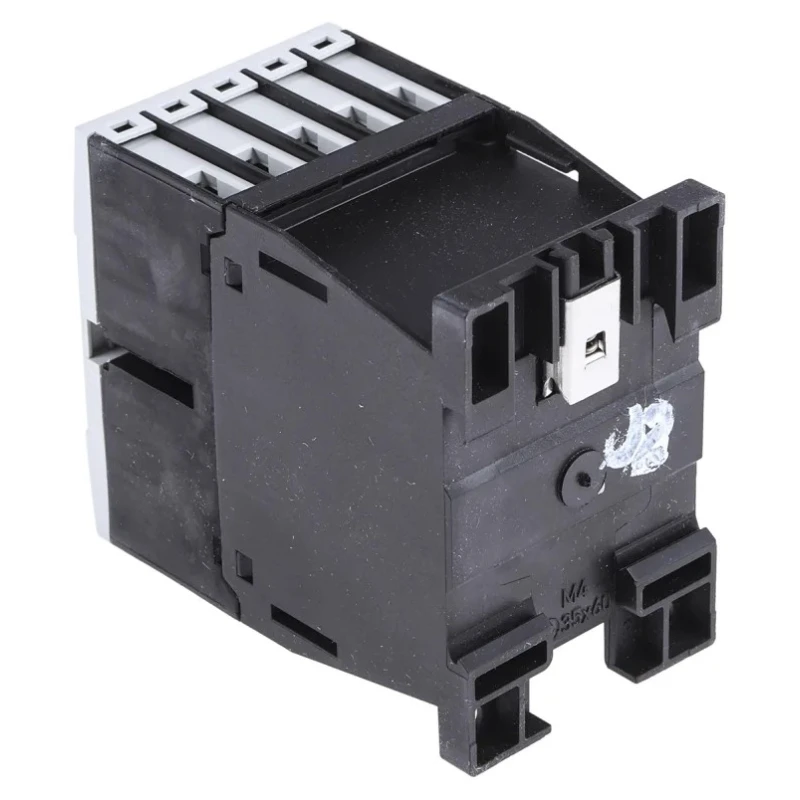

Designed for DIN rail mounting allowing easy installation in automation panels. Supports coil and control circuit voltage of 24V DC. Compact and lightweight form factor reduces installation space and load. IP20 rated enclosure safeguards users against accidental contact with live parts.

Robust design withstands electrical surges and high operations per hour cycle. Ideal for industrial and commercial electrical switching in automation systems. Terminal screws are M3.5 thread screwed type for reliable electrical connection.

Wide operating temperature range ensures functionality across environments. German engineered with high-quality components and manufacturing standards.

This Eaton contactor is essential for industrial automation, electrical distribution, and control applications where reliability and durability are critical. Browse the Automation & Control Gear category in EnvMart to explore more Contactors and related components designed for precise industrial automation and control needs.
