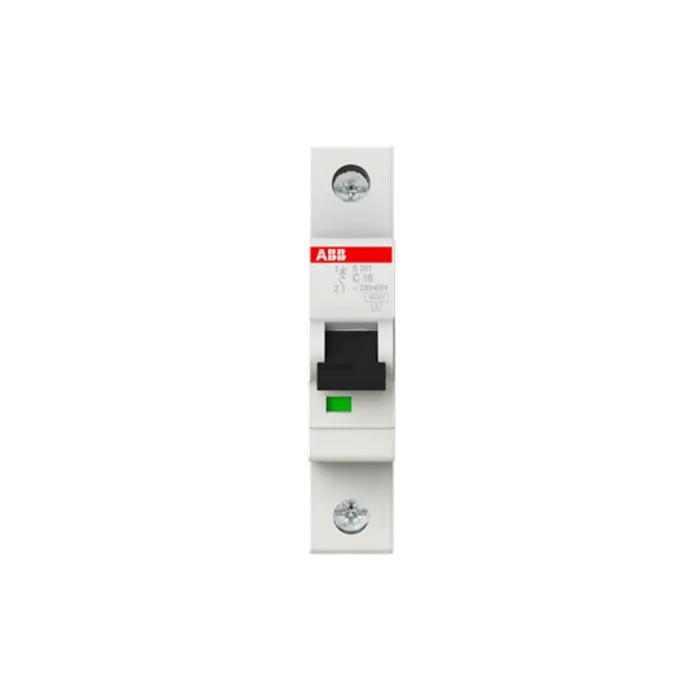

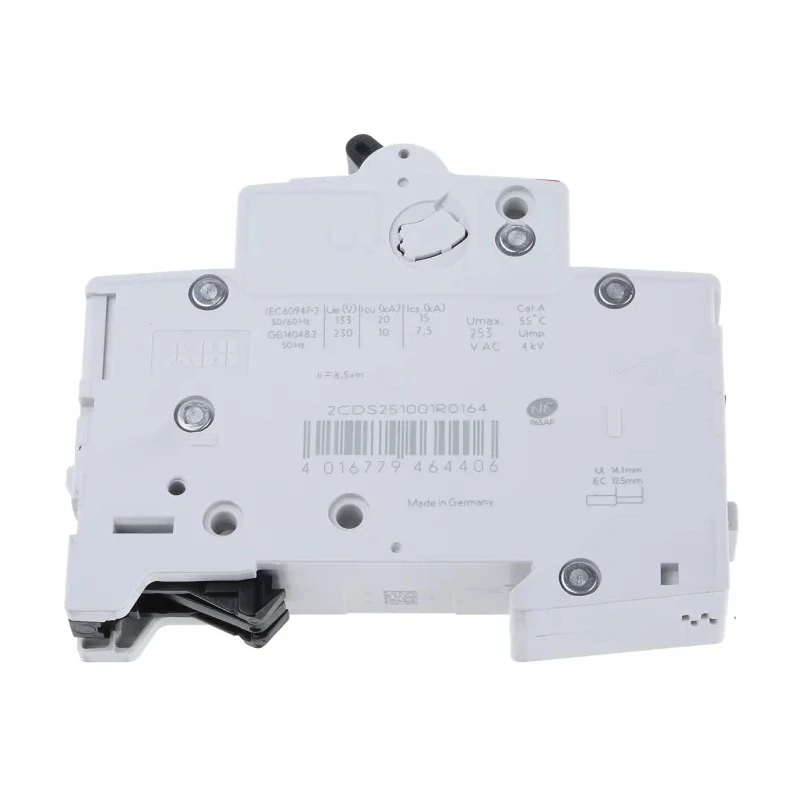

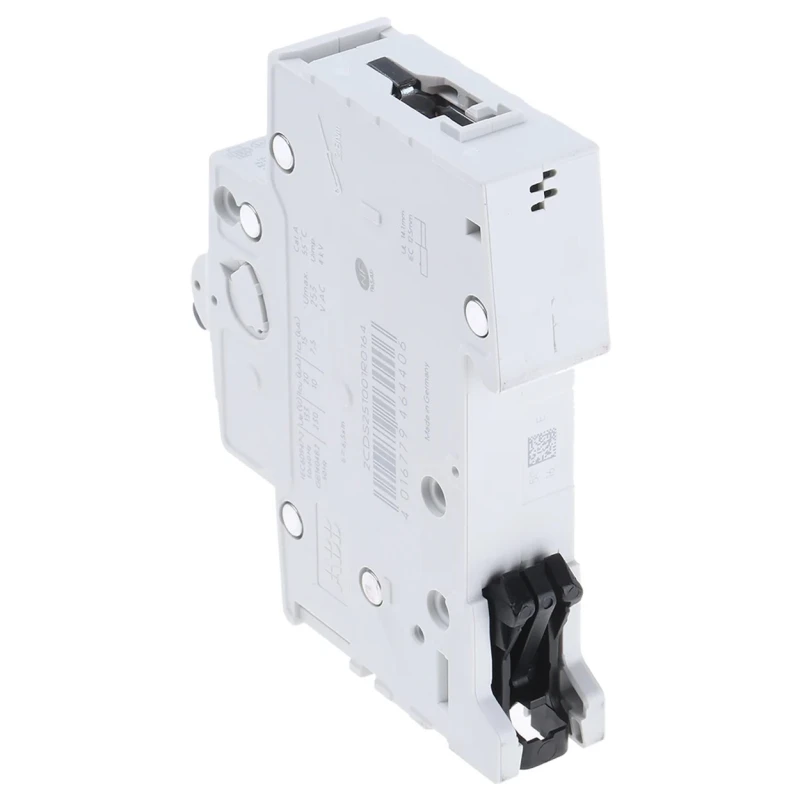

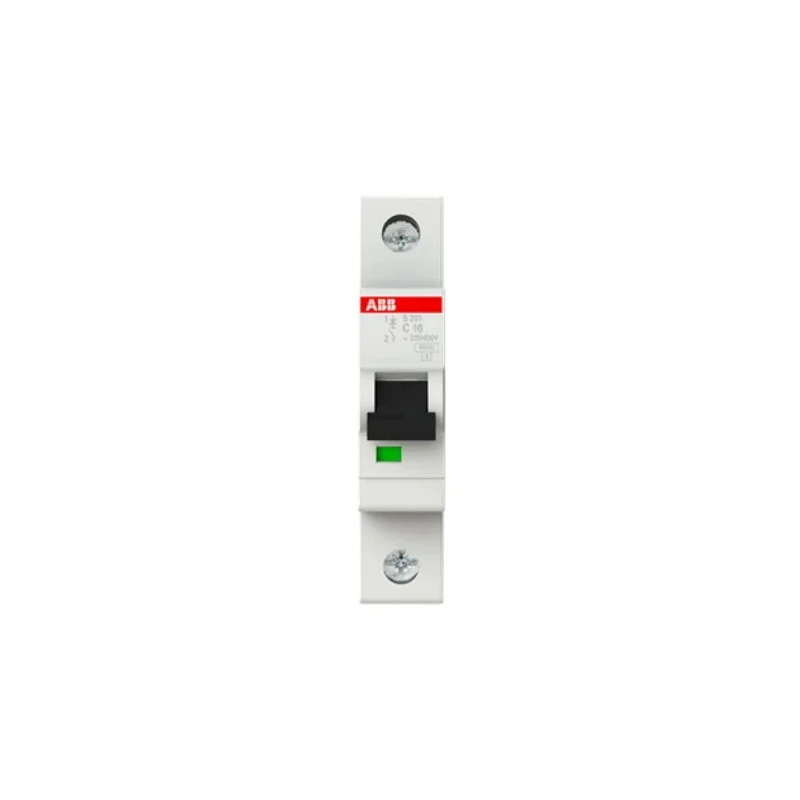

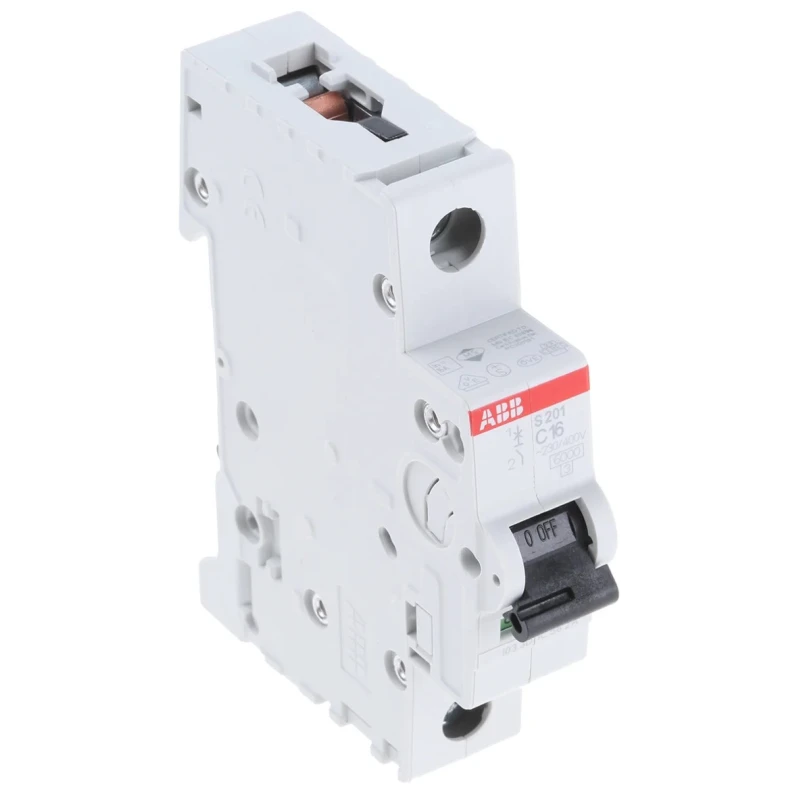

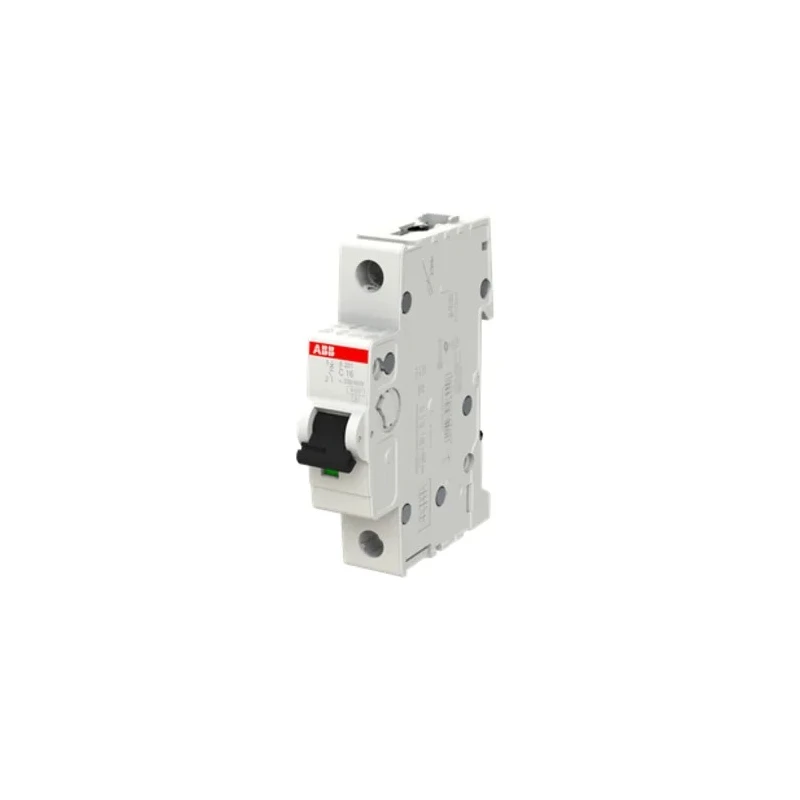

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 16A, Type C, 253V AC, 72V DC, 6kA 2CDS251001R0164 - S201C16

ABB 2CDS251001R0164 - S201C16 System Pro M Compact Miniature Circuit Breaker provides robust protection for electrical circuits in industrial and commercial settings. This 1-pole breaker is designed for high reliability and versatility, suitable for alternating current (AC) and direct current (DC) applications. With a rated current of 16A and type C tripping characteristics, it offers excellent protection for circuits with moderate inrush currents such as motors and lighting circuits.

This device mounts easily on a standard DIN rail with screw terminals for a secure and durable electrical connection. It features a rated AC voltage of 253V and DC voltage of 72V, supporting various power supply configurations. The breaking capacity of 6kA ensures that it can safely interrupt short-circuit currents, helping to protect downstream equipment and personnel.

The thermal tripping mechanism efficiently safeguards circuit integrity by detecting prolonged overload conditions, preventing potential overheating. Compact dimensions (88mm height, 17.5mm width, 76mm depth) allow for efficient use of space within electrical panels. The breaker also complies with IP20 and IP40 ingress protection, safeguarding users from accidental contact and protecting internal parts from solid objects larger than 12mm.

Durability is assured with a mechanical endurance of 2000 operating cycles, making this Miniature Circuit Breaker a reliable choice in demanding environments. Typical applications include uninterruptible power supplies (UPS), industrial winding motors, welding machines, and X-ray equipment. Manufactured in Germany under IEC/EN standards 60898-1 and 60947-2, it guarantees quality and safety compliance.

Designed for DIN rail mounting with screw terminal type for secure wiring connections. Rated for 253V AC and 72V DC operating voltage ensuring dual voltage compatibility. Breaking capacity of 6kA provides reliable disconnection during overloads or short circuits.

Type C tripping characteristics suitable for high inrush current loads like motors and welding equipment. Thermal tripping mechanism ensures protection against prolonged overloads. Compact design with dimensions 88mm height, 17.5mm width, and 76mm depth saves panel space.

IP20 and IP40 ratings provide protection against ingress of solid objects and enhances user safety. Mechanical endurance tested for 2000 cycles ensuring long service life in demanding industrial environments. Suitable for use in UPS systems, industrial winding motors, welding applications, and X-ray machines.

Manufactured in Germany according to IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality assurance.
