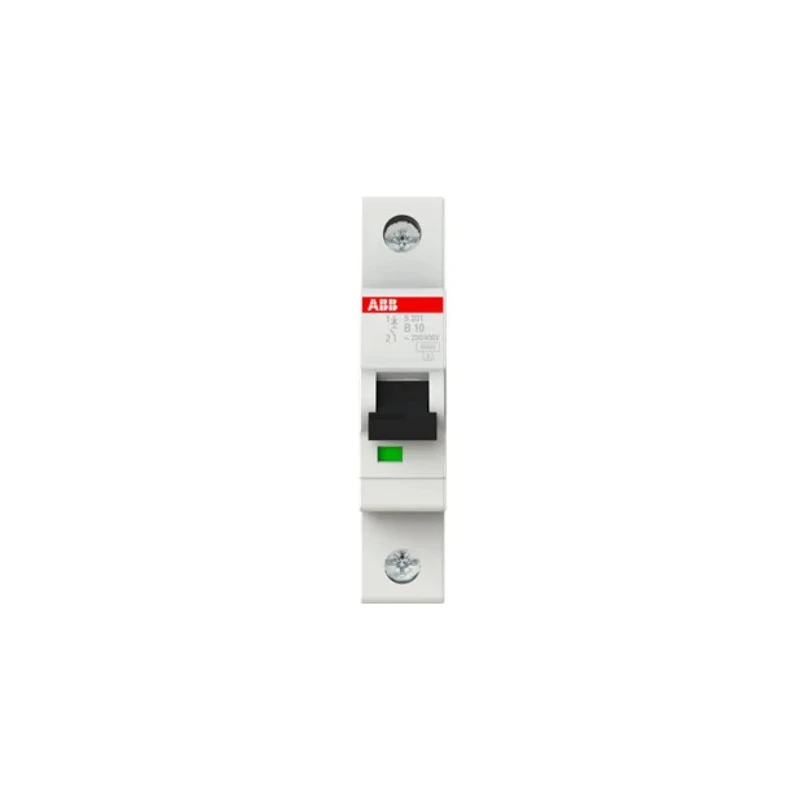

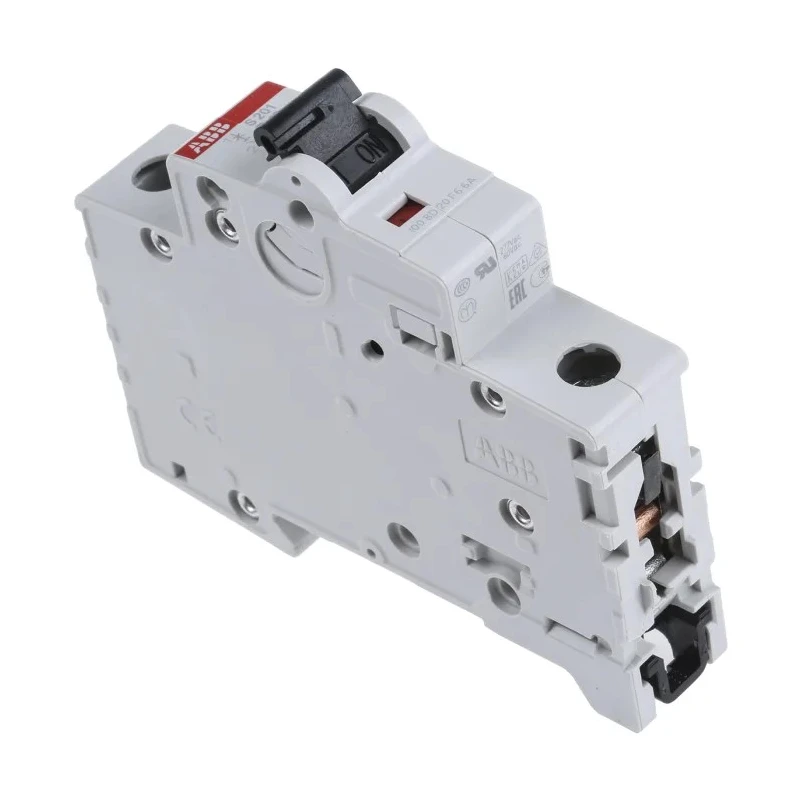

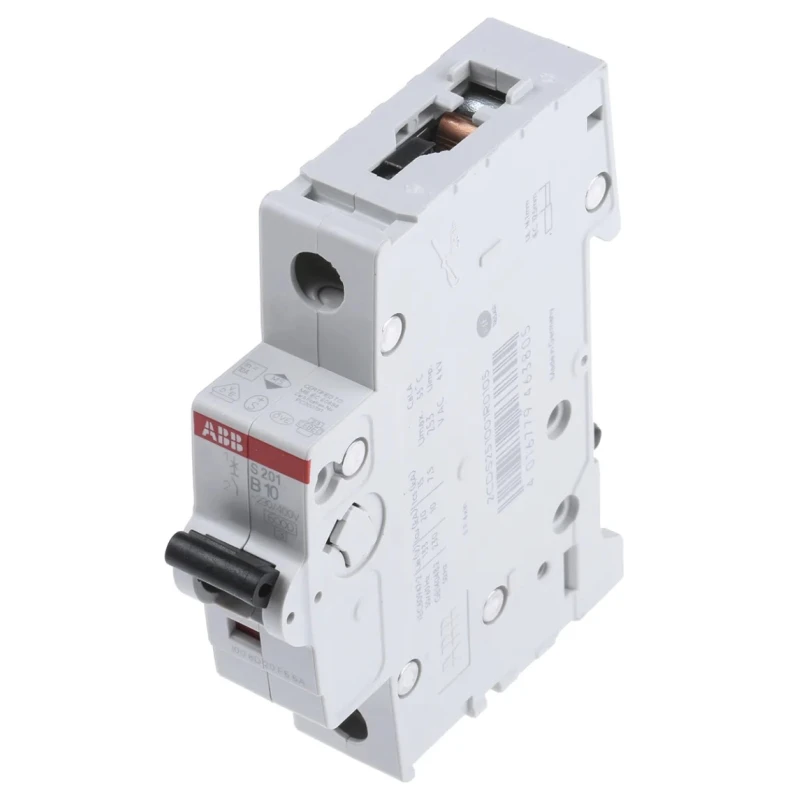

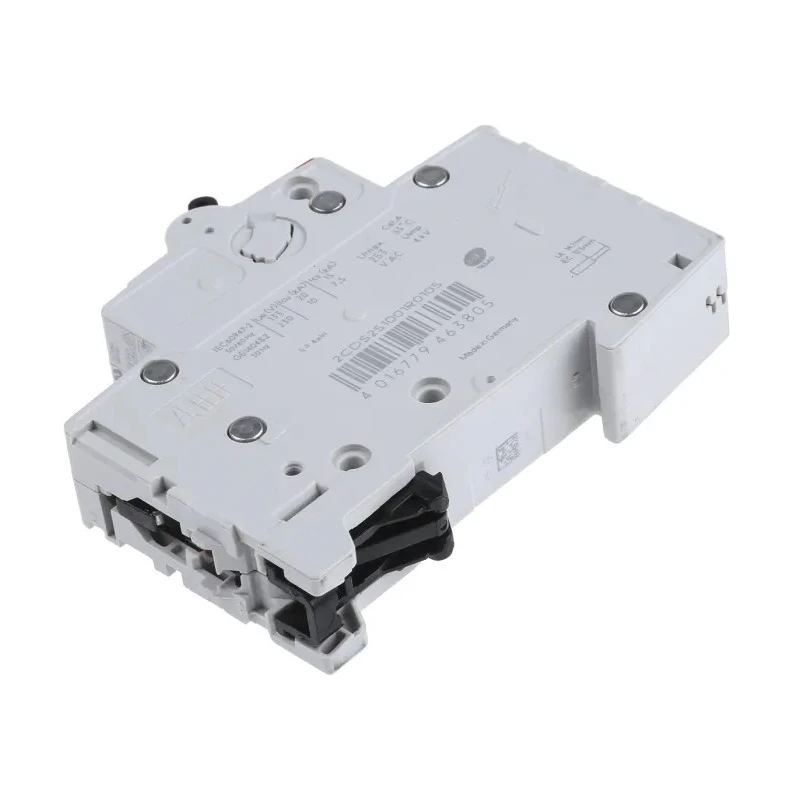

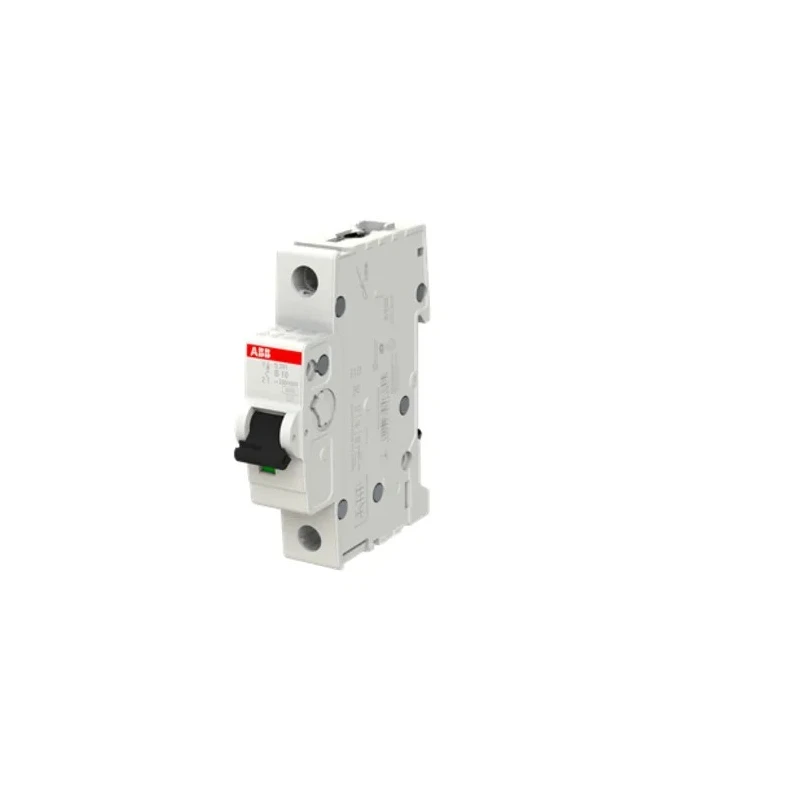

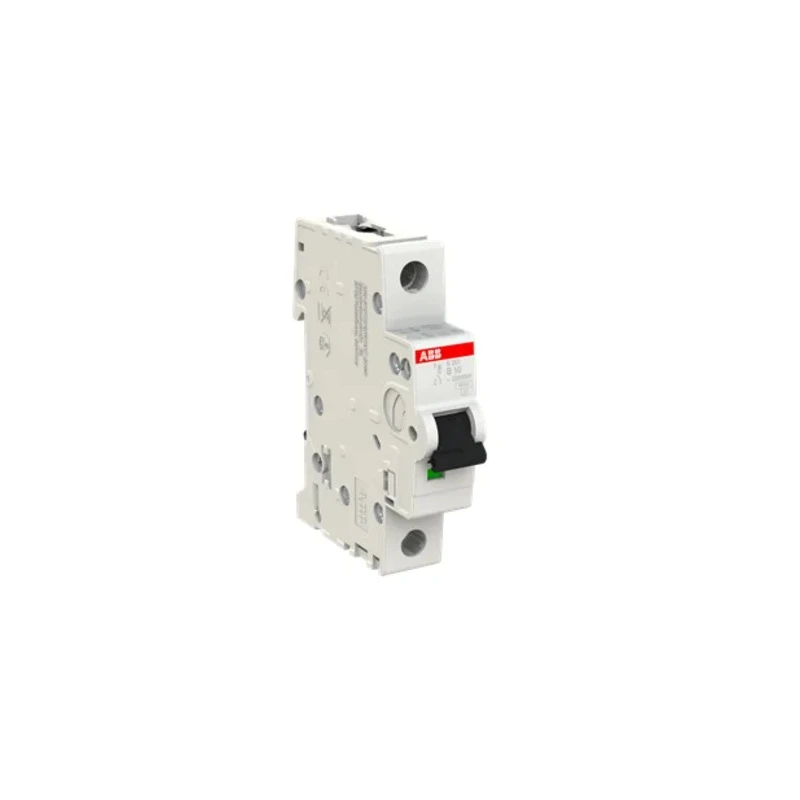

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 10A, Type B, 253V AC, 72V DC, 6kA 2CDS251001R0105 - S201B10

ABB 2CDS251001R0105 - S201B10 is a single-pole miniature circuit breaker from the System Pro M Compact series, rated at 10A with Type B tripping characteristic. It supports both AC voltage up to 253V and DC voltage up to 72V, with a breaking capacity of 6kA, making it suitable for residential, light commercial, and industrial electrical distribution protection.

This MCB includes a thermal tripping mechanism that operates instantly when the current exceeds 3 to 5 times the rated current, providing sensitive protection against overcurrent conditions typically seen in residential environments with small surges. Its current-limiting design reduces potentially harmful currents during faults, enhancing user safety.

The unit features a robust construction with a screw-type terminal and mounts effortlessly on a standard 35mm DIN rail, saving valuable installation time. The compact design with a width of 17.5mm allows efficient space utilization within electrical panels. Its IP20 rating ensures safety from ingress of solid objects larger than 12mm and finger access, making it a durable solution even in demanding environments resistant to shock and vibration.

Engineering compliance is maintained with IEC/EN 60898-1 and IEC/EN 60947-2 standards, reflecting high manufacturing and safety quality. The MCB is proudly made in Germany, offering reliability and robustness for diverse electrical system applications.

Rated for 253V AC and 72V DC operation ensuring versatility. Features a breaking capacity of 6kA to safely interrupt fault currents. Type B tripping characteristic provides sensitivity suitable for residential surges. Mounts easily on 35mm DIN rail for efficient installation.

IP20 protection ensures safety against finger contact and objects larger than 12mm. Screw terminal type for secure wiring connections. Thermal tripping mechanism offers precise overcurrent response. Compact dimensions save panel space.

Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards. Manufactured in Germany ensuring high quality.

This Miniature Circuit Breaker is ideal for light commercial spaces, domestic distribution panels, and factories requiring reliable overcurrent protection. Discover more advanced circuit protection devices and accessories in the Electronics & Electricals category at EnvMart.
