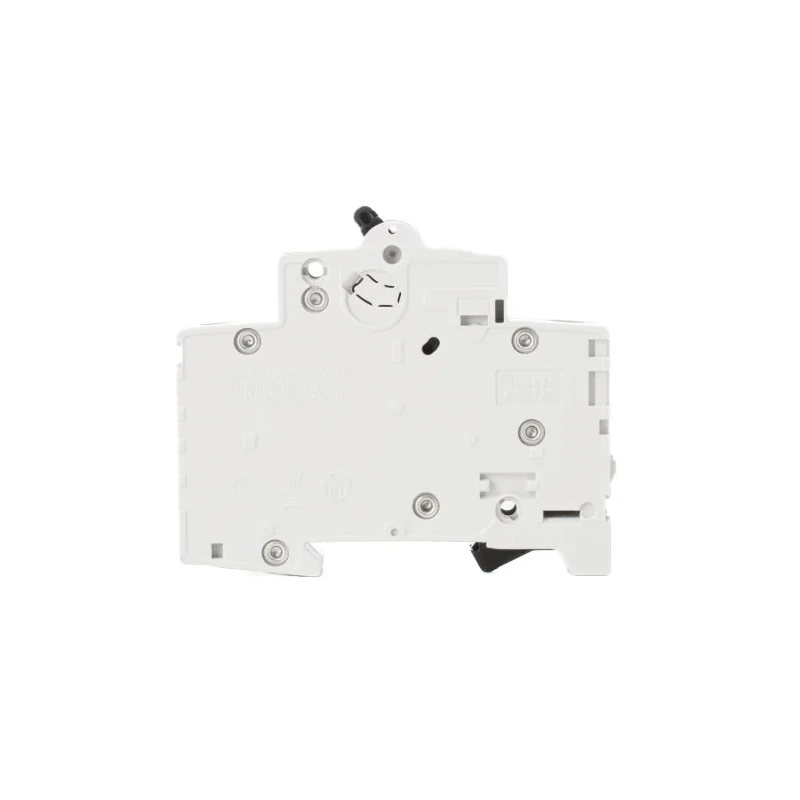

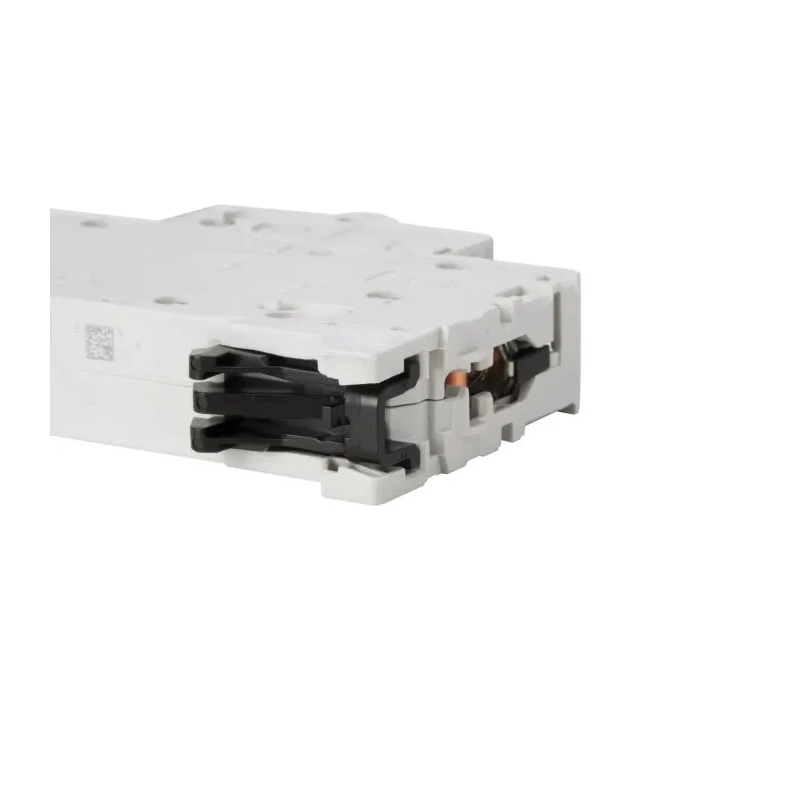

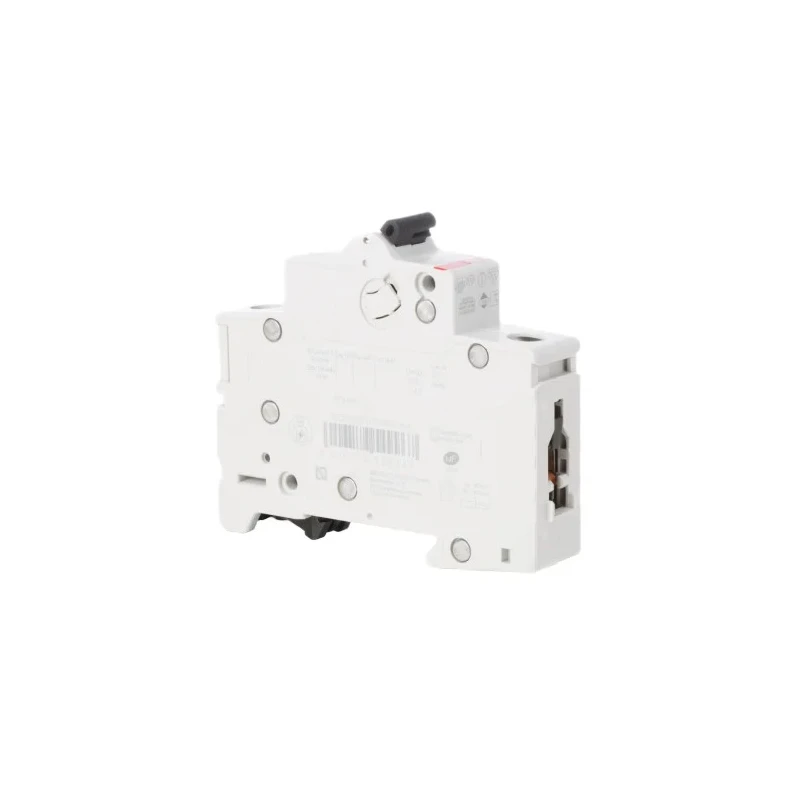

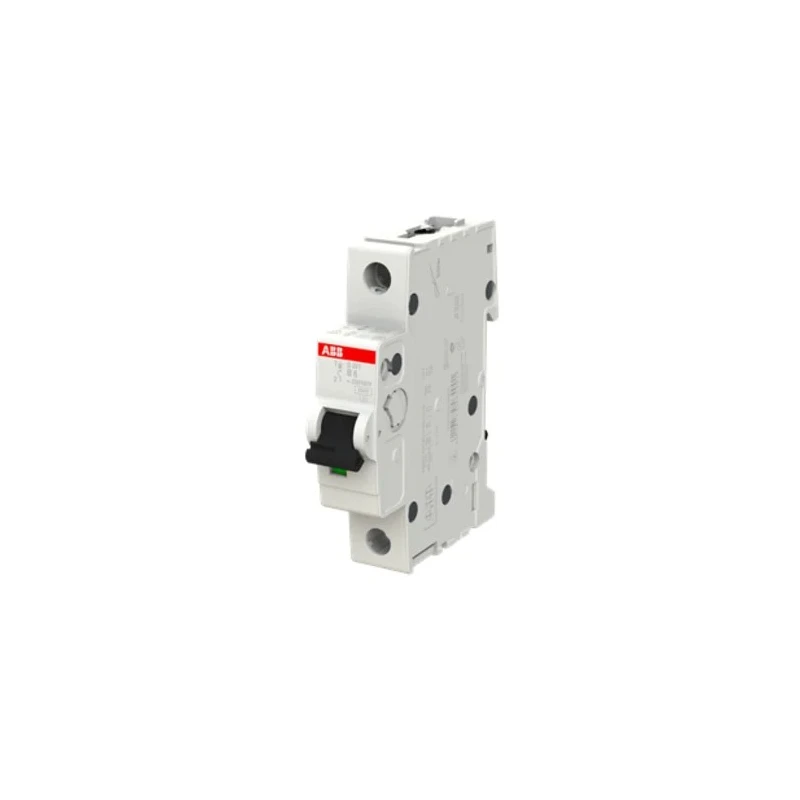

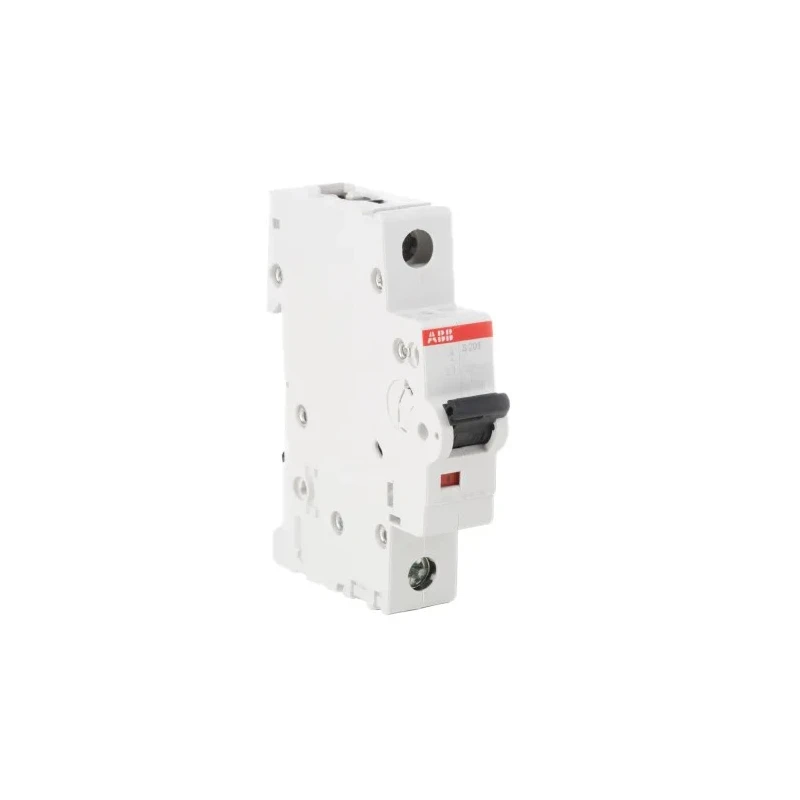

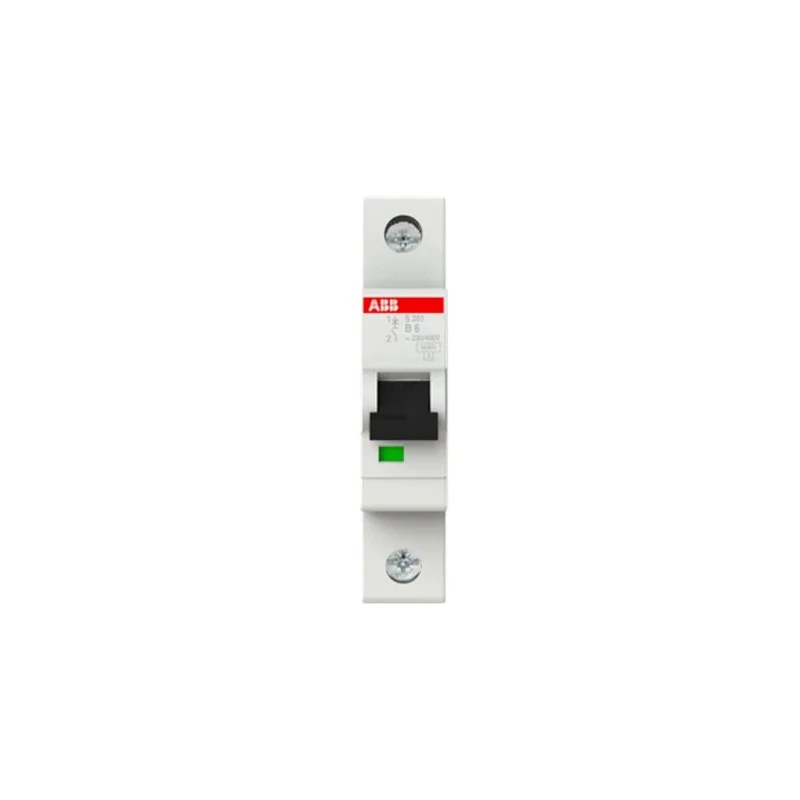

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 6A Current Rating, Type B Tripping 2CDS251001R0065 - S201B6

ABB 2CDS251001R0065 - S201B6 System Pro M Compact Miniature Circuit Breaker is engineered for dependable circuit protection with a 6A current rating. It is a single-pole breaker suitable for single-phase electrical systems across domestic, commercial, and office environments. The type B tripping characteristic ensures the breaker trips between 3 to 5 times the rated current, making it ideal for resistive loads.

Its thermal tripping mechanism protects circuits efficiently from overcurrent and short circuits. Designed for DIN rail mounting, it provides easy and secure installation through screw terminals compatible with wire sizes ranging from 18 to 4 AWG. Rated for both AC and DC voltages (253V AC and 72V DC), this breaker is versatile for various power supply configurations.

The breaker features a compact thermoplastic housing that is robust against impacts and abrasion. It holds an IP40 rating, providing finger safety and protection against ingress of solid objects larger than 1 mm. It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring high safety and reliability in electrical installations.

Compact physical dimensions (88mm height, 17.5mm width, and 69mm depth) allow efficient space management in electric panels. With a breaking capacity of 6kA, it is suited for protecting circuits from fault currents. The product offers long-term reliability with mechanical endurance of 20,000 operating cycles.

This MCB is widely applicable in domestic distribution boxes, offices, classrooms, and commercial premises requiring robust circuit safety. Its design ensures quick and secure cable terminations using a Pozidriv 2 screwdriver.

The compact design and compliance with international standards make it a preferred choice in automation and electrical distribution systems. System Pro M Compact range ensures modularity and consistent quality across installations.

IP20 and IP40 grades provide options for varying environmental protection requirements.
