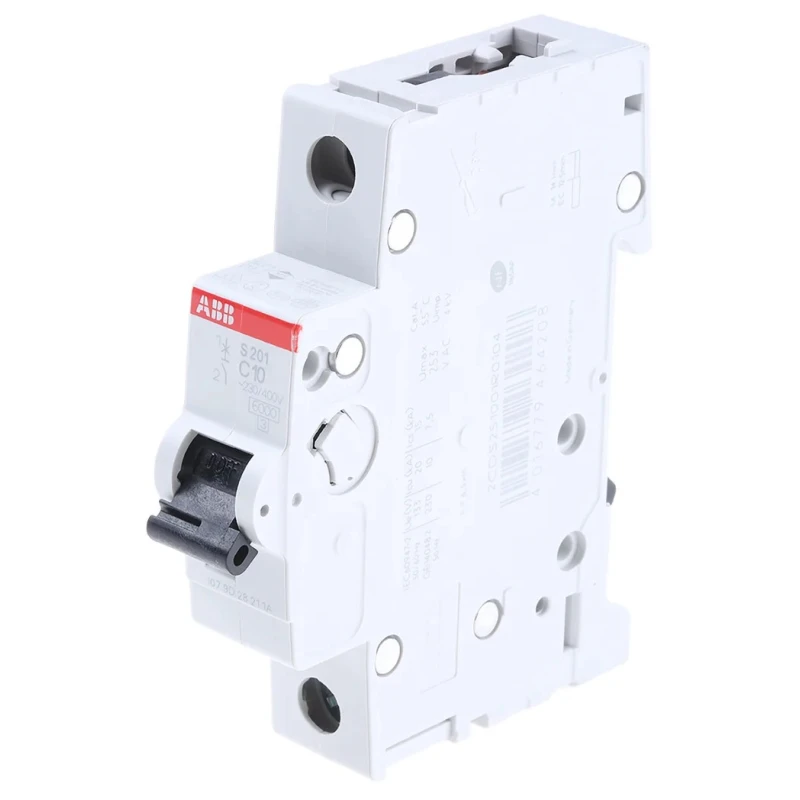

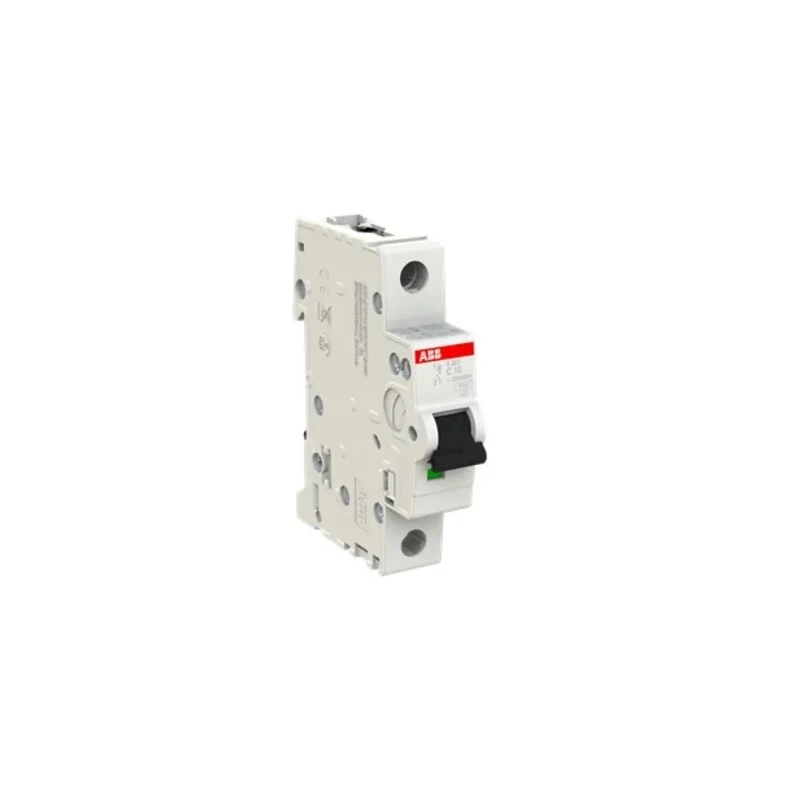

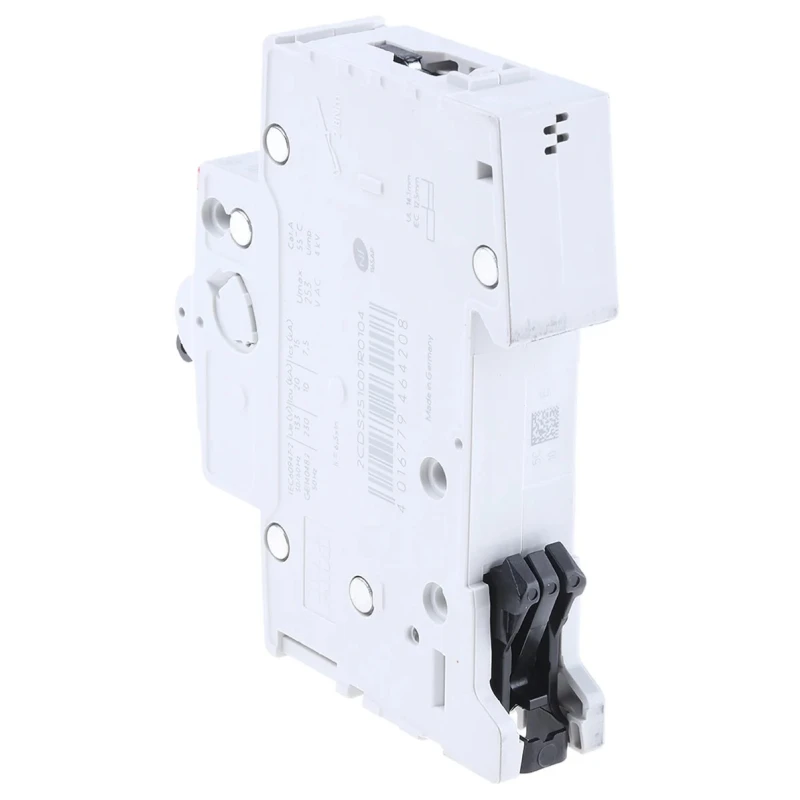

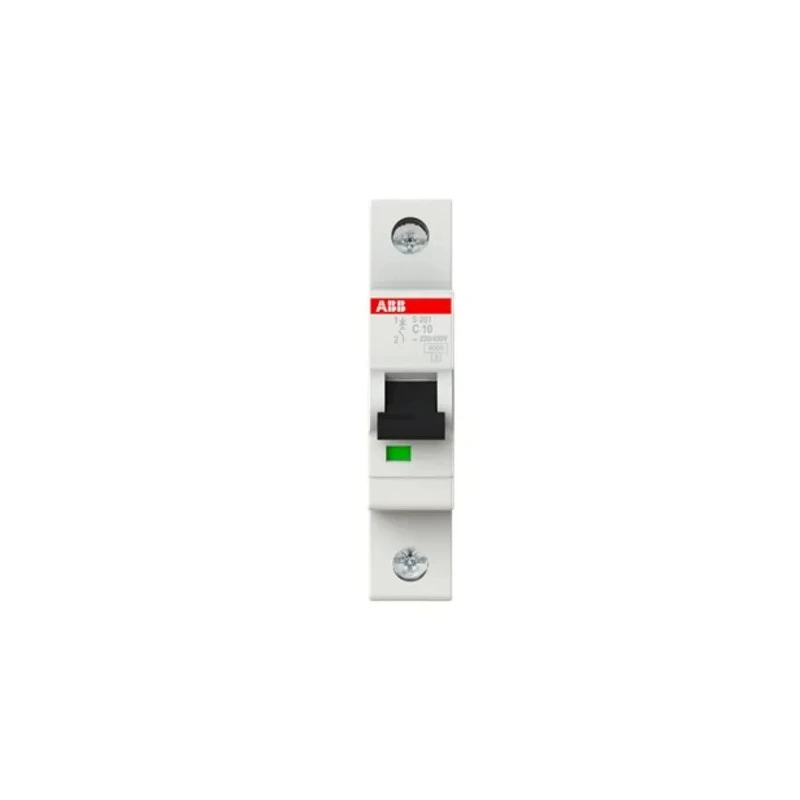

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 10A, Type C, 253V AC, 72V DC, 6kA 2CDS251001R0104 - S201C10
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251001R0104 - S201C10 |
| Depth | 76mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal |
| MK Electric Sentry 10A1P Curve CBrand | MK Electric |
Key Features
- Rated for 253V AC and 72V DC for versatile usage.
- Breaking capacity of 6kA ensuring reliable protection.
- Mounts easily on standard 35mm DIN rail.
- Thermal tripping mechanism for effective overload protection.
- Supports cable sizes up to 35mm² to handle large conductors.
- IP20 and IP40 ratings provide protection against contact and dust.
- Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
- Compact size with dimensions 88mm height, 17.5mm width, and 76mm depth.
Product Description
ABB 2CDS251001R0104 - S201C10 System Pro M Compact Miniature Circuit Breaker is designed for industrial and commercial electrical installations requiring compact and reliable protection solutions. This 1-pole MCB offers a nominal current rating of 10A and Type C tripping characteristics, suitable for protecting circuits with medium surge currents typically found in industrial motors and fluorescent lamps.
The breaker is rated for AC voltages up to 253V and DC voltages up to 72V, providing versatile use across different electrical systems. With a breaking capacity of 6kA, it effectively interrupts short-circuit faults to safeguard equipment and installations.
Its thermal tripping mechanism employs a bimetallic strip to protect against overcurrent and uses an electromagnetic coil for short-circuit protection. The device is easy to mount on a standard 35mm DIN rail, enabling quick installation without the need for additional tools.
Designed with screw terminals, it accepts conductors up to 35mm² (approximately 2 AWG), allowing compatibility with a wide range of cable sizes. The compact dimensions (88mm height, 17.5mm width, and 76mm depth) and IP20/40 ratings ensure suitability for various enclosures and environments, including settings subject to shock and vibration.
The product is manufactured in Germany and complies with international standards IEC/EN 60898-1 and IEC/EN 60947-2, guaranteeing quality and safety for demanding electrical applications. Typical uses include industrial installations, aerospace engineering, motor protection, and fluorescent lamp circuitry.
Rated current: 10A with Type C tripping. Breaking capacity: 6kA at 253V AC and 72V DC. Mounts on standard 35mm DIN rail. Thermal and electromagnetic tripping mechanisms provide comprehensive protection. Accepts cables up to 35mm².
Compact size and IP20/40 protection ratings. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Manufactured in Germany. Explore more Circuit Breakers and Miniature Circuit Breakers in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 10A, suitable for various electrical applications.
It is rated for AC voltages up to 253V and DC voltages up to 72V, allowing versatile usage across different systems.
The breaking capacity is 6kA, providing effective interruption of short-circuit faults.
It mounts easily on a standard 35mm DIN rail, facilitating quick installation without additional tools.
It employs a thermal tripping mechanism, utilizing a bimetallic strip for overload protection and an electromagnetic coil for short-circuit protection.
The dimensions are 88mm in height, 17.5mm in width, and 76mm in depth, making it compact for various installations.
It accepts conductors up to 35mm², allowing compatibility with larger cable sizes.
This unit has IP20 and IP40 ratings, providing protection against contact and dust in various environments.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and safety for electrical applications.
The tripping characteristic is Type C, suitable for protecting circuits with medium surge currents typically found in industrial applications.
This product is manufactured in Germany, ensuring adherence to high manufacturing standards.
It is typically used in industrial installations, aerospace engineering, motor protection, and fluorescent lamp circuitry.
